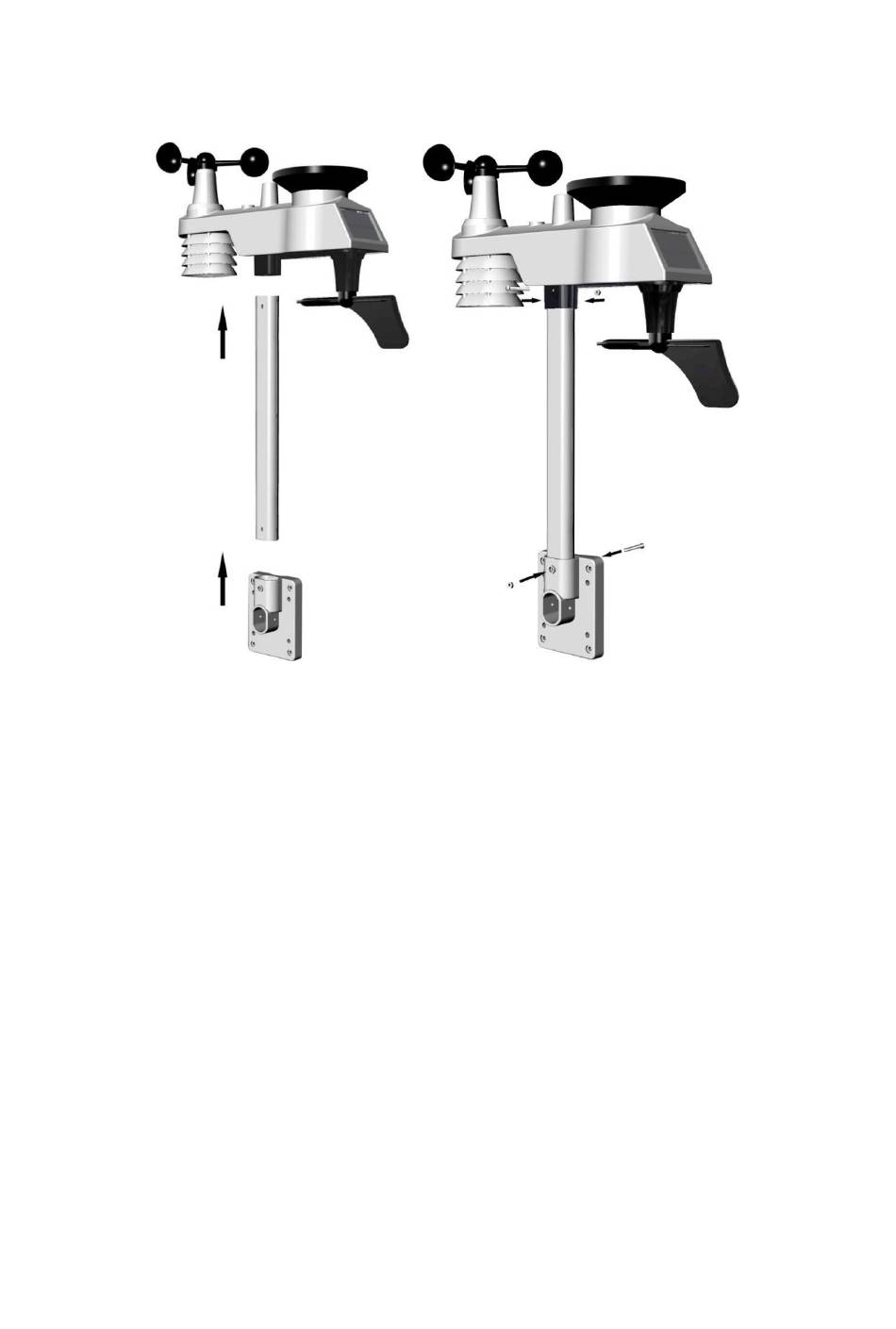

Fasten the integrated transmitter to mounting pole brackets with foot-mounting, two ￠3
bolts and M3 nuts , as shown in Figure 14
Figure 14
Tighten the mounting pole to your existing mounting pole with the four￠5 Bolts and M5
Nuts assembly, or fix on the wall with four tapping screw, as shown in Figure15.
11
