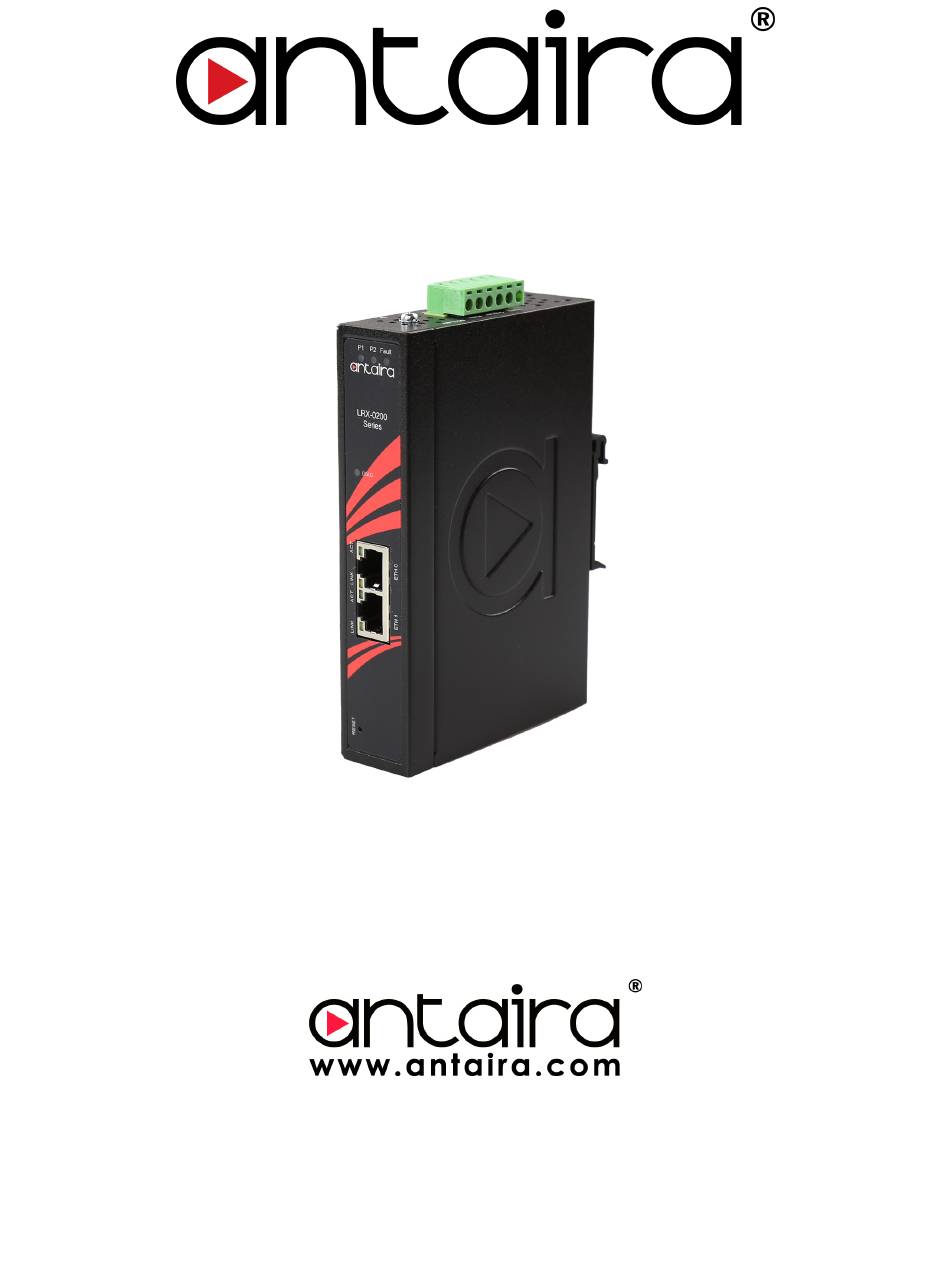

- Page 1 LRX-0200 Series Industrial Router with VPN/NAT Hardware Manual Version 1.0 (February 2023)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 6: Overview
12V. The LRX-0200 Series is capable of operating in different modes and with an extended operating temperature range (-35°C to 70°C), which makes it suitable for a wide variety of applications including long-distance deployments. -
Page 7: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The Industrial Ethernet Switch’s hardware specs, ports, cabling information, and wiring installation will be described within this hardware manual. - Page 8 Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Figure 1.1 - Caution Label Figure 1.1 - Étiquette de mise en garde Figure 1.2 - Hot Surface Warning Label Figure 1.2 - Étiquette d'avertissement de surface chaude...
-
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 30mm x 95mm x 140mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series:... -
Page 11: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the Industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 ● RJ45 Pin Assignments Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / RX+... -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Figure 2.6 - Power Terminal Block Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7. Figure 2.7 - Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 7 lbs. -
Page 14: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Figure 2.8 - Wiring the Fault Alarm Contact Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. - Page 15 Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Figure 2.9 - Grounding Screw Symbol Caution: Using a shielded cable achieves better electromagnetic compatibility. Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique...
-
Page 16: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the Industrial Ethernet Switch from the factory. If the DIN-Rail is not on the Industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 17: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the Industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 18 Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
- Page 19 Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 20: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LRX-0200 Series - Hardware Manual - v1.1 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the Industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 21: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the Industrial switch LED indicators are normal and the connected cables are correct but the packets still... - Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
