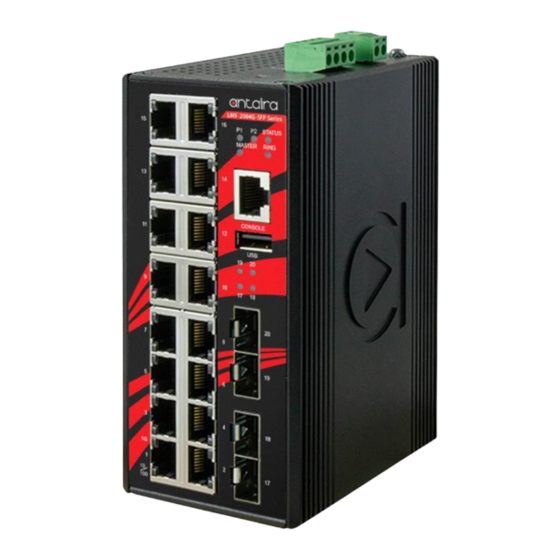

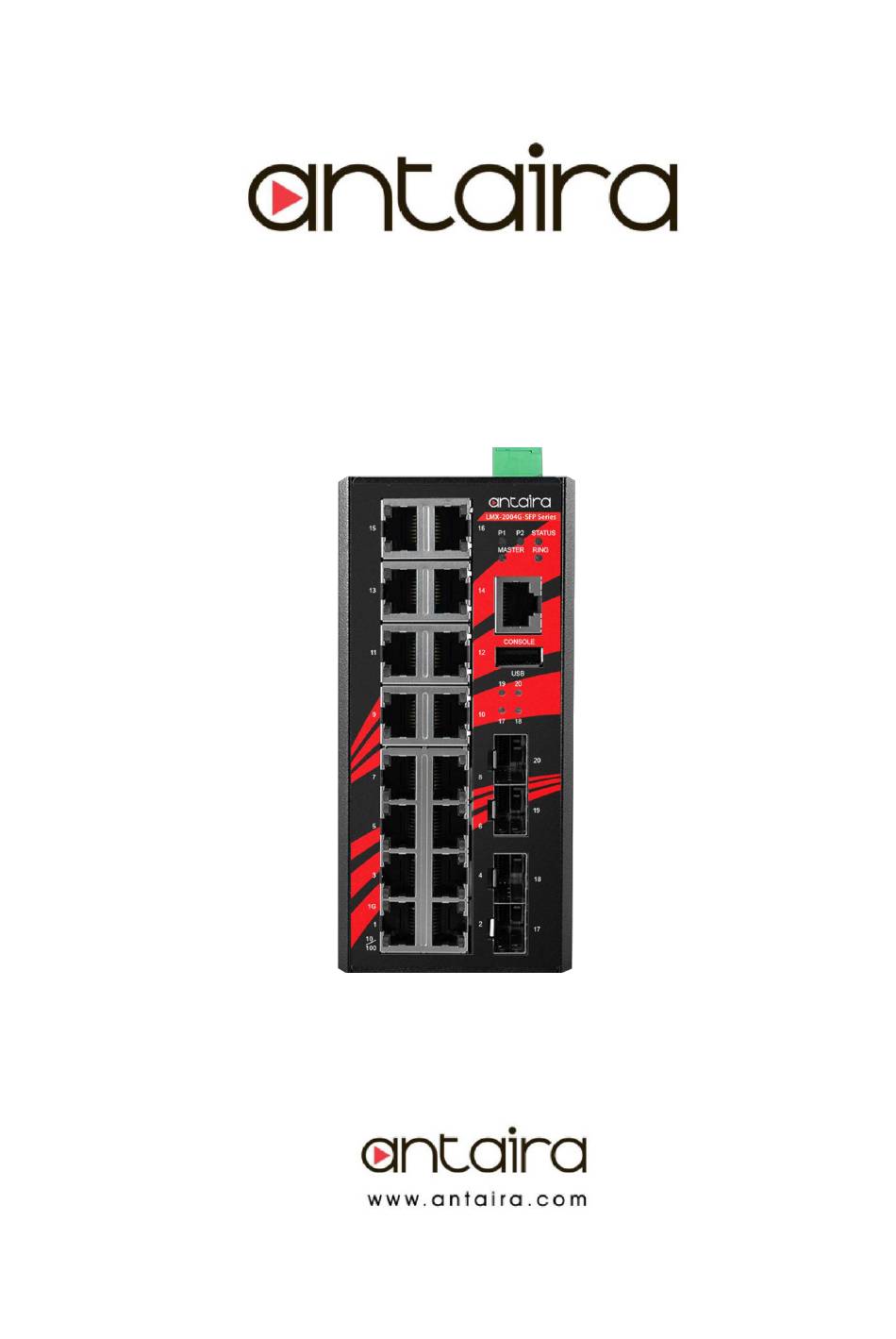

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Series User Manual V2.1 LMX-2004G-SFP Series 20-Port Industrial PoE+ Gigabit Managed Ethernet Switch, with 16*10/100/1000Tx Ports and 4*100/1000 SFP Slots; 12~48VDC Power Input Hardware Manual Version 1.0 (July 2019)
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-2004G-SFP series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 ➢ IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group ➢ Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ➢... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 1.4 Package Contents 1 – LMX-2004G-SFP(-T) 1 – Quick Installation Guide 1 – Wall mounting bracket set with screws 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm 1 –... -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-2004G-SFP series: (W x D x H) is 67mm x 99mm x 142mm Figure 2.1 LMX-2004G-SFP Series Physical Dimensions... -
Page 9: Front Panel
The Front Panel of LMX-2004G-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMX-2004G-SFP series switch that is equipped with one 4-pin removal terminal block connector (Relay and Power 2 Input) and one 2-pin removal terminal block connector (Power 1 Input) (12~48VDC). -
Page 10: Led Indicators
Flashing Networking is active (Right LED) Not connected to network Table 2.1 - LED Indicators for LMX-2004G-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 Pin MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 Note: Only use copper conductors, 60/75°C, tighten to 5lbs. • The wire gauge for the terminal block should range between 18~20 AWG. • The wire gauge for the terminal block should range between 12 ~ 24AWG Caution: 2.10 Grounding Note... -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-2004G-SFP series: Caution: This device is intended for use indoor and at altitudes up to 2000 meters. Caution : The device is intended to be installed in an industrial control enclosure and panel. -
Page 17: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 4.2 Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. -
Page 18: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMX-2004G-SFP Series Hardware Manual V1.0 Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-2004G-SFP series: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3z Gigabit Fiber IEEE 802.3x... - Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
