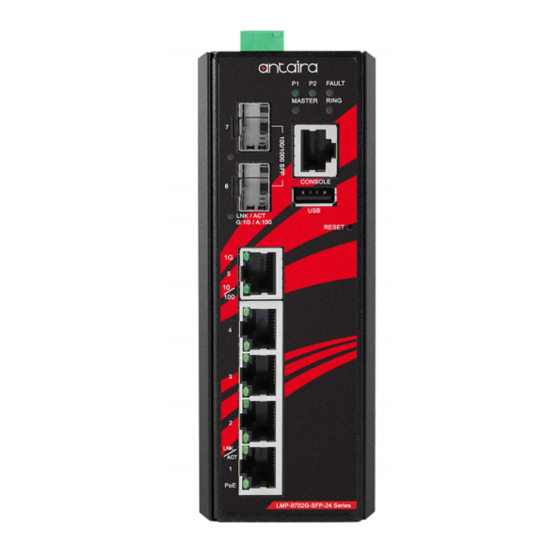

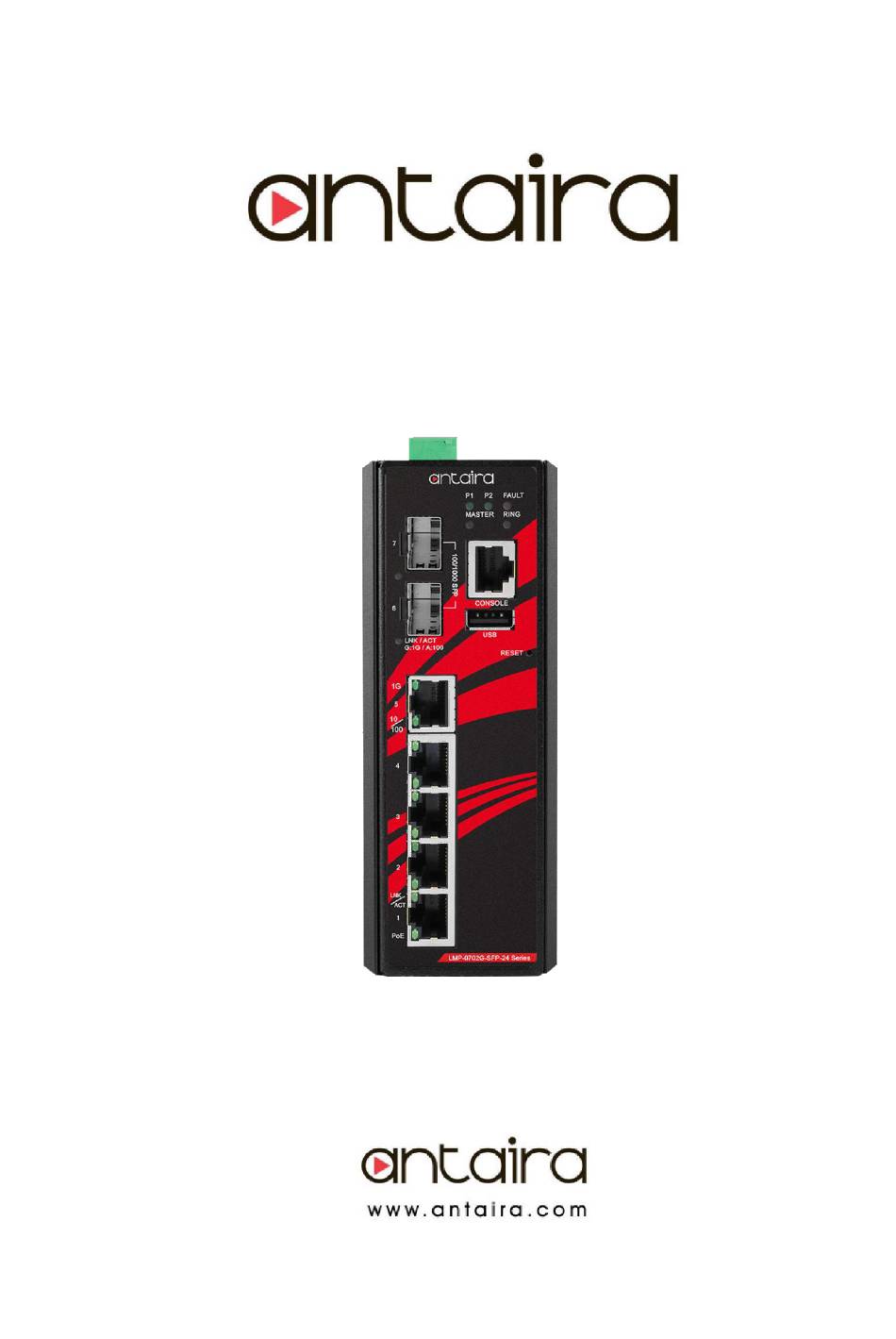

- Page 1 LMP-0702G-SFP-24-V2 Series 7-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 2*100/1000 SFP Slots; 12~55VDC Power Input; Version 2 Hardware Hardware Manual Version 1.0 (June 2020)
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 CE Mark Warning This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 Table of Contents 1. Introduction ................1 1.1 Product Overview ................1 1.2 Product Software Features ............... 1 1.3 Product Hardware Features ............. 2 1.4 Package Contents ................2 1.5 Safety Precaution ................ -
Page 6: Introduction
SCADA systems or control networks. The LMP-0702G-SFP-24-V2 series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 7: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 • IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024 group • Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP, HTTPS, SSH/SSL, TFTP •... -
Page 8: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 ➢ 1 – Wall mounting bracket set with screws ➢ 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm ➢ 1 – RJ45 to DB9 serial console cable 1.5 Safety Precaution... -
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0702G-SFP-24-V2 series: (W x D x H) is 54mm x 99mm x 142mm Figure 2.1 LMP-0702G-SFP-24-V2 Series Physical Dimensions... -
Page 10: Front Panel
Figure 2.2 - The Front Panel of LMP-0702G-SFP-24-V2 Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMP-0702G-SFP-24-V2 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC). -
Page 11: Led Indicators
LAN Port 1~4 (Lower LED) Not connected to a powered-device Green Table 2.1 - LED Indicators for LMP-0702G-SFP-24-V2 Series Note: "P1" is the abbreviation for "Power 1", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 12: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save start-up configurations by pressing the button for different seconds. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 Pin MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) -
Page 14: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.6. -
Page 15: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normal open circuit. -
Page 16: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 2.10 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. -
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 18: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall Attention: “Wall”... -
Page 19: Hardware Installation
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-0702G-SFP-24-V2 series: Caution: This device is intended for use indoor. Attention: Cet appareil est destiné à être utilisé à l'intérieur. Caution: The device is intended to be installed in an industrial control enclosure and panel. -
Page 20: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 4.2 Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. -
Page 21: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0 Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-0702G-SFP-24-V2 series: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, L2 Switching BPDU guard, Error disable recovery, IGMP v1/v2/v3 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2... - Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
