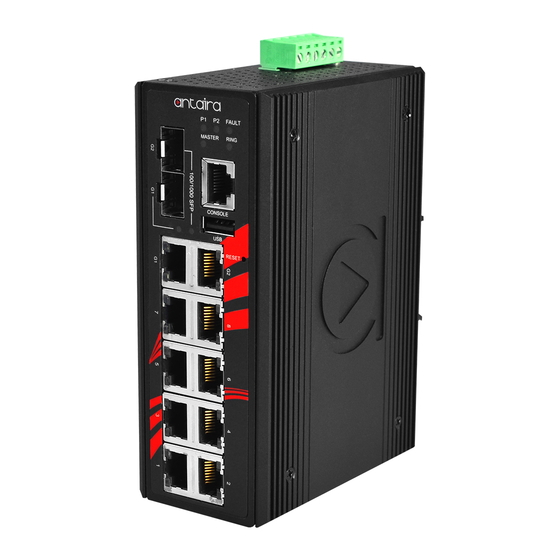

- Page 1 Antaira Industrial Ethernet Switches LMP-1002G-SFP Series User Manual V1.0 LMP-1202M-SFP Series (LMP-1202M-SFP / LMP-1202M-SFP-T) 12-Port Industrial PoE+ Gigabit Managed Ethernet Switch with 8*10/100Tx (30W/Port), 2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots Hardware Manual Version 1.0...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 WARNING: EXPLOSION HAZARD – Do not disconnect while the circuit is live or unless the area is free of ignitable concentrations. This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com) or address (780 Challenger Street, Brea,...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 Table of Contents 1. Introduction ................1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ............4 2.1 Physical Dimensions... -
Page 6: Introduction
8*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port, 2*10/100/1000Tx RJ45 and 2*100/1000 dual rate SFP slots for Gigabit fiber connections. The LMP-1202M-SFP series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring... -
Page 7: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP MODBUS TCP for SCADA system integration Port Configuration Status, statistics, mirroring, rate limiting, event syslog Event Handling ... -
Page 8: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 1.4 Package Contents 1– LMP-1202M-SFP series: 12-port industrial gigabit PoE+ managed Ethernet switch, with and 2*100/1000 SFP Slots 8*10/100Tx (PSE 30W/Port), 2*10/100/1000Tx RJ45 1-Quick Installation Guide 2-W all mounting brackets and screws 1-RJ45 to DB9 Serial Console cable 1-DC cable –18 AWG &... -
Page 9: Hardware Description
LMP-1202M-SFP Series Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1202M-SFP series: 12-port industrial PoE+ managed Ethernet switches, with 8*10/100Tx (PSE 30W/Port), 2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 10: Front Panel
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 2.2 Front Panel The front panel of the LMP-1202M-SFP series industrial gigabit PoE+ managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block (Power Input) Grounding Screw LED for Power 1, Power 2, SFP# 11~12 –... -
Page 11: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 12: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 2.5 Reset Button There is a Reset button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 Figure 2.5 Crossover Cable Schematic Straight-Through Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100... - Page 14 Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 Second, insert the fiber cable of the LC connector into the transceiver as shown in Figure 2.9. Figure 2.9 - LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: 1.
-
Page 15: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 2.7 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 16: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.14. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and forma normally open circuit. -
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-... -
Page 18: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP Series Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 19: Hardware Installation
LMP-1202M-SFP Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1202M-SFP series: 12-port industrial PoE+ managed Ethernet switches with 8*10/100Tx (PSE: 30W/Port), 2*10/100/1000Tx RJ45, and 2*100/1000 SFP slots. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 20: Technical Specifications
• Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1202M-SFP series: 12-port industrial PoE+ managed Ethernet switch, with 8*10/100Tx (PSE: 30W/Port), 2*10/100/1000Tx RJ45, and 2*100/1000 SFP slots. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 21 Ambient Relative Humidity 5 to 95%, (non-condensing) FCC Class A IEC6100-4-2/3/4/5/6/8; IEC6100-6-2; IEC6100-6-4 Regulatory IEC60068-2-32 (Free fall) Approvals Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Safety UL 61010-1, UL 61010-2-201, ISA 12.12.01, ATEX Certifications NEMA TS2 Table 5.1 - LMP-1202M-SFP Series Technical Specifications...
- Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
