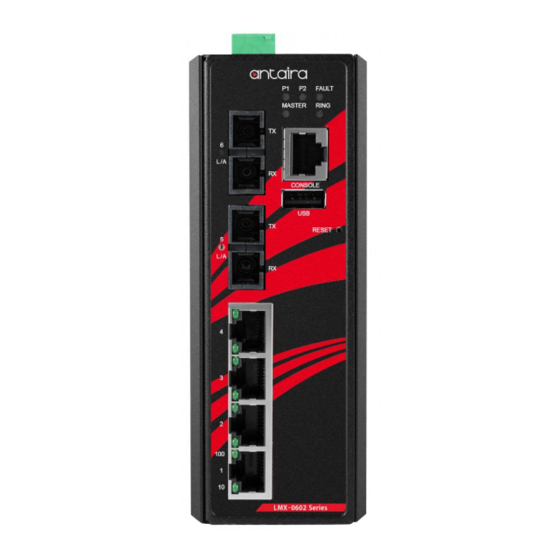

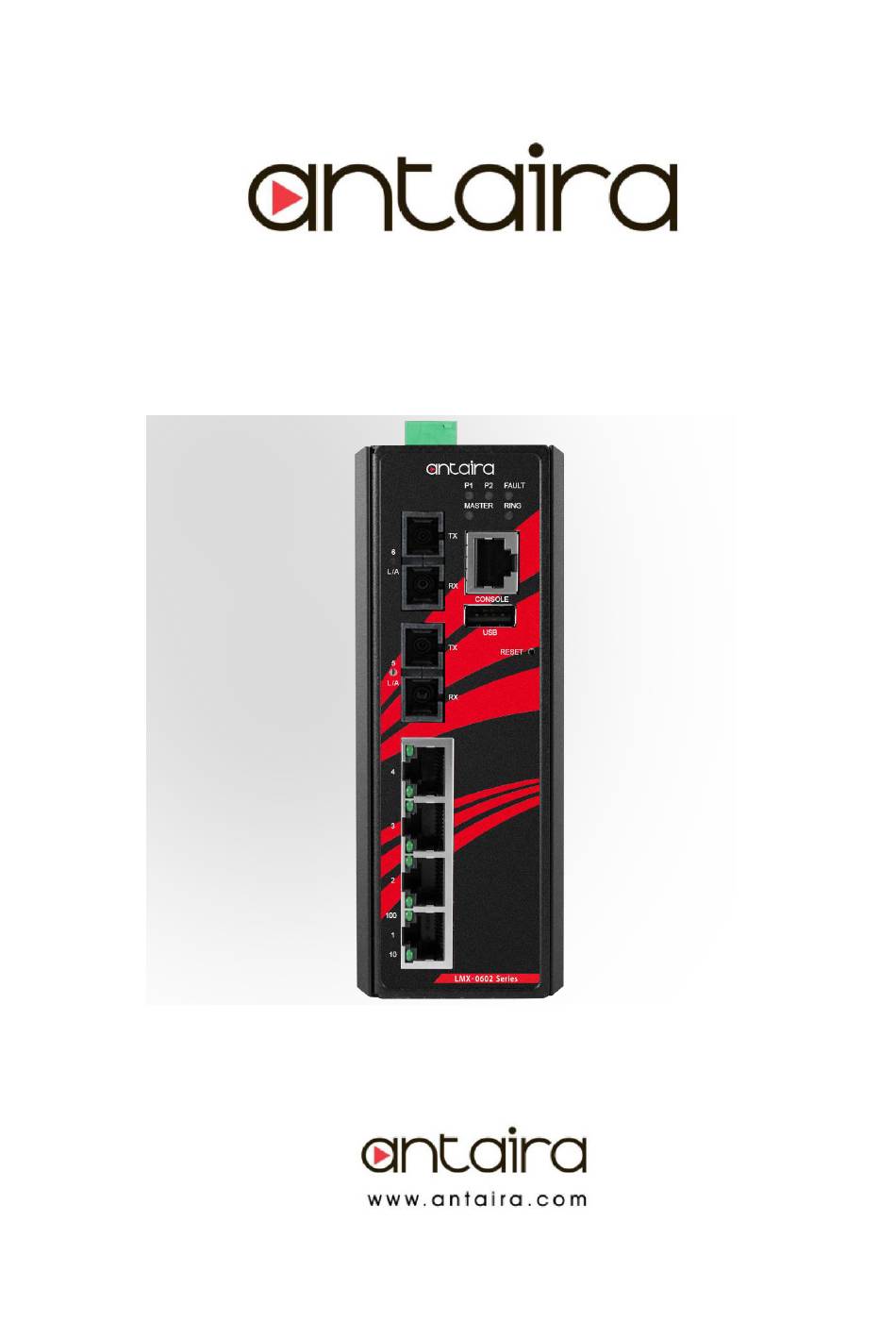

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Series User Manual V2.1 LMX-0602-XX-V2 Series 6-Port Industrial Managed Ethernet Switch, w/4*10/100Tx and 2*100Fx Multi- Mode/Single Mode, 48~55VDC Power Input; Version 2 Hardware Hardware Manual Version 1.1 (October 2019)
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
LMP-0602-XX-V2 Series Hardware Manual V1.1 1. Introduction All Antaira industrial managed switches come with a pre-installed “user-friendly” web console interface, which allows users to easily configure and manage the units, whether one is using a serial console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple Network Management Protocols (SNMP). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 ➢ IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group ➢ Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ➢... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 1.4 Package Contents 1 – LMP-0602-XX(-T)-V2 1 – Quick Installation Guide 1 – Wall mounting bracket set with screws 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm 1 –... -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0602-XX-V2 series: (W x D x H) is 54mm x 99mm x 142mm Figure 2.1 LMP-0602-XX-V2 Series Physical Dimensions... -
Page 9: Front Panel
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 2.2 Front Panel The front panel of the LMP-0602-XX-V2 series industrial PoE+ managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block Grounding Screw LED for Power 1, Power 2, Fault, Master, and Ring Fiber Port# 5~6 –... -
Page 10: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 Pin MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 Note: Only use copper conductors, 60/75°C, tighten to 5lbs. • The wire gauge for the terminal block should range between 18~20 AWG. • The wire gauge for the terminal block should range between 12 ~ 24AWG Caution: 2.10 Grounding Note... -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-0602-XX-V2 series: Caution: This device is intended for use indoor and at altitudes up to 2000 meters. Caution: The device is intended to be installed in an industrial control enclosure and panel. -
Page 17: Maintenance And Service
• Clean the device with dry soft cloth. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-0602-XX-V2 series: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, L2 Switching... - Page 18 Antaira Technologies - Industrial Ethernet Switches LMP-0602-XX-V2 Series Hardware Manual V1.1 148,800pps for Fast Ethernet Port Memory Buffer 4Mbits Jumbo Frame 9.6Kbytes MAC Table Size VLAN Group 4095 IGMP Group 1024 4*10/100Base-TX, auto negotiation speed, Full/Half duplex Ethernet Port mode, and auto MDI/MDI-X connection...
- Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
