Summary of Contents for CYP CMPRO-4H2H
-

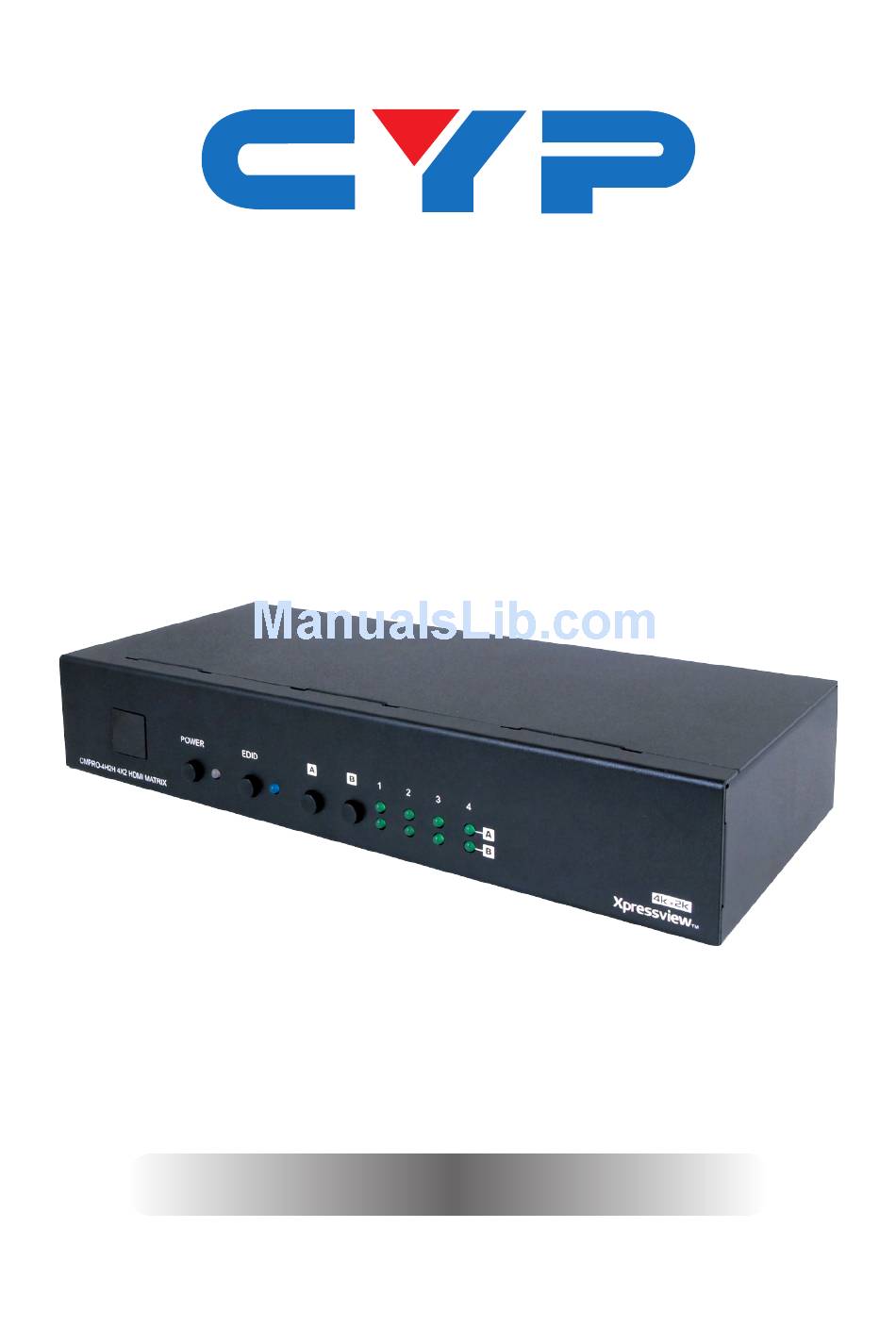

Page 1: Operation Manual
CMPRO-4H2H 4 by 2 HDMI Matrix Operation Manual Operation Manual... - Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 D-Sub 9 Pin Definitions .....4 6.5 RS-232 Protocols .......5 6.6 Web GUI Control ......6... -
Page 5: Introduction
1. INTRODUCTION The 4 by 2 HDMI matrix with 4kx2k supported which allows HDMI signal from any of its four sources to be routed to and displayed on any of its two connected HDMI displays simultaneously. It supports 3D, 3Gbps bandwidth, 16-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER EDID CMPRO-4H2H 4X2 HDMI MATRIX IR receiver window accepts the remote control signal of this device. POWER & LED Press this button to power the device on/off. The LED will illuminate when the power is on. -
Page 7: Rear Panel
6.2 Rear Panel INPUT OUTPUT RS232 ETHERNET POWER DC 5V SERVICE INPUT 1~4 Connect input source equipments such as DVD/Blu-ray players with HDMI cables. OUTPUT A/B Connect to HDMI 3D TV/display or monitor for both audio and video or moving/static graphic play. RS-232 Connect to a PC or laptop with D-Sub 9-pin male cable for the transmission of RS-232 commands. -
Page 8: Remote Control
OUTPUT OUTPUT B 1~4 Press buttons 1~4 to selection the nominated input for output CR-33 6.4 D-Sub 9 Pin Definitions CMPRO-4H2H Remote Control Assignment Assignment Baud Rate: 19200bps Data Bit: 8 bits Parity: None Flow Control: None... -
Page 9: Rs-232 Protocols
6.5 RS-232 Protocols Command Description A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 AB...1~AB...4 Switch Output A B ... to 1~4 at the same time SETIP <IP> <SubNet> <GW> Setting IP. SubNet. GateWay <SataicIP> RSTIP IP configuration was reset to factory default<DHCP>... -
Page 10: Web Gui Control
6.6 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address(get from RS-232's help command or use the default IP: 192.168.0.1) on the web address entry bar. - Page 11 Clicking on the 'Setting' tab allows you to reset the IP confi guration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray or Blu-ray or 60° PS3 Player PS3 Player Blu-ray or Blu-ray or PS3 Player PS3 Player HDMI HDMI RS-232 Equipped HDMI HDMI PC or Notebook INPUT OUTPUT RS232 ETHERNET POWER DC 5V SERVICE HDMI with HDMI Ethernet 3D TV/ Display... -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps /10.2Gbps Input ports 4 x Female HDMI type A, 1 x IR In, 1 x RS-232, 1 x RJ-45, 1 x Mini USB (for service only) Output ports 2 x Female HDMI type A Output Resolution 480i ~1080p, 4Kx2K Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface... - Page 15 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120926 MPM-CMPRO4H2H...
