JL Audio Stealthbox SB-J-GCHWK2/10W3v3 Installation Manual page 3

Page 3 • JL Audio, Inc 2016

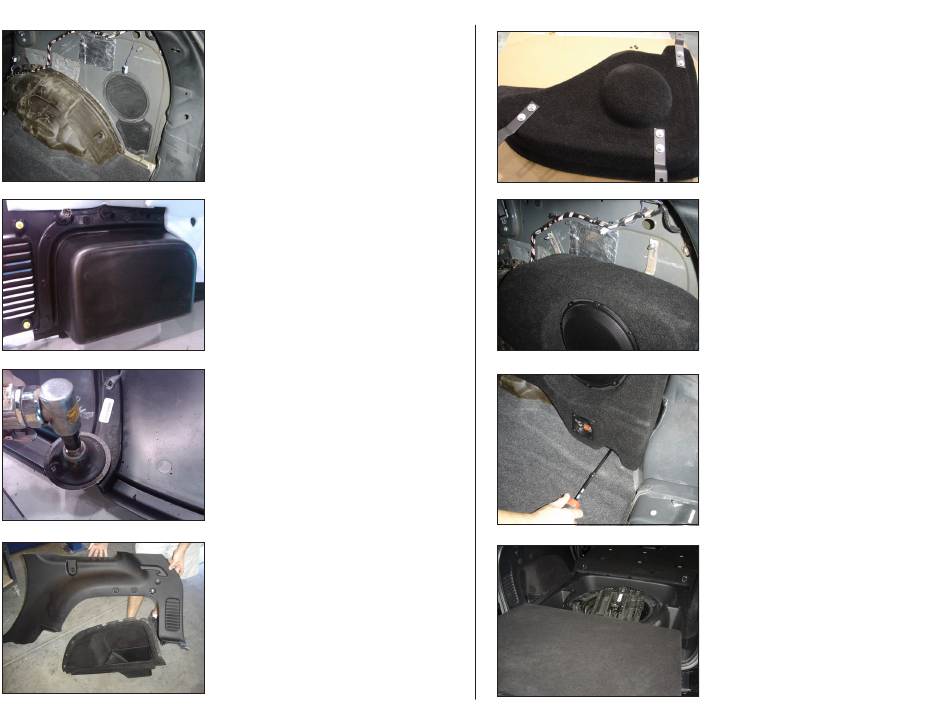

S T E P 1 2
Pictured is the vehicle with the side panel removed.
S T E P 1 3
From the back of the side panel, the plastic welds that hold
the pocket to the panel are visible.
S T E P 1 4
Using a die grinder, carefully grind down the plastic welds
to separate the pocket from the panel, using caution to not
grind through the panel itself.
S T E P 1 5
Pictured are the side panel and pocket after being separated.
SB-J-GCHWK2/10W3v3 INSTR_SKU# 011321
S T E P 1 6
Using a pair of 1/4" Flat Washers, 1/4" Lock Washers, and 1/4-
20 Hex Tap Bolts, attach each of the three brackets to the
back of the Stealthbox as shown, and firmly tighten.
S T E P 1 7
Place the Stealthbox® into the vehicle, aligning the Brackets
with the factory studs, as shown. Thread a 6mm x 1.0 Flange
Nut onto each of the two upper studs, and hand tighten.
S T E P 1 8
Thread a 6mm x 1.0 Flange Nut over the lower stud, and
hand tighten.
Reinstall the side panel and check the fitment of the
Stealthbox®. Align the enclosure as necessary, then remove
the side panel and firmly tighten the three 6mm x 1.0 Flange
Nuts. Attach speaker cable to the terminal cup, and route
the cable as necessary. Reinstall the side panel.
S T E P 1 9
Reinstall the weather-stripping, door sill panel, plastic tub,
and seat extension panel. Then, reinstall the padding, spare
tire, storage pockets, and tool kit. Finally, reinstall the floor
panel.
Continued on Next Page
