I N S T A L L A T I O N G U I D E
for the

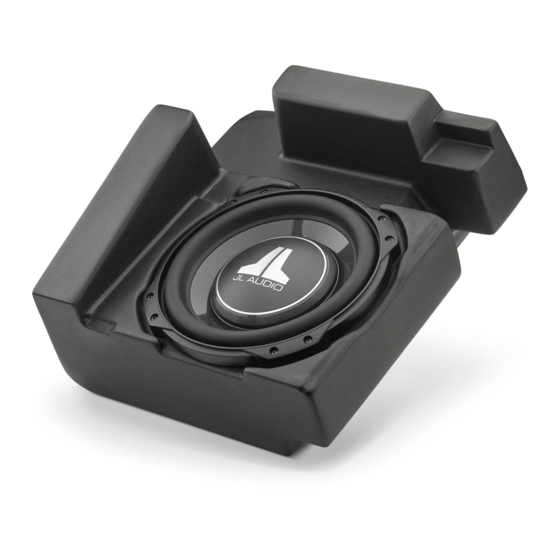

SB-Y-YXZ1/10TW3
SKU# 94642
2016 & Up Yamaha YXZ1000R
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
If you choose to perform the installation yourself, it is absolutely
vital that the Stealthbox be properly mounted to the vehicle
®
according to these instructions. Failure to mount the enclosure
properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
SB-Y-YXZ1/10TW3 INSTR_SKU# 011479
INSTALLATION
DIFFICULTY:
4
5
OUT
OF
ESTIMATED TIME:
2-3 HOURS
Continued on Next Page
