I N S T A L L A T I O N G U I D E
for the

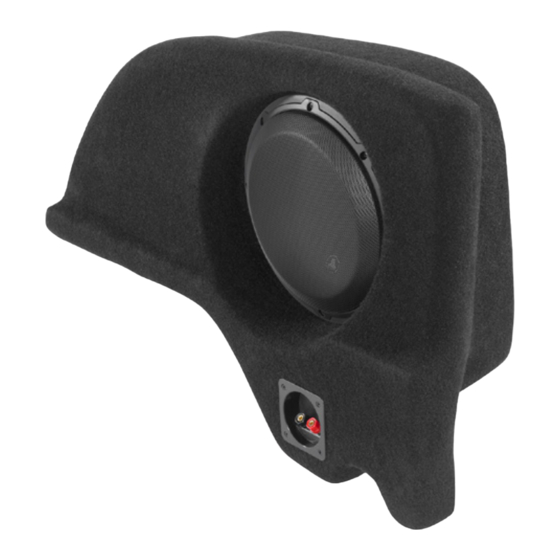

SB-J-GCHWK2/10W3v3
SKU# 94508 - 94510
2011 & Up Jeep Grand Cherokee
Thank you for choosing a JL Audio Stealthbox for your automotive sound system. With proper installation, your new
®
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
installed by your authorized JL Audio dealer. The
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-J-GCHWK2/10W3v3 INSTR_SKU# 011321
INSTALLATION
D I F F I C U L T Y :
3
OUT
OF
ESTIMATED TIME:
2-3 HOURS
S T E P 1
Empty out the cargo area so that you have a clean area to
work in.
S T E P 2
Unclip the screw cover on each of the tie down hooks, and
remove the screws and hooks.
S T E P 3
Remove the rear sill panel by carefully pulling up on the
panel to release the clips.
Continued on Next Page
