Stealthbox
I N S T A L L A T I O N G U I D E
for the
SB-F-EXPED/10W6AE
(1997-2002 Ford Expedition &
1998-2002 Lincoln Navigator)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
w w w . j l a u d i o . c o m
START
HERE

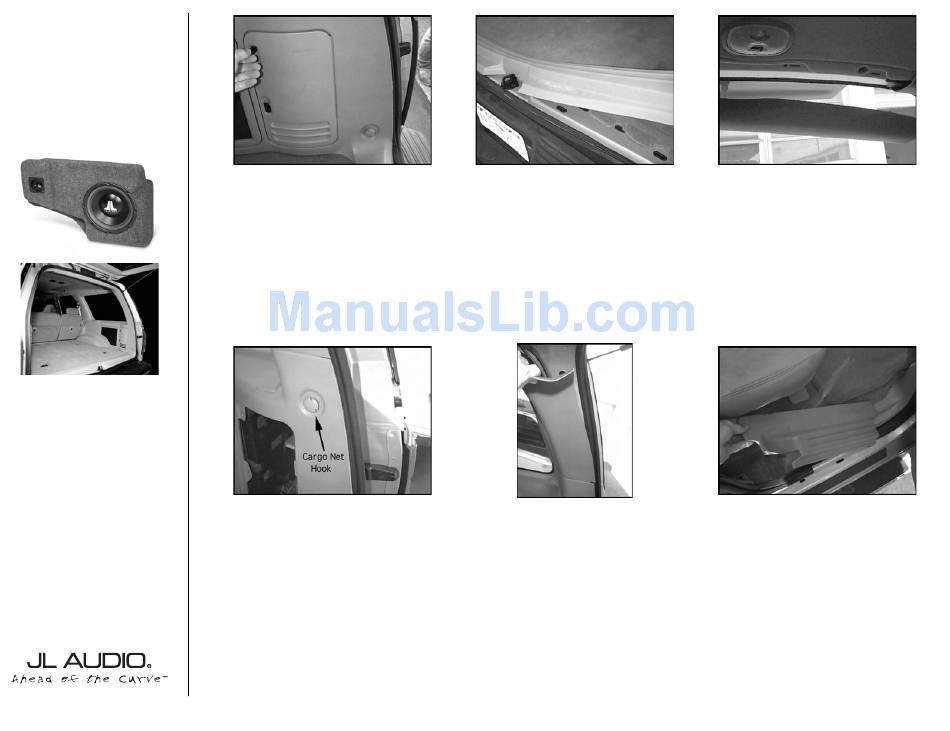

STEP 1: Remove the tool access panel, from
the passenger's side rear cargo panel.
Remove all contents.
STEP 4: Unscrew the pair of cargo net
hooks, from the passenger' side cargo panel.
S B - F - E X P E D / 1 0 W 6 A E , J L AU D I O, I n c 2 0 0 4

STEP 2: Remove the hatch floor sill.

STEP 5: Remove the D-pillar trim.This is the
panel that is directly behind the passenger's
rear side window.
Pa g e 1

STEP 3: Remove the cargo hatch ceiling trim.

STEP 6: Remove the rear passenger's side
door sill.
Continued on Next Page ➔
S h e e t S K U # 0 1 1 1 0 6 R ev i s i o n 6 / 2 9 / 2 0 0 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-F-EXPED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JL Audio SB-F-EXPED

  • Page 1 2) A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration. Please enjoy your JL Audio Stealthbox responsibly. Continued on Next Page ➔ w w w . j l a u d i o . c o m...
  • Page 2 Cont. From Previous Page ➔ ➔ ➔ ➔ STEP 7: Fold the rear seats forward and remove STEP 8: At the rear passenger’s side C-pillar. Lift STEP 9: Using a 15mm socket, remove the STEP 10: At the bottom of this seat belt assembly, the exposed floor trim panel.
  • Page 3 Cont. From Previous Page ➔ ➔ ➔ ➔ STEP 15: Using a razor knife, you need to cut out STEP 16: Place the supplied wax square with the STEP 17: Thread in the supplied socket cup set STEP 20: *CAUTION* the rubber lining that covers the passenger’s side paper removed and sticky side down, in the mount- screw into the enclosure.
  • Page 4 Applicable JL Audio Products: ZR,XR,VR,TR570-CSi,CXi JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power your Stealthbox®.
