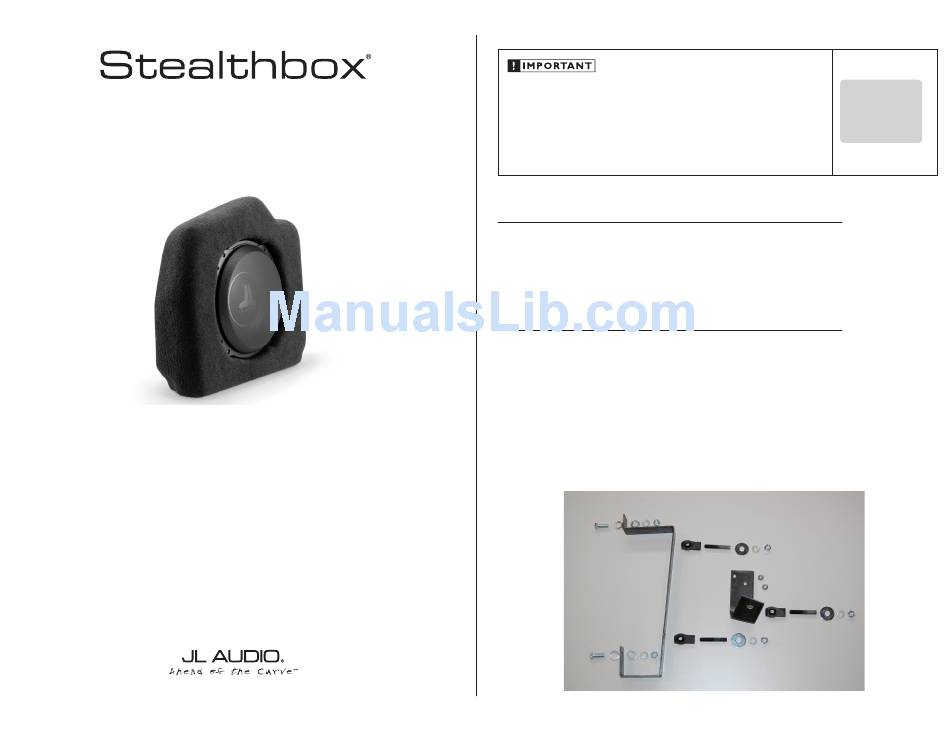

I N S T A L L A T I O N G U I D E
for the
SB-C-CTS/10TW3
SKU# 94552
2008 & Up Cadillac CTS/CTS-V
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your
own installation, please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S P E C I F I C A T I O N S
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
I N C L U D E D H A R D W A R E
(1) Rear Bracket
(1) Side Bracket
(2) 3/8 - 16 x 1" Hex Bolt
(4) 3/8" Flat Washer
(4) 3/8 x 1-1/4" Diameter Flat Washer
(5) 3/8" Lock Washer
(5) 3/8 - 16 Hex Nut
(3) 3/8 - 16 U-Nut
(3) 3/8 - 16 x 2-1/4" Set Screw
(1) 3/4" Aluminum Spacer
(2) 6mm x 1.0 Flange Nut
SB-C-CTS/10TW3 INSTR_SKU# 011343
INSTALLATION
D I F F I C U L T Y :
2
OUT
5
OF
ESTIMATED TIME:
1 HOUR
Continued on Next Page
Advertisement
Related Manuals for JL Audio stealthbox CB-C-CTS/10TW3
Summary of Contents for JL Audio stealthbox CB-C-CTS/10TW3
- Page 1 We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation, please read this installation guide completely before beginning the process.
- Page 2 C O N N E C T I O N S Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier. Other kits are available should you be using more than one amplifier.
- Page 3 S T E P 8 Carefully unclip and remove the trunk sill panel. Remove the two nuts that hold the computer bracket to the fender well, and remove the bracket. Page 3 • JL Audio, Inc., 2016 Continued on Next Page...
- Page 4 Align the Side Bracket over the two lower computer bracket studs. Secure the bracket with a pair of 6mm x 1.0 Flange Nuts. Slide a 3/8 - 16 U-Nut over the other hole in the Side Bracket. Page 4 • JL Audio, Inc., 2016 Continued on Next Page...
- Page 5 Empty out the rear seat area of the vehicle. trunk liner back into position and cut three holes in the liner to allow the three 3/8 - 16 x 2-1/4” Set Screws to pass through. Page 5 • JL Audio, Inc., 2016 Continued on Next Page...
- Page 6 S T E P 2 8 S T E P 3 2 Remove the rear seat back. Remove the clips that hold the rear deck in place. Page 6 • JL Audio, Inc., 2016 Continued on Next Page...
- Page 7 . j l a u d i o . c o m All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
