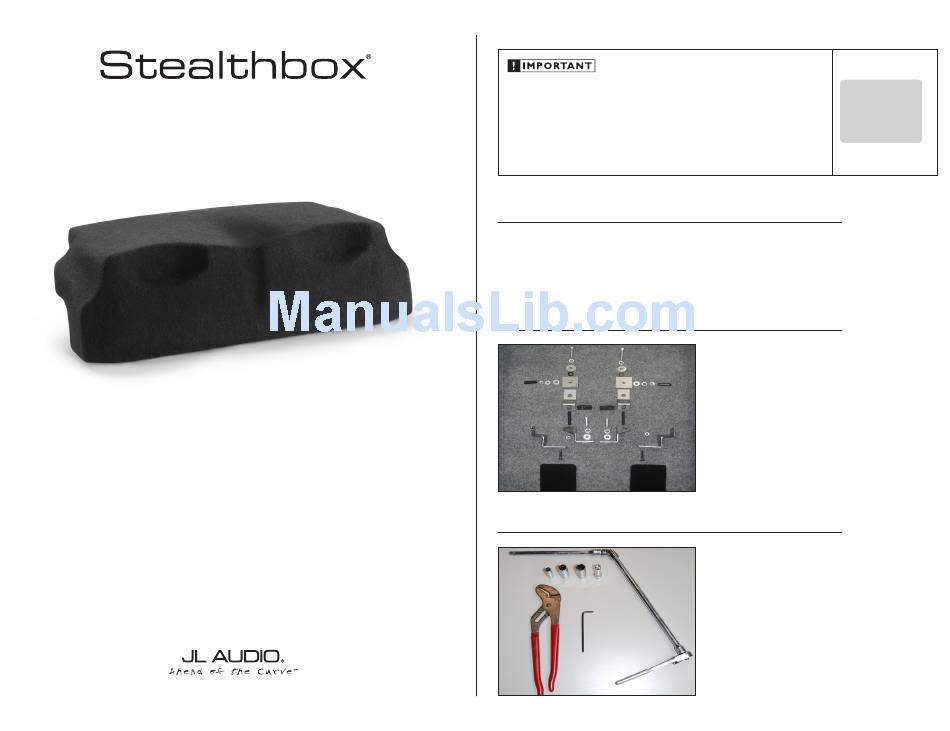

JL Audio 94537 Installation Manual

I N S T A L L A T I O N G U I D E
for the
SB-P-996/13TW5v2
SKU# 94537
1998-2004 Porsche 911 (996)
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your
own installation, please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: (2) 13TW5v2-4
Nominal Impedance: 2 ohm
Continuous Power Handling: 1200 watts
I N C L U D E D H A R D W A R E
R E Q U I R E D T O O L S
SB-P-996/13TW5v2 INSTR_SKU# 011334
INSTALLATION
D I F F I C U L T Y :
5
OUT
OF
ESTIMATED TIME:
3-4 HOURS
(2) 3/8 - 16 x 1-3/4" Hex Bolt (1) Driver Enclosure Bracket
(6) 3/8" Split Lock Washer (1) Pass Enclosure Bracket
(2) 3/8" x 1-1/4" Fender Washer (2) 3/8 - 16 x 1-1/4" Hex Bolt
(4) 3/8" Flat Washer (2) 3/8" Hex Locknut
(2) 3/8" Nylon Washer (2) 3/8" Hex Nut
(2) Flat Bracket (2) Carpeted Panel
(2) U-Nut
(2) 3/8 - 16 x 2-1/4" Set Screw
(2) 3/8" x 1-1/2" Vinyl Cap
(2) Rear Bracket
(1) Driver Front Bracket
(1) Pass Front Bracket
(2) 1/4 - 20 x 1-1/2 Hex Drive Bolt
3/8 Drive Ratchet
3" Extension
8" Extension
12" Extension
3/8 Universal Joint
10mm Socket
15mm Deep Socket
Large Channel Lock Pliers
5/32 Allen Wrench
It is recommended to have a second person assist with the
installation of this model.
