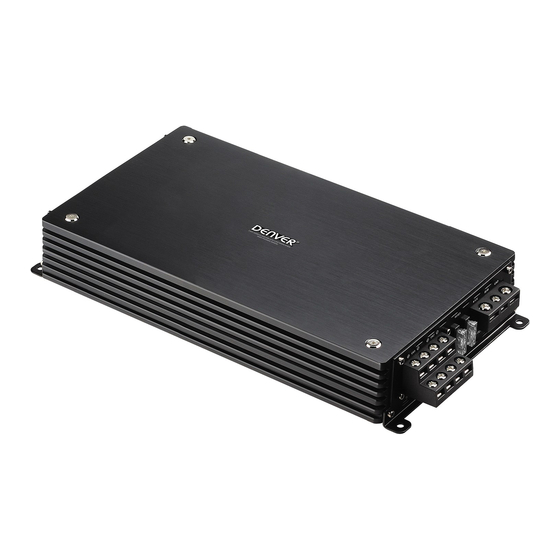

OWNER'S MANUAL
CAR AUDIO SYSTEM
PLEASE READ CAREFULLY BEFORE INSTALLING OR OPERATING THIS UNIT.
CAP-4320
WARNING
Make sure you choose a suitable place to mount the unit. The position should be completely
dry with a good circulation of air, and from a mechanical point of view very stable.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAP-4320 and is the answer not in the manual?

Questions and answers

Related Manuals for Denver CAP-4320

Summary of Contents for Denver CAP-4320

  • Page 1 OWNER'S MANUAL CAR AUDIO SYSTEM PLEASE READ CAREFULLY BEFORE INSTALLING OR OPERATING THIS UNIT. CAP-4320 WARNING Make sure you choose a suitable place to mount the unit. The position should be completely dry with a good circulation of air, and from a mechanical point of view very stable.

  • Page 2: System Planning

    System Planning Proper system planning is the best way to maximize your amplifier performance. By planning your installation carefully you can avoid situations where the performance of the reliability of your system is compromised. Your authorized dealer has been trained to maximize your system's sonic potential.

  • Page 3: Power Connection Leads

    Power Connection Leads Notes on the power supply Connect the + 12V power input lead only after all other leads have been connected. Be sure to connect the ground wire of the unit securely to a metal part of the car. A lose connection may cause a malfunction of the amplifier.
  • Page 4 System 1 4 channel mode 4~8Ω 4~8Ω • 4 •...
  • Page 5 System 2 bridged connection subwoofer 4~8Ω 4~8Ω • 5 •...

  • Page 6: Troubleshooting

    Trouble Shooting Symptom Possible Cause Action to Take no output low or no remote turn-on input check remote turn-on voltage output at amplifier and correct as needed fuse blown check power wire integrity and reversed polarity repair as needed and replace fuse power wires not connected check power wire and ground...
  • Page 7 battery fuse impedance load to amplifier check speaker impedance load, if blowing too low below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance short in power wire or incorrect check power and ground connections power connections and repair as needed fuse used is smaller than replace with proper fuse size...

  • Page 8: Specifications

    Specifications CAP-4320 RMS output power 4Ω (Watts) 60W RMSx4CH RMS output power 2Ω (Watts) 90W RMSx4CH Bridged power 4Ω (Watts) 180W RMSx2CH <0.15% Frequency response (±2db) 10Hz~30KHz Signal to noise ratio >90dB Sensitivity 200m V~8V Recommended fuse type 2 x 25A...
  • Page 9 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.
