Mounting
1. Disconnect the power supply.
2. Install the indicator on the rail in the distribution board.
3. Connect the power wires according to the diagram.
4. Select the device mode (terminals 10-12).
5. Switch on the power supply and verify that the device is wor-
king correctly.

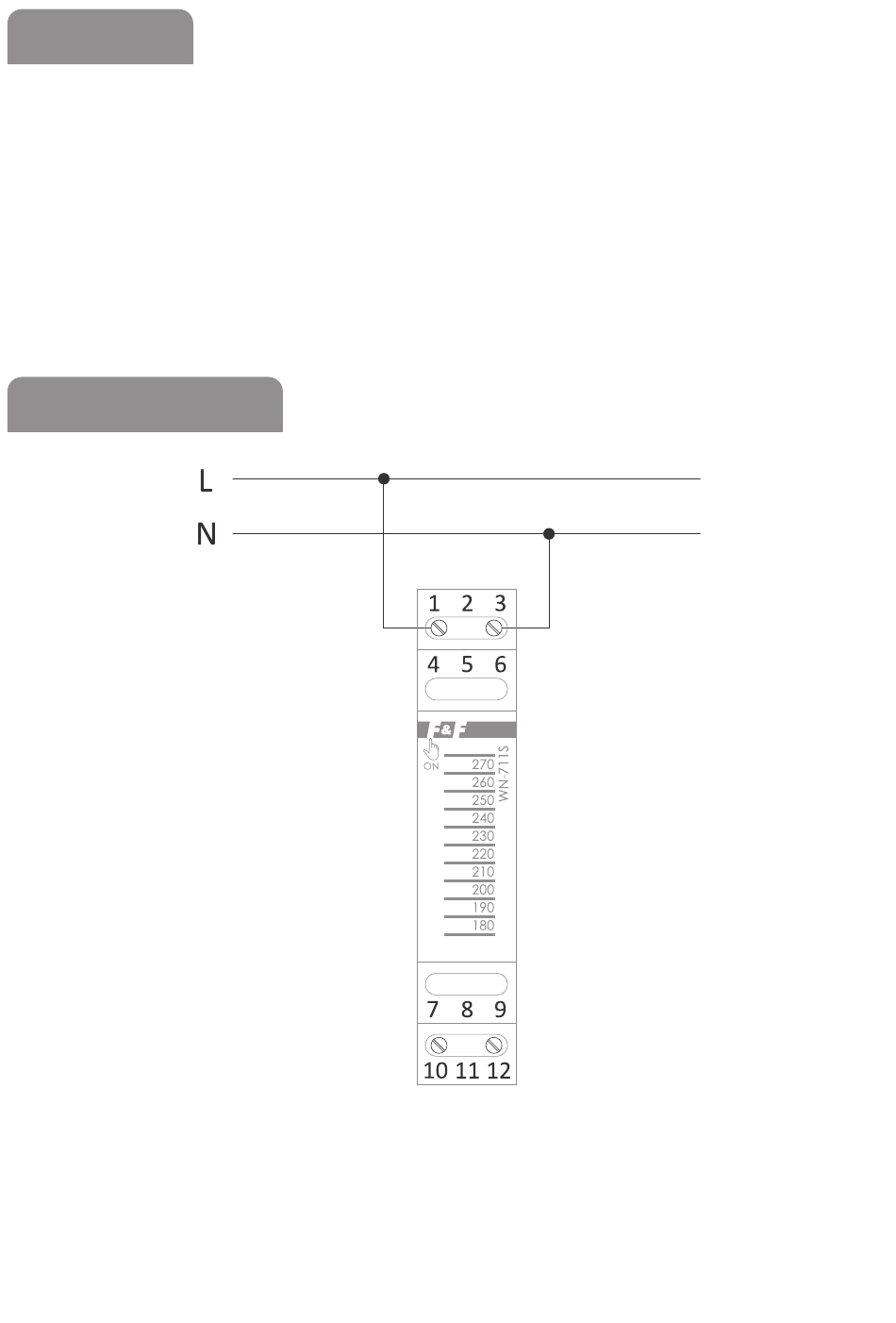

Wiring diagram
