F&F WZE-3 Manual

WZE-3 RST
Electricity
consumption meter,
3-phase, resetable
Do not dispose of this device in the trash along with other waste!
According to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collec� on, as well as to store the occasion of
the purchase of new equipment (in accordance with the principle of old-for-new, regard-
less of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the
environment and human health.
Purpose

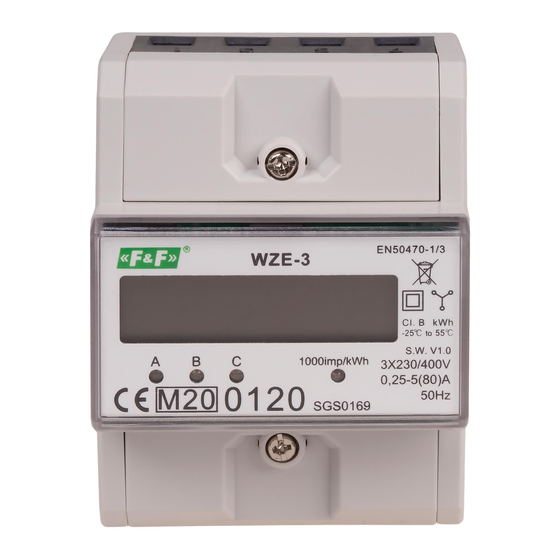

The WZE-3 RST is a 3-phase, 4-wire energy consumption indica-
tor equipped with an additional, resetable energy meter.
Functioning
A special electronic system under the influence of current flow
and applied voltage in each phase, generates pulses in propor-
tion to the electricity consumed in this phase. The sum of the
pulses of the three phases is indicated by a flashing LED shall
be converted to energy, taken throughout the three-phase sys-
tem, and its value is determined by the segment LCD display.
The digits after the decimal point represent hundredths (0.01
kWh = 10 Wh).
The indicator is equipped with a 1-row LCD display for displaying
total energy consumption, or energy consumption since the last
meter reset. The value of the resetable meter is symbolized on
the indicator by displaying the [r] sign on the first segment of
the display.
F&F Filipowski L.P.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
- 1 -
