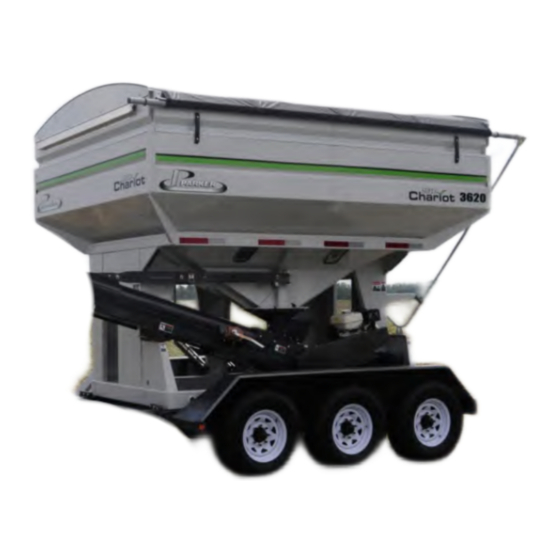

Bulk Seed Handling
Seed Chariot
Bulk Tender
®
Models 2620 & 3620
Part No. 27088

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARKER Seed Chariot 2620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unverferth PARKER Seed Chariot 2620

Summary of Contents for Unverferth PARKER Seed Chariot 2620

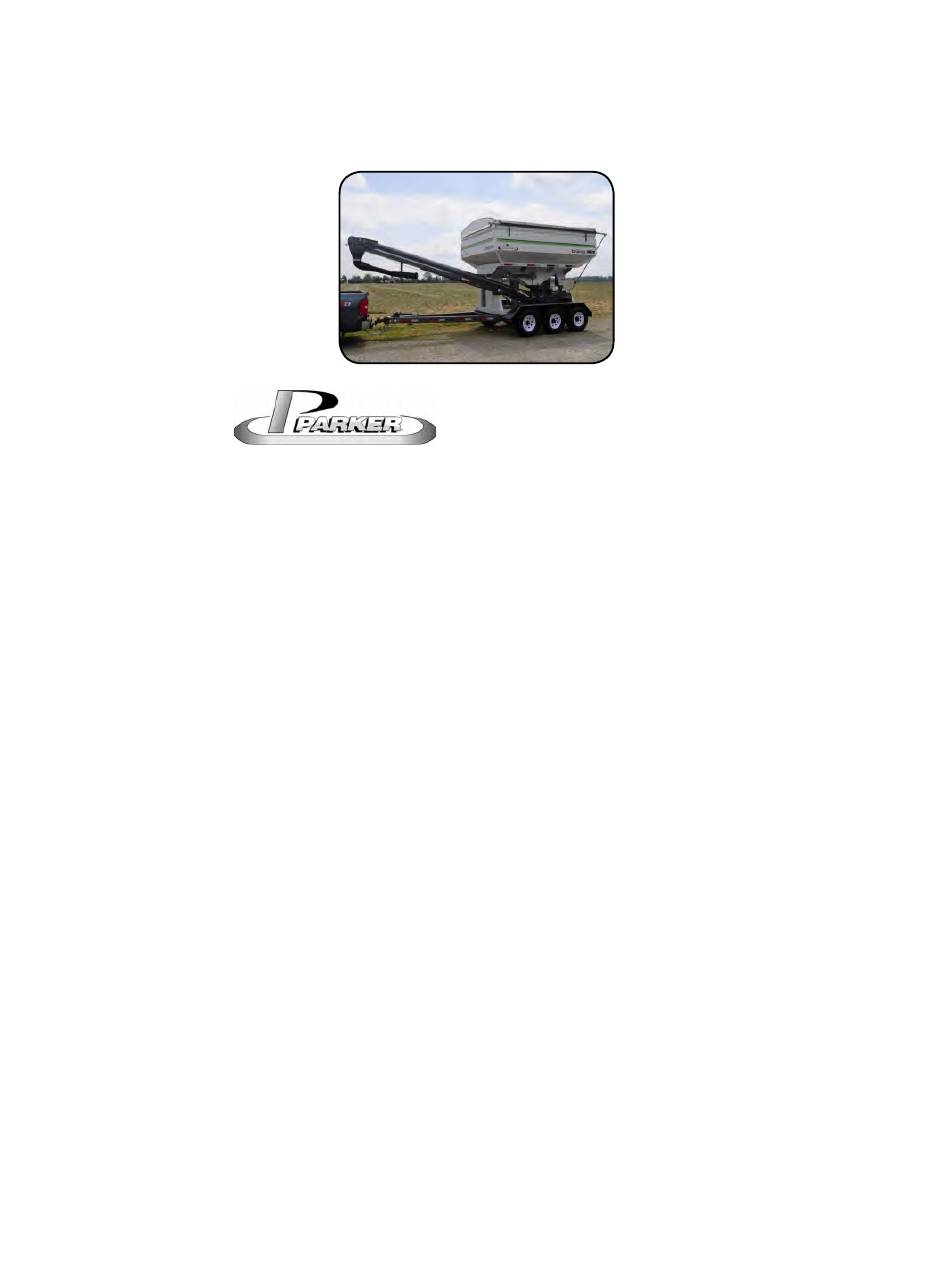

  • Page 1 Bulk Seed Handling Seed Chariot Bulk Tender ® Models 2620 & 3620 Part No. 27088...
  • Page 2 — Introduction Seed Chariot 2620/3620 Foreword This symbol identifies important safety messages. When you see it, read the message that follows and be alert to the possibility of personal injury. Remember, safety instructions stated in this manual are for your protection. Read them carefully and follow them closely when working around or using this machine.
  • Page 3 — Introduction Seed Chariot 2620/3620 Product Information All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from material and workmanship defects for one full year from time of consumer delivery. Your local dealer will gladly assist you with any warranty questions.

  • Page 4: Table Of Contents

    — Introduction Seed Chariot 2620/3620 Table of Contents Section I Safety General Hazard Information ......................1-2 Safety Decals ..........................1-3 Following Safety Instructions ......................1-4 Before Servicing ..........................1-4 Before Operating ..........................1-5 During Operation ..........................1-5 Before Transport ..........................1-6 During Transport ..........................
  • Page 5 — Introduction Seed Chariot 2620/3620 Table of Contents Section IV Maintenance Lubrication - Conveyor Bearings ....................4-2 Lubrication - Pivot Points ....................... 4-2 Lubrication - Wheel Bearings ......................4-2 Lubrication - Engine Oil Level ....................... 4-2 Conveyor Belt - Belt Tension ......................4-3 Conveyor Belt - Belt Tracking ......................
  • Page 6 — Introduction Seed Chariot 2620/3620 Table of Contents Section V Parts Triple Axle Undercarriage, Hitch, Fender & Wheel Components ..........5-2 Tandem Axle Undercarriage, Hitch, Fender & Wheel Components ........... 5-6 Seed Door Components ......................5-9 Undercarriage Electrical Components ..................5-10 Electric Breakaway Components ....................
  • Page 7 — Safety Seed Chariot 2620/3620 Section I Safety General Hazard Information ......................1-2 Safety Decals ..........................1-3 Following Safety Instructions ......................1-4 Before Servicing ..........................1-4 Before Operating ..........................1-5 During Operation ..........................1-5 Before Transport ..........................1-6 During Transport ..........................1-6 Prepare for Emergencies ........................

  • Page 8: General Hazard Information

    It is true that the designer, the manufacturer, and the safety engineer can help; and they will help, but their combined efforts can be wiped out by a single careless act of the operator. It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth Mfg.

  • Page 9: Safety Decals

    — Safety Seed Chariot 2620/3620 Safety Decals • Replace lost, damaged, painted, oR unReadable decals immediately. if paRts that have decals aRe Replaced, also make suRe to install new decals. these decals INFORM AND REMIND THE OPERATOR WITH OPERATIONAL INFORMATION AND SAFETY MESSAGES. Part No.

  • Page 10: Following Safety Instructions

    — Safety Seed Chariot 2620/3620 Following Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufacturer. •...

  • Page 11: Before Operating

    — Safety Seed Chariot 2620/3620 Before Operating • Do not stand between towing vehicle and implement during hitching. • Verify that all safety shields are in place and properly secured. • Always make certain everyone and everything is clear of the machine before beginning operation. •...

  • Page 12: Before Transport

    — Safety Seed Chariot 2620/3620 Before Transporting • Secure transport chains to towing vehicle before transporting. DO NOT transport without chains. • Install transport locks before transporting. • Check for proper function of all available transport lights. Make sure that all reflectors are clean and in place on the machine.

  • Page 13: Prepare For Emergencies

    — Safety Seed Chariot 2620/3620 Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job. •...
  • Page 14 — Safety Seed Chariot 2620/3620 Notes...

  • Page 15: Set-Up

    — Set-Up Seed Chariot 2620/3620 Section II Set-Up Pre-Delivery Checklist ........................2-2 Seed Chariot Assembly ........................2-2 Assemble Hitch/Gooseneck to Undercarriage ................. 2-3 Ladder Installation ........................... 2-4 Scale Package #26858 (Optional)....................2-6 6’ - 10’ Long Discharge Spout #22578 (Optional) ............... 2-7 Electric Winch (Optional) .........................

  • Page 16: Pre-Delivery Checklist

    — Set-Up Seed Chariot 2620/3620 Pre-Delivery Checklist After the Seed Chariot tender has been completely assembled, use the following checklist and inspect the seed tender. Check off each item as it is found satisfactory or after proper adjustment is made. o Torque wheel nuts as specified in Maintenance section.

  • Page 17: Assemble Hitch/Gooseneck To Undercarriage

    — Set-Up Seed Chariot 2620/3620 Assemble Hitch/Gooseneck to Undercarriage 1. If the Seed Chariot tender was shipped with a hitch/gooseneck installed, torque 5/8”-11 UNC retaining hardware to 120-135 ft.-lbs. If the tender was shipped without a hitch/gooseneck installed, proceed to step 2. 2.

  • Page 18: Ladder Installation

    — Set-Up Seed Chariot 2620/3620 Ladder Installation • to pRevent peRsonal injuRy oR death, always ensuRe that THERE ARE PEOPLE WHO REMAIN OUTSIDE THE SEED CHARIOT TENDER TO ASSIST THE PERSON WORKING Attach using inside, and that all safe woRk hardware PLACE PRACTICES ARE FOLLOWED.
  • Page 19 — Set-Up Seed Chariot 2620/3620 Ladder Installation (continued) 5. Remove bolt holding extension ladder in and discard. It is used for shipping only. Attach ladder to the lower extension lower part of the ladder using capscrews (9390-058) and locknuts (9928). Attach extension ladder to lower part of the ladder...

  • Page 20: Scale Package #26858 (Optional)

    — Set-Up Seed Chariot 2620/3620 - Model 640XL Scale Package (#26858) (Optional) Remove two hold down brackets from one side of the box. Assemble load cell (902063) into scale bracket (29477CG) using two 3/8”-16UNC x 3 3/4” capscrews (9390-066) and 3/8”-16UNC top locknuts (9928).

  • Page 21: 6' - 10' Long Discharge Spout #22578 (Optional)

    — Set-Up Seed Chariot 2620/3620 6’ - 10’ Long Discharge Spout #22578 (Optional) 1. Lower the conveyor/auger to approximately STANDARD 4’ TO 6’ SPOUT #95870 4-5 feet off the ground. 2. Remove the standard spout from the conveyor/ auger by loosening the T-bolt clamp ring. OPTIONAL TELESCOPIC SPOUT TELESCOPIC SPOUT ASSEMBLY OM-01940...

  • Page 22: Electric Winch (Optional)

    — Set-Up Seed Chariot 2620/3620 Electric Winch Kit #28474 (Optional) 1. With the conveyor/auger resting in the transport position, remove the hand winch and existing winch bracket. Original 2. Install the bracket for the electric winch using cable 3/8” x 1” bolts and locknuts. Bracket 3.

  • Page 23: Two Function Wireless Remote Kit #2002376Cg (Optional)

    — Set-Up Seed Chariot 2620/3620 Two-Function Wireless Remote Kit #2002376CG (Optional) Wireless remote control package controls conveyor unloading speed and raises and lowers the conveyor if the unit is equipped with electric winch option. Refer to your Two-Function Wireless Remote manual for set up, operating, and maintenance information.

  • Page 24: Ag Package Decal Placement

    — Set-Up Seed Chariot 2620/3620 AG Package Decal Placement 1. Center and attach the SMV Emblem (95730) to the rear of the unit 3 3/4” from the frame. (FIG. 2-20) SIS DECAL (9008714) 2. Center and attach the SIS decal (9008714) to the rear of the unit 17 1/2”...
  • Page 25 — Set-Up Seed Chariot 2620/3620 AG Package Decal Placement (continued) 5. Place the amber reflector (9003127) 31 3/4” from the frame and 2” from the front on the Right-Hand right-hand side of the unit. (FIG. 2-22) Side View REFLECTOR 2" AMBER (9003127) 31 3/4"...
  • Page 26 — Set-Up Seed Chariot 2620/3620 Notes 2-12...
  • Page 27 — Operation Seed Chariot 2620/3620 Section III Operation Preparing Towing Vehicle ........................ 3-2 Preparing Implement - Lubrication ....................3-2 Preparing Implement - Tires/Wheels ....................3-2 Connecting to Towing Vehicle ......................3-3 Transport Chains ..........................3-3 Transporting ............................. 3-4 Engine Operation ..........................3-6 Raising and Lowering Conveyor .....................

  • Page 28: Preparing Towing Vehicle

    — Operation Seed Chariot 2620/3620 Preparing Towing Vehicle Before operating the implement, refer to the towing vehicle’s operator’s manual for information concerning safe methods of operation, hitch capacities, hitch adjustments, tire inflation and undercarriage braking operation. The vehicle must be equipped with proper electric undercarriage braking components. Check the vehicle brakes and transport lights.

  • Page 29: Transport Chains

    — Operation Seed Chariot 2620/3620 Connecting to Towing Vehicle • cRushing can cause seRious injuRy oR death. do not stand between tow- ING vEHICLE AND IMPLEMENT WHEN HITCHING. ALWAYS ENGAGE PARKING BRAKE AND STOP ENGINE BEFORE INSERTING HITCH PINS OR SECURING LATCHES. The Seed Chariot undercarriage is designed to be connected to a towing vehicle utilizing either the pintle hitch, or a 2 5/16”...

  • Page 30: Transporting

    NOTE: - EXTERIOR DURABILITY: MUST COMFORM TO ASTM D-1014. LIFE EXPECTANCY EQUALS FIVE YEARS. - ADHESIVE: PRESSURE SENSITIVE ADHESIVE BACKING SHALL MEET ADHESIVE — Operation Seed Chariot 2620/3620 SYSTEMS AS SPECIFIED IN ASTM D-4956, CLASS 1 BACKING. EXPECTANCY EQUALS FIVE YEARS - DECAL FORMAT AND COLORS MUST CONFORM TO ASAE S441.3 - SCORE BACKER / LINER: VERTICAL, HORIZONTAL, OR AS INDICATED.
  • Page 31 — Operation Seed Chariot 2620/3620 Transporting (continued) Be certain clearance to rafters, walls, machinery, etc. exists before operating the conveyor/ auger. With a towing vehicle hooked to the seed tender, activate the belt to make sure everything moves freely. Maintain tension on cable during transport...

  • Page 32: Engine Operation

    — Operation Seed Chariot 2620/3620 Engine Operation • explosive fuel can cause fiRes and seveRe buRns. stop the engine befoRe FILLING THE FUEL TANK. • caRbon monoxide can cause seveRe nausea, fainting oR death. do not OPERATE THE ENGINE IN A CLOSED OR CONFINED AREA. •...

  • Page 33: Pivoting Conveyor Or Auger Side-To-Side

    — Operation Seed Chariot 2620/3620 Raising and Lowing Conveyor or Auger • Always hold the transport latch lever to the side when raising the conveyor/auger. For the manual operation, hold the latch lever to the side, and crank the winch to raise the conveyor/auger out of transport.

  • Page 34: Filling Planter Or Drill

    — Operation Seed Chariot 2620/3620 Filling Planter or Drill • the ReaR hoppeR of the seed tendeR box should always be emptied fiRst. THIS WILL MAINTAIN WEIGHT ON THE HITCH OF THE TOWING vEHICLE. EMPTYING THE FRONT HOPPER FIRST WITH THE REAR HOPPER FULL COULD RESULT IN NEGA- TIvE TONGUE WEIGHT ON THE UNDERCARRIAGE AND REDUCED CONTROL OF THE UNDERCARRIAGE WHEN TOWING.

  • Page 35: Ladder

    — Operation Seed Chariot 2620/3620 Ladder 1. To use the ladder, extend the lower extension ladder from the transport position by sliding the bottom rung out until it stops. Lower the extension ladder towards the ground. 2. When not using the ladder, be sure to raise the lower extension ladder upward and slide back into the transport position.

  • Page 36: Weather Guard Tarp

    — Operation Seed Chariot 2620/3620 Weather Guard Tarp Always use adequate caution when operating the tarp. If the tarp is covered with snow, it is important to remove snow before operating. End caps must be free from grain that may be piled on them. Grain should not be heaped higher than end caps.

  • Page 37: Electronic Scale Operation - Model 640Xl (Optional)

    — Operation Seed Chariot 2620/3620 Electronic Scale Operation - Model 640XL (Optional) The following instructions can also be found in your scale/indicator user’s manual. Key Functions on/off Pressed to power on or off the indicator. Pressed to access memory channel. Also used to increment numbers during the numeric entry procedure.
  • Page 38 — Operation Seed Chariot 2620/3620 Electronic Scale Operation - Model 640XL (Optional) (continued) Gross/Tare/Net Weighing (continued) 4. Remove the weighed material from the scale (leaving the tared item). 5. Repeat steps 2 through 5 for each weighment using the same tare weight. 6.
  • Page 39 — Operation Seed Chariot 2620/3620 Electronic Scale Operation - Model 640XL (Optional) (continued) How to Configure Filtering (continued) 5. Press the PRINT/SELECT key twice... The current CONSTANT value is shown. Press the HOLD/MENU key to increase the value. Increasing this value causes the indicator to ignore increasing amounts of weight change on the scale. This means small changes can be ignored at a relatively small CONSTANT value.
  • Page 40 Below is a summary of the items in this menu, followed by a comprehensive explanation of each item: — Operation Seed Chariot 2620/3620 • A-LIST Used to edit the memory accumulator descriptions A-STAT • Used to access statistics of the memory accumulator channels Electronic Scale Operation - Model 640XL (Optional) (continued) •...

  • Page 41: Spout Recommendations

    — Operation Seed Chariot 2620/3620 Spout Recommendations Standard 2-Stage Spout Provides adequate spout length for easy filling. The shorter 2-stage is optimum for maneuvering within the drill compartments. Part numbers: Min. - Max. 27629 - 6” Diameter 3.5’ - 5’ 25532 - 8”...
  • Page 42 — Operation Seed Chariot 2620/3620 Notes 3-16...
  • Page 43 — Maintenance Seed Chariot 2620/3620 Section IV Maintenance Lubrication - Conveyor Bearings ....................4-2 Lubrication - Pivot Points ....................... 4-2 Lubrication - Wheel Bearings ......................4-2 Lubrication - Engine Oil Level ....................... 4-2 Conveyor Belt - Belt Tension ......................4-3 Conveyor Belt - Belt Tracking ......................
  • Page 44 — Maintenance Seed Chariot 2620/3620 Lubrication Lubricate with an SAE multi-purpose grease. All fittings must be free from dirt and paint to insure entry of lubricant inside the bearing. Conveyor and Auger Bearings Lubricate these bearings every 100 hours of operation and at the end of each season before storage.
  • Page 45 — Maintenance Seed Chariot 2620/3620 Conveyor Belt • moving oR Rotating components can cause seRious injuRy oR death. use EXTREME CARE WHEN INSPECTING AND ADJUSTING BELT TRACKING. Proper belt tension and correct ‘tracking’ of the belt are critical to maintaining the belt for years of worry-free use.
  • Page 46 — Maintenance Seed Chariot 2620/3620 Conveyor Belt (continued) Belt Tracking • entanglement with moving paRts can cause seRious injuRy oR death. use EXTREME CARE WHEN INSPECTING AND ADJUSTING BELT TRACKING. AvOID PER- sonal attiRe such as loose fitting clothing, shoestRings, dRawstRings, pants cuff, long haiR, etc., that may become entangled in moving paRts.

  • Page 47: Brake Cleaning And Inspection - Magnets

    — Maintenance Seed Chariot 2620/3620 Brake Cleaning and Inspection Your undercarriage brakes must be inspected and serviced immediately if a loss of performance is experienced. With normal use, servicing at one year intervals is usually adequate. With increased usage, this work should be performed more frequently as required. Magnets and shoes must be changed when they become excessively worn or scored, a condition which can reduce vehicle braking.

  • Page 48: How To Measure Voltage

    — Maintenance Seed Chariot 2620/3620 Brake Cleaning and Inspection (continued) Shoes and Linings A simple visual inspection of your brake linings will tell if they are usable. Replacement is necessary if the lining is worn (to within 1/16” or less), contaminated with grease or oil, or abnormally scored or gouged.

  • Page 49: How To Measure Amperage

    — Maintenance Seed Chariot 2620/3620 How to Measure Amperage System amperage is the current flowing in the system when all the magnets are energized. The amperage will vary in proportion to the voltage. The engine of the tow vehicle should be running with the undercarriage connected when checking the undercarriage braking system.

  • Page 50: Brake Drum Inspection

    — Maintenance Seed Chariot 2620/3620 Brake Drum Inspection There are two areas of the brake drum that are subject to wear and require periodic inspection. These two areas are the drum surface where the brake shoes make contact during stopping and the armature surface where the magnet contacts (only in electric brakes).

  • Page 51: Troubleshooting Brakes

    — Maintenance Seed Chariot 2620/3620 Troubleshooting Brakes Most electric brake malfunctions, that cannot be corrected by either brake adjustments or synchronization adjustments, can generally be traced to electrical system failure. Voltmeters and ammeters are essential tools for proper troubleshooting of electric brakes. Mechanical causes are ordinarily obvious, i.e.
  • Page 52 — Maintenance Seed Chariot 2620/3620 Belt Replacement (Optional) ITEM PART NO. DESCRIPTION TA4-114400-0 BELT INSTALLATION TOOL 9390-122 CAPSCREW, 5/8”-11UNC x 1 1/2 LG. GRADE 5 TA0-903118-0 BEARING, BALL THRUST, 5/8” I.D. TA1-114401-0 BOTTOM BAR TA2-114404-0 PLAIN TOP BAR WELDMENT TA2-114406-0 THREADED TOP BAR WELDMENT TA2-114408-0 THREAD ROD WELDMENT...

  • Page 53: Stretcher Assembled To Belt

    — Maintenance Seed Chariot 2620/3620 Belt Replacement (Optional) (Continued) Stretcher Assembled to Belt FOR ILLUSTRATION ONLY Belt Stretcher Assembly Rides On Bottom Of Conveyor Stretcher Trough/Pan And Is Held In Line By Bolts Assembly View "A" Belt Return Access Opening Shield View "B"...

  • Page 54: Wheel Torque Chart & Tire Specifications - Wheel Torque Requirements

    — Maintenance Seed Chariot 2620/3620 Wheel Torque Chart & Tire Specifications Wheel Torque Requirements • impRopeRly toRqued wheel nuts/bolts can cause a loss of implement contRol and machine damage. toRque wheel nuts/bolts to values in the table. check the toRque befoRe the initial use, afteR one houR of unloaded use oR afteR the fiRst load, and each load until the wheel nuts/bolts maintain the toRque value.

  • Page 55: Power Pak

    — Maintenance Seed Chariot 2620/3620 Wheel Torque Chart & Tire Specifications (continued) Tire Warranty For questions regarding new tire warranty, please contact your local equipment tire dealer. Used tires carry no warranty. The following are phone numbers and websites for your convenience: Greenball www.greenball.com Phone nearest location:...

  • Page 56: Torque Chart

    — Maintenance Seed Chariot 2620/3620 Torque Chart Capscrews - Grade 5 NOTE: Grade 5 capscrews can be indentified by three radial dashes on the head. NOTE: Tighten the U-bolts to have the same number of threads exposed on each end. FOOT NEWTON SIZE...

  • Page 57: Storage

    — Maintenance Seed Chariot 2620/3620 Storage Your Seed Chariot tender is an important investment. Spend a little time to protect it from destructive rust and corosion. You will be repaid in longer service life and better performance. After use, clean out the box, conveyor/auger and hopper. Remove all seed, and pressure wash to remove road dirt, seed treatment, etc.

  • Page 58: Troubleshooting

    — Maintenance Seed Chariot 2620/3620 Troubleshooting PROBABLE CAUSE CORRECTION undeRcaRRiage swaying, tiRe weaR, lights Unit sways during travel Check tire pressure Check tongue and steering hardware, tighten ap- propriately Tires show excessive wear Check tire pressure Wheel makes grinding or squeaking noise Service wheel bearings Tail lights are not functioning Check wires and connections...

  • Page 59: Front Undercarriage Electrical Schematic

    — Maintenance Seed Chariot 2620/3620 Front Undercarriage Electrical Schematic — #25045 4-17...

  • Page 60: Undercarriage Lighting & Brake Electrical Schematic - #25046

    — Maintenance Seed Chariot 2620/3620 Undercarriage Lighting & Brake Electrical Schematic — #25046 4-18...

  • Page 61: Conveyor/Auger Control Electrical Schematic -#28920

    — Maintenance Seed Chariot 2620/3620 Conveyor/Auger Control Electrical Schematic -#28920 4-19...

  • Page 62: Charge From Truck Electrical Schematic - #29410

    — Maintenance Seed Chariot 2620/3620 Charge From Truck Electrical Schematic — #29410 4-20...

  • Page 63: Switch Electrical Schematic - #26734

    — Maintenance Seed Chariot 2620/3620 Switch Electrical Schematic — #26734 4-21...
  • Page 64 — Maintenance Seed Chariot 2620/3620 Notes 4-22...
  • Page 65 Seed Chariot 2620/3620 Section V Parts Please visit www.unverferth.com/parts/ for the most current parts listing. Triple Axle Undercarriage, Hitch, Fender & Wheel Components ..........5-2 Tandem Axle Undercarriage, Hitch, Fender & Wheel Components ........... 5-6 Seed Door Components ......................5-9 Undercarriage Electrical Components ..................

  • Page 66: Triple Axle Undercarriage, Hitch, Fender & Wheel Components

    — Parts Seed Chariot 2620/3620 Triple Axle Undercarriage, Hitch, Fender & Wheel Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5 5 5 14 UNS USTER, LH ER MAN" 5/32 GRIP 2 5/8) W/...
  • Page 67 — Parts Seed Chariot 2620/3620 Triple Axle Undercarriage, Hitch, Fender & Wheel Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 24847CG Light Bar Weldment 24882CG Fender LH Weldment 24883CG Fender RH Weldment 2009898CG...
  • Page 68 — Parts Seed Chariot 2620/3620 Triple Axle Undercarriage, Hitch, Fender & Wheel Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 91822 Inner Bearing Cone 1.75 I.D. 901509 Seal 3 3/8” O.D. x 2 1/8 I.D. Single Lip...
  • Page 69 — Parts Seed Chariot 2620/3620 Notes...

  • Page 70: Tandem Axle Undercarriage, Hitch, Fender & Wheel Components

    — Parts Seed Chariot 2620/3620 Tandem Axle Undercarriage, Hitch, Fender & Wheel Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM...
  • Page 71 — Parts Seed Chariot 2620/3620 Tandem Axle Undercarriage, Hitch, Fender & Wheel Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 24687CG Tandem Axle Undercarriage Weldment 24772CG Fender LH Weldment 24773CG Fender RH Weldment...
  • Page 72 — Parts Seed Chariot 2620/3620 Tandem Axle Undercarriage, Hitch, Fender & Wheel Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 91812 Bearing Cup 3.265” O.D. Ref #25520 92687 Bearing Cup 2.717” O.D. Ref #14276 91824 Outer Bearing Cone 1.25”...

  • Page 73: Seed Door Components

    — Parts Seed Chariot 2620/3620 Seed Door Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 25932CG Door Weldment =CHARCOAL GREY= 25977B Latch =BLACK= 9390-003 Capscrew 1/4”-20UNC x 3/4” Grade 5 9936 Locknut 1/4”-20UNC...

  • Page 74: Undercarriage Electrical Components

    — Parts Seed Chariot 2620/3620 Undercarriage Electrical Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-10...

  • Page 75: Electric Breakaway Components

    — Parts Seed Chariot 2620/3620 Undercarriage Electrical Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 24847CG Light Bar Weldment 25045 Wiring Harness - 165” Front 25046 Wiring Harness - 338” Rear Electric Breakaway Kit...

  • Page 76: Discharge Conveyor Components - For 6" Tube Conveyor

    — Parts Seed Chariot 2620/3620 Discharge Conveyor Components - For 6” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM 23918@ 23994@ 24260 24414@ 24755 26580@ 901101 901662 901723 902006 91256 93400 9500341 9388-051 9390-055 9394-004 9394-006...
  • Page 77 — Parts Seed Chariot 2620/3620 Discharge Conveyor Components - For 6” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9500310 Idler Cover 23918CG Top Shield/Cover 23994CG Adjustment Plate 24260 Seal 24414CG Spout Bracket...

  • Page 78: Discharge Conveyor Components - For 8" Tube Conveyor

    — Parts Seed Chariot 2620/3620 Discharge Conveyor Components - For 8” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM 5-14...
  • Page 79 — Parts Seed Chariot 2620/3620 Discharge Conveyor Components - For 8” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 22018 Bushing 9500310 Idler Cover 23994CG Adjustment Plate 25239CG Top Shield/Cover 25256 Seal...

  • Page 80: Idler End Components - For 6" Tube Conveyor

    — Parts Seed Chariot 2620/3620 Idler End Components - For 6” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. 5-16...
  • Page 81 — Parts Seed Chariot 2620/3620 Idler End Components - For 6” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9500310 Idler Cover 23912CG Adjustment Plate 24756 Poly Strip 24964 Brush Holder 26002CG...

  • Page 82: Idler End Components - For 8" Tube Conveyor

    — Parts Seed Chariot 2620/3620 Idler End Components - For 8” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9500310 Idler Cover 23912CG Adjustment Plate 25258 Seal 25262 Brush Holder 26243 Seal...
  • Page 83 — Parts Seed Chariot 2620/3620 Idler End Components - For 8” Tube Conveyor Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 28249 Rest Pad 28285CG Cover Weldment 28295CG Clean Out Door Weldment 901044 Serrated Flange Bolt 5/16”-18UNC x 1”...
  • Page 84 — Parts Seed Chariot 2620/3620 Drive Assembly & Hopper Components Please visit www.unverferth.com/parts/ for the most current parts listing. 8" Tube Conveyor ITEM 25882 26100CG 26103 26440CG 6" Tube Conveyor 26689 28375@ 28377@ 28378@ 28380@ 28382@ 28410@ 28412 9001396 900513...
  • Page 85 — Parts Seed Chariot 2620/3620 Drive Assembly & Hopper Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 25882 Poly Washer 7 3/4” Dia. 26100CG Latch Weldment 26103 Lever Weldment 26440CG Chute Weldment 6” Dia.
  • Page 86 — Parts Seed Chariot 2620/3620 Drive Assembly & Hopper Components (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9392-140 Roll Pin 1/4” Dia. x 2” 9393-020 Slotted Nut 1”-14UNS Grade 2 9394-006 Hex Nut 3/8”-16UNC 9395-010 Hex Jam Nut 1/2”-13UNC...
  • Page 87 — Parts Seed Chariot 2620/3620 Drive Assembly & Hopper Components (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 26688CG Cover Weldment 98229 Decal, WARNING (Falling or Lowering Equip..) 9006919 Button Plug 2 1/2”...

  • Page 88: Auger Drive Assembly & Hopper Components

    — Parts Seed Chariot 2620/3620 Auger Drive Assembly & Hopper Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-24...
  • Page 89 — Parts Seed Chariot 2620/3620 Auger Drive Assembly & Hopper Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 2005357CG Auger Weldment 6” x 18’ w/Decals TA0-903088-0 Bearing w/Flange & Grease Zerk 29374CG Cleanout Door 9396-015 Wing Nut 1/4”-20UNC...
  • Page 90 — Parts Seed Chariot 2620/3620 Auger Drive Assembly & Hopper Components (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 26734 Switch Assembly 198” 28377CG Adjustment Plate 28410CG Pivot Weldment 28412 Pin 3/4” Dia. x 8 1/4”...
  • Page 91 — Parts Seed Chariot 2620/3620 Auger Drive Assembly & Hopper Components (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9404-019 Lock Washer 5/16” 9405-076 Flat Washer 3/8” USS 9405-088 Flat Washer 1/2” USS 9405-116 Flat Washer 1”...

  • Page 92: Auger Discharge End Components

    — Parts Seed Chariot 2620/3620 Auger Discharge End Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-28...
  • Page 93 — Parts Seed Chariot 2620/3620 Auger Discharge End Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES TA0-903088-0 Bearing w/Flange 1” I.D. 29405CG End Cap 9473 Self-Drilling Screw 1/4-14 x 3/4” 24414CG Spout Bracket 9928 Locknut 3/8”-16UNC...

  • Page 94: Gooseneck Hitch Components (Optional)

    — Parts Seed Chariot 2620/3620 Gooseneck Hitch Components (Option) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-30...
  • Page 95 — Parts Seed Chariot 2620/3620 Gooseneck Hitch Components (Option) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 2010230CG Gooseneck Hitch Assembly Includes Items 2-25 107905B Jack Weldment 9390-101 Capscrew 1/2”-13UNC x 1 1/2” Grade 5 9405-088 Flat Washer 1/2”...

  • Page 96: Windows, Decals, & Touch-Up Paint

    Windows, Decals, & Touch-Up Paint 902362 WH CONSPICUITY MARKING 98350 WARNING DECAL 902456 TOOL BOX 9936 LOCKNUT 1/4-20 Please visit www.unverferth.com/parts/ for the most current parts listing. Right-Hand Side view VIEW B-B  1/4 TYP  left-hand/door side view Rear view Front view...
  • Page 97 — Parts Seed Chariot 2620/3620 Windows, Decals, & Touch-Up Paint Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 102608 Window 102693 Weatherstrip 235161 Decal, DANGER (Flammable...) 25003 Conspicuity Marking (11” Red / 7” White)

  • Page 98: Tarp & Ladder Components - Model 2620

    — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 2620 Please visit www.unverferth.com/parts/ for the most current parts listing. 5-34...
  • Page 99 — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 2620 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES 2000184 Roll Tube Weldment 9500278 Plug 2” (Not Shown) 221748 Tarp Handle Weldment...
  • Page 100 — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 2620 (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES 91262 Large Flange Screw 3/8”-16UNC x 1” 91263 Large Flange Hex Nut 3/8”-16UNC 9936 Locknut 1/4”-20UNC...
  • Page 101 — Parts Seed Chariot 2620/3620 Notes 5-37...

  • Page 102: Tarp & Ladder Components - Model 3620

    — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 3620 Please visit www.unverferth.com/parts/ for the most current parts listing. prior to serial no. d58960100 5-38...
  • Page 103 — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 3620 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 2000184 Roll Tube Weldment 9500278 Plug 2” (Not Shown) 221748 Tarp Handle Weldment 221770B...
  • Page 104 — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 3620 (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 902876 Cable Assembly 124” Long 91256 Large Flange Screw 5/16”-18UNC x 3/4” 91257 Large Flange Hex Nut 5/16”-18UNC...
  • Page 105 — Parts Seed Chariot 2620/3620 Notes 5-41...
  • Page 106 — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 3620 Please visit www.unverferth.com/parts/ for the most current parts listing. serial no. d58960100 & up 5-42...
  • Page 107 — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 3620 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9928 Locknut 3/8”-16UNC 27194DG Tarp End Cap 27195B Tarp Bow Weldment 251122B Sideboard Bracket 26520 Latch Plate 139”...
  • Page 108 — Parts Seed Chariot 2620/3620 Tarp & Ladder Components - Model 3620 (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. 91256 Large Flange Screw 5/16”-18UNC x 3/4” 91257 Large Flange Hex Nut 5/16”-18UNC 901185 Poly Strip/Tarp Deflector 2000184...
  • Page 109 — Parts Seed Chariot 2620/3620 Notes 5-45...

  • Page 110: Manual Winch Components

    — Parts Seed Chariot 2620/3620 Manual Winch Components Please visit www.unverferth.com/parts/ for the most current parts listing. Parts List Parts List ITEM DESCRIPTION ITEM DESCRIPTION ITEM 9405-076 FLAT WASHER 3/8 USS 29675 PULLEY 281369 9405-088 FLAT WASHER 1/2 USS 29676...
  • Page 111 — Parts Seed Chariot 2620/3620 Manual Winch Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 28308CG Pivot Weldment 28310CG Channel Weldment 28312CG Channel Weldment 28323 Pin Weldment 28324 Pin Weldment 28329CG Winch Holder Bracket 28424 Winch Cable 405”...

  • Page 112: Electric Winch Components (Optional)

    — Parts Seed Chariot 2620/3620 Electric Winch Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM 28308@ 28310@ 28312@ 28323 28324 28334@ 28335@ 29676 902171 9390-055 9390-107 9390-109 9390-157 9405-076 9405-088 95236 9800 Parts List Parts List...
  • Page 113 — Parts Seed Chariot 2620/3620 Electric Winch Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES 28474 Electric Winch Kit Includes Items 6, 7, 9, 10, 14, 19 28308CG Pivot Weldment 28310CG...

  • Page 114: Spare Tire (Optional)

    — Parts Seed Chariot 2620/3620 ITEM Spare Tire (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES 28963 Spare Tire Kit w/Tire 28960CG Spare Tire Bracket Weldment 901669 Tapered Nut 9/16”-18UNF 902702 Wheel/Tire 6 x 16 - ST235/85R16 91262 Large Flange Screw 3/8”-16UNC x 1”...
  • Page 115 — Parts Seed Chariot 2620/3620 Spare Tire (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. Gooseneck Hitch Bumper Hitch ITEM PART NO. DESCRIPTION NOTES 2000939B Spare Tire Assembly for Bumper Pull Hitch Includes Items 2 through 11 29736B...

  • Page 116: Non-Scale Components

    — Parts Seed Chariot 2620/3620 Non-Scale Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES 27644CG Non-Scale Bundle 24931CG Bracket Weldment 9390-123 Capscrew 5/8”-11UNC x 1 3/4” 9801 Locknut 5/8”-11UNC 5-52...

  • Page 117: Scale Components (Optional)

    — Parts Seed Chariot 2620/3620 Scale Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 26858 Scale Components 29477CG Scale Bracket 28945CG Scale Enclosure w/Monitor 28944CG Scale Enclosure Weldment 9220 Draw Latch 28943CG...

  • Page 118: Telescopic Spout Components (Optional)

    — Parts Seed Chariot 2620/3620 Telescopic Spout Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM 22578 96855 98060 22577 26290@ 21759 6” 3-Stage Telescopic Spout 6” 3-Stage Telescopic Spout for 6” Conveyor (Optional) for 8” Conveyor (Optional) ITEM PART NO.
  • Page 119 — Parts Seed Chariot 2620/3620 AG Package # 2010513 (Option) - SMV, SIS Decals, & Reflectors Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES 9003126 Reflector, RED 9003127 Reflector, AMBER 9008714 Decal, Rear SIS 20MPH...
  • Page 120 L:\PAGEMAKER_OM_FILES\OMUNVERFERTH\SEED CHARIOT\27088.INDD//September 2016-8/January 2018-9//November 2018-10//September 2019-11//September 2020-12//December 2021-13//September 2022-14...

This manual is also suitable for:

Parker seed chariot 3620

Table of Contents
