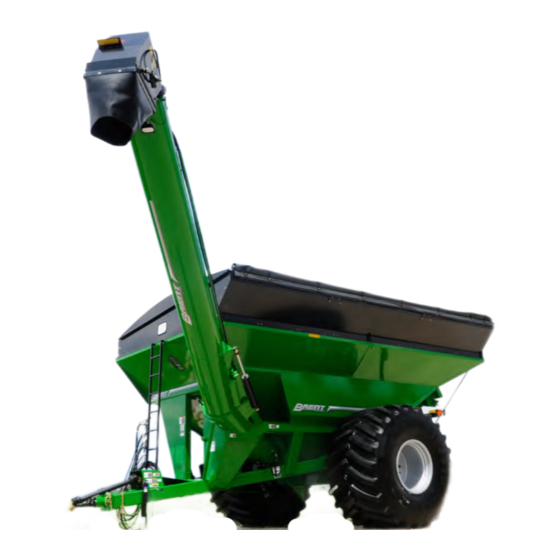

Unverferth BRENT V1100 Manual

Grain handling, corner-auger grain cart
Hide thumbs
Table of Contents

Advertisement

Quick Links

Grain Handling
CORNER-AUGER GRAIN CART
MODEL V1100
Serial Number B36110100 - B42910099
Part Number 290909

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRENT V1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unverferth BRENT V1100

Summary of Contents for Unverferth BRENT V1100

  • Page 1 Grain Handling CORNER-AUGER GRAIN CART MODEL V1100 Serial Number B36110100 - B42910099 Part Number 290909...
  • Page 2 — Introduction Brent V1100 Foreword This symbol identifies important safety messages. When you see it, read the message that follows and be alert to the possibility of personal injury. Remember, safety instructions stated in this manual are for your protection. Read them care- fully and follow them closely when working around or using this machine.
  • Page 3 The information, specifications, and illustrations in the manual are based on information available at the time it was written. Due to continuing improvements in the design and manufacture of Unverferth products, all specifications and information contained herein are subject to change without notice.

  • Page 4: Table Of Contents

    — Introduction Brent V1100 Table of Contents Section I Safety General Hazard Information ......................1-2 Safety Decals ..........................1-3 Following Safety Instructions ......................1-5 Before Operating ..........................1-5 Before Servicing..........................1-6 During Operation ..........................1-6 Before Transporting ......................... 1-7 During Transport..........................1-7 Driveline Safety ..........................
  • Page 5 — Introduction Brent V1100 Table of Contents Section II Set Up Set Up Checklist ..........................2-2 Set Up............................. 2-4 Hydraulic System........................2-4 Optional Hydraulic Brake System..................... 2-4 Wheel/Tire Set Up ........................2-4 Tire Pressure........................2-4 Wheel Nuts ........................2-4 Auger Rest Retainer Removal ....................2-5 Driveline Storage ........................
  • Page 6 — Introduction Brent V1100 Table of Contents Section III Operation Operating Checklist ......................... 3-2 Preparing Tractor..........................3-3 Preparing Cart Hardware ..........................3-3 Pivot Pins ..........................3-3 Hitch ............................3-3 Auger ............................3-3 Auger Driveline Assembly......................3-3 Hydraulic System........................3-5 Optional Hydraulic Brake System..................... 3-5 Tires/Wheels..........................
  • Page 7 — Introduction Brent V1100 Table of Contents Section IV Maintenance Lubrication............................4-2 Hydraulic System Purge Hydraulic System - Standard Spout................4-4 Relieving Hydraulic Pressure ....................4-5 Purging Procedure for EOH System ....................4-5 Bleeding Procedure For Braking System (Optional) ............... 4-6 Brake Pressure Manual Release ....................
  • Page 8 Brent V1100 Table of Contents Section V Parts Please visit www.unverferth.com/parts/ for the most current parts listing. Final Assembly ........................... 5-2 Rigid Axle (SN B37730100 and Higher) .................. 5-4 Rigid Axle (SN B37730099 and Lower) ..................5-5 Adjustable Axle (SN B37730100 and Higher) ................. 5-6 Adjustable Axle (SN B37730099 and Lower) ................
  • Page 9 — Safety Brent V1100 Section I Safety General Hazard Information ......................1-2 Safety Decals ..........................1-3 Following Safety Instructions ......................1-5 Before Operating ..........................1-5 Before Servicing..........................1-6 During Operation ..........................1-6 Before Transporting ......................... 1-7 During Transport..........................1-7 Driveline Safety ..........................1-8 Pressurized Oil ..........................

  • Page 10: Safety

    It is true that the designer, the manufacturer, and the safety engineer can help; and they will help, but their combined efforts can be wiped out by a single careless act of the operator. It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth Mfg.

  • Page 11: Safety Decals

    — Safety Brent V1100 Safety Decals 95008 9003474 95839 95445 9003476 9008721 TA1-906109-0 9008715 9003475 9008447 9008151 9008151 9003475 9003477 97961 FOLLOWS (MUNSELL NUMBER): 9003478 9003574 - Prior To Serial Number B38140100 95046 94094 9009470 VENDO 97575 VENDO FINISH: WEIGHT...
  • Page 12 — Safety Brent V1100 Safety Decals (continued) 9008714 9008720 TA510514 TA1-906109-0 REFLECTORS 9003125 (Fluorescent) 9003126 (Red) 9003127 (Amber) 95046...

  • Page 13: Following Safety Instructions

    — Safety Brent V1100 Following Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufac- turer.

  • Page 14: Before Servicing

    — Safety Brent V1100 Before Servicing • Avoid working under an implement; however, if it becomes absolutely unavoidable, make sure the implement is safely blocked. • Ensure that all applicable safety decals are installed and legible. • When working around the implement, be careful not to be cut by sharp edges.

  • Page 15: Before Transporting

    — Safety Brent V1100 Before Transporting • Secure transport chains to towing vehicle before transporting. DO NOT transport without chains. • Check for proper function of all available transport lights. Make sure that all reflectors are clean and in place on machine. Make sure the SMV emblem and SIS decals are visible to approaching traffic.

  • Page 16: Driveline Safety

    — Safety Brent V1100 Driveline Safety • Do not allow children near equipment that is running or engaged. • Do not exceed 1000 rpm PTO speed. • Disengage the PTO, stop the tractor engine, and remove key from ignition before making inspec- tions, or performing maintenance and repairs.

  • Page 17: Pressurized Oil

    — Safety Brent V1100 Pressurized Oil • Relieve the hydraulic system of all pressure before adjusting or servicing. See hydraulic power unit manual for procedure to relieve pressure. • High-pressure fluids can penetrate the skin and cause serious injury or death. Use cardboard or wood to detect leaks in the hydraulic system.

  • Page 18: Preparing For Emergencies

    — Safety Brent V1100 Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job.

  • Page 19: Set Up

    — Set Up Brent V1100 Section II Set Up Set Up Checklist ..........................2-2 Set Up............................. 2-4 Hydraulic System........................2-4 Optional Hydraulic Brake System..................... 2-4 Wheel/Tire Set Up ........................2-4 Tire Pressure........................2-4 Wheel Nuts ........................2-4 Auger Rest Retainer Removal ....................2-5 Driveline Storage ........................

  • Page 20: Set Up Checklist

    — Set Up Brent V1100 Set Up Checklist After the cart has been completely assembled, use the following checklist and inspect the cart. Check off each item as it is found satisfactory or after proper adjustment is made.  Wash the unit and remove road salt tag #255000 from ladder.
  • Page 21 — Set Up Brent V1100 Set Up FIG. 2-1 Sideboards Downspout Wheels/Tires & Wheel Nuts Jack Due to shipping requirements and various dealer-installed options, some initial cart set up will be required after it arrives from the factory. Use the following procedures as needed for initial cart set up.

  • Page 22: Set Up

    — Set Up Brent V1100 Set Up (continued) Hydraulic System Check all hoses and cylinders for signs of leakage. Hoses should not be kinked, twisted or rubbing against sharp edges. Re-route or repair hoses as necessary. Refer to SAFETY section for additional information on safe repair and inspection of hydraulic components.

  • Page 23: Auger Rest Retainer Removal

    — Set Up Brent V1100 Set Up (continued) Auger Rest Retainer Removal Remove the retainer located on the upper auger rest at the back of the cart, before folding out the upper auger tube, Figures 2-2 and 2-3. • Upper auger retainer must be removed before operating upper auger tube.

  • Page 24: Jack

    — Set Up Brent V1100 Set Up (continued) Jack • UNHITCHING A LOADED CART CAN CAUSE SERIOUS INJURY OR DEATH DUE TO THE TONGUE RISING OR FALLING. ALWAYS HAVE A LOADED CART ATTACHED TO A TRACTOR. THE JACK IS INTENDED TO SUPPORT AN EMPTY CART ONLY.

  • Page 25: Driveline Set Up

    Version à bosse Klemmko Clamping — Set Up Brent V1100 Cône de Set Up (continued) 36.5 Driveline Set Up SW 17 SW 17 gelb verzinkt / yellow galvanised / weiß verzinkt / white gal Clean and grease the driveline splined shaft. Refer to “Auger Driveline Replacement” in galvanisé...

  • Page 26: Lamp Set Up

    Compliance with all lighting and marking laws is the responsibility of the operator at the time of travel. See federal regulation 49 CFR 562; available at www.govinfo.gov for US federal law requirements. See Unverferth dealer for additional brackets, reflectors, or lights to meet your requirements. AMBER REFLECTOR TO FRONT OF CART FIG.

  • Page 27: Wheel Axle Spacing

    — Set Up Brent V1100 Set Up (continued) Wheel Axle Spacing Slide Out Distance Distance Hub Flange Tire Size (From end of the main axle tube to inside of Rim Offset to Hub Flange the extension weldment end cap plate.) 900/65R32 11 3/4”...
  • Page 28 — Set Up Brent V1100 Set Up (continued) Adjustable Axle (Optional) 4. Slide extensions to desired tire gauge spacing. Axle extensions should be extended equally. Refer to chart below and Figure 2-13. 11 3/4” 11 3/4” Ref. Ref. 132” FIG. 2-13 5.

  • Page 29: Sideboard And End Caps

    — Set Up Brent V1100 Set Up (continued) Sideboards and End Caps 1. Park the empty grain cart on a firm, level surface. Block the tires/tracks on the machine to keep it from moving. Set the tractor’s parking brake, shut-off the engine, remove the ignition key and disconnect the PTO shaft.
  • Page 30 — Set Up Brent V1100 Set Up (continued) 5. Remove and discard shipping bracket for FIG. 2-18 left-hand sideboard, Figure 2-18. 6. Lift the left-hand sideboard into position. NOTE: Hinge brackets WILL support the side- board and tarp. Left-Hand Shipping Bracket NOTE: Shocks are attached to the left-hand FIG.
  • Page 31 — Set Up Brent V1100 Set Up (continued) 8. ONE PIECE BRACE TUBES: Install The Install sideboard brace tubes on each cross Sideboard tube weldment. The center cross tube Brace Tube weldment will have one left-hand (287524B) and one right-hand sideboard brace tube (220032B).
  • Page 32 — Set Up Brent V1100 Set Up (continued) 11. If included, remove and discard the shocks FIG. 2-24 and associated brackets from the left-hand sideboard. 12. Remove and discard the shipping brackets from the rear and front sideboards. Front sideboard shown, Figure 2-24.
  • Page 33 — Set Up Brent V1100 Set Up (continued) 15. Loosely connect the the small rear sideboard to large rear sideboard using 3/8” hardware. See Figure 2-26. 16. Loosely attach small rear sideboard to left-hand sideboard using 3/8” hardware. See Figure 2-26.
  • Page 34 — Set Up Brent V1100 Set Up (continued) 17. Attach small rear end cap on top of rear Small sideboards. Loosely secure using 3/8” hard- End Cap ware. See Figure 2-27. NOTE: The small end cap tab will fit underneath the large end cap.
  • Page 35 — Set Up Brent V1100 Set Up (continued) 19. Install end cap plate (283431B) between the FIG. 2-29 end cap and right-hand sideboard. End Cap Plate Figures 2-29 through 2-31. (283431B) 20. Retain by using two 3/8”-16 x 1” carriage bolts (9388-051), two 3/8”-16 flange nuts...
  • Page 36 — Set Up Brent V1100 Set Up (continued) 21. Lift large front sideboard into position and loosely secure with 3/8” flange screws and flange nuts along the bottom. See Figure 2-32. Large End Cap Small End Cap Large Front Connector...
  • Page 37 — Set Up Brent V1100 Set Up (continued) 25. Attach large front end cap on top of front FIG. 2-33 sideboards using 3/8” hardware. (Fig. 2-33) End Cap Plate NOTE: Tab on small end cap go UNDER (283431B) the large end cap.

  • Page 38: Tarp Installation

    — Set Up Brent V1100 Set Up (continued) Tarp Installation NOTE: For carts SN B40920099 & lower, skip to step 4 on next page. NOTE: Ensure RH and LH doublers are inside the sideboard lip. See Figure 2-36. 1. For carts SN B40920100 & higher, attach RH doubler (289986B) and LH doubler (281936B) to inside sideboard lip using 3/8”...
  • Page 39 — Set Up Brent V1100 Set Up (continued) 4. Attach bracket (283425B) to sideboards using 5/16” flange screw (91256) and 5/16” flange nut (91257). See Figures 2-37 and 2-38. 5. Install six long tarp bows (287400B) across top of the cart using 3/8” capscrew (902703-046) and 3/8”...
  • Page 40 — Set Up Brent V1100 Set Up (continued) NOTE: Ensure capscrew head (902703-046) is flush with the top of bow weldment Capscrew (287400B). See Figure 2-39. (902703-046) 6. Use a 3/8” impact wrench to insert cap- screw (902703-046) into the bow weldment (287400B).
  • Page 41 — Set Up Brent V1100 Set Up (continued) 10. Install four tarp cables across the top Attach Tarp Cables using 3/8”-16UNC x 4 1/2” capscrew Capscrew (TA0-907131-0), 3/8” lock washer (9005688), (TA0-907131-0) 3/8” fender washer (9005696) and bracket & U-nut assembly (281712B). See Figures Lock 2-41 through 2-44.
  • Page 42 — Set Up Brent V1100 Set Up (continued) 13. Attach the crank handle to the tarp roll FIG. 2-45 tube, Figure 2-45. Once secure, roll tarp across the cart to the closed position. Attach to Tube Crank Handle 14. Remove crank handle from roll tube.
  • Page 43 — Set Up Brent V1100 Set Up (continued) 16. Attach U-clamps (9004949) to secure tarp FIG. 2-47 to tube using #10-16 x 3/4” self-drilling screws (9005197). Check that U-clamps are located on reinforcement straps, Figures 2-47 and 2-48. Self-Drilling 17. With the tarp in the closed position and the...

  • Page 44: Operational Check

    — Set Up Brent V1100 Operational Check • MOVING OR ROTATING COMPONENTS CAN CAUSE SERIOUS INJURY OR DEATH. EN- SURE SERVICE COVERS, CHAIN/BELT COVERS AND CLEAN-OUT DOOR ARE IN PLACE AND SECURELY FASTENED BEFORE OPERATING UNIT. • Before running the auger, inspect and verify all grain dust and filings are removed from inside the lower auger to prevent machine damage and the cleanout door is completely closed.

  • Page 45: Options, Please Refer To The Specific Manual

    — Operation Brent V1100 Section III Operation Operating Checklist ......................... 3-2 Preparing Tractor..........................3-3 Preparing Cart Hardware ..........................3-3 Pivot Pins ..........................3-3 Hitch ............................3-3 Auger ............................3-3 Auger Driveline Assembly......................3-3 Hydraulic System........................3-5 Optional Hydraulic Brake System..................... 3-5 Tires/Wheels..........................

  • Page 46: Operating Checklist

    — Operation Brent V1100 Operating Checklist  Read and understand all safety precautions before operating cart.  Test operation and functionality of flow door indicator, setting flow door stop valve, auger fold, and spout rotate and tilt.  Verify transport lights are working properly. Check and follow all regulations before towing on a road or highway.

  • Page 47: Preparing Tractor

    — Operation Brent V1100 Preparing Tractor Before operating cart, read the tractor Operator’s Manual and gain an understanding of its safe methods of operation. Check the tractor brakes and transport lights. Make sure they are in proper working order. Check the tractor hydraulic oil reservoir and add oil if needed.

  • Page 48: Preparing Cart

    — Operation Brent V1100 Preparing Cart Perform the service checks as outlined below. Repair or replace any damaged or worn parts before operating. Hardware Check for loose bolts and nuts, and tighten as needed. Check again after the first half-day of operation.

  • Page 49: Hydraulic System

    — Operation Brent V1100 Preparing Cart (continued) Hydraulic System Check all hoses and cylinders for signs of leakage. Hoses should not be kinked, twisted or rubbing against sharp edges. Re-route or repair hoses as necessary. Refer to SAFETY section for additional information on safe repair and inspection of hydraulic components.

  • Page 50: Hitching To Tractor

    — Operation Brent V1100 Hitching to Tractor Drawbar Connection This cart is intended to be hitched to a trac- tor drawbar. Do not attempt to hitch to any FIG. 3-1 location on the tractor other than the drawbar. The cart comes with a CAT 4 hitch for use with a 2”...

  • Page 51: Jack Usage

    — Operation Brent V1100 Hitching to Tractor (continued) Jack Usage • UNHITCHING A LOADED CART CAN CAUSE SERIOUS INJURY OR DEATH DUE TO THE TONGUE RISING OR FALLING. ALWAYS HAVE A LOADED CART ATTACHED TO A TRACTOR. THE JACK IS INTENDED TO SUPPORT AN EMPTY CART ONLY.

  • Page 52: Transport Chain Connection

    — Operation Brent V1100 Hitching to Tractor (continued) Transport Chain Connection • ALWAYS USE TRANSPORT CHAIN WHEN TRANSPORTING IMPLEMENTS. FAILURE TO USE A TRANSPORT CHAIN COULD CAUSE PERSONAL INJURY IF CART BECOMES DISENGAGED. • REPLACE TRANSPORT CHAIN IF ANY LINK OR END FITTING IS BROKEN, STRETCHED OR DAMAGED.

  • Page 53: Hydraulic Connections

    — Operation Brent V1100 Hitching to Tractor (continued) Hydraulic Connections FIG. 3-7 • When coupling hydraulic hoses to ports on the tractor, be sure that the coupler ends are clean of dust, dirt and debris. Failure to do so could contaminate hydraulic system resulting in excessive wear and possible failure.

  • Page 54: Hydraulic Connections For Hydraulic Drive

    — Operation Brent V1100 Hitching to Tractor (continued) Hydraulic Connections for Hydraulic Drive It is possible that the tractor utilizes more than one pump to achieve higher hydraulic flow rates. To maximize hydraulic flow to auger hydraulic drive motor, refer to tractor’s Operator’s Manual to determine which couplers should be used to achieve maximum flow.

  • Page 55: Electrical Connections

    See federal regulation 49 CFR 562; available at www.govinfo.gov for US federal law require- ments. See your Unverferth dealer for additional brackets, reflectors, or lights to meet your require- ments. Optional Implement Brake Connection Connector should comply with ISO:5676 standards. Brake hydraulic hose is designated with blue color band.

  • Page 56: Towing

    — Operation Brent V1100 Towing Even if the cart is equipped with brakes, ensure that the towing vehicle has adequate weight and braking capacity to tow this implement. See towing vehicle manual for towing capacity. Never tow a loaded grain cart over public roads.

  • Page 57: Electric Over Hydraulic Operation (Optional)

    — Operation Brent V1100 Electric Over Hydraulic Operation (Optional) Before operating cart, familiarize yourself with the functions associated with the joystick controller by operating with an empty cart. The joystick comes with a mounting pin allowing storage inside the tractor cab when not in use.
  • Page 58 — Operation Brent V1100 Electric Over Hydraulic Operation (Optional) (continued) 3. Connect the Hydraulic Pressure and Return hoses to the tractor SCV remote so that the Pressure line is able to be put in continuous detent. 4. Place the remote in continuous detent so that the Hydraulic Pressure hose is pressurized and set the hydraulic flow to a maximum of 6 gal/min.
  • Page 59 (SEE NOTE FOR SOFTWARE LOGIC) — Operation Brent V1100 Electric Over Hydraulic Operation (Optional) (continued) 11. To open flow door, rotate the switch up- FIG. 3-11 wards. Observe flow door indicator to de- termine when to release trigger and stop FLOW DOOR OPEN flow door movement.

  • Page 60: Manual Override For Optional Electric Over Hydraulic System

    — Operation Brent V1100 Manual Override for Optional Electric Over Hydraulic System • MOVING OR ROTATING AUGER COMPONENTS CAN CAUSE SERIOUS INJURY OR MA- CHINE DAMAGE. BEFORE OPERATING MANUAL OVERRIDE(S), ENSURE EVERYONE IS AWAY FROM THE SPOUT AND THAT THE SPOUT WILL NOT CONTACT ANY OTHER PARTS OF THE GRAIN CART.
  • Page 61 — Operation Brent V1100 Manual Override for Optional Electric Over Hydraulic System (continued) NOTE: Only one cartridge valve (9008416) may be in the top or bottom detent position at Cartridge Valve (9008416) a time to function properly. All other valves Top Detent must be in the middle detent postion.

  • Page 62: Auger Operation

    — Operation Brent V1100 Auger Operation PTO Driven Auger • ELECTROCUTION WILL CAUSE SERIOUS INJURY OR DEATH. ELEC- TROCUTION CAN OCCUR WITHOUT DIRECT CONTACT. KEEP AWAY FROM ALL ELECTRICAL LINES AND DEVICES. • ENTANGLEMENT WITH THE DRIVELINE WILL CAUSE SERIOUS INJURY OR DEATH.
  • Page 63 — Operation Brent V1100 Auger Operation (continued) 5. To slow or stop grain flow, close flow FIG. 3-18 door, DO NOT reduce tractor/PTO RPM as a means to control grain flow. Close flow door fully when unloading is complete. (FIG.

  • Page 64: Increasing Maximum Flow Door Opening

    — Operation Brent V1100 Auger Operation (continued) Increasing Maximum Flow Door Opening The floor door has been set with a stop to prevent the maximum opening while operating the cart at lower PTO rpm. The factory stop position provides full auger fill in most crops and conditions.

  • Page 65: Troubleshooting

    — Operation Brent V1100 Troubleshooting Problem Possible Cause Corrective Action Check the connections to the main power harness in the tractor 7 Pin connector not supplying good cab, and check the 5 AMP fuse in the fuse holder of the main ground to cart.

  • Page 66: Optional Equipment

    — Operation Brent V1100 Optional Equipment Hydraulic Drive The optional hydraulically-driven auger permits cart operation using tractors that are not equipped with a PTO. However, due to the power requirements of a grain cart, it should be expected that a hydraulically-driven grain cart will not unload as quickly as a PTO driven cart.
  • Page 67 — Operation Brent V1100 Optional Equipment (continued) Hydraulic Drive (continued) NOTE: For complete assembly and operation details for the Hydraulic Drive, please refer to the Hydraulic Drive manual (282894). 1. Before loading cart or operating auger, verify that the flow control door is closed.

  • Page 68: Weather Guard Tarp

    — Operation Brent V1100 Weather Guard Tarp • TO PREVENT PERSONAL INJURY OR DEATH, DO NOT ALLOW ANYONE ON A CLOSED TARP. TARP SYSTEM IS NOT DESIGNED TO SUPPORT A PERSON. • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. REMOVE ACCUMULATED WATER/SNOW/ICE OR ANY OTHER OBJECTS FROM TARP BEFORE OPENING TARP.
  • Page 69 — Operation Brent V1100 Weather Guard Tarp (continued) 1. Using both hands, carefully remove crank handle from holder. (FIG. 3-21) 2. Roll tarp to the desired location, choosing either a fully open or fully closed position. 3. To close the tarp, roll the main tarp tube clockwise up under the latch plate. Next, bring the crank handle down perpendicular to the ground.
  • Page 70 — Operation Brent V1100 Notes 3-26...

  • Page 71: Options, Please Refer To The Specific Manual

    — Maintenance Brent V1100 Section IV Maintenance Lubrication............................4-2 Hydraulic System Purge Hydraulic System - Standard Spout................4-4 Relieving Hydraulic Pressure ....................4-5 Purging Procedure for EOH System ....................4-5 Bleeding Procedure For Braking System (Optional) ............... 4-6 Brake Pressure Manual Release ....................4-7 Gearbox Lubrication ........................

  • Page 72: Lubrication

    — Maintenance Brent V1100 Lubrication To keep your grain cart in top operating condition and to assure its proper performance and reliability for a long period of time, periodic inspection and lubrication is a must. Upper Auger Top Bearing 1 Shot Each Season...
  • Page 73 To keep your grain cart in top operating condition and to assure its proper performance and reliability for a long period of time, periodic inspection and lubrication is a must. Unverferth Mfg. recommends use of NLGI #2 Extreme Pressure grease. The lubrication locations and recommended schedule are as follows:...

  • Page 74: Hydraulic System

    When properly assembled and maintained, the hydraulic system of the grain cart requires little maintenance. Replacing Hoses/Fittings/Cylinders: 1. Use replacement hoses, fittings, and cylinders from your Unverferth Manufacturing dealer which are rated for 3000 psi. 2. Do not use hoses, fittings and cylinders that have pipe threads.

  • Page 75: Relieving Hydraulic Pressure

    — Maintenance Brent V1100 Hydraulic System (continued) Relieving Hydraulic Pressure To relieve hydraulic pressure in the system, consult tractor operators manual for procedure to relieve pressure. Purging Procedure For EOH System • RELIEVE THE HYDRAULIC SYSTEM OF ALL PRESSURE BEFORE ADJUSTING OR SERVICING.

  • Page 76: Bleeding Procedure For Braking System (Optional)

    — Maintenance Brent V1100 Bleeding Procedure For Braking System (Optional) • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. • RELIEVE THE HYDRAULIC SYSTEM OF ALL PRESSURE BEFORE ADJUSTING OR SERVICING. SEE THE HYDRAULIC POWER UNIT OPERATOR’S MANUAL FOR PROPER PROCEDURES.

  • Page 77: Brake Pressure Manual Release

    — Maintenance Brent V1100 Bleeding Procedure For Braking System (Optional) (continued) Brake Pressure Manual Release NOTE: System is intended for tractors with hydraulic trailer brakes. If your tractor does not have hydraulic trailer brakes, contact your dealer for support. 1. Set tractor parking brake. Block tires to prevent cart from moving. Shut off tractor and remove ignition key.

  • Page 78: Gearbox Lubrication

    — Maintenance Brent V1100 Gearbox Lubrication FIG. 4-2 • For 45° gearbox (9009053), the fill plug is Vent Plug 9009053 inaccessible. Add oil at the vent plug on the left-hand side of the housing. For 45° gearbox with 20 spline input shaft, (9009053), the fill plug is located on the left- hand front side of the housing for reference.

  • Page 79: Seasonal Storage

    — Maintenance Brent V1100 Seasonal Storage Your cart is an important investment. Spend a little time to protect it from destructive rust and corrosion, you will be repaid in longer service life and better performance. Do the following before placing the cart in storage: 1.

  • Page 80: Auger System

    — Maintenance Brent V1100 Auger System • TO PREVENT PERSONAL INJURY OR DEATH, ALWAYS ENSURE THAT THERE ARE PEOPLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON WORKING IN- SIDE, AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE ARE RESTRICTED MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE IMPLEMENT.

  • Page 81: Lower Auger Removal

    — Maintenance Brent V1100 Auger System (continued) Lower Auger Removal 1. Hitch cart to tractor, connect hoses for flow door and upper auger hydraulic cylinders and fully open flow door. Keep upper au- ger in the folded position. Park the empty grain cart on a firm, level surface.
  • Page 82 — Maintenance Brent V1100 Auger System (continued) Lower Auger Removal 4. The replacement auger is factory balanced. Remove entire auger from shipping crate and secure from rolling. The lower auger assembly is pictured in FIG. 4-6 for refer- ence. FIG. 4-6 5.

  • Page 83: Hanger Bearing Centering

    — Maintenance Brent V1100 Auger System (continued) Hanger Bearing Centering 10. Once the lower auger is inserted into the FIG. 4-9 auger tube, center the lower auger in the tube and support with two 5/8” thick bars wedged near the auger hinge plate. (FIG.

  • Page 84: U-Joint Spline Gap

    — Maintenance Brent V1100 Auger System (continued) 12. Loosely secure the hanger bearing using two 3 3/8” x 3 11/16” shims (288679B), three 5/8”-11UNC x 2” capscrews (9390-124), three 5/8” flat washers (9405-098), and three 5/8”-11UNC lock nuts (9003398) as shown in FIG. 4-11.

  • Page 85: Upper Auger

    — Maintenance Brent V1100 Auger System (continued) Upper Auger 1. Hitch cart to tractor. Keep upper auger in the folded position. Park the empty grain cart on a firm, level surface. Set the trac- tor’s parking brake, shut-off the engine and remove the ignition key.

  • Page 86: Soft Start Replacement

    — Maintenance Brent V1100 Auger System (continued) Soft Start Replacement 3. Use a safe lifting device rated at a minimum of 2,000 lbs. to support the upper auger, remove auger from tube. 4. Remove the 1/2”-13UNC x 7” capscrew (9390-117), 1/2”-13UNC lock nut (9800), soft start assem- bly, thrust washer (9004878), and bushing (9004877).

  • Page 87: Upper Auger Inset

    — Maintenance Brent V1100 Auger System (continued) 7. Retain the soft start into position with 1/2”-13UNC x 8” capscrew (9390-119), spacer bushing (410511), and 1/2”-13UNC lock nut (9800). (FIG. 4-17) 1/2"-13UNC Lock Nut (9800) Spacer Bushing (410511) 4.250" OD x 4.011" ID...
  • Page 88 — Maintenance Brent V1100 Auger System (continued) Upper Auger Inset (continued) 11. Make sure that the 4 bolt flange bearing is sitting tight against the mounting plate and then tighten the two bearing set screws. Attach the 5/16”-18UNC x 2 3/4” capscrew (9390-037), four 5/16”...

  • Page 89: Upper Auger Bearing Gap

    — Maintenance Brent V1100 Auger System (continued) Upper Auger Bearing Gap 12. Unfold the auger to the unload position. 13. Verify the upper auger bearing height by inspecting the upper auger bearing in op- erating position. There should be minimum 1/16”...

  • Page 90: Auger Flow Door Cylinder Replacement

    — Maintenance Brent V1100 Auger System (continued) Auger Flow Door Cylinder Replacement • TO PREVENT PERSONAL INJURY OR DEATH ALWAYS ENSURE THAT THERE ARE PEO- PLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON WORKING INSIDE, AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE ARE RESTRICTED MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE IMPLEMENT.
  • Page 91 — Maintenance Brent V1100 Auger System (continued) Auger Flow Door Cylinder Replacement (continued) 2. On the inside of the cart, open the screen FIG. 4-22 service access panel shown in FIG. 4-22. Screen Service Access Panel 3. Remove the cotter pins from the lower cylinder pin then remove the pin.
  • Page 92 — Maintenance Brent V1100 Auger System (continued) Auger Flow Door Cylinder Replacement (continued) 6. Label the hydraulic hoses to indicate upper and lower. Disconnect them from the cyl- Remove Lower inder, along with the lower hydraulic fitting Hose & Fitting (Fig.

  • Page 93: Adjusting Cleanout Door

    — Maintenance Brent V1100 Adjusting Cleanout Door MOVING PARTS CAN CRUSH AND CUT. KEEP AWAY FROM MOVING PARTS. • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT • MUST BE WORN WHILE SERVICING THE IMPLEMENT.
  • Page 94 — Maintenance Brent V1100 Adjusting Cleanout Door (continued) 5. Push the gear assembly toward bottom of auger to remove excess movement and prevent the door from moving upward when Push Gear Assembly Toward Bottom of Auger unloading the cart. (FIG. 4-28) FIG.

  • Page 95: Verify Telescoping Pto Shaft Length

    — Maintenance Brent V1100 Verify Telescoping PTO Shaft Length • PROPER EXTENDED AND COLLAPSED LENGTHS OF THE TELESCOPING PTO SHAFT MUST BE VERIFIED BEFORE FIRST OPERATION WITH EACH TRACTOR. IF THE EXTENDED LENGTH OF THE PTO SHAFT IS NOT SUFFICIENT, IT MAY BECOME UN- COUPLED IN OPERATION AND CAUSE SERIOUS INJURY OR DEATH FROM CONTACT WITH UNCONTROLLED FLAILING OF PTO SHAFT ASSEMBLY COMPONENTS.
  • Page 96 — Maintenance Brent V1100 Verify Telescoping PTO Shaft Length (continued) 4. Hitch tractor drawbar to cart, ensuring that tractor and cart are on level ground and coupled as straight as practical. 5. Connect PTO shaft to tractor, and measure length “L” from same points as used in step 1. Ensure that this measurement does not exceed the maximum recommended extended length calculated in step 3 above.

  • Page 97: Pto Shaft And Clutch

    — Maintenance Brent V1100 PTO Shaft and Clutch (continued) Coupling the PTO drive shaft (Figs. E1 - E2) Clean and grease the PTO and implement input connection (IIC) AS-Lock 1. Pull locking collar and simultaneously push PTO drive shaft onto PTO shaft until the locking device engages.
  • Page 98 — Maintenance Brent V1100 PTO Shaft and Clutch (continued) To Dismantle Guard (Figs. J1 - J4) 1. Remove locking screw. 2. Align bearing tabs with cone pockets. 3. Remove half-guard. 4. Remove bearing ring. To Assemble Guard (Figs. K1 - K5) 1.
  • Page 99 — Maintenance Brent V1100 PTO Shaft and Clutch (continued) To Assemble Cone (Figs. L1 - L3) 1. Dismantle guard (Figs. J1 - J3). move old cone (e.g. cut open with knife). Take off chain. Place neck of new cone in hot water (approx 80 C / 180 and pull onto bearing housing.

  • Page 100: Auger Driveline

    — Maintenance Brent V1100 Auger Driveline Bearings It is important to periodically check setscrews in all bearings of the driveline for tightness. Driveline Replacement Flangette Bearings FIG. 4-34 1. Park the empty cart on a firm, level sur- face. Block the wheels or tracks on the cart to keep it from moving.
  • Page 101 — Maintenance Brent V1100 Auger Driveline (continued) Driveline Replacement (continued) 6. Remove bearings, bearing mounts, universal joint cover, PVC driveshaft covers, driveshaft lock collars (if lock collars are attached to driveshaft), and driveline cover, located behind the ladder, from the current driveshaft.
  • Page 102 — Maintenance Brent V1100 Auger Driveline (continued) Driveline Replacement (continued) 12. Tighten all flangette mounting hardware. Universal Joint Drill Dimple 13. With flangette mounting hardware completely Orientation in Line on Driveshaft tightened, drill a setscrew dimple in the driveshaft by going through the bearing setscrew threaded hole to dimple the drive- shaft being careful to not damage threads.

  • Page 103: Pto Quick Disconnect

    / yellow galvanised / weiß verzinkt / white galvanised / gelb verzinkt / yellow galvanised / weiß verzinkt / white galvanised / — Maintenance Brent V1100 galvanisé en jaune galvanisé en blanc galvanisé en jaune galvanisé en blanc...

  • Page 104: Tarp Troubleshooting Inspection & Maintenance

    — Maintenance Brent V1100 Tarp Troubleshooting Inspection & Maintenance PROBLEM SOLUTION TARP SAGS IN MIDDLE AREAS BOWS MAY BE BENT OR ADJUSTED TOO LOW MISSING OR LOOSE RIDGE STRAP REPLACE OR RETIGHTEN TENSION MAY BE TOO LOOSE. U-JOINT MAY NEED TO BE ADJUSTED ON SPLINED SHAFT...
  • Page 105 — Maintenance Brent V1100 Wheel, Hub and Spindle Disassembly and Assembly • TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH. BE SURE MACHINE IS SECURELY BLOCKED. • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED.
  • Page 106 — Maintenance Brent V1100 Wheel, Hub and Spindle Disassembly and Assembly 5. Inspect the spindle and replace if necessary. If spindle does not need to be replaced, skip to Step 6; otherwise continue with Step 5. Remove the bolt and lock nut that retains the spindle to the axle. Using a safe lifting device rated for 200 lbs., replace the old spindle with a new spindle.

  • Page 107: Electrical System Diagram

    — Maintenance Brent V1100 Electrical System Diagram — Overall To Right-Side of Right-Hand Side Cart Interior Work Light #9008957 Tail Light RH Sub Assembly #290714B Red Tail/Turn Amber Light - Micro Dot Light #9006107 #9006282 Rear Wiring To Tractor Harness...
  • Page 108 — Maintenance Brent V1100 Electrical System Diagram — Plug #92450 GRAIN CART WIRES White -- Ground Black - Work Lights Green -- Right amber flashing lamp Green - RH Turn Yellow -- Left amber flashing lamp Yellow - LH Turn...

  • Page 109: Electric Over Hydraulic (Eoh) System Schematic 4 Function Optional

    — Maintenance Brent V1100 Electric Over Hydraulic (EOH) System Schematic 4 Function Optional NOTE: 7-pin connector must be plugged into the tractor in order for the EOH system to operate. Main Harness (9008403) 4-39...
  • Page 110 — Maintenance Brent V1100 Electrical Diagram — Front Wiring Harness #9007892 4-40...
  • Page 111 — Maintenance Brent V1100 Electrical Diagram — Rear Wiring Harness #9007894 4-41...
  • Page 112 — Maintenance Brent V1100 Electrical Schematic — Auger Wiring Harness #9009107 - For SN B40920100 & Higher #9007893 - For SN B40920099 & Lower 4-42...
  • Page 113 — Maintenance Brent V1100 Electrical Diagram — Proximity Sensor #9007472 Electrical Schematic — Work Light #9008957 For SN B40920100 & Higher 2 PIN INTEGRATED DEUTSCH CONNECTOR POWER (PIN #1) GROUND (PIN #2) Electrical Schematic — Work Light #9007186 For SN B40920099 & Lower...
  • Page 114 — Maintenance Brent V1100 Electrical Diagram — Red Tail/Turn Light #9006282 Electrical Diagram — Amber Light - Micro Dot #9006107 Electrical Diagram — Amber Lamp Double Face #9005142 4-44...
  • Page 115 — Maintenance Brent V1100 Optional Electric Over Hydraulic Valve Electric Schematic 4 Spool NOTE: For hydraulic connections chart, refer to “Hitching to Tractor - Hydraulic Connections” in the OPERATION section. "D" Port "F" Port Auger Spout Tilt RAISE "B" Port "H"...

  • Page 116: Hydraulic System Plumbing Diagram

    — Maintenance Brent V1100 Hydraulic System Plumbing Diagram Spout Rear Port B Port A Spout Front Flow Door Closed Flow Door Open Auger Raise Auger Lower Spout Tilt Out Spout Tilt In 4-46...

  • Page 117: Braking System Schematic (Optional)

    — Maintenance Brent V1100 Braking System Schematic (Optional) 4-47...
  • Page 118 — Maintenance Brent V1100 Wheels and Tires Wheel Nut Torque Requirements • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE. TORQUE WHEEL NUTS/BOLTS TO VALUES IN TABLE. CHECK TORQUE BEFORE USE, AFTER ONE HOUR OF UNLOADED USE OR AFTER FIRST LOAD, AND EACH LOAD UNTIL WHEEL NUTS/BOLTS MAINTAIN TORQUE VALUE.
  • Page 119 — Maintenance Brent V1100 Wheels and Tires (continued) Tire Pressure The following is to be used as a general guide for tire inflation and figures can vary depending on specific brand of tire used. It is important that tires are inspected after unit is loaded.
  • Page 120 — Maintenance Brent V1100 Wheels and Tires (continued) Tire Pressure (continued) Tire Pressure for Grain Carts Load Index / Ply Max. PSI Tire Make Part Number Tire Size Rating Titan/Goodyear 94286 23.1x26 R-3 99364 23.1x26 R-1 99307 24.5R32 R-1 169A8/B (5-Star) 94289 24.5x32 R-3...
  • Page 121 — Maintenance Brent V1100 Wheels and Tires (continued) Tire Warranty For questions regarding new tire warranty, please contact your local original equipment tire dealer. USED TIRES CARRY NO WARRANTY. Following are phone numbers and Websites for your convenience: Firestone www.firestoneag.com...

  • Page 122: Capscrews - Grade 5

    — Maintenance Brent V1100 Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end.

  • Page 123: Capscrews - Grade 8

    — Maintenance Brent V1100 Complete Torque Chart Capscrews - Grade 8 NOTE: • Grade 8 capscrews can be identified by six radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end.
  • Page 124 — Maintenance Brent V1100 Hydraulic Fittings – Torque and Installation SAE Flare Connection (J. I. C.) 1. Tighten nut with finger until it bottoms the seat. 2. Using a wrench, rotate nut to tighten. Turn nut 1/3 turn to apply proper torque.
  • Page 125 — Parts Brent V1100 Section V Parts Please visit www.unverferth.com/parts/ for the most current parts listing. Please visit www.unverferth.com/parts/ for the most current parts listing. Final Assembly ........................... 5-2 Rigid Axle (SN B37730100 and Higher) .................. 5-4 Rigid Axle (SN B37730099 and Lower) ..................5-5 Adjustable Axle (SN B37730100 and Higher) .................

  • Page 126: Final Assembly

    — Parts Brent V1100 Final Assembly Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 127 — Parts Brent V1100 Final Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Scale Clevis Hitch 281690 Opt. Includes Items 2 & 3 Drop Hitch Conversion Kit CAT 4 (Black) 293184B Opt.

  • Page 128: Rigid Axle (Sn B37730100 And Higher)

    — Parts Brent V1100 Rigid Axle - (SN B37730100 and Higher) Please visit www.unverferth.com/parts/ for the most current parts listing. Direction of Travel ITEM 2925 2672 2922 9008 9129 8046 9008 2887 9129 ITEM DESCRIPTION PART NUMBER QTY. NOTES Rigid Axle Assembly w/out Scales (Green)

  • Page 129: Rigid Axle (Sn B37730099 And Lower)

    — Parts Brent V1100 Rigid Axle - (SN B37730099 and Lower) Please visit www.unverferth.com/parts/ for the most current parts listing. Direction of Travel ITEM DESCRIPTION PART NUMBER QTY. NOTES Rigid Axle Assembly w/out Scales (Green) 290958G Rigid Axle Assembly w/out Scales (Red)

  • Page 130: Adjustable Axle (Sn B37730100 And Higher)

    — Parts Brent V1100 Adjustable Axle - (SN B37730100 and Higher) Please visit www.unverferth.com/parts/ for the most current parts listing. Direction of Travel...
  • Page 131 — Parts Brent V1100 Adjustable Axle - (SN B37730100 and Higher) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES Adjustable Axle Assembly w/out Scales (Green) 292518G For B42740099 & Lower Adjustable Axle Assembly w/out Scales (Red)

  • Page 132: Adjustable Axle (Sn B37730099 And Lower)

    — Parts Brent V1100 Adjustable Axle - (SN B37730099 and Lower) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM Direction of Travel ITEM DESCRIPTION PART NUMBER NOTES Adjustable Axle Assembly w/out Scales (Green) 290868G Adjustable Axle Assembly w/out Scales (Red)
  • Page 133 — Parts Brent V1100 Notes Please visit www.unverferth.com/parts/ for the most current parts listing.

  • Page 134: Track Axle Components With 5 Point Scale System (Sn B37730100 And Higher)

    — Parts Brent V1100 Track Axle Components with 5 Point Scale System (SN B37730100 and Higher) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM 291394@ 250843 283855@ 287945@ 291393@ 9004903 91299-1464 9008441 91192 804685 268289 804685 292264@ 804685 Note bending arrow direction.
  • Page 135 — Parts Brent V1100 Track Axle Components with 5 Point Scale System (SN B37730100 and Higher) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES 36” Track Axle Bundle, Scale =Black= 291394B 42” Track Axle Bundle, Scale =Black=...

  • Page 136: Track Axle Components With 5 Point Scale System (Sn B37730099 And Lower)

    — Parts Brent V1100 Track Axle Components with 5 Point Scale System (SN B37730099 and Lower) Please visit www.unverferth.com/parts/ for the most current parts listing. Note bending arrow direction. 13 12 5-12...
  • Page 137 — Parts Brent V1100 Track Axle Components with 5 Point Scale System (SN B37730099 and Lower) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Track Axle Bundle, Scale =Green= 267290G Includes Items 1-5, 6A, 7-9...

  • Page 138: Hub & Spindle - Rigid Axle Without Scales & Adjustable Axles

    — Parts Brent V1100 Hub & Spindle — Rigid Axle Without Scales & Adjustable Axles Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES Hub & Spindle Assembly (Green) 267284G Includes 2 through 17 Hub & Spindle Assembly (Red) 267284R Spindle Dia.

  • Page 139: Hub & Spindle - Rigid Axle With Scales

    — Parts Brent V1100 Hub & Spindle — Rigid Axle With Scales Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES Hub & Spindle Assembly (Green) 267280G Includes 2 through 16 and 18 Hub & Spindle Assembly (Red) 267280R Scale Spindle Dia.

  • Page 140: Brake Components (Optional)

    — Parts Brent V1100 Brake Components (Optional) (Requires tractor with Implement Braking) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-16...
  • Page 141 — Parts Brent V1100 Brake Components (Optional) (Requires tractor with Implement Braking) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 290167B SN B37730099-Lower Axle Extension Weldment, Left-Hand =BLACK= 292496B SN B37730100-Higher 290760B SN B37730099-Lower...

  • Page 142: Single Wheels & Tires

    — Parts Brent V1100 Single Wheels & Tires Please visit www.unverferth.com/parts/ for the most current parts listing. TIRES For questions regarding new tire warranty, please contact your lo- cal original equipment tire dealer. Used tires carry no warranty. 5-18...
  • Page 143 — Parts Brent V1100 Single Wheels & Tires Please visit www.unverferth.com/parts/ for the most current parts listing. PART NUMBER ITEM DESCRIPTION QTY. NOTES RIGID AXLE ADJUSTABLE AXLE Wheel Only 110825SM 36 x 32 Wheel Only 110803SM 44 x 32 Wheel Only...

  • Page 144: Decals

    — Parts Brent V1100 Decals Please visit www.unverferth.com/parts/ for the most current parts listing. 9008151 32 33 5-20...
  • Page 145 — Parts Brent V1100 Decals Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Fluorescent Strip 9003125 2 x 9" Red Reflector 9003126 2 x 9" Amber Reflector 9003127 2 x 9" Decal, DANGER “Drive Shaft Entanglement”...

  • Page 146: Sideboards

    — Parts Brent V1100 Sideboards Please visit www.unverferth.com/parts/ for the most current parts listing. 5-22...
  • Page 147 — Parts Brent V1100 Sideboards Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Tube, Angle Brace/Sideboard Support 39 7/8” 220032B Tube, Angle Brace/Sideboard Support 59 1/2” 287524B Tube, Angle Brace/Sideboard Support 156” 289981B Beginning with Serial No.

  • Page 148: Eoh Valve Assembly Components 4 Spool (Optional)

    — Parts Brent V1100 EOH Valve Assembly Components 4 Spool (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. Please visit www.unverferth.com/parts/ for the most current parts listing. Cartridge Valve Top Detent (9008416) Position Middle Detent Position Cartridge Valve...
  • Page 149 — Parts Brent V1100 EOH Valve Assembly Components 4 Spool (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES Cartridge Valve - 4 Way, 3 Position - Closed Center...

  • Page 150: Eoh Tractor Circuit Hydraulic Components (Optional)

    — Parts Brent V1100 EOH Tractor Circuit Hydraulic Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. Please visit www.unverferth.com/parts/ for the most current parts listing. CHECK VALVE MUST BE ASSEMBLED AS SHOWN ITEM PART NO. DESCRIPTION QTY.
  • Page 151 Brent V1100 Optional Electric Over Hydraulic Valve Electric Schematic 4 Spool Please visit www.unverferth.com/parts/ for the most current parts listing. Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: Refer to “EOH Valve Assembly Components 4 Spool (Opt.)” in this section for Parts Listing.

  • Page 152: Electrical

    — Parts Brent V1100 Electrical Please visit www.unverferth.com/parts/ for the most current parts listing. To Right-Side of Cart Interior Right-Hand Side Joystick Parts To Tractor Left-Hand Side To Directional Spout 5-28...
  • Page 153 — Parts Brent V1100 Electrical Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES Wiring Harness, Front 180" 9007892 Includes Items 3A, 4 through 12, 13A, 14, 15 290714B Tail Light RH Sub Assembly =BLACK=...

  • Page 154: Drive Components

    — Parts Brent V1100 Drive Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-30...
  • Page 155 — Parts Brent V1100 Drive Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES 1 1/2” Flangette Bearing 9003920 Carriage Bolt 1/2”-13UNC x 1 1/4” 9388-103 Lock Washer 1/2” 9404-025 Hex Nut 1/2”-13UNC 9394-010 Serial Number B39580149 &...

  • Page 156: Upper Auger Components

    — Parts Brent V1100 Upper Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing. 19A 19 5-32...
  • Page 157 — Parts Brent V1100 Upper Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9006360 Decal, Brent Logo (5 1/2” x 43”) 9006361 Decal, Stripe (2.73” x 36.5”) 92563 Decal, Flow Control (3” x 38”) 9004263 Stop Pad (2”...

  • Page 158: Lower Auger Components

    — Parts Brent V1100 Lower Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-34...
  • Page 159 — Parts Brent V1100 Lower Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 268217 Rubber Gasket (4” x 4”) 268218 Cover Plate 268896 Spacer Bushing 268946 Pivot Shaft Weldment 286436 Auger Drive Plate Assembly 5-Pin...

  • Page 160: Cleanout Door Assembly

    — Parts Brent V1100 Cleanout Door Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Door Lift/Wheel Weldment =BLACK= 291654B Plate - Lock =BLACK= 268313B Door Lift/Shaft Weldment 268901 Pad - Wear 286801...

  • Page 161: Flow Door Seals

    — Parts Brent V1100 Flow Door Seals Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Seal - Poly 281255 Seal - Poly 281256 Spacer Bushing =Green= 281257G Spacer Bushing =Red= 281257R Spring Bracket =Green=...

  • Page 162: Internal Bracing

    — Parts Brent V1100 Internal Bracing Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 281943B Cross Brace Weldment =Black= 9002058 Flange Nut 1/2”-13UNC 91266 Flange Screw 1/2”-13UNC x 1 1/2 G5 5-38...

  • Page 163: Cylinders

    — Parts Brent V1100 Cylinders — 3 1/2” x 20” (Auger Fold) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Cylinder, Complete 9007639 Seal Kit 9006942 Cylinders — 2 1/2” x 36” (Flow Door)

  • Page 164: Touch-Up Paint

    — Parts Brent V1100 Touch-Up Paint Please visit www.unverferth.com/parts/ for the most current parts listing. PAINT SPRAY Black 97013 Green 97015 97301 Primer, Gray 9500082 Silver Mist 97012 Off White 97016 5-40...
  • Page 165 — Parts Brent V1100 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-41...

  • Page 166: Hydraulics - Beginning With Serial Number B37910100

    — Parts Brent V1100 Hydraulics — Beginning with Serial Number B37910100 Please visit www.unverferth.com/parts/ for the most current parts listing. FLOW DOOR TO 97401 HOSE FROM BULKHEAD "A" AUGER FOLD TO 9003213 HOSE FROM ASSEMBLE BASE END OF TO INSIDE OF...
  • Page 167 — Parts Brent V1100 Hydraulics — Beginning with Serial Number B37910100 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES Sleeve/Bushing 285290 Pin 1” Dia. x 4 7/8” 291988 Valve Mounting Plate 290892B Bulkhead Mounting Plate 291583B Pin 1"...
  • Page 168 — Parts Brent V1100 Hydraulics — Beginning with Serial Number B37910100 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES Capscrew 5/16”-18UNC x 1 1/2” G5 9390-032 Capscrew 5/16”-18UNC x 2” G5 9390-034 Capscrew 1/2”-13UNC x 3 1/4” G5 9390-108 Cotter Pin 3/16"...
  • Page 169 — Parts Brent V1100 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-45...

  • Page 170: Hydraulics - Serial Number B37910099 & Lower

    — Parts Brent V1100 Hydraulics — Serial Number B37910099 & Lower Please visit www.unverferth.com/parts/ for the most current parts listing. Rear Front ITEM DESCRIPTION PART NUMBER QTY NOTES Hose 1/4 x 80 (9/16-18 JIC Female x 9/16-18 JIC Female) 9005299...
  • Page 171 — Parts Brent V1100 Hydraulics — Serial Number B37910099 & Lower Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY NOTES Sleeve, Hose Marker (RED, Flow Door Close) 9003996 Sleeve, Hose Marker (GREEN, Auger Raise)

  • Page 172: Directional Spout

    — Parts Brent V1100 Directional Spout Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Gear-Spout, Pivot 272719 Poly Pad-Pivot, 20 13/16” ID x 1/8” 272748 272755B For SN B37730099-Lower Spout Assembly =BLACK= 292350B...
  • Page 173 — Parts Brent V1100 Directional Spout Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES 272943B For SN B37730099-Lower Spout Weldment =BLACK= 291668B For SN B37730100-Higher Bushing-Sleeve 2.0625” Long 285290 286469B For SN B37730099-Lower...
  • Page 174 — Parts Brent V1100 Directional Spout (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Stop Weldment =BLACK= 291327B Plate-Pivot, 22 7/16” ID x 1/4” 291344B Lock Nut/Top 3/8”-16UNC 9003396 Lock Nut 1/2”-13UNC 9003397 Shoulder Bolt 3/8”...

  • Page 175: Pto Cut Out Clutch Components

    — Parts Brent V1100 PTO Cut Out Clutch Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9008399 Cut Out Clutch (2400 N*m Setting) Includes Items 1-8 9005679 Clutch Housing 9008664 Clutch Hub 1 3/8-21 Spline...

  • Page 176: Pto Assembly Cutout Clutch

    — Parts Brent V1100 PTO Assembly Cutout Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. Serial Number B38140100 & Higher ITEM 9008 9008 9004 9385 9385 9385 9004 9237 9001 9008 9237 9483 9008 9483 9386 9385 9385...
  • Page 177 — Parts Brent V1100 PTO Assembly Cutout Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES PTO Assembly Complete - 1 3/4-20 Spline Serial Number B38140100 & Higher 9008390 (Tractor End) Includes Items 2 & 13...

  • Page 178: Pto Assembly Shear-Bolt Clutch

    — Parts Brent V1100 PTO Assembly Shear-Bolt Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. Optional 1 3/8-21 Spline Shown For 1 3/4-20 Spline 5-54...
  • Page 179 — Parts Brent V1100 PTO Assembly Shear-Bolt Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER NOTES Prior to Serial Number B38140100 PTO Assembly Complete 9004767 1 3/4-20 Spline - Tractor End Prior to Serial Number B38140100...

  • Page 180: Pto Assembly Friction Clutch

    — Parts Brent V1100 PTO Assembly Friction Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. Optional 1 3/8-21 Spline Shown For 1 3/4-20 Spline ITEM DESCRIPTION PART NUMBER NOTES 1 3/4-20 Spline - Tractor End PTO Assembly Complete...

  • Page 181: Friction Clutch Assembly

    1 for specific clutch information. — Parts Brent V1100 Friction Clutch Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: Friction Clutch (9004275) must be used with the Complete PTO Assembly (9004769 or 9004768). This will not work with the Cut Out Clutch PTO Assembly (9008390)

  • Page 182: 45 Degree Gearbox - With 20 Spline Input Shaft

    — Parts Brent V1100 45 Degree Gearbox - With 20 Spline Input Shaft Please visit www.unverferth.com/parts/ for the most current parts listing. FOR 1 3/4”-20 spline gearbox ONLY. For 1 3/8”-6 spline gearbox, see additional diagrams in this section. 5-58...
  • Page 183 — Parts Brent V1100 45 Degree Gearbox - With 20 Spline Input Shaft Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NUMBER QTY. NOTES Gearbox, Complete with 20 Spline Input Shaft 9009053 Includes Items 1 thru 18...

  • Page 184: 45 Degree Gearbox - With 6 Spline Input Shaft

    — Parts Brent V1100 45 Degree Gearbox - With 6 Spline Input Shaft Please visit www.unverferth.com/parts/ for the most current parts listing. FOR 1 3/8”-6 spline gearbox ONLY. For 1 3/4”-20 spline gearbox, see additional diagrams in this section. ITEM...

  • Page 185: Driveline U-Joint Assembly

    — Parts Brent V1100 Driveline U-Joint Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. Grain Carts with Serial Number B37730099 & Lower Order U-Joint Replacement Kit #291149 ITEM DESCRIPTION PART NUMBER QTY. NOTES 9009064 For 1 3/4”-20 Spline Gearbox 9008741 For 1 3/8”-6 Spline Gearbox...

  • Page 186: Weather Guard Tarp

    — Parts Brent V1100 Weather Guard Tarp Please visit www.unverferth.com/parts/ for the most current parts listing. 5-62...
  • Page 187 — Parts Brent V1100 Weather Guard Tarp Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 287908B Complete Tarp Kit =Black= 283425B Tarp Bow Bracket =Black= 283427B Tarp Bow Bracket =Black= 287400B Tarp Bow Tube =Black=...
  • Page 188 — Parts Brent V1100 Weather Guard Tarp Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9390-099 Capscrew 1/2-13UNC x 1 (Grade 5) 265743B Crank Holder - Channel Extension =Black= 221700B Offset Bracket =Black= 221770B...

  • Page 189: Video System Option

    — Parts Brent V1100 Video System Option Please visit www.unverferth.com/parts/ for the most current parts listing. 9004510 CABLE W/FUSE WIRES Red -- Key Switched Power Black -- Ground Green -- NOT USED White -- NOT USED ITEM PART NUMBER DESCRIPTION...
  • Page 190 MANUALS\\290909/February 2017-0//May 2017-1//July 2017-2//November 2017-3//February 2018-4//June 2018-5//October 2018-6//December 2018-7//December 2018-8//March 2019-9//May 2019-10//July 2019-11//December 2019-12 February 2020-13//August 2020-14//October 2020-15//March 2021-16//July 2021-17//August 2021-18//October 2021-19//January 2022-20//April 2022-21//November 2022-22...

Table of Contents

Save PDF
