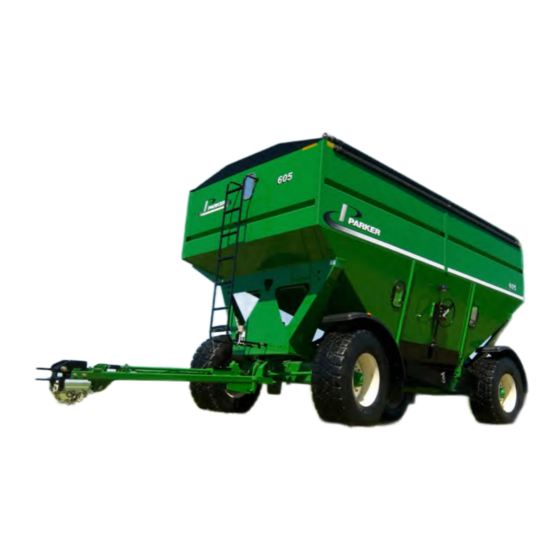

Grain Handling
GRAIN WAGON
MODEL 605
Serial Number B32620100 & Higher
Part No. 301138

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARKER 605 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unverferth PARKER 605

Summary of Contents for Unverferth PARKER 605

  • Page 1 Grain Handling GRAIN WAGON MODEL 605 Serial Number B32620100 & Higher Part No. 301138...
  • Page 2 605 GRAIN WAGON — Introduction Foreword This symbol identifies important safety messages. When you see it, read the message that follows and be alert to the possibility of personal injury. Remember, safety instructions stated in this manual are for your protection. Read them carefully and fol- low them closely when working around or using this machine.
  • Page 3 • Serial number All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from material and workmanship defects for one full year from time of consumer delivery. Your local dealer will gladly assist you with any warranty questions.

  • Page 4: Table Of Contents

    605 GRAIN WAGON — Introduction Table of Contents Section I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Following Safety Instructions ..................... 1-4 Before Servicing......................... 1-4 Before Operating ........................1-5 During Operation ........................1-5 Before Transporting ........................1-6 During Transport.........................
  • Page 5 Brake System Troubleshooting Guide ..................4-11 Tarp Troubleshooting ........................ 4-12 Inspection and Maintenance....................4-12 Section V Parts Please visit www.unverferth.com/parts/ for the most current parts listing. Tongue............................5-2 Undercarriage Components ......................5-6 Wheels and Tires ........................5-10 Brake Components ........................5-11 13”...
  • Page 6 605 GRAIN WAGON — Introduction Notes...

  • Page 7: Safety

    605 GRAIN WAGON — Safety SECTION I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Following Safety Instructions ..................... 1-4 Before Servicing ......................... 1-4 Before Operating ........................1-5 During Operation ........................1-5 Before Transporting ........................1-6 During Transport ......................... 1-6 Pressurized Oil ...........................

  • Page 8: General Hazard Information

    It is true that the designer, the manufacturer, and the safety engineer can help; and they will help, but their combined efforts can be wiped out by a single careless act of the operator. It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth Mfg.

  • Page 9: Safety Decals

    605 GRAIN WAGON — Safety Safety Decals • REPLACE LOST, DAMAGED, PAINTED, OR UNREADABLE DECALS IMMEDIATELY. IF PARTS THAT HAVE DECALS ARE REPLACED, ALSO MAKE SURE TO INSTALL NEW DECALS. THESE DECALS INFORM AND REMIND THE OPERATOR WITH OPERATIONAL INFORMATION AND SAFETY MESSAGES. PART NO.

  • Page 10: Following Safety Instructions

    605 GRAIN WAGON — Safety Following Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufacturer.

  • Page 11: Before Operating

    605 GRAIN WAGON — Safety Before Operating • Do not stand between towing vehicle and implement during hitching. • Always make certain everyone and everything is clear of the machine before beginning operation. • Verify that all safety shields are in place and properly secured. •...

  • Page 12: Before Transporting

    605 GRAIN WAGON — Safety Before Transporting • Secure transport chain to towing vehicle before transporting. DO NOT transport without chain. • Check for proper function of all available transport lights. Make sure that all reflectors are clean and in place on machine. Make sure the SMV emblem and SIS decals are visible to approaching traffic.

  • Page 13: Pressurized Oil

    605 GRAIN WAGON — Safety Pressurized Oil • Relieve pressure before disconnecting hydraulic lines, loosening any hydraulic fittings or servicing hydraulic system. • Use a piece of cardboard or wood to detect leaks of hydraulic fluid under pressure. Correct hydraulic leaks immediately. •...

  • Page 14: Preparing For Emergencies

    605 GRAIN WAGON — Safety Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job.

  • Page 15: Set Up

    605 GRAIN WAGON — Set Up SECTION II Set Up Set Up Checklist ........................2-2 SMV Emblem & SIS Decals ...................... 2-3 Important Check Points — Tires and Wheels ................2-4 Important Check Points — Tongue and Wheel Alignment ............2-6 Hitch ............................

  • Page 16: Set Up Checklist

    605 GRAIN WAGON — Set Up Set Up Checklist After the wagon has been completely assembled, use the following checklist and inspect the wagon. Check off each item as it is found satisfactory or after proper adjustment is made. o Torque wheel nuts as specified in MAINTENANCE section. o Tires are inflated to specified air pressure, located in the MAINTENANCE section.

  • Page 17: Smv Emblem

    605 GRAIN WAGON — Set Up SMV Emblem & SIS Decals Before the wagon is used the reflective surface of the SMV must face rearward. This may re- quire removal of film protecting the reflective surface or removing and reinstallation of the SMV.
  • Page 18 605 GRAIN WAGON — Set Up Important Check Points Tires and Wheels 1. Check tire pressures and maintain at recommended values listed in this manual. For questions regarding new tire warranty, please contact your local original equipment tire dealer. Used tires carry NO WARRANTY. Tire manufacturers’ phone numbers and web sites are listed in this manual for your convenience.
  • Page 19 605 GRAIN WAGON — Set Up Important Check Points (continued) 4. Wheel hubs (check grease after first season of use.) NOTE: The bearings are pressure packed with grease. An empty hub cavity does not indicate a lack of grease. It is not beneficial to fill the cavity. 5.

  • Page 20: Important Check Points - Tongue And Wheel Alignment

    605 GRAIN WAGON — Set Up Important Check Points (continued) Tongue and Wheel Alignment Please refer to the following information for specific tongue/wheel alignment. If the tongue does not pull perpendicular to the front axle, the grain wagon can “dog-track”. 1.

  • Page 21: Hitch

    605 GRAIN WAGON — Set Up Hitch The standard hitch pin size for your grain wagon is 1 1/4”. • Failure to use the correct size hitch pin can cause premature failure of hitch clevis and tractor drawbar. FIG. 2-7 Transport Chain • ALWAYS USE TRANSPORT CHAIN WHEN TRANSPORTING IMPLEMENTS. FAILURE TO USE CHAIN COULD CAUSE PERSONAL INJURY OR DAMAGE IF IMPLEMENTS BECOME...
  • Page 22 605 GRAIN WAGON — Set Up Steering Axle Stop Adjustment Turn wheels both directions on level ground and adjust axle stop bolts for 1 - 1 1/2” clear- ance between inside tire edge and nearest frame. FIG. 2-9...
  • Page 23 605 GRAIN WAGON — Set Up Brake System • HIGH-PRESSURE FLUIDS CAN PENETRATE THE SKIN AND CAUSE SERIOUS INJURY OR DEATH. SEEK MEDICAL TREATMENT IMMEDIATELY IF INJURED BY HIGH-PRESSURE FLUIDS. USE CARDBOARD OR WOOD TO DETECT LEAKS IN THE HYDRAULIC SYSTEM. • HYDRAULIC SYSTEM MUST BE PURGED OF AIR BEFORE OPERATING TO PREVENT SERIOUS INJURY OR DEATH. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT.
  • Page 24 605 GRAIN WAGON — Set Up Brake System (continued) Brake Bleeding Use ONLY quality DOT-3 heavy-duty brake fluid. If pressure bleeding equipment is available, follow the manufacturer’s instructions in bleed- ing the system. Manual Bleeding Fill master cylinder with fluid. Bleed rear brakes first (farthest from master cylinder). Loosen the bleeder screw located in wheel cylinder one turn.

  • Page 25: Electrical Hook-Up

    If your tractor does not have this type of receptacle, an SAE J-560 seven-point socket can be purchased from your Unverferth dealer (order Part #92824). The wiring schematic for this wagon complies with ASABE Standards.

  • Page 26: Adjustable Chute

    605 GRAIN WAGON — Set Up Adjustable Chute Your grain wagon features an adjustable-height unloading chute. The adjustment bolt is lo- cated under the door area of the grain wagon. When the bolt is turned in (clockwise), the unloading height of the chute increases. When the bolt is turned out (counter-clockwise), the chute height is lowered.

  • Page 27: Hopper Reversal

    605 GRAIN WAGON — Set Up Hopper Reversal • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES AND SUPPORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 4,000 LBS.

  • Page 28: Fender Installation - Optional

    605 GRAIN WAGON — Set Up Fender Installation - Optional • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. KEEP HANDS CLEAR OF PINCH POINT AREAS • NOTE: All capscrews and nuts which tighten directly against the plastic fenders must have a flat washer to provide adequate surface bearing.
  • Page 29 605 GRAIN WAGON — Set Up Fender Installation - Optional Rear Fenders 2. Position rear fenders over top arms and secure with capscrews, fender washers and lock nuts. 3. Assemble mud flaps and bottom arms (RH & LH) to rear fenders as shown with capscrews, fender washers, and lock nuts.

  • Page 30: Front Fenders

    605 GRAIN WAGON — Set Up Fender Installation - Optional Front Fenders 4. Bolt front top arms to frame with capscrews and flange nuts. 5. Use the fender mount plate (300672B) for mounting the front fender to the top arms on the standard tire fender kit.
  • Page 31 605 GRAIN WAGON — Set Up Fender Installation - Optional Front Fenders 6. Mount tube to frame brackets with flange bolts and flange nuts. Refer to previous page for bolt and bracket locations. Assemble tube to rear of FIG. 2-24 bracket as shown.
  • Page 32 605 GRAIN WAGON — Set Up Fender Installation - Optional (continued) 8. Bolt front fenders to tube with capscrews, fender washers and lock nuts in top holes. 9. Assemble mud flaps and back plates to front fenders with capscrews, fender washers and lock nuts in bottom holes.
  • Page 33 605 GRAIN WAGON — Set Up Fender Installation - Optional Fenders for 425, 445, 455, 460 Tires Sizes Use these hole locations when using Tire Sizes. Use outer holes for 425, 445, 455, 460 Tires. FIG. 2-29 2-19...
  • Page 34 605 GRAIN WAGON — Set Up Fender Installation for Wide Fenders - Optional Fenders for 560, 600 & Dual Tires Sizes Use these hole locations when using larger tires sizes (560, 600 & Duals) for clearance pur- poses. FIG. 2-31 Front Mount Mount tube as shown on rear side of bracket.

  • Page 35: Fender Light Installation - Optional

    605 GRAIN WAGON — Set Up Fender Installation - Optional (continued) • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. Fender Light Installation - Optional 1. Center mounting bezel in molded fender relief. FIG. 2-1 Once located, use mounting bezel as a tem- plate and drill two 3/16”...
  • Page 36 605 GRAIN WAGON — Set Up Fender Installation - Optional (continued) Fender Light Installation - Optional 3. Assemble mounting bezel to fender using pro- FIG. 2-4 vided hardware. Position light terminals over 1 1/16” diameter hole and push light into mount- ing bezel for a snap fit, see figure 2-4.
  • Page 37 605 GRAIN WAGON — Set Up Fender Installation - Optional (continued) Fender Light Installation - Optional (continued) 4. Locate front and rear fender harness center Front fender harness break-out leads over main harness leads on the running gear center pull tube and connect the same color wires.

  • Page 38: Wiring (Where Applicable)

    605 GRAIN WAGON — Set Up Fender Installation - Optional (continued) Wiring (Where Applicable) 6. Install perimeter wiring harness and connect to main harness. Crimp light wires to harness connectors, see Fig. 2-9. Assemble lights to fenders, with ground eyelets on mounting bolts. 7.

  • Page 39: Weather Guard Tarp Installation - Optional

    605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER • THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES AND SUPPORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 250 LBS.
  • Page 40 605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 3. Assemble the bow brackets and latch plates: Models Using Bow Brackets - 300977B Assemble bow brackets (300977B) and Fig. 2-3 latch plate to the right side panel or side board with torx head screw (9005312) and flange nut (91263).
  • Page 41 605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) Secure latch plate to front of panel with LATCH eyebolt (9004548) and two flange nuts PLATE (91263). See Figure 2-5. The latch plates are divided in the center of the wagon with pre punched holes for ease of assembly.
  • Page 42 605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) NOTE: Ensure countersunk capscrews (902703- 046) are flush with the top of bow weldment Countersunk Capscrew (301209B). See Figure 2-8. (902703-046) 6. Tighten all hardware. Tarp Bow (301209B) Fig.
  • Page 43 605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 7. Attach the cable assemblies (9005707) to the rear end cap holes, see FIG. 2-10. Run ca- bles over the top of the bows (301209B - SN B37690100 &...
  • Page 44 605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 8. (2-person operation) On a clean floor, lay the tarp out flat with the raw edge of the hems and pockets down and the exterior side facing up. 9.
  • Page 45 605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 11. Insert knotted stretch rope (221722) through flat washer (9405-074), plastic tube (221668) and end plug (9004947). Place these items as an assembly into front end of 2” roll tube weld- 2”...

  • Page 46: Hand Crank Handle

    605 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) Hand Crank Handle Fig. 2-18 15. Locate the bracket just above the box fold line, centered on the box. Using self-tapping screws (96972) mount bracket to box and se- cure using flange nut (91263).

  • Page 47: Operation

    605 GRAIN WAGON — Operation SECTION III Operation Tandem Operation ........................3-2 Chute ............................3-3 Weather Guard Tarp Operation ....................3-4...
  • Page 48 605 GRAIN WAGON — Operation Tandem Operation When pulling wagons in the tandem option, please do the following: 1. Connect the electrical cord. 2. Hook up the safety chain on the lead wagon that is sized for the total load. 4.

  • Page 49: Chute

    605 GRAIN WAGON — Operation Chute Moving Chute to Unload Position: While using the chute handle, push the handle on the catch latch toward the wagon. Lower the chute in a controlled manner until the chute rests against the adjustable height stop bolt. Moving Chute to Transport Position: Use the chute handle to lift the chute into the catch latch making sure the latch is fully engaged into the catch latch hook.

  • Page 50: Weather Guard Tarp Operation

    605 GRAIN WAGON — Operation Weather Guard Tarp • TO PREVENT PERSONAL INJURY OR DEATH, DO NOT ALLOW ANYONE ON A CLOSED TARP. TARP SYSTEM IS NOT DESIGNED TO SUPPORT A PERSON. • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. REMOVE ACCUMULATED WATER/SNOW/ICE OR ANY OTHER OBJECTS FROM TARP BEFORE OPENING TARP. • Do not open or close tarp while moving or in high wind conditions. Damage to the tarp may occur.
  • Page 51 605 GRAIN WAGON — Operation Weather Guard Tarp (continued) Procedure 1. Using both hands, carefully remove crank handle from holder. 2. Roll tarp to the desired location, choosing either a fully open or fully closed position. 3. To close the tarp, roll the main tarp tube clockwise up under the latch plate. Next, bring the crank handle down perpendicular to the ground.
  • Page 52 605 GRAIN WAGON — Operation Notes...

  • Page 53: Maintenance

    605 GRAIN WAGON — Maintenance SECTION IV Maintenance Seasonal Storage ........................4-2 Electrical Schematic ........................4-3 Wheels & Tires Wheel Nut Torque Requirements ..................4-4 Tire Pressure ........................4-5 Tire Warranty ........................4-5 Complete Torque Chart Capscrews - Grade 5 ......................4-6 Brake Line Fittings ........................

  • Page 54: Seasonal Storage

    605 GRAIN WAGON — Maintenance Seasonal Storage Your wagon is an important investment. Spend a little time to protect it from destructive rust and corrosion, You will be repaid in longer service life and better performance. Do the following before placing the wagon in storage: 1.

  • Page 55: Electrical Schematic

    605 GRAIN WAGON — Maintenance Electrical Schematics...

  • Page 56: Wheels & Tires

    605 GRAIN WAGON — Maintenance Wheels and Tires Wheel Nut Torque Requirements • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE. TORQUE WHEEL NUTS/BOLTS TO VALUES IN TABLE. CHECK TORQUE BEFORE USE, AFTER ONE HOUR OF UNLOADED USE OR AFTER FIRST LOAD, AND EACH LOAD UNTIL WHEEL NUTS/BOLTS MAINTAIN TORQUE VALUE.

  • Page 57: Tire Pressure

    605 GRAIN WAGON — Maintenance Wheels and Tires (continued) Tire Pressure • The following is to be used as a general guide for tire inflation and figures can vary depending on the specific tire size used. It is important that tires are inspected after unit is loaded. Start with pressure indicated by your tire size and bushel capacity.

  • Page 58: Complete Torque Chart Capscrews - Grade 5

    605 GRAIN WAGON — Maintenance Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end. FOOT NEWTON SIZE...

  • Page 59: Brake Line Fittings

    605 GRAIN WAGON — Maintenance Brake Line Fittings – Torque and Installation INVERTED FLARE 1. Lubricate threads and assemble to fitting body. Nut should be turned hand tight. 2. Tighten assembly with wrench until a solid feel- ing is encountered. From that point, apply a one-sixth turn.

  • Page 60: Brake System - Brake Shoe Adjustment

    605 GRAIN WAGON — Maintenance Brake System Brake Shoe Adjustment • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES AND SUP PORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 12,000 LBS. SPECIFIC LOAD RATINGS FOR INDIVIDUAL LOADS WILL BE GIVEN AT THE APPROPRIATE TIME IN THE INSTRUCTIONS. EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST •...

  • Page 61: 13" Surge Brake Information - Brake Shoe Centering

    605 GRAIN WAGON — Maintenance 13” Surge Brake information Brake Shoe Centering (2 Person Operation ~ 15 to 20 Minutes Per Brake Assembly) Master Cylinder Cover WHEN WORKING AROUND THE MA • CHINE, BE SURE IT IS SECURELY BLOCKED; FAILURE TO DO SO COULD RESULT IN TIPPING OR MOVEMENT OF MACHINE, CAUSING SEVERE BODILY HARM.
  • Page 62 605 GRAIN WAGON — Maintenance 13” Surge Brake information (continued) 3. Spin tire in direction of forward travel of the Fig. 5 wagon. While tire is spinning, increase the brakes using the shoe adjustment star wheel until full contact of brakes can be heard (Fig. 5). 4.

  • Page 63: Brake System Troubleshooting Guide

    605 GRAIN WAGON — Maintenance Brake System - Troubleshooting Guide SYMPTOM REMEDY BRAKES DRAGGING/LOCK-UP Flush brake system Disassemble slave cylinders inside brake clusters. Clean cylinder and cylinder walls. Reassemble and adjust. Install new brake fluid. BRAKE DRUMS HOT/ONE OR MORE Re-adjust brakes.

  • Page 64: Tarp Troubleshooting

    605 GRAIN WAGON — Maintenance Tarp - Troubleshooting Guide PROBABLE CAUSE CORRECTION 1. Bows may be bent or adjusted too low. 2. Missing or loose ridge strap. Re- Tarp sags in middle areas place or retighten. 3. U-joint may need to be adjusted on splined shaft to provide more ten- sion.

  • Page 65: Parts

    605 GRAIN WAGON — Parts Please visit www.unverferth.com/parts/ for the most current parts listing. SECTION V Parts Please visit www.unverferth.com/parts/ for the most current parts listing. Tongue ............................5-2 Undercarriage Components ......................5-6 Wheels and Tires ........................5-10 Brake Components ........................5-11 13”...

  • Page 66: Tongue

    605 GRAIN WAGON — Parts Tongue Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: The cap O-ring should be lubricated with brake fluid prior to hand tightening. Hand tighten ONLY!
  • Page 67 605 GRAIN WAGON — Parts Tongue Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES Tongue Assembly =Green= 300097G Tongue Assembly =Red= 300097R Tongue Weldment =Green= 300993G Tongue Weldment =Red= 300993R Latch Plate Assembly...
  • Page 68 605 GRAIN WAGON — Parts Tongue (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES Spacer 9190 Shim, Hitch 300081B Hitch Weldment 221092B Hex Nut, 3/4-10 UNC 9394-016 Lock Washer, 3/4 9404-033 Balance Rod 222189B Spring, 2 1/2 x 16.5 Wire x 1/2...
  • Page 69 605 GRAIN WAGON — Parts Notes Please visit www.unverferth.com/parts/ for the most current parts listing.

  • Page 70: Undercarriage Components

    605 GRAIN WAGON — Parts Undercarriage Components Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 71 605 GRAIN WAGON — Parts Undercarriage Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Hub Sub Assembly =Green= 220416G Includes Items 2,3,4 Hub Sub Assembly =Red= 220416R Bearing Cup #453A 4.25" OD 92461...
  • Page 72 605 GRAIN WAGON — Parts Undercarriage Components (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Hex Nut 1/2-20UNF 9394-009 Grade 5 Capscrew 3/4-10UNC x 5 1/2 9390-156 Grade 5 Hex Nut 3/4-10UNC 9394-016...
  • Page 73 605 GRAIN WAGON — Parts Notes Please visit www.unverferth.com/parts/ for the most current parts listing.

  • Page 74: Wheels And Tires

    605 GRAIN WAGON — Parts Wheels and Tires Please visit www.unverferth.com/parts/ for the most current parts listing. TIRES For questions regard- ing new tire warranty, please contact your local original equipment tire dealer. Used tires carry no warranty. ITEM DESCRIPTION PART NO.

  • Page 75: Brake Components

    605 GRAIN WAGON — Parts Brake Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES Inverted Flare Cross 300184 Brake Line, 45” Bundyweld 300472 Bleeder Hose, 5/16 Dia. x 3/16 Dia. x 10 300480 Brake Hose, 42”...

  • Page 76: 13" Brake Components

    605 GRAIN WAGON — Parts 13” Brake Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-12...
  • Page 77 605 GRAIN WAGON — Parts 13” Brake Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES RH Cluster Complete 93669 LH Cluster Complete 93670 Wheel Cylinder Repair Kit 91646 Back Plate Assembly 91609...

  • Page 78: Gravity Box

    605 GRAIN WAGON — Parts Gravity Box Please visit www.unverferth.com/parts/ for the most current parts listing. 5-14...
  • Page 79 605 GRAIN WAGON — Parts Gravity Box Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Bracket, Ladder =Black= 220288B Ladder =Black= 222013B Bracket, Window Retainer =Black= 250461B Window Molding 271951 Trailer Connector Holder 9001968 Flange Screw, 3/8-16UNC x 1 Gr.5...

  • Page 80: Fender Components

    605 GRAIN WAGON — Parts Fender Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-16...
  • Page 81 605 GRAIN WAGON — Parts Fender Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Standard Tire Fender Kit =Black= 301086B Back Fender Plate =Black= 220725B Film, Paint Protection 220890 Front Fender 221259 Rear Fender...

  • Page 82: Fender Light Components

    605 GRAIN WAGON — Parts Fender Light Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-18...
  • Page 83 605 GRAIN WAGON — Parts Fender Light Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Decal, Important Instructions 251027 Cable Tie, 6” Long 9000106 Butt Connector, 14-16 GA. 9000166 Fender Light Harness 9006184...

  • Page 84: Door Wheel With Gear Reduction

    605 GRAIN WAGON — Parts Door Wheel with Gear Reduction Please visit www.unverferth.com/parts/ for the most current parts listing. 5-20...
  • Page 85 605 GRAIN WAGON — Parts Door Wheel with Gear Reduction Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Door Wheel w/Gear Reduction 222059 Incl. Items 1-20, 25, 26 Door Wheel Assembly 220060B Capscrew, 3/8-16 UNC x 2...

  • Page 86: Kick Back Chute And Smv Components

    605 GRAIN WAGON — Parts Kick Back Chute and SMV Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-22...
  • Page 87 605 GRAIN WAGON — Parts Kick Back Chute and SMV Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Kick Back Chute Weldment =Black= 222180B Latch Bushing 301081 Chute Weldment =Black= 301082B Manual Holder 900552 Capscrew, 1/4-20UNC x 3/4 Gr.5...

  • Page 88: Chute And Latch Components

    605 GRAIN WAGON — Parts Chute and Latch Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-24...
  • Page 89 605 GRAIN WAGON — Parts Chute and Latch Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Door Weldment =Black= 220020B Door Rack Bar =Black= 220033B Refer to “Door Wheel with Gear Door Lift Assembly 222059 Reduction”...

  • Page 90: Decals

    605 GRAIN WAGON — Parts Decals Please visit www.unverferth.com/parts/ for the most current parts listing. 75 MM BLACK TEXT ON WHITE BACKGROUND SCORE LINE PREMASK REQUIRED WHITE BACKGROUND /8" PART NUMBER LOCATED ON BACKING FILM 75 MM BLACK TEXT ON...

  • Page 91: Touch-Up Paint

    605 GRAIN WAGON — Parts Decals Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Decal, Door Open 9001898 Decal, Tongue Pivot 9002187 Reflector, Red 9003126 Reflector, Amber 9003127 Decal, Warning No Riders 9003476 Decal, Parker Logo...

  • Page 92: Electrical Components

    605 GRAIN WAGON — Parts Electrical Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-28...
  • Page 93 605 GRAIN WAGON — Parts Electrical Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES Bracket - Socket 221527B Front Wire Harness 218” 9006979 Harness - Rear, Wagon 9006699 Harness - Chute 9006330...

  • Page 94: Weather Guard Tarp Components - Optional

    605 GRAIN WAGON — Parts Weather Guard Tarp Components - Optional Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Tarp Kit w/End Caps 221638 Capscrew, 3/8-16UNC x 4 1/2 TA0-907131-0 Grade 5 Roll Tube Weldment...
  • Page 95 605 GRAIN WAGON — Parts Weather Guard Tarp Components - Optional Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Plate - Latch 97" (Front) 221782 Plate - Latch 97" (Rear) 221783 Tube Crank Holder Weldment 220579B Bungee 3/8”...
