Unverferth Killbros 1950 Manual

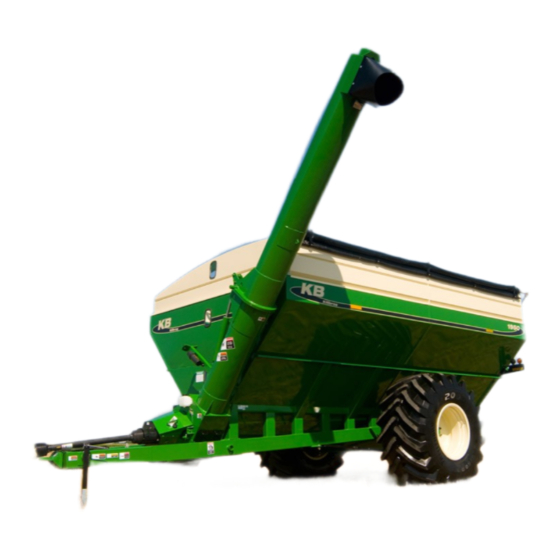

Grain carts, dual-auger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

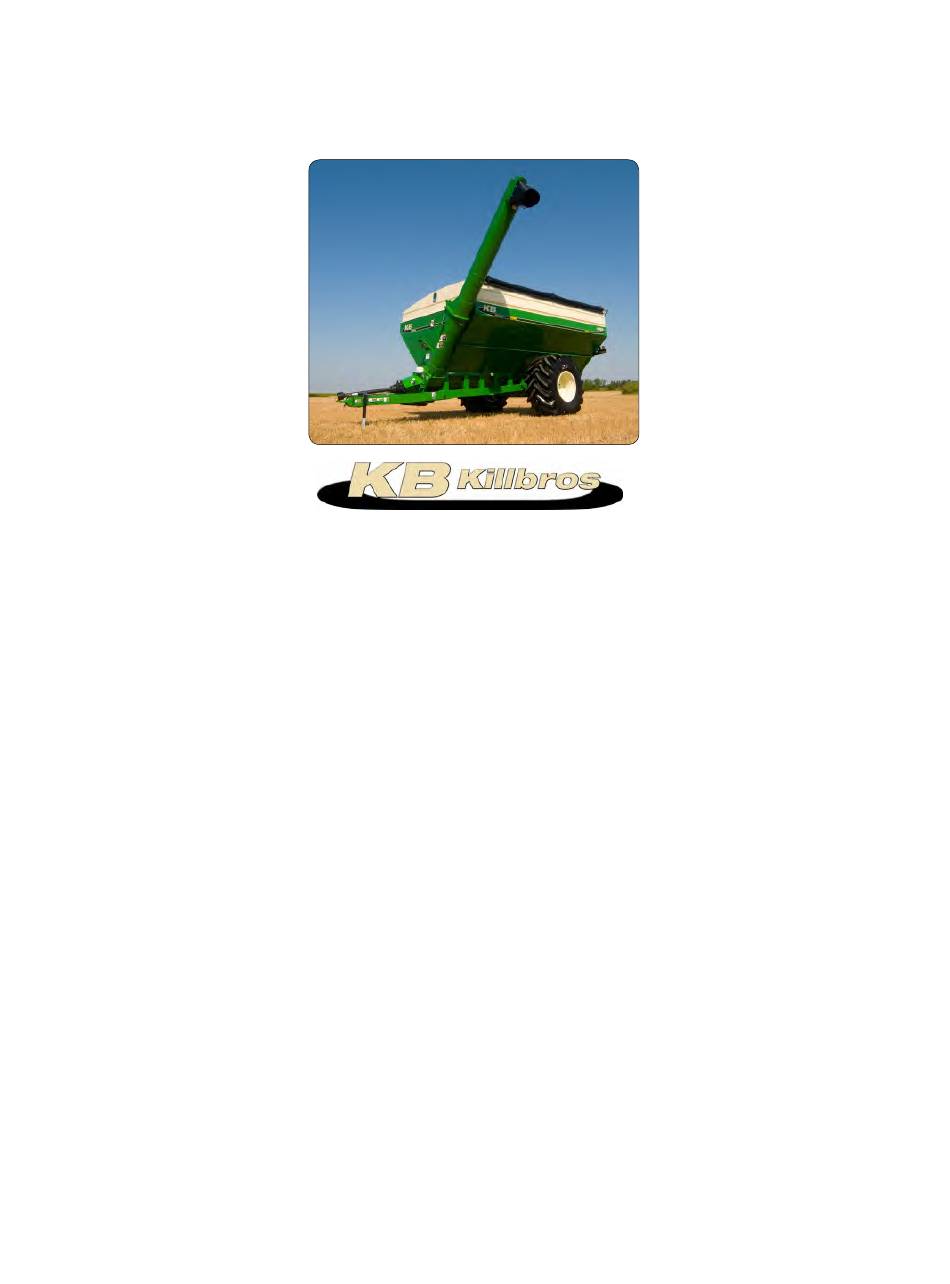

Grain Carts
Dual-Auger Model 1950
Beginning With Serial Number D43840100
Part No. 25141

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Killbros 1950 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unverferth Killbros 1950

Summary of Contents for Unverferth Killbros 1950

  • Page 1 Grain Carts Dual-Auger Model 1950 Beginning With Serial Number D43840100 Part No. 25141...
  • Page 2 The information, specifications, and illustrations in the manual are based on information available at the time it was written. Due to continuing improvements in the design and manufacture of Unverferth products, all specifications and information contained herein are subject to change without notice.
  • Page 3 Product Information Please fill out and retain this portion for your records. All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from material and workmanship defects for one full year from time of consumer delivery. Your local dealer will gladly assist you with any warranty questions.

  • Page 4: Table Of Contents

    GRAIN CARTS — Introduction Table of Contents SECTION I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Follow Safety Instructions ......................1-4 Before Servicing ......................... 1-5 Before Operating ........................1-5 During Operation ........................1-6 Before Transporting ........................1-6 During Transport .........................
  • Page 5 GRAIN CARTS — Introduction Table of Contents SECTION II Set Up Pre-Delivery Checklist ........................ 2-2 General Set Up Information ....................... 2-2 Hitch Installation ........................2-3 Wheels/Tire Set Up ........................2-3 Sideboards ..........................2-4 Transport Lighting and Markings ....................2-5 Tank Tie Rods ..........................2-6 Coupling PTO Driveshaft ......................
  • Page 6 GRAIN CARTS — Introduction Table of Contents SECTION III Operation Operating Checklist ........................3-2 Preparing Tractor ........................3-2 Hitching to Tractor ........................3-5 Towing ............................3-9 Auger Operation ........................3-10 Operating Chain Oiler ......................3-11 FOR TARP INFORMATION, PLEASE REFER TO YOUR TARP MANUAL. FOR SCALE INFORMATION, PLEASE REFER TO YOUR SCALE MANUAL.
  • Page 7 GRAIN CARTS — Introduction Table of Contents SECTION IV Maintenance Lubrication And Maintenance ..................... 4-2 Seasonal Storage ........................4-3 Electrical 7-Way Connector Plug Schematic ................4-4 U-Joints & Gearbox ........................4-5 Tires/Wheels ..........................4-5 Drivetrain Inspection ........................4-6 Drive Sprockets .......................... 4-6 Indicator Arm ..........................
  • Page 8 GRAIN CARTS — Introduction Table of Contents SECTION V Parts Vertical Upper Auger & Folding Components ................5-2 Vertical Lower Auger Components ..................... 5-4 Vertical Auger Hydraulics, Chute & Door Components ............. 5-6 Indicator Components ......................... 5-8 Cart Frame Components ......................5-10 Touch-Up Paint .........................
  • Page 9 — Safety GRAIN CARTS SECTION I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Follow Safety Instructions ......................1-4 Before Servicing ......................... 1-5 Before Operating ........................1-5 During Operation ........................1-6 Before Transporting ........................1-6 During Transport ......................... 1-6 Driveline Safety ..........................

  • Page 10: Safety

    It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth Mfg. Co., Inc. ask that you be that kind of operator.

  • Page 11: Safety Decals

    — Safety GRAIN CARTS Safety Decals • Replace lost, damaged, painted, oR unReadable decals immediately. if paRts that have decals aRe Replaced, also make suRe to install new DECALS. THESE DECALS INFORM AND REMIND THE OPERATOR WITH OPERATIONAL INFORMATION AND SAFETY MESSAGES. Part No.

  • Page 12: Follow Safety Instructions

    — Safety GRAIN CARTS Follow Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufacturer. •...

  • Page 13: Before Servicing

    — Safety GRAIN CARTS Before Servicing • Avoid working under an implement; however, if it becomes absolutely unavoidable, make sure the implement is safely blocked. • Ensure that all applicable safety decals are installed and legible. • To prevent personal injury or death, always ensure that there are people who remain outside the cart to assist the person working inside, and that all safe workplace practices are followed.

  • Page 14: During Operation

    — Safety GRAIN CARTS During Operation • Regulate speed to field conditions. Maintain complete control at all times. • Never service or lubricate equipment when in operation. • Keep away from overhead power lines. Electrical shock can cause serious injury or death.

  • Page 15: Driveline Safety

    — Safety GRAIN CARTS Driveline Safety • Do not allow children near equipment that is running or engaged. • Do not exceed 1000 rpm PTO speed. • Disengage the PTO, stop the tractor engine, and remove key from ignition before making inspections, or performing maintenance and repairs.

  • Page 16: Pressurized Oil

    — Safety GRAIN CARTS Pressurized Oil • Relieve the hydraulic system of all pressure before adjusting or servicing. See hydraulic power unit manual for procedure to relieve pressure. • High-pressure fluids can penetrate the skin and cause serious injury or death. Use cardboard or wood to detect leaks in the hydraulic system.

  • Page 17: Preparing For Emergencies

    — Safety GRAIN CARTS Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job. •...
  • Page 18 — Safety GRAIN CARTS Notes 1-10...
  • Page 19 — Set Up GRAIN CARTS SECTION II Set Up Pre-Delivery Checklist ........................ 2-2 General Set Up Information ....................... 2-2 Hitch Installation ........................2-3 Wheels/Tire Set Up ........................2-3 Sideboards ..........................2-4 Transport Lighting and Markings ....................2-5 Tank Tie Rods ..........................2-6 Coupling PTO Driveshaft ......................

  • Page 20: Pre-Delivery Checklist

    — Set Up GRAIN CARTS Pre-Delivery Checklist After the cart has been completely assembled, use the following checklist and inspect the cart. Check off each item as it is found satisfactory or after proper adjustment is made. o Torque wheel nuts as specified in MAINTENANCE section. o Axles are adjusted from shipping position to desired operating position.

  • Page 21: Hitch Installation

    — Set Up GRAIN CARTS Hitch Installation 1. Insert hitch into frame weldment and secure using coupler (102586) and 1”-8 x 6” capscrew (91299-195), 1” lock washer (9404-041), and 1”-8 hex nut (9394-020). FIG. 2-1 OM-02476A Wheel/Tire Set Up Tire Pressure Tire pressure must be verified before first use and adjusted as necessary.

  • Page 22: Sideboards

    — Set Up GRAIN CARTS Sideboards Sideboards are shipped either completely assembled or folded down. If your cart was shipped with the sideboards folded down proceed as follows: 1. Unfold the front and rear sideboards after removing and discarding shipping straps. Raise the right- hand sideboard and secure it to the front and rear sideboards using screws/large flange 5/16”- 18UNC x 1”...

  • Page 23: Transport Lighting And Markings

    GRAIN CARTS Transport Lighting and Markings NOTE: Unverferth Manufacturing has designed the transport lighting and marking kit to meet United States federal law and ASABE standards at the time of manufacture. Machine modifications, including additional features or changes to the intended configurations, may require updates to the lighting and marking as well.

  • Page 24: Tank Tie Rods

    — Set Up GRAIN CARTS Tank Tie Rods FIG. 2-3 25279B • Tie rods are located inside the cart for ship- Rods ping. 1. Secure tie rods (25279B) as shown to inside of cart with hardware provided. See Fig. 2-3 & 2-4.

  • Page 25: Ladder Installation

    — Set Up GRAIN CARTS Ladder Installation • to pRevent peRsonal injuRy oR DEATH ALWAYS ENSURE THAT THERE ARE PEOPLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON woRking inside the caRt, and that ALL SAFE WORK PLACE PRACTICES ARE FOLLOWED.

  • Page 26: Optional Adjustable Canvas Spout Installation

    — Set Up GRAIN CARTS Optional Adjustable Canvas Spout Installation 1. For ease of installation, auger should be in FIG. 2-7 transport position. 2. Remove the rubber chute. Save the steel straps and enough hardware to reassemble them. (See Fig. 2-7) 3.

  • Page 27: Optional Directional Downspout #24391 Installation

    — Set Up GRAIN CARTS Optional Directional Downspout #24391 Installation FIG. 2-8 1. Remove the standard chute shown in Fig. 2-8 and attach the new directional downspout with the hardware provided. 2. Attach the adapter (95193) to the cylinder on the directional downspout (Fig.

  • Page 28: Chain Oiler

    — Set Up GRAIN CARTS Chain Oiler #23250 Installation • EYE PROTECTION AND OTHER AP- CHAIN PROPRIATE PERSONAL PROTECTIvE OILER EQUIPMENT MUST BE WORN WHILE SERvICING THE IMPLEMENT. 1. Park the empty cart on a firm, level surface. Block the tires on the machine to keep it from moving.
  • Page 29 — Set Up GRAIN CARTS Chain Oiler #23250 Installation (Continued) 11. Insert the brush (96863) into the bracket (23111) FIG. 2-22 and secure with 3/8” flat washer (9405-076) and elbow (98134) as shown in Fig. 2-23. The brushes must be mounted with a slight flex as shown in Fig.
  • Page 30 — Set Up GRAIN CARTS Chain Oiler #23250 Installation (Continued) FIG. 2-26 19. Attach the 10” long plastic tube (23161) ends to the “Y” fitting (98610) (Fig. 2-26). 20. Attach the 18” long plastic tube (105538) to the bottom of the “Y” fitting (98610) as shown in Fig.

  • Page 31: For Tarp Information, Please Refer To Your Tarp Manual

    — Operation GRAIN CARTS SECTION III Operation Operating Checklist ........................3-2 Preparing Tractor ........................3-2 Hitching to Tractor ........................3-5 Towing ............................3-9 Auger Operation ........................3-10 Operating Chain Oiler ......................3-11 FOR TARP INFORMATION, PLEASE REFER TO YOUR TARP MANUAL. FOR SCALE INFORMATION, PLEASE REFER TO YOUR SCALE MANUAL.

  • Page 32: Operating Checklist

    — Operation GRAIN CARTS Operating Checklist o Read and understand all safety precautions before operating cart. o Check axle spacing to be sure axle is adjusted from shipping position to desired operating width. (If Applicable) o Check to be sure all the reflective decals and the SMV sign are clearly visible with the cart attached to the tractor.
  • Page 33 — Operation GRAIN CARTS Preparing Cart Perform the service checks as outlined below. Repair or replace any damaged or worn parts before operating. Hardware Check for loose bolts and nuts, and tighten as needed. Check again after the first half-day of operation.
  • Page 34 — Operation GRAIN CARTS Preparing Cart (continued) Hydraulic System Check all hoses and cylinders for signs of leakage. Hoses should not be kinked, twisted or rubbing against sharp edges. Re-route or repair hoses as necessary. Refer to SAFETY section for additional information on safe repair and inspection of hydraulic components. Tires/Wheels Check tire pressures and maintain at recommended values listed in the MAINTENANCE section of this manual.

  • Page 35: Hitching To Tractor

    — Operation GRAIN CARTS Hitching to Tractor Drawbar Connection This cart is intended to be hitched to a tractor drawbar. Do not attempt to hitch to any other location on the tractor other than the drawbar. Make sure sufficient counterweight is used on the tractor’s front-end. The cart is equipped standard with a single tang hitch.
  • Page 36 — Operation GRAIN CARTS Hitching to Tractor (continued) Transport Chain Connection • always use tRanspoRt chain when tRanspoRting implements. failuRe to USE A TRANSPORT CHAIN COULD CAUSE PERSONAL INJURY IF CART BECOMES DISENGAGED. Always use intermediate chain support when connecting the grain cart directly to a tractor. DO NOT use the intermediate chain support as the chain attaching point.
  • Page 37 — Operation GRAIN CARTS Hitching to Tractor (continued) Clean hydraulic hose couplers before connecting to the tractor. For convenience, it is recommended to connect the flow door hoses to tractor implement coupler #1, and attach auger fold hoses to coupler #2. This unit is equipped with color bands attached to the hydraulic hoses.
  • Page 38 Hitching to Tractor (continued) Electrical Connections NOTE: Unverferth Manufacturing has designed the transport lighting and marking kit to meet United States federal law and ASABE standards at the time of manufacture. Machine modifications, including additional features or changes to the intended configurations, may require updates to the lighting and marking as well.

  • Page 39: Towing

    — Operation GRAIN CARTS Towing This cart is not equipped with brakes. Ensure that the towing vehicle has adequate weight and braking capacity to tow this implement. See towing vehicle manual for towing capacity. Never tow a loaded grain cart over public roads. Do not exceed 10 mph during off-highway travel.

  • Page 40: Auger Operation

    — Operation GRAIN CARTS Auger Operation PTO Driven Auger • electRocution will cause seRious injuRy oR death. the GRAIN CART IS NOT INSULATED. KEEP AWAY FROM ALL ELECTRI- CAL LINES AND DEvICES. ELECTROCUTION CAN OCCUR WITHOUT DIRECT CONTACT. • neveR enteR caRt with augeR oR tRactoR Running. seRious oR fatal in- JURY CAN OCCUR DUE TO ENTANGLEMENT WITH ROTATING COMPONENTS.
  • Page 41 — Operation GRAIN CARTS Operating The Chain Oiler #23250 • moving oR Rotating components can cause seRious injuRy oR death. ALWAYS DISCONNECT THE POWER SOURCE BEFORE SERvICING. ENSURE THE SER- vice coveRs, chain/belt coveRs and clean-out dooR(s) aRe in place and SECURELY FASTENED BEFORE OPERATING THE MACHINE.
  • Page 42 — Operation GRAIN CARTS Notes 3-12...
  • Page 43 — Maintenance GRAIN CARTS SECTION IV Maintenance Lubrication And Maintenance ..................... 4-2 Seasonal Storage ........................4-3 Electrical 7-Way Connector Plug Schematic ................4-4 U-Joints & Gearbox ........................4-5 Tires/Wheels ..........................4-5 Drivetrain Inspection ........................4-6 Drive Sprockets .......................... 4-6 Indicator Arm ..........................4-7 Flow Control Gates ........................
  • Page 44 — Maintenance GRAIN CARTS Lubrication To keep your grain cart in top operating condition and to assure its proper performance and reliability for a long period of time, a periodic inspection and lubrication is a must. ITEM DESCRIPTION ITEM DESCRIPTION Linkage Pivot Rear Cart Pivot (1 Shot Daily) Hinge Tube...

  • Page 45: Seasonal Storage

    — Maintenance GRAIN CARTS Seasonal Storage Selecting Proper Tractor Approx. loaded cart weight -> 68,400 Lbs. Approx. loaded cart hitch weight -> 5,000 Lbs. Always open flow door and auger cleanout doors to remove any remaining grain and to allow moisture to dry. Wash machine inside and out before storing to remove dirt and debris that can draw and collect moisture.
  • Page 46 — Maintenance GRAIN CARTS Electrical 7-Way Plug Schematic The following schematic complies with ANSI/ASABE Standards for new production tractors. Wiring specifications may be different for older tractor models. Consult your tractor operator’s manual or dealer for proper wiring and installation (Fig. 4-2). GRAIN CART WIRES White -- Ground Green -- RH amber flasher...

  • Page 47: U-Joints & Gearbox

    — Maintenance GRAIN CARTS U-Joints & Gearbox The U-joint will give you many years of service if grease is applied to each joint and spline weekly. For maximum gearbox life: -- Check oil level every week -- Replace oil every season, fill to fluid level or 2 pints 90 weight oil Tires/Wheels Check tire pressures and maintain at recommended values listed in the MAINTENANCE section of this manual.

  • Page 48: Drivetrain Inspection

    — Maintenance GRAIN CARTS Drivetrain Inspection To insure long life and dependable service from your grain cart, the drivetrain should be inspected after the first 5 loads, at the beginning of each season and after every 25 loads or annually thereafter, whichever comes first. Remove inspection cover and proceed as follows: - Make a general inspection of drivetrain looking for loose hardware.

  • Page 49: Indicator Arm

    — Maintenance GRAIN CARTS Drive Sprockets (Continued) Hole Configuration of Drive Sprocket REMOVAL 1. Remove all set or cap screws. OM02512 2. Insert set or cap screw in hole indicated by on diagram. Loosen bushing by tightening set or cap screw.

  • Page 50: Flow Control Gates

    — Maintenance GRAIN CARTS Flow Control Gates Flow Control Indicator The Flow Control Gates are designed to prevent grain from putting an excess load on the horizontal auger during initial start-up. If gates are not working properly check: -- each pivot, on each end of gate, for wear or tightness.

  • Page 51: Pto Shaft And Clutch

    — Maintenance GRAIN CARTS PTO Shaft & Clutch Lubrication (Figs. D1-D6) Lubricate with quality grease before starting work and every 8 operating hours. Clean and grease PTO driveshaft before each prolonged period of non-use. Molded nipples on the shield near each shield bearing are intended as grease fittings and should be lubricated every 8 hours of operation! Telescoping members must have lubrication to operate successfully regardless of whether a grease fitting is provided for that purpose!

  • Page 52: Coupling The Pto Driveshaft

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Continued) Coupling The PTO Driveshaft (Figs. E1-E2) Clean and grease the PTO and implement input connection (IIC) AS-Lock 1. Pull locking collar and simultaneously push PTO driveshaft onto PTO shaft until the locking device engages.

  • Page 53: Chains

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Continued) Chains (Figs. G1-G3) NOTE: The chain is intended to prevent the shield from rotating against non-moving parts and thereby preventing shield damage. properly installed chain will increase the service life of the shield. 1.

  • Page 54: To Dismantle Guard

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Continued) To Dismantle Guard Figs. (J1-J4) 1. Remove locking screw. 2. Align bearing tabs with cone pockets. 3. Remove half-guard. 4. Remove bearing ring. To Assemble Guards Figs. (K1-K5) 1. Grease yoke groove and inner profile tube. 2.

  • Page 55: To Assemble Cone

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Continued) To Assemble Cone Figs. (L1-L3) 1. Dismantle guard (Figs. J1 - J3). Remove old cone (e.g. cut open with knife). Take off chain. Place neck of new cone in hot water (approx 80°...

  • Page 56: Quick Disconnect Disassembly

    — Maintenance GRAIN CARTS PTO Quick Disconnect (Continued) Quick Disconnect Disassembly 1. Compression Spring 2. Ball 3. Lock Collar 4. Back-up ring 5. Snap ring * Back-up ring * (For some clutch types, place additional back up ring first). Compress lock collar (#3) and remove snap right (#5).

  • Page 57: Clutch Disassembly

    — Maintenance GRAIN CARTS PTO Quick Disconnect (Continued) Clutch Disassembly Tighten the four hex nuts (12) uniformly until the clutch pack and hub are loose. Use special tool 9002007 to bend all four retaining lugs back on the edge of the clutch housing. Remove the thrust plate with Belleville springs to get at the friction disks, drive plates and hub for inspection and service.

  • Page 58: Auger Maintenance

    — Maintenance GRAIN CARTS Auger Maintenance Horizontal Auger Annually check all bolts, nuts, and set screws. Perform lubrication as specified. Vertical Auger FIG. 4-7 Annually check all bolts, nuts and set screws. Per- form lubrication as specified. NOTE: The lower auger position is indexed from the drive dog/tube flange hinge surface, as shown.

  • Page 59: Wheel, Hub And Spindle Disassembly And Assembly

    — Maintenance GRAIN CARTS Wheel, Hub and Spindle Disassembly and Assembly • tipping oR movement of the machine can cause seRious injuRy oR death. BE SURE MACHINE IS SECURELY BLOCKED. • falling objects can cause seRious injuRy oR death. do not woRk undeR THE MACHINE AT ANY TIME WHILE BEING HOISTED.
  • Page 60 — Maintenance GRAIN CARTS Wheel, Hub and Spindle Disassembly and Assembly 5. Inspect the spindle and replace if necessary. If spindle does not need to be replaced, skip to Step 6; otherwise continue with Step 5. Remove the bolt and lock nut that retains the spindle to the axle. Using a lifting device rated for 200 lbs, replace the old spindle with a new spindle.

  • Page 61: Wheels & Tires

    — Maintenance GRAIN CARTS Wheels and Tires Wheel Nut Torque Requirements • impRopeRly toRqued wheel nuts/bolts can cause a loss of implement contRol and machine damage. toRque wheel nuts/bolts to values in table. check toRque befoRe use, afteR one houR of unloaded use oR afteR fiRst load, and each load until wheel nuts/bolts maintain toRque vALUE.

  • Page 62: Wheels & Tires

    — Maintenance GRAIN CARTS Wheels and Tires (continued) Tire Pressure The following is to be used as a general guide for tire inflation and figures can vary depending on specific brand of tire used. It is important that tires are inspected after unit is loaded.
  • Page 63 — Maintenance GRAIN CARTS Wheels and Tires (continued) Tire Pressure (continued) Tire Pressure for Grain Carts Tire Pressure for Grain Carts Load Index / Ply Load Index / Ply Max. PSI Tire Make Part Number Tire Size Rating Max. PSI Tire Make Part Number Tire Size...

  • Page 64: Complete Torque Chart

    — Maintenance GRAIN CARTS Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts to have the same number of threads exposed on each end. FOOT NEWTON SIZE...

  • Page 65: Hydraulic Fittings

    — Maintenance GRAIN CARTS Hydraulic Fittings – Torque and Installation SAE Flare Connection (J. I. C.) 1. Tighten nut with finger until it bottoms the seat. 2. Using a wrench, rotate nut to tighten. Turn nut 1/3 turn to apply proper torque. SAE Straight Thread O-Ring Seal 1.
  • Page 66 — Maintenance GRAIN CARTS Electrical System Diagram — Overall Right-Hand Side 2-Pin Extension #2004282 Tail Light RH Assembly #2001083B 3-Pin Extension #22987 To Tractor Rear Wiring Harness Front Wiring Harness #22983 #22790 3-Pin Extension #22987 Auger Wiring Harness #23165 Tail Light LH Assembly #2001084B Left-Hand Side...
  • Page 67 — Maintenance GRAIN CARTS Electrical Diagram — Front Wiring Harness #22983 4-25...
  • Page 68 — Maintenance GRAIN CARTS Electrical Diagram — Rear Wiring Harness #22790 4-26...
  • Page 69 — Maintenance GRAIN CARTS Electrical Diagram — Auger Light Wiring Harness #23165 4-27...
  • Page 70 Two Wires IDENTIFICATION. VENDOR P/N: Ground and Power THIS DRAWING IS PROPERTY OF WEIGHT PAINT SQ MAT'L (connects to auger 0.0 lbmass UNVERFERTH AS PURCHASED INCHES light wiring harness) REV LEVEL ALL DIMENSIONS INCHES UNLESS NOTED LATEST CN RELEASE CN6846-4 TOLERANCE MANUFACTURING CO., INC.
  • Page 71 — Maintenance GRAIN CARTS Electrical Diagram — Red Tail/Turn Light #9006282 Electrical Diagram — Amber Lamp Double Face #9005142 4-29...
  • Page 72 — Maintenance GRAIN CARTS Notes 4-30...
  • Page 73 — Parts GRAIN CARTS SECTION V Parts Vertical Upper Auger & Folding Components ................5-2 Vertical Lower Auger Components ..................... 5-4 Vertical Auger Hydraulics, Chute & Door Components ............. 5-6 Indicator Components ......................... 5-8 Cart Frame Components ......................5-10 Touch-Up Paint ......................... 5-13 Cleanout Door Components .....................

  • Page 74: Vertical Upper Auger & Folding Components

    — Parts GRAIN CARTS Vertical Upper Auger & Folding Components ITEM 23042 97382 23084 23049 23047 23063 23065 23064 23066 23067 91144-1 9390-06 9398-01 9928 9800 9405-08 9390-11 9001812 99509 900034 91160 9390-06 85632 9398-01 98107...
  • Page 75 — Parts GRAIN CARTS Vertical Upper Auger & Folding Components ITEM PART NO. DESCRIPTION NOTES 23042G Auger Tube Weldment (Green) 23042R Auger Tube Weldment (Red) 97382 Flange Bearing Assembly w/1 3/4” Bore 23084B Flight Weldment (RH) 23049B Link Weldment 23047B Link Weldment 23063 Pin 1”...

  • Page 76: Vertical Lower Auger Components

    — Parts GRAIN CARTS Vertical Lower Auger Components ITEM PART NO. DESCRIPTION NOTES 98116 Flange Bearing Assembly w/2” Bore 23028B Flight Weldment (RH) 97382 Flange Bearing Assembly w/1 3/4” Bore 23081B Bearing Weldment 98120 Gearbox...
  • Page 77 — Parts GRAIN CARTS Vertical Lower Auger Components ITEM PART NO. DESCRIPTION NOTES 9390-133 Capscrew 5/8”-11UNC x 4 1/2” 9801 Locknut 5/8”-11UNC 9390-056 Capscrew 3/8”-16UNC x 1 1/4” 9405-076 Flat Washer 3/8” 9928 Locknut 3/8”-16UNC 9398-019 Elastic Stop Nut 5/8”-11UNC 9398-016 Elastic Stop Nut 1/2”-13UNC 9404-025...

  • Page 78: Vertical Auger Hydraulics, Chute & Door Components

    — Parts GRAIN CARTS Vertical Auger Hydraulics, Chute & Door Components...
  • Page 79 — Parts GRAIN CARTS Vertical Auger Hydraulics, Chute & Door Components ITEM PART NO. DESCRIPTION NOTES 23033B Door Weldment 23106B Plate w/Holes 9404-021 Lock Washer 3/8” 9390-051 Capscrew 3/8-16UNC x 1/2 91262 Flange Screw 3/8-16UNC x 1 91263 Flange Nut 3/8-16UNC 9405-076 Flat Washer 3/8”...

  • Page 80: Indicator Components

    — Parts GRAIN CARTS Indicator Components DETAIL A...
  • Page 81 — Parts GRAIN CARTS Indicator Components ITEM PART NUMBER DESCRIPTION NOTES 91257 Large Flange Hex Nut 5/16-18UNC 24644B Indicator Weldment =Black= 9928 Locknut 3/8-16UNC 9390-057 Capscrew 3/8-16UNC x 1 1/2 Gr.5 24640B Cover Assembly =Black= w/Gate Position Decal 24641 Gate Position Decal 24637B Gate Rod/Bar =Black= 9390-059...

  • Page 82: Cart Frame Components

    — Parts GRAIN CARTS Cart Frame Components 5-10...
  • Page 83 — Parts GRAIN CARTS Cart Frame Components ITEM PART NO. DESCRIPTION NOTES 103641B Spade Hitch Weldment 102589B Clevis Hitch Weldment 91299-195 Capscrew 1-8UNCx6 102586B Hitch Coupler 9404-041 Lock Washer 1” 9394-020 Hex Nut 1-8UNC 108047 Pin 1 1/4” Dia. x 3 3/4 91144-166 Spiral Pin 1/4”...
  • Page 84 — Parts GRAIN CARTS Cart Frame Components ITEM PART NO. DESCRIPTION NOTES 98146 Pillow Bearing Asy 2-Bolt 23579B Bearing Holder Weldment 9390-124 Capscrew 5/8-11UNC x 2 9405-100 Flat Washer 5/8” 9876 90° Elbow 24471 Rear Tent/Baffle Weldment 24469 Front Tent/Baffle Weldment 23653B Bar/Strap w/Hole 9512...

  • Page 85: Touch-Up Paint

    — Parts GRAIN CARTS Cart Frame Components ITEM PART NO. DESCRIPTION NOTES 9800 Locknut 1/2-13UNC 24873B Ladder Assembly =Black= 25457B Ladder Step Weldment =Black= 25458B Ladder Weldment =Black= 91257 Flange Hex Nut, 5/16-18 9390-059 Capscrew, 3/8-16UNC x 2 97604 Flange Screw, 5/16-18 x 1 9928 Locknut, 3/8-16UNC 28202B...

  • Page 86: Cleanout Door Components

    — Parts GRAIN CARTS Cleanout Door Components ITEM 9404 9405 9388 9394 ITEM PART NUMBER DESCRIPTION NOTES 9404-021 Lock Washer 3/8” 9405-076 Flat Washer 3/8” USS 9388-057 Carriage Bolt 3/8-16UNC x 2 1/2 Gr.5 9394-006 Hex Nut 3/8-16UNC 23623 Cleanout Door (Unpainted) 5-14...

  • Page 87: Hub Components

    — Parts GRAIN CARTS Hub Components ITEM DESCRIPTION PART NUMBER NOTES Hub & Spindle Assembly (Green) 267284G Includes 2 through 16 Hub & Spindle Assembly (Red) 267284R Spindle Dia. 4.50" 286172 2-12UNF Threaded End Hub Sub Assembly (Green) 265390G Includes Items 4, 5, 6 Hub Sub Assembly (Red) 265390R Stud Bolt M22x1.5x4...

  • Page 88: Wheels & Tires

    — Parts GRAIN CARTS Wheels & Tires ITEM PART NO. DESCRIPTION 18904 Wheel & Tire Assembly 30x32 / 900/70R32 R-1W 17939WO Wheel Only 30x32 17350 Wheel & Tire Assembly 31x32 / 900/60R32 R-1W 17349WO Wheel Only 31x32 17923 Wheel & Tire Assembly 36x32 / 1050/50R32 17922WO Wheel Only 36x32 93300...

  • Page 89: Track Axle Components

    — Parts GRAIN CARTS Track Axle Components FOR TRACK INFORMATION, PLEASE REFER TO YOUR TRACK MANUAL. ITEM PART NO. DESCRIPTION NOTES 250843 Pin 1” Dia. x 4 9/16 268764B Axle Weldment =Black= 268836B Axle Mount Weldment =Black= 9004903 Hitch Bar, 2.875” Dia. 91192 Retaining Ring 1”...

  • Page 90: Driveline Components

    — Parts GRAIN CARTS Driveline Components with Shear Bolts OM04123C 5-18...

  • Page 91: Driveline Components

    — Parts GRAIN CARTS Driveline Components with Shear Bolts ITEM PART NO. DESCRIPTION NOTES 9002608 Yoke 1 3/4-20 9002684 Yoke 1 3/8-21 92529 Cross & Bearing Kit 9002609 Spring Pin 10 x 80 9002610 Inboard Yoke 900134 Inner Profile 900135 Outer Profile 9002613 Inboard Yoke...

  • Page 92: Optional Pto Assembly With Friction Clutch

    — Parts GRAIN CARTS Optional PTO Assembly With Friction Clutch ITEM 5-20...
  • Page 93 — Parts GRAIN CARTS Optional PTO Assembly With Friction Clutch ITEM PART NO. DESCRIPTION NOTES 900508 PTO Shaft w/ Shielding Includes Items 2-40 900030 Front Half PTO Includes Items 3-14 9002608 End Yoke includes Item 4 93856 Quick Disconnect Kit 92529 Cross &...

  • Page 94: Gearbox

    — Parts GRAIN CARTS Gearbox 5-22...
  • Page 95 — Parts GRAIN CARTS Gearbox ITEM PART NO. DESCRIPTION NOTES 900220 Housing 900221 Cap, Thru 900222 Cap, Cantilvrd 900223 Gear, 22T 900224 Shaft w/Keyway 900225 Shaft w/Spline 900226 Bearing Cup 900227 Bearing Cone 900228 Seal 3N2413C 900229 Seal 3N2410C 900230 Gasket, 0.1mm 900231 Gasket, 0.2mm...

  • Page 96: Sideboards

    — Parts GRAIN CARTS Sideboards 5-24...
  • Page 97 — Parts GRAIN CARTS Sideboards ITEM PART NO. DESCRIPTION NOTES 25326W Front Panel Weldment 12”-22” 102693 Weatherstrip 102608 Window (Clear Glass) 25321W Sideboard Weldment 12” (Front) 25312W Sideboard Weldment 12” (Rear) 25318W Rear Board Weldment 12”-22” 25324W Sideboard Weldment 22” (Rear) 25311W Sideboard Weldment 22”...

  • Page 98: Lights

    — Parts GRAIN CARTS Lights 5-26...
  • Page 99 — Parts GRAIN CARTS Lights ITEM PART NUMBER DESCRIPTION NOTES 22790 Wiring Harness 132” 3-T 22983 Wiring Harness 396” T 23165 Wiring Harness 264” 2004282 Wiring Harness 36” (2 Pin Connector) 22987 Wiring Harness 36” (3 Pin Connector) 2001084B Bracket Assembly (Left-Hand) Includes items 7 through 15 2001083B...

  • Page 100: Decals

    — Parts GRAIN CARTS Decals Always consult your operator’s manual for correct tire pressure and wheel hardware torque specifications. 5-28...
  • Page 101 — Parts GRAIN CARTS Decals ITEM PART NO. DESCRIPTION NOTES 24641 Decal, Gate Position 9003127 Reflector, Amber 2x9 9003474 DANGER (Electrical) 9003476 WARNING (No Riders) 9003477 IMPORTANT, Operation 9003478 DANGER (Safety-Kids) 9003574 IMPORTANT, Shear-Bolt 9005266 Decal, KILLBROS 9005267 Stripe 6x24 901726 Decal, 1950 91605...

  • Page 102: Chain Oiler

    — Parts GRAIN CARTS Chain Oiler View Shown Less Bracket and Chain 5-30...
  • Page 103 — Parts GRAIN CARTS Chain Oiler ITEM PART NO. DESCRIPTION NOTES 105538 Plastic Tubing 18” 23111 Plate 23112 Plate 9000389 Clamp 9002794 Ball Valve 9501778 Oil Reservoir Tank w/Cap 98636 Replacement Cap 9405-076 Flat Washer 3/8” 97420 Screw 1/4-20 x 3/4 96863 Brush 96869...

  • Page 104: Optional Hydraulic Adjustable Spout

    — Parts GRAIN CARTS Optional Hydraulic Adjustable Spout 5-32...
  • Page 105 — Parts GRAIN CARTS Optional Hydraulic Adjustable Spout ITEM PART NO. DESCRIPTION NOTES 24391 Adjustable Hydraulic Spout 24390B Adjustable Spout Assembly =Black= 24385B Shroud Weldment =Black= 24387B Spout Weldment =Black= 281368 Arm Link Plate 281369 Bushing, 3/4 Dia. 281372 Bushing, 9/16 Dia. 281377B Upper Deflector Weldment =Black= 281389...
  • Page 106 2014-9//april 2015-10//may 2016-12//august 2018-13//april 2019-14/april 2020-15//august 2020-16//august 2022-17...
