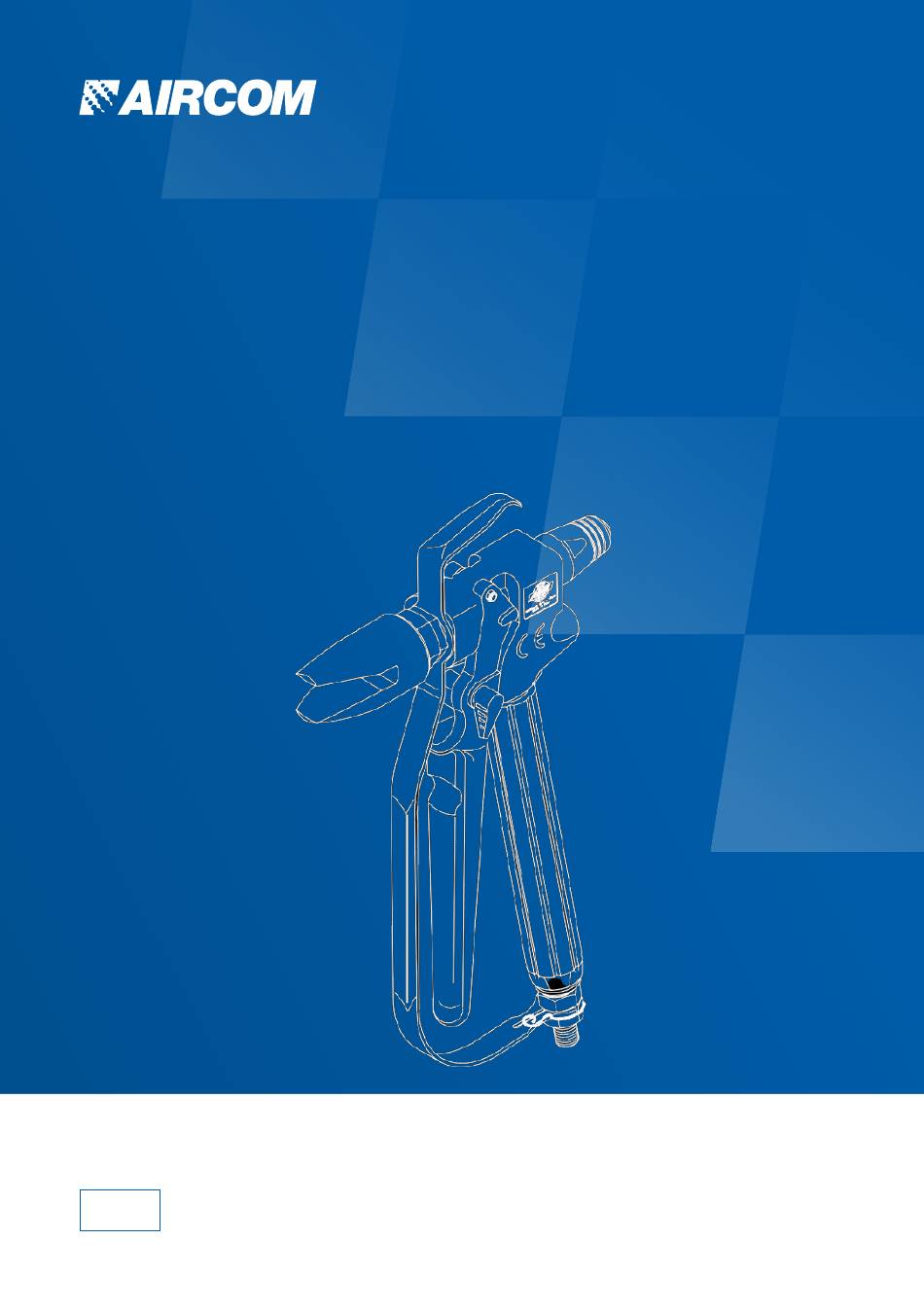

- Page 1 AIRLESS SPRAY GUNS A81 series Instruction manual mod. A81 aircom.it...
-
Page 2: Available Models
AVAILABLE MODELS mod. A81 It allows to obtain large uniform painted surfaces AIRCOM - INSTRUCTION MANUAL - 2022 - v. 1.0 ®... - Page 3 A81 series Index Instruction Manual Warnings Maintenance and cleaning Installation and start-up Technical data Troubleshooting Spare parts and components Disposal Support WARNINGS! Carefully read and follow all instructions and safety precautions before using the product. MANUALS Our manuals are available at aircom.it/en/support/manuals/...
-
Page 4: Health Hazard
A81 series WARNINGS CORROSIVE PRODUCTS HEALTH HAZARD Solvents such as trichlorethane and Some sprayed chemicals can be harmful chloromethylene (dichlorethane) can and cause irritation or health problems. chemically react with the aluminum that Careful reading labels makes up much of the gun and cause instructions for use of the product is dangerous explosions. -
Page 5: Installation
A81 series INSTALLATION TECHNICAL SPECIFICATIONS Gun size: see dimensioned views Usage The gun must be supplied with a maximum pressure of 500 bar. weight: 510 gr 140mm 165mm aircom.it Instruction Manual - 5... - Page 6 A81 series INSTALLATION AND STARTUP Before using a new gun or a new product, clean the gun thoroughly with an appropriate solvent. Powering should be done with dry, filtered air and regulated to constant pressure. DIRECTIONS FOR GUN OPERATION Safety on the control lever...
-
Page 7: Adjustment Sequence
A81 series ADJUSTMENT SEQUENCE Always use high pressure hoses for connections. Before using the equipment, check that the connections and pipes do not have holes, folds or cracks. Connect the paint inlet hose to the connection (A) of the gun. -
Page 8: Technical Data
A81 series TECHNICAL DATA SPRAY NOZZLE ORIFICE PRODUCTS ANGLE AT 30 CM 7x20 20° 0,15 13,5 7x40 40° 0,15 16,5 TRANSPARENT AND PIGMENTED PAINTS 9x20 20° 0,23 FINE ENAMELS 9x40 40° 0,23 17,5 9x60 20° 0,23 22,5 11x10 10° 0,28 11x20 20°... - Page 9 A81 series TECHNICAL DATA SPRAY NOZZLE ORIFICE PRODUCTS ANGLE AT 30 CM 21x10 10° 0,53 13,5 21x20 20° 0,53 18,5 21x40 40° 0,53 21,5 21x60 60° 0,53 32,5 26x10 10° 0,66 15,5 26x20 20° 0,66 THIXOTROPIC SPRAY FILLER FILLED BASES 26x40 40°...
-
Page 10: Troubleshooting
A81 series TROUBLESHOOTING Anomaly Problem / Solution No atomization No pressure reaches the gun Check the air system Dirty or worn nozzle Carefully clean the dirty nozzle. Replace nozzle if worn. There is more product than necessary. Reduce the passage of the product... - Page 11 AIRLESS SPRAY GUNS A81 series mod. A81 Spare parts and components aircom.it...
-
Page 12: Spare Parts
A81 series SPARE PARTS mod. A81 DETAILS LIST [x1] Paradise [x1] 2-hole sleeve [x1] 1-hole sleeve [x1] Handguard [x1] Awl kit [x1] Gun body [x1] Pressure piston [x1] Rear cap [x1] Control lever group [x1] Pistol butt filter [x1] Filter holder spring [x1] Handle 12.0... - Page 13 The machine DOES NOT CONTAIN POLLUTING OILS but the waste paints must in any case be disposed of at authorized consortia. SUPPORT DO YOU NEED HELP? We are at your disposal. +39 0124 5154 44 aircom@aircom.it Online support 15 - Instruction Manual aircom.it...
- Page 14 A81 series NOTES 14 - Instruction Manual aircom.it...
- Page 15 AIRCOM SRL © 2022 - ALL RIGHTS RESERVED...
- Page 16 DISCOVER ALL PRODUCTS Follow us aircom.it...
