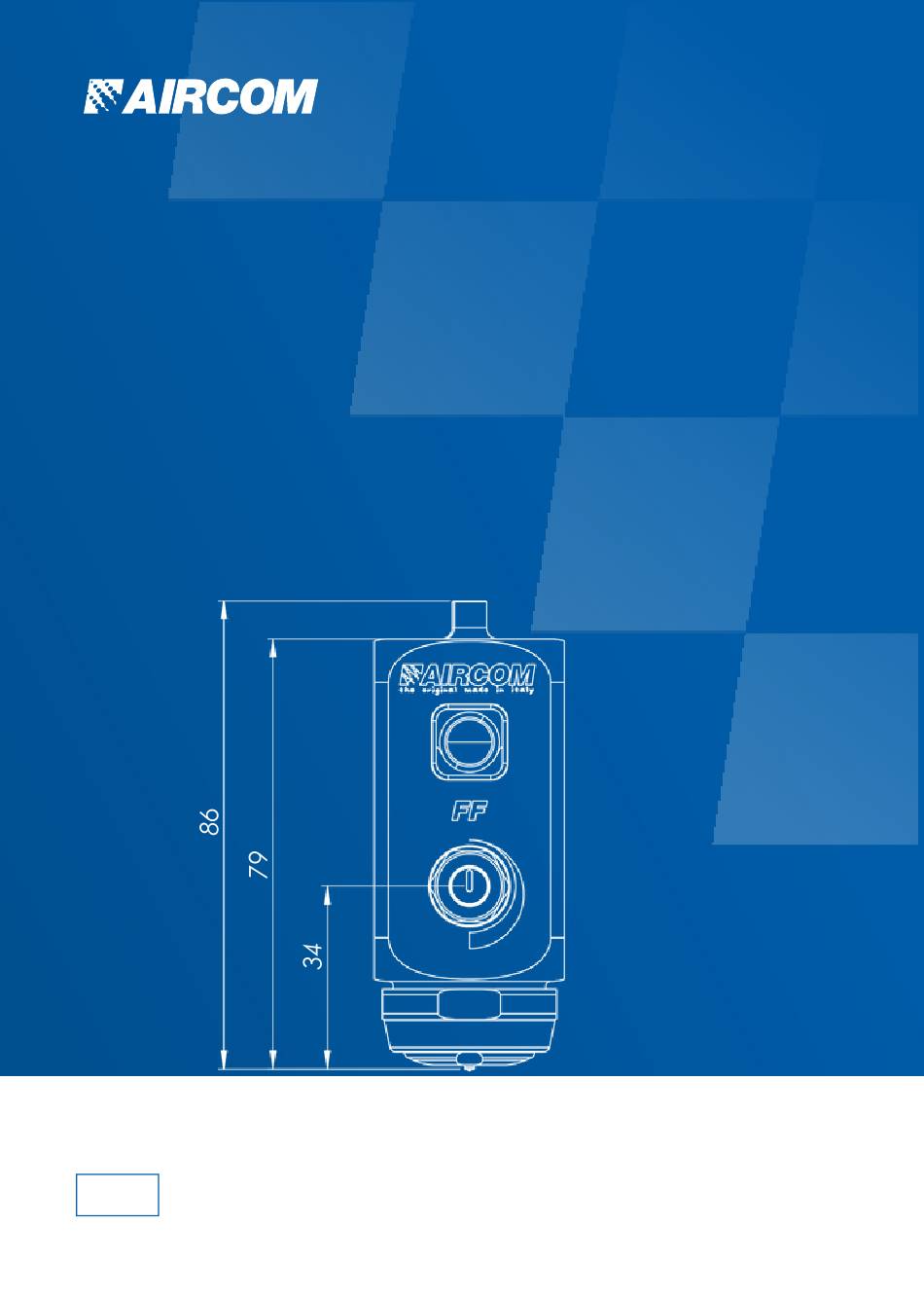

- Page 1 HVLP SPRAY GUNS FF series Instruction manual mod. FF, FF-Q aircom.it...
-
Page 2: Available Models
FF-Q Possibility of equipping the gun with a quick release block, the AIRCOM® QRB2, and a heating device, the AIRCOM® HSB. The use of protective gloves is recommended. AIRCOM® - INSTRUCTION MANUAL - 2022 - v. 1.0... - Page 3 FF series Index Instruction Manual Warnings Maintenance and cleaning Installation and start-up Technical data Troubleshooting Spare parts and components Certified quality Support WARNINGS! Carefully read and follow all instructions and safety precautions before using the product. MANUALS Our manuals are available at aircom.it/en/support/manuals/...
-
Page 4: Maintenance And Cleaning
Do not immerse the supplied by AIRCOM® is not approved or gun in liquid cleaners that may cause authorized. AIRCOM® is not liable for any corrosion of the product. -
Page 5: Installation
FF series INSTALLATION TECHNICAL SPECIFICATIONS Connection hole diameter: Ø 6,2 mm Size of pipe junctions: • Control closing air inlet: = quick coupling pipe Ø 4 mm • Control opening air inlet: = quick coupling pipe Ø 4 mm • Atomization air inlet: = quick coupling pipe Ø... -
Page 6: Installation And Start-Up
Carry out a cleaning cycle before each use. The feeding must be done with dry, filtered and regulated air at constant pressure. If using the product with the AIRCOM® HSB heater, use protective gloves to avoid scalds or burns. DIRECTIONS OPERATION Pipe Ø... -
Page 7: Adjustment Sequence
FF series ADJUSTMENT SEQUENCE 1.Lock the gun to the system via the fixing bracket e orient the head in the direction of appropriate coverage. In case of using the version -Q, lock the QRB2 block first to the system and hook up then the gun. -
Page 8: Technical Data
FF series TECHNICAL DATA HEAD 1347-U14 PORTATA DEL PRESSIONE CONSUMO ø FLUIDO UGELLO ATOMIZZAZIONE ARIA (g/min) (kg/cm²) (L/min) ø 0,5 ø 0,6 ø 0,8 0.85 ø 1,2 NOTES Pump pressure 0.8 to 1.0 Kg/cm². Liquid used for testing: water. Ford cup viscosity 4 = 11 sec. -
Page 9: Troubleshooting
FF series TROUBLESHOOTING Anomaly Problem / Solution No pressure is getting to the gun Check air system No atomization Plunger part. [1347-G32] worn out Replace plunger part. [1347-G32] worn out The head part. [1347-U14], the nozzle part. [1347- U7] and the needle part. [1347-U17] are worn out. - Page 10 HVLP SPRAY GUNS FF series mod. FF, FF-Q Spare parts and components aircom.it...
-
Page 11: Spare Parts
FF series SPARE PARTS mod. FF DETAILS LIST 1341-M3-A [x1]Spring 1347-G44 1347-G30 [x1]Body assembled with quick coupling fittings and clamping block 1341-M3-A 1347-G32 [x1]Mounted plunger 1347-G39 [x1]Gasket kit 1347-G44 [x1]Mounted cap 1347-U4 [x1]Ferrule 1347-U17 1347-U7 [x1]Nozzle 1347-U14 [x1]Head 1347-U17 [x1]Complete needle... - Page 12 FF series SPARE PARTS mod. FF-Q DETAILS LIST 1341-M3-A [x1]Spring 1347-G44 1347-G32 [x1]Mounted plunger 1347-G39 [x1]Gasket kit 1347-G44 [x1]Mounted cap [x1]Body assembled with 1341-M3-A special fittings and pin for QRB2 1347-U4 [x1]Ferrule 1347-U7 [x1]Nozzle 1347-U14 [x1]Head 1347-U17 1347-U17 [x1]Complete needle...
-
Page 13: Certified Quality
It represents an stainless steel and specific OR/sealings, additional guarantee of authenticity and complies with FDA requirements. Italianity because it is present exclusively in original AIRCOM® guns. SUPPORT DO YOU NEED HELP? We are at your disposal. +39 0124 5154 44 aircom@aircom.it... - Page 14 AIRCOM SRL © 2022 - ALL RIGHTS RESERVED...
