Layout Lighting Solution – Software and Configuration

5.9 Fast-Clock Triggers

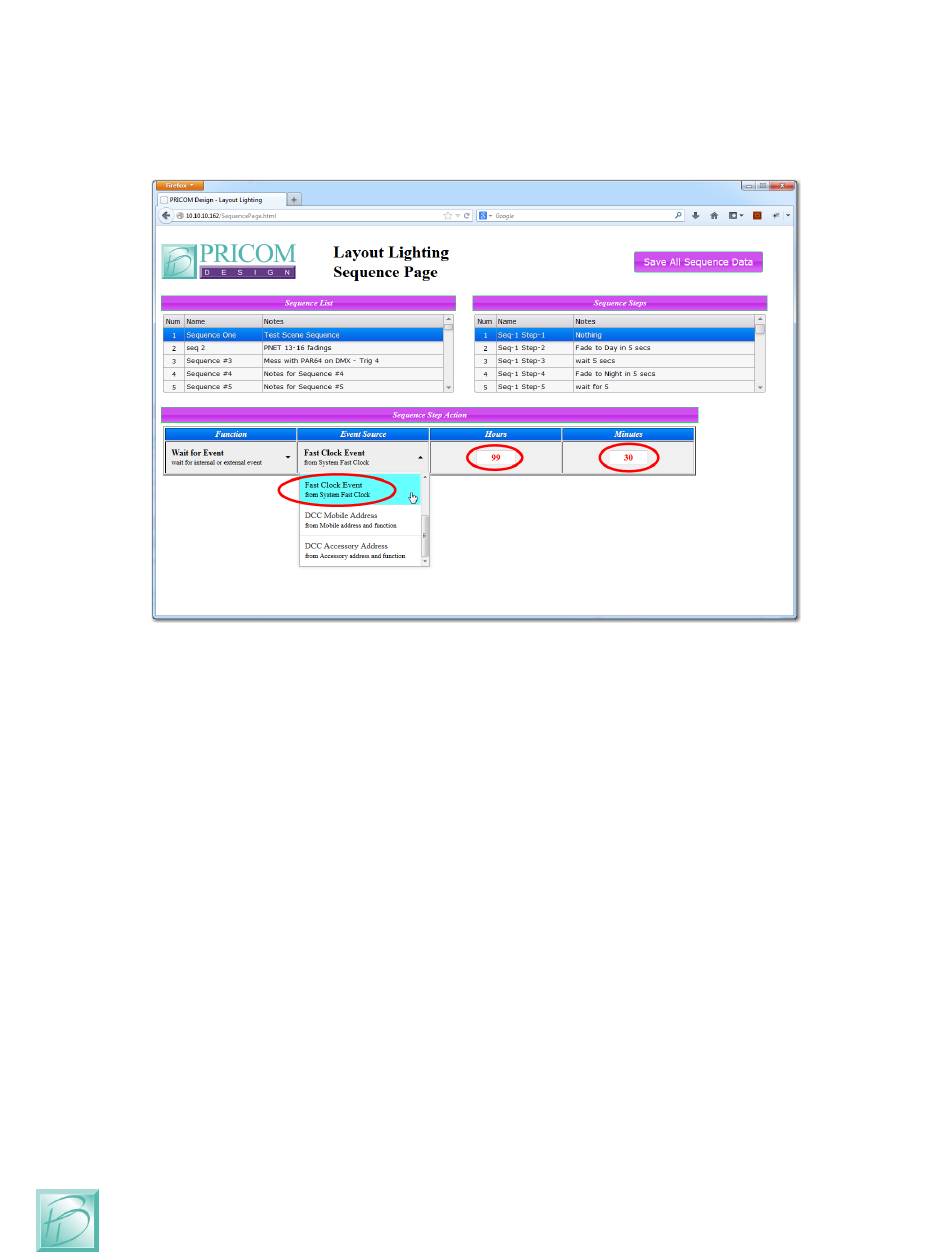

So what about Fast Clock Triggers? Just like we did above, "Wait for Event" can be used
to wait for a Fast Clock Event as shown below.
In this case above, we have changed Sequence Step #1 to "Wait for Event" then selected
the Event Source as "Fast Clock Event". Then we can enter the Hours and Minutes (in
fast clock time) that we want to wait for. Some events would be good to happen every
hour, so in the example above, we have entered "99" as the Hours. This will cause ONLY
the Minutes to match, in this case "30" Minutes. So our Test Sequence will run every
time the Fast Clock hits 30 minutes, in Fast Clock Time.
Remember to SAVE ALL SEQUENCE DATA!
PRICOM Design Page 36
