Layout Lighting Solution – Software and Configuration

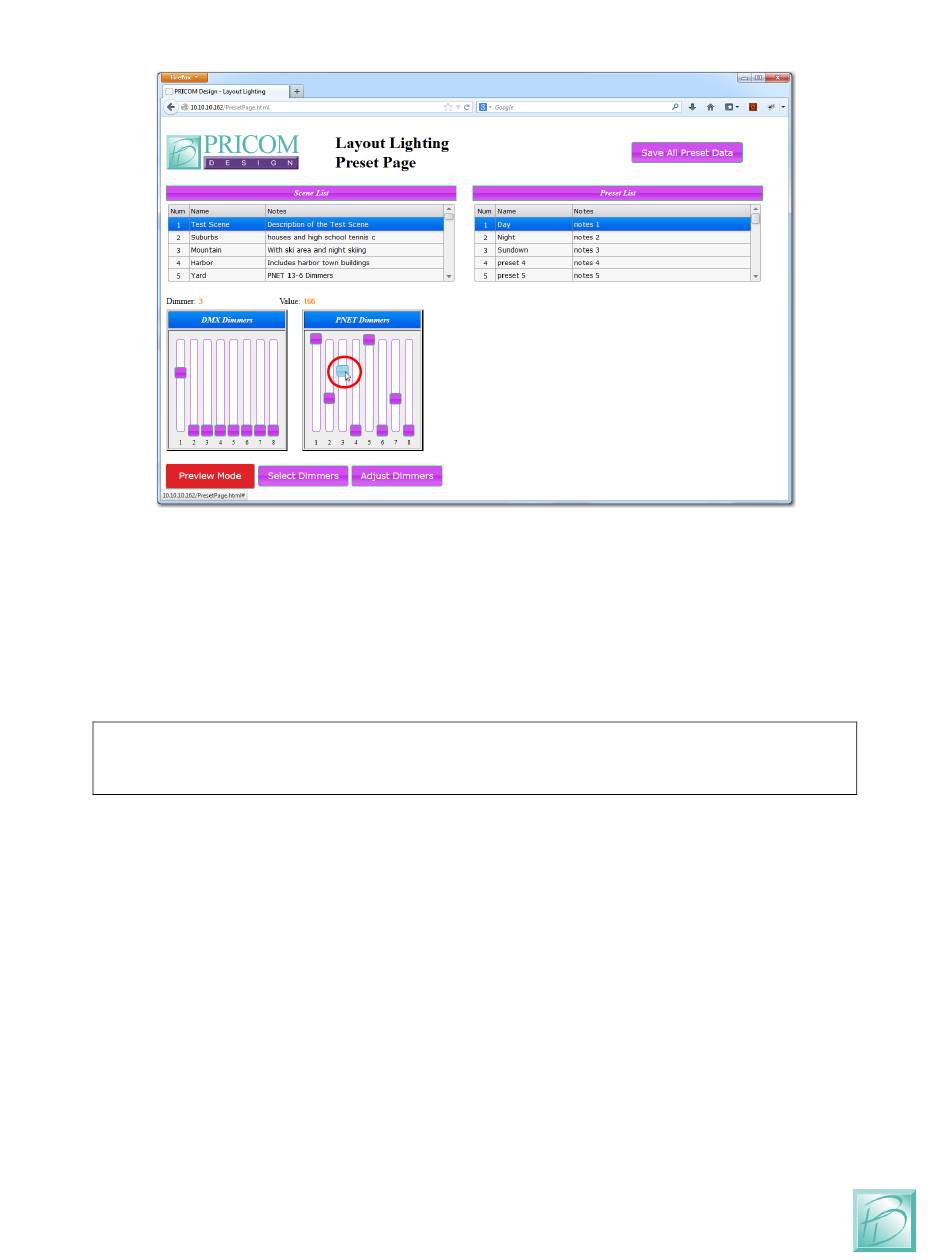

While in Preview Mode, try clicking and dragging any of the dimmer sliders. In the
screen above, we are dragging PNET Dimmer 3 to change the level. This is the Blue LED
Strip connected to Slot-0, so we are adding Blue light to our Test Scene, Day Preset.
Hopefully you get the idea of how to create Scenes and Presets from the descriptions
above.
IMPORTANT:
TO SAVE YOUR SCENES AND PRESETS, YOU NEED TO CLICK ON THE
"SAVE ALL PRESET DATA" BUTTON ON THE TOP OF THE SCREEN!
You can navigate away, and come back, but before you turn the power off, make sure
you SAVE ALL PRESET DATA! This saves all the Scene/Preset configuration data to
the SD Card on the Layout Lighting Solution Main Board.
