5.5 Assigning Dimmers

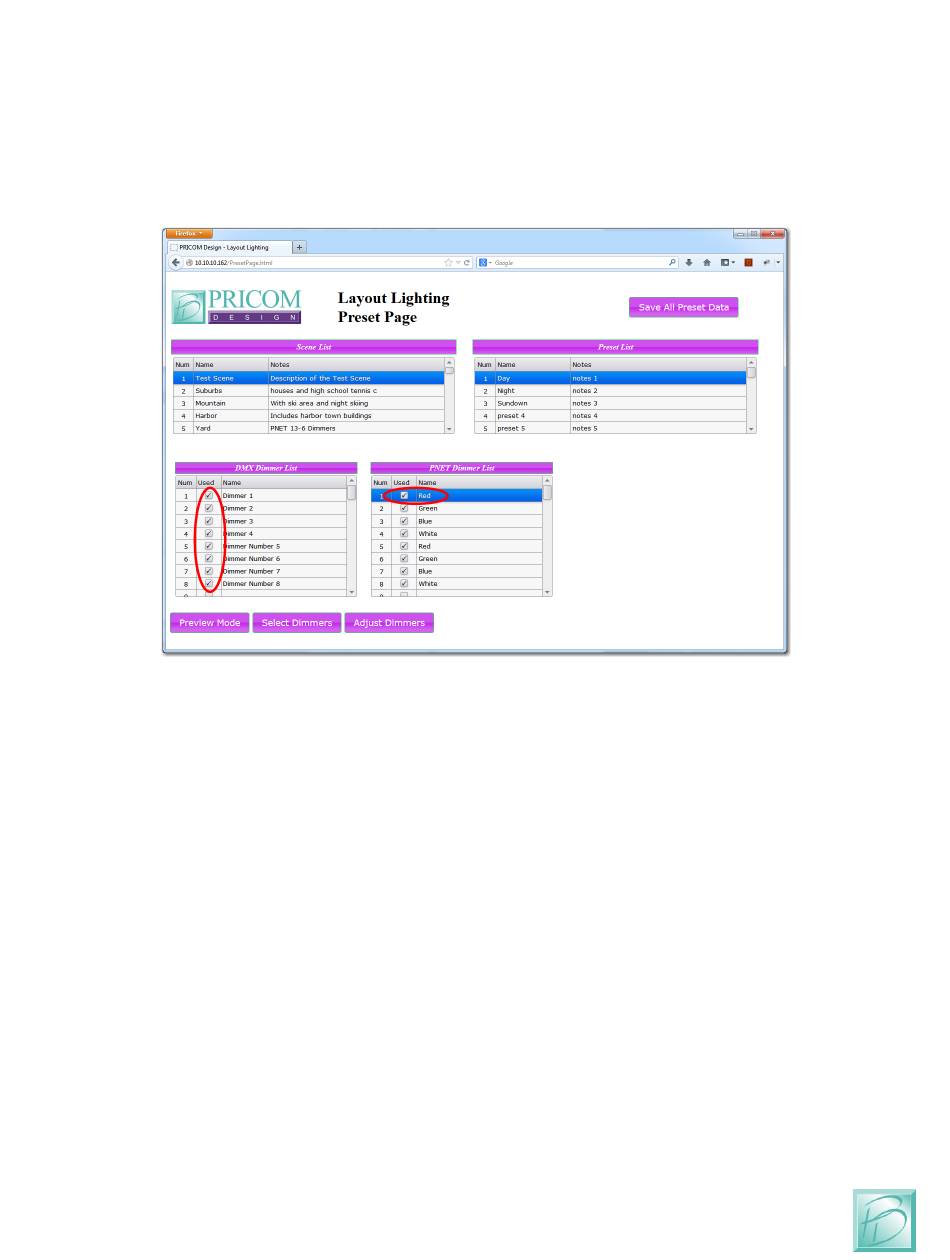

With a Test Scene created and named, we next select what Dimmers are associated with
that Scene. Make sure you have selected the desired "Scene" from the Scene List.
To associate dimmers with the selected Scene, click on the "Select Dimmers" button.
In this case, you can see that we have selected DMX Dimmer 1-8, and PNET Dimmer 1-
8 (and maybe more) with this Scene. You can double click on the Dimmer Names to give
them more sensible names, such as Red, Green, Blue, and White as shown in the example
above.
To Enable a dimmer, Check the box. To Disable a dimmer, un-Check the box.
Since we set our PNET DC Power Controller's for Slot-0 and Slot-1, that represents
PNET Dimmer 1-8 (1-4 on Slot-0, and 5-8 on Slot-1). Naming them Red, Green, Blue,
and White will keep you from confusing the colors.
Now that we have configured the Dimmers for our scene, click the "Adjust Dimmers" to
get back to the Dimmer Value Adjustment screen.
