Layout Lighting Solution – Connections
The following example shows a simple way to connect status LED's to the Layout
Lighting Solution using the convenience 5VDC power supply. The LED's will require
current-limiting resistors since each Control Output can sink 400MA and would burn-out
the LED's. Since the LED's do not present an inductive load, the Clamp terminal has
been left un-connected.

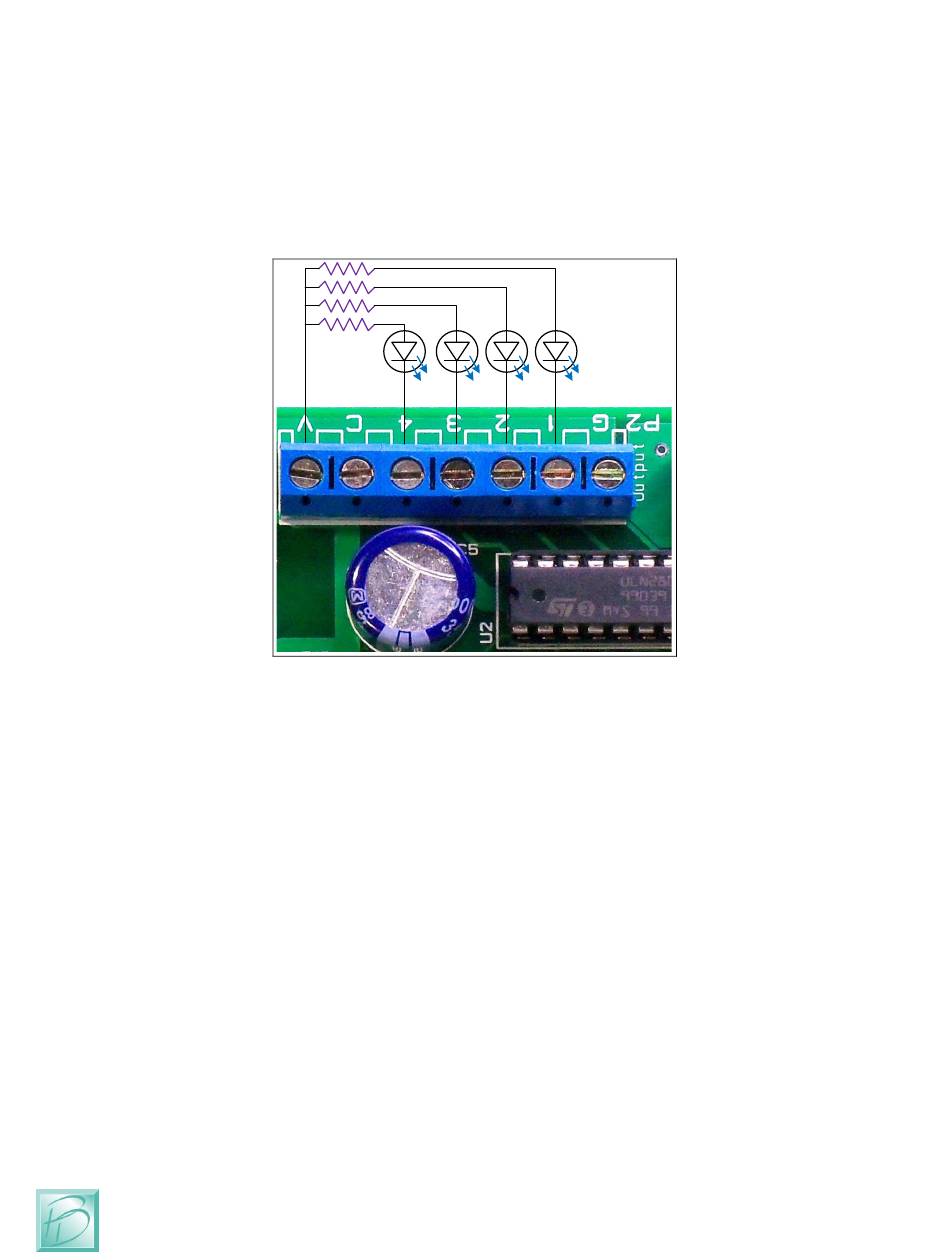

Figure 10 - Simple Control Output LED Connections
220Ω
The Control Outputs can also be used to drive conventional DC powered lamps or DC
powered relays. However, if you need to control larger DC loads, please consider the
PNET DC Power Controller as a High-Current 4-channel controller conveniently
connected to PNET. At 8Amps per channel, you can control some serious loads!

3.8 Mode Switches

The Layout Lighting Solution has many options available through programming using
the web interface. We placed a DIP Switch to set modes, but have not implemented any
use for them yet.
