Layout Lighting Solution – Starter Kit Assembly
The Control Output Terminal Strip is used to connect to the Starter Kit LED strips. Our
strips are pre-wired with Yellow Wires on the 12VDC connections, and the matching
color on the 'sink' side of each LED color. Red=Red, Green=Green, Blue=Blue,
White=White.

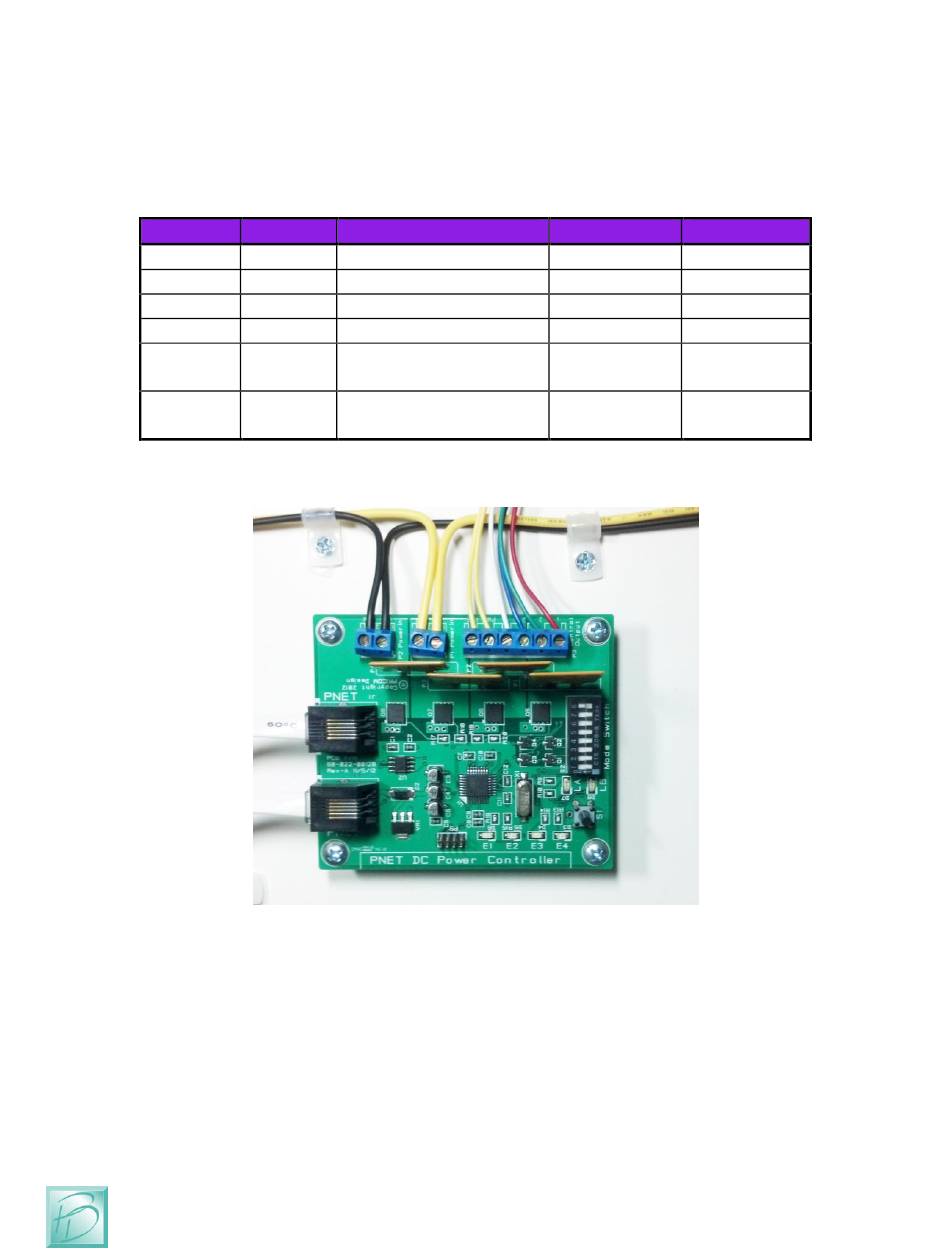

Figure 14 - PNET DC Power Controller Connections
Terminal Name
1 Output-1
2 Output-2
3 Output-3
4 Output-4
5 PWR
6 PWR
Figure 15 - PNET DC Power Controller Wiring
As you can see in the table and pictures above, we have assigned PNET DC Dimmer #1
to Red, #2 to Green, #3 to Blue, and Dimmer #4 to White. This matches the standard
order of R,G,B,W. The two small Yellow wires receive the +12VDC from the High
Current Input bus wire (Large Yellow) connected to terminal strip position 'PWR' and
makes the wiring to a large 12VDC bus quite convenient. As you can also see from the
picture above, we used Black as our GND and Yellow as our 12VDC Power Bus. Notice
the Black coming in and going out to the next board are NEXT TO EACH OTHER.
Similarly, the Yellow 12VDC Power Bus wires enter and exit this module NEXT TO
EACH OTHER.
Description
Dimmer Output #1
Dimmer Output #2
Dimmer Output #3
Dimmer Output #4
Power supply output
(12VDC)
Power supply output
(12VDC)
PRICOM Design
RGB Strip White Strip
Red Wire
Green Wire
Blue Wire
White Wire
Yellow Wire
Yellow Wire
