Layout Lighting Solution – Starter Kit Assembly

4 Starter Kit Assembly

Previously in this document, we have described the Layout Lighting Main Board features
and its connections. This section will introduces you to the rest of the components
included in the Layout Lighting Solution Starter Kit. This section will cover all the basic
connections and operations, even if you purchased individual parts not the Starter Kit.
Additional data for each module is included in their respective Quick Start Guides. Please
refer to the individual quick-start manuals in addition to this guide. This manual
combined with our web site videos should get you up and running in the fastest possible
manner.

4.1 Starter Kit Contents

Whether you purchased a Starter Kit, or selected the exact components you need, you
will end up with items similar to those pictured below:

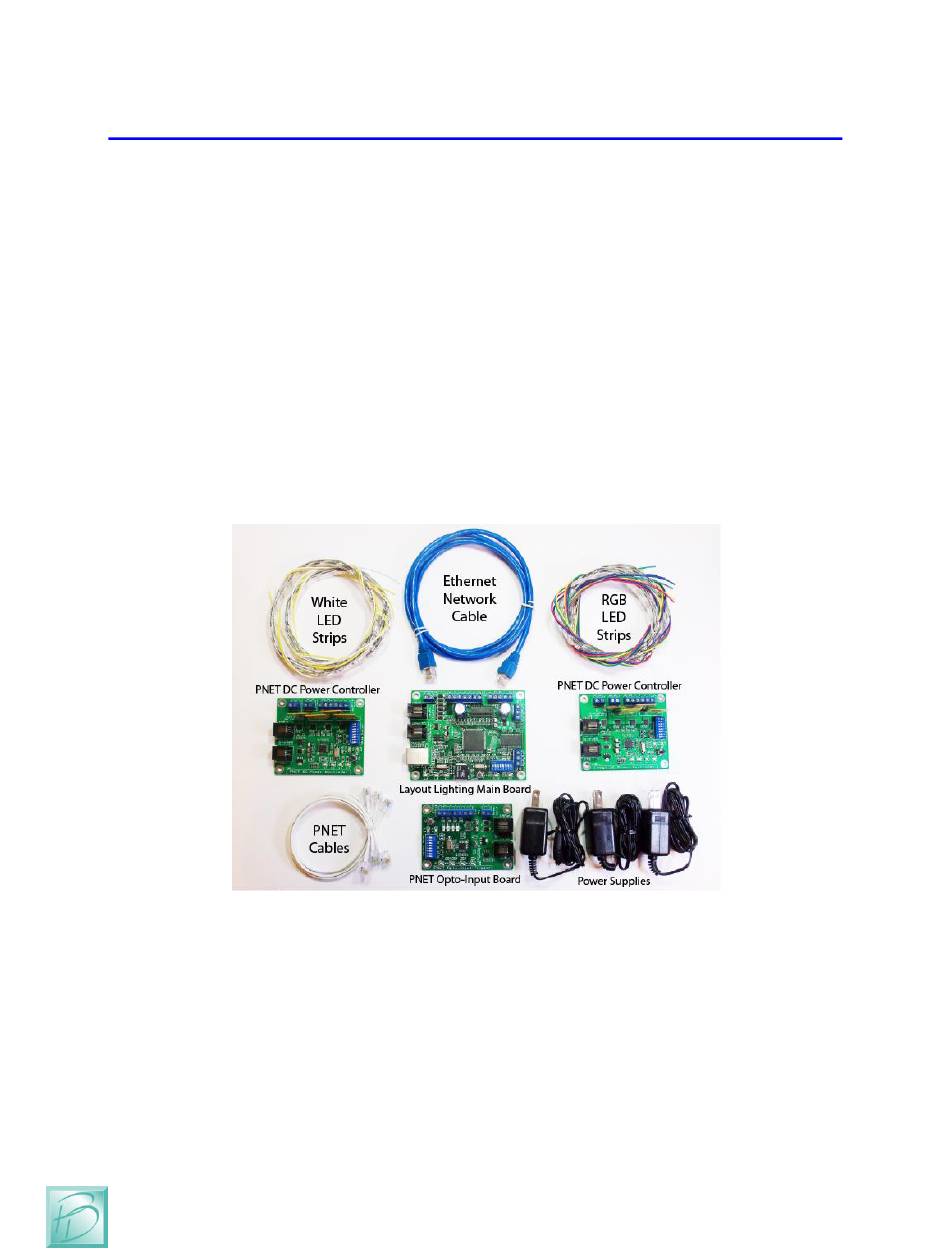

Figure 12- Layout Lighting Starter Kit Contents
Essentially, you will need a Layout Lighting Solution Main Board, Power Supplies,
Ethernet Cable, PNET Cables, and some number of PNET DC Power Controllers.
It is possible to operate the Layout Lighting Solution with only DMX-512 dimmers and
no PNET dimmers at all. LED lighting provides such an economical alternative to other
light sources that we have included 2 sets of Red, Green, Blue (RGB) and White LED
strips in the Starter Kit. We have included 2 one meter lengths of RGB, and 2 one meter
lengths of White LEDs. The combination of RGB & White strips allows infinite color
mixing and flexibility.
