4. Connectors

This chapter gives you an overview of the Wireless STK Mainboard connectivity. The placement of the connectors can be seen in the
figure below.

4.1 Breakout Pads

Most of the WGM110's pins are routed from the radio board to breakout pads at the top and bottom edges of the Wireless STK Main-
board. A 2.54 mm pitch pin header can be soldered on for easy access to the pins. The figure below shows you how the pins of the
WGM110 maps to the pin numbers printed on the breakout pads. To see the available functions on each, please refer to the WGM110
Data Sheet.
VCOM_CTS / PE12 / P8
VCOM_RTS / PE13 / P10
I2C_SCL / PE1 / P12
BUTTON0 / PA2 / P14
BUTTON1 / PA6 / P16
LED0 / PC0 / P18
LED1 / PC1 / P20
VCOM_EN / PE2 / P22
silabs.com | Smart. Connected. Energy-friendly.

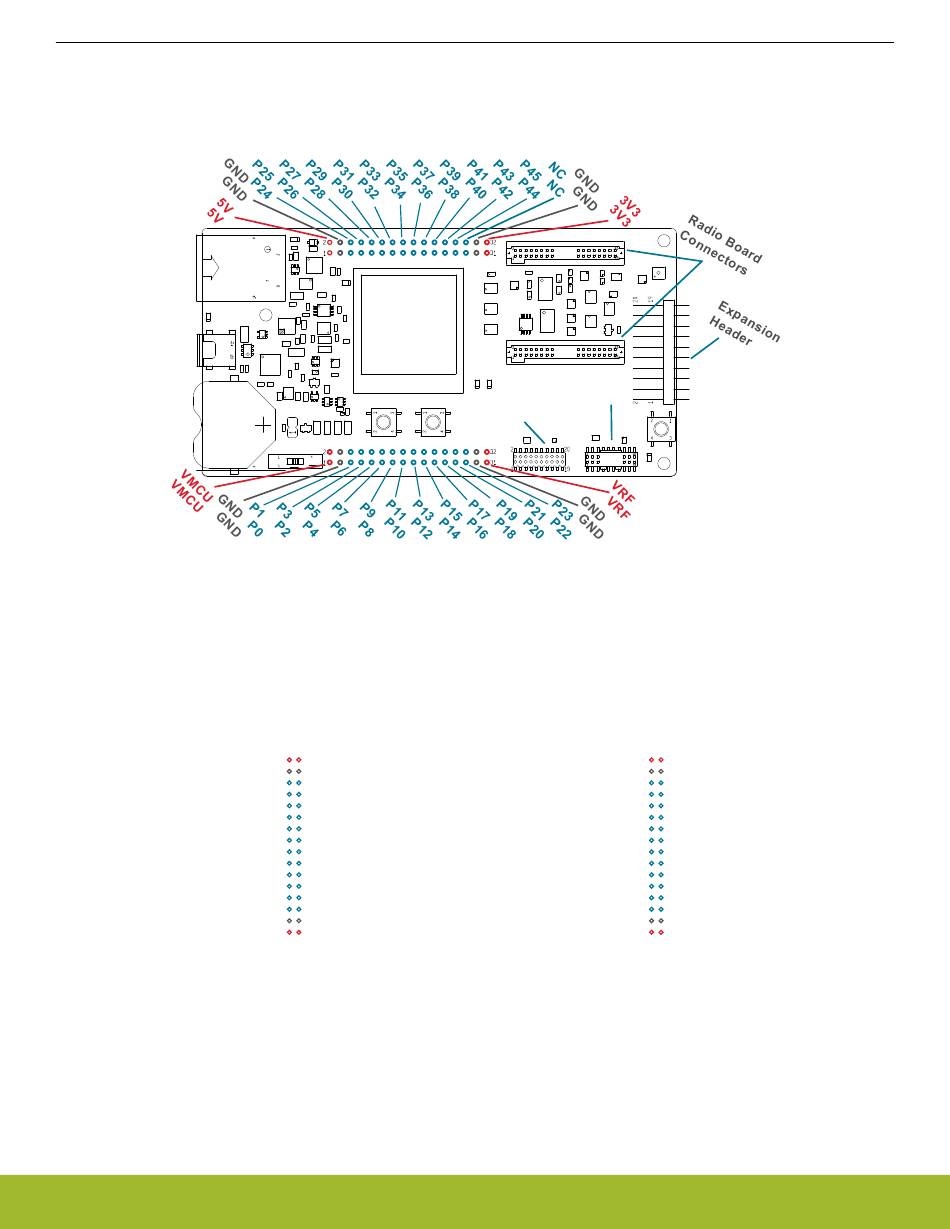

Figure 4.1. Mainboard Connector Layout
J101
VMCU VMCU
GND GND
PB11 / P0 P1 / PD0 / SD_MOSI / DISP_SI
PB12 / P2 P3 / PD1 / SD_MISO
PE14 / P4 P5 / PD2 / SD_CLK / DISP_SCLK
PE15 / P6 P7 / PD3
P9 / PD4
P11 / PD5
P13 / PE0 / I2C_SDA
P15 / NC
P17 / NC
P19 / NC
P21 / NC
P23 / NC
GND GND
VRF VRF
Figure 4.2. Radio Board Pin Mapping on Breakout Pads
UG172: WGM110 Wi-Fi Module Wireless Starter Kit User's Guide
In/Out Debug
Simplicity
Header
Connector
5V
GND
WIFI_MISO / P24
WIFI_MOSI / P26
WIFI_CLK / P28
WIFI_CS / P30
NC / P32
NC / P34
NC / P36
NC / P38
NC / P40
NC / P42
NC / P44
NC
GND
3V3
Connectors
J102
5V
GND
P25 / PE10 / VCOM_TX
P27 / PE11 / VCOM_RX
P29 / PD6 / SD_CD
P31 / PD7 / SD_CS
P33 / PC13 / DISP_EN
P35 / PC14 / DISP_SCS
P37 / PC9 / SENSOR_EN
P39 / PC15 / DISP_COM
P41 / NC
P43 / NC
P45 / NC
NC
GND
3V3
Rev. 2.00 | 4
