Specifying settings for 5.1 surround mapping (X.linkHD
and X.linkSD)
You can indicate which 5.1 surround channels you want to assign to the audio
outputs from the X.linkHD or X.linkSD breakout box when playing back 5.1
surround tracks in your sequence.
° To specify your 5.1 surround mapping settings:
1 Choose Sequence > Sequence Settings and click the Playback
Settings

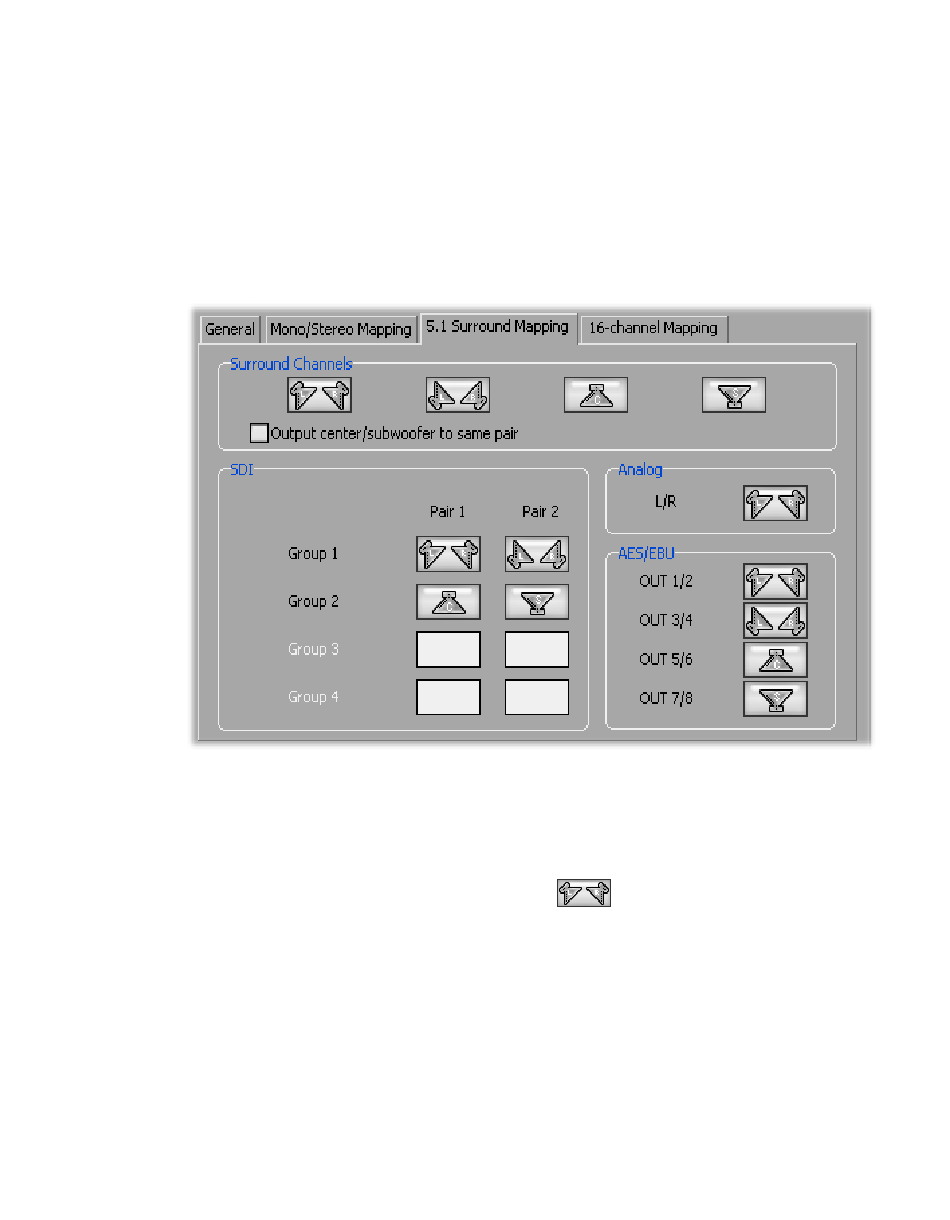

Click the Audio Output tab, then click the 5.1 Surround Mapping tab.
2
¦ Note The AES/EBU channels are not available on X.linkSD.
Under Surround Channels , drag the speaker buttons representing the 5.1
3
surround channels to the particular output channels to which you want them
to be assigned. For example, to output the front left and right channels to the
analog left and right outputs, drag the
You can select Output center/subwoofer to same pair if you want both
the center and subwoofer surround channels to be output to the same stereo
pair (the two channels will be represented as a single button). This setting is
required for some equipment.
To mute the output for a particular channel, click its speaker button. To
4
re-enable the channel, you must drag a speaker button to it.
Under SDI , you can assign surround channels to a maximum of four SDI
5
audio pairs (two pairs from any two groups). To assign a surround channel to
button.
button to Analog L/R .
Defining your sequence settings
83
