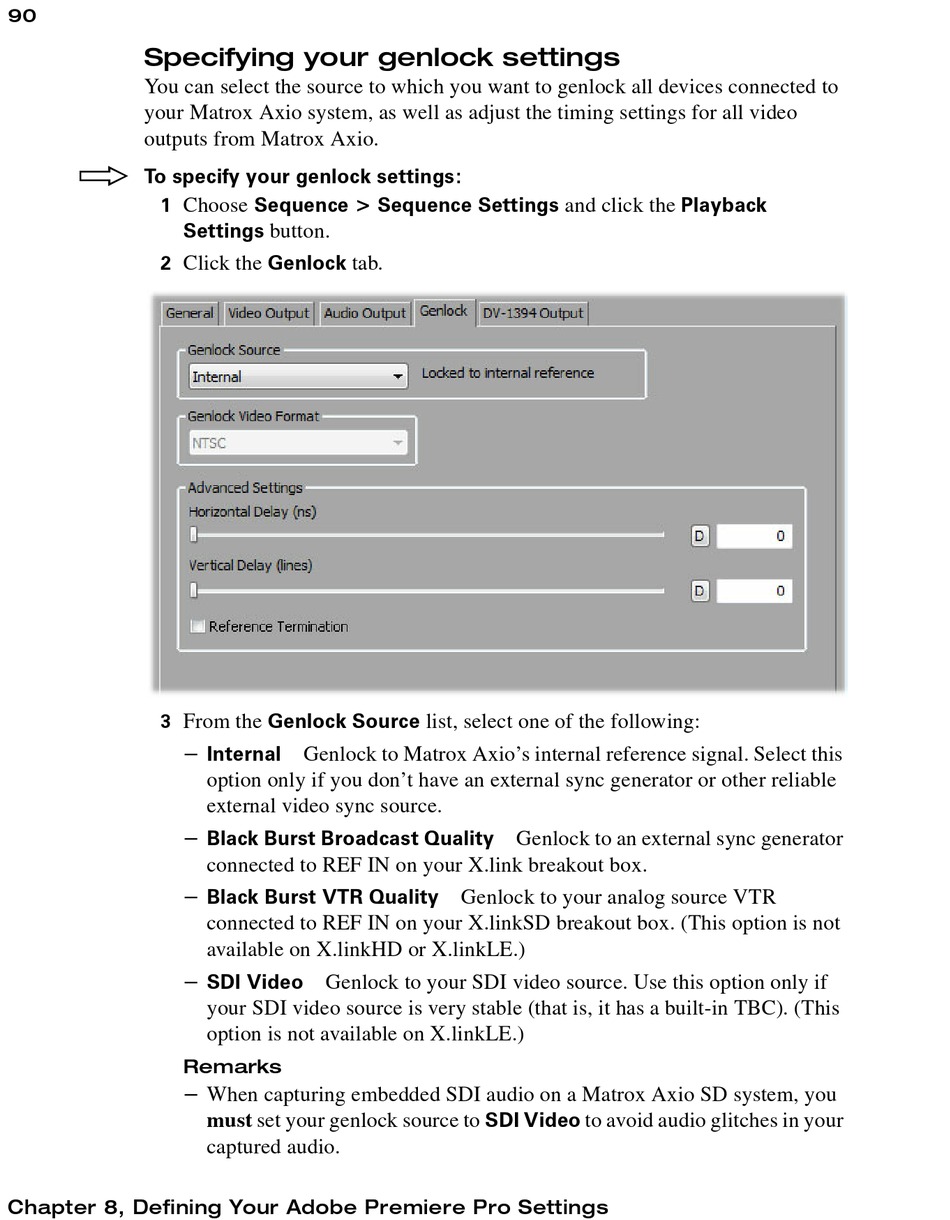

Specifying your genlock settings

You can select the source to which you want to genlock all devices connected to
your Matrox Axio system, as well as adjust the timing settings for all video
outputs from Matrox Axio.
° To specify your genlock settings:
Choose Sequence > Sequence Settings and click the Playback
1
Settings
Click the Genlock tab.
2
From the Genlock Source list, select one of the following:
3
$
$
$
$
Remarks
$
Chapter 8, Defining Your Adobe Premiere Pro Settings
button.
Genlock to Matrox Axio's internal reference signal. Select this
Internal
option only if you don't have an external sync generator or other reliable
external video sync source.
Black Burst Broadcast Quality
connected to REF IN on your X.link breakout box.
Black Burst VTR Quality
connected to REF IN on your X.linkSD breakout box. (This option is not
available on X.linkHD or X.linkLE.)
Genlock to your SDI video source. Use this option only if
SDI Video
your SDI video source is very stable (that is, it has a built-in TBC). (This
option is not available on X.linkLE.)
When capturing embedded SDI audio on a Matrox Axio SD system, you
must set your genlock source to SDI Video to avoid audio glitches in your
captured audio.
Genlock to an external sync generator
Genlock to your analog source VTR
