Displaying settings for mono and stereo mapping
(X.linkLE)
Matrox Axio LE lets you display mono and stereo mapping settings that show
which channels are used to output your audio when playing back mono and
stereo audio tracks in your sequence.
° To display your mono/stereo mapping settings:
1
Choose Sequence > Sequence Settings and click the Playback
Settings
Click the Audio Output tab, then click the Mono/Stereo Mapping tab.
2

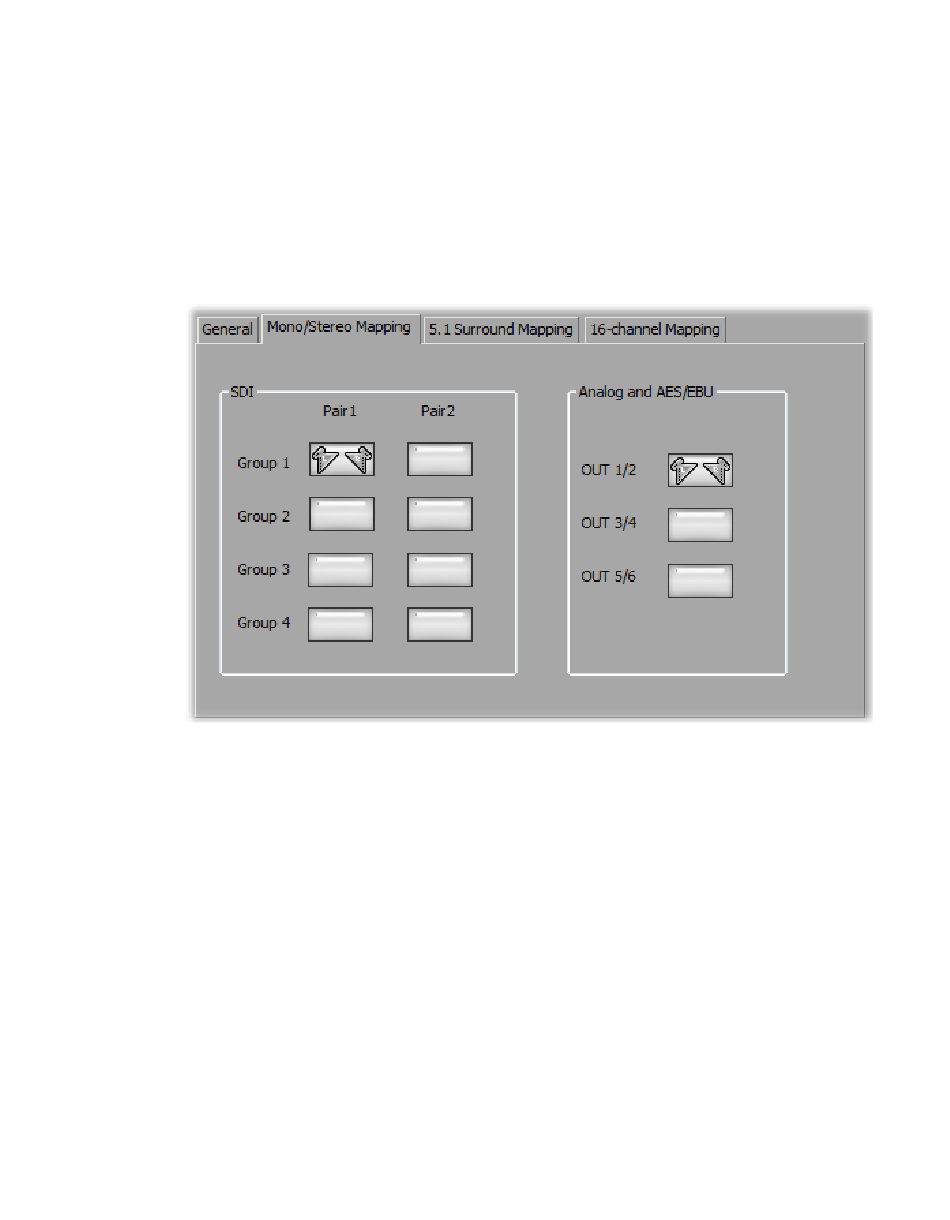

This page shows that when playing mono and stereo audio tracks, audio is output
to the first embedded SDI audio output pair and the first analog audio and
AES/EBU output pairs (ANALOG AUDIO OUT 1 and OUT 2 and AES/EBU
OUT 1/2) on X.linkLE.
button.
Defining your sequence settings
87
