MantelMount MM815 Installation Instructions Manual

Motorized drop down tv mount
Hide thumbs Also See for MM815:

Advertisement

Quick Links

Download this manual
MM815
Motorized
Drop Down
TV Mount
Read this entire manual
before you begin.
Do not unpack
box contents
until verifying the
requirements listed
on page 2.
!
WARNING!
This product contains small parts that
can be a choking hazard. Do not let
children play with any of these small
parts! Keep children away from the
work area during installation.
!
Caution
This product is intended to be installed
by professional installation contractors,
or persons familiar with the tools and
methods required for this installation.
If you are not sure about your ability
to perform this installation, you must
contact a professional. MantelMount
is not responsible for damage or injury
caused by incorrect installation or
improper use.
!
Caution
Do not let children operate, pull on,
or hang from MantelMount.
!
Caution
Do not use this product in any way, or
for any purpose, that is not specifically
described in these instructions.
MantelMount is not responsible for
damage or injury caused by incorrect
installation or improper use.
INSTALLATION INSTRUCTIONS

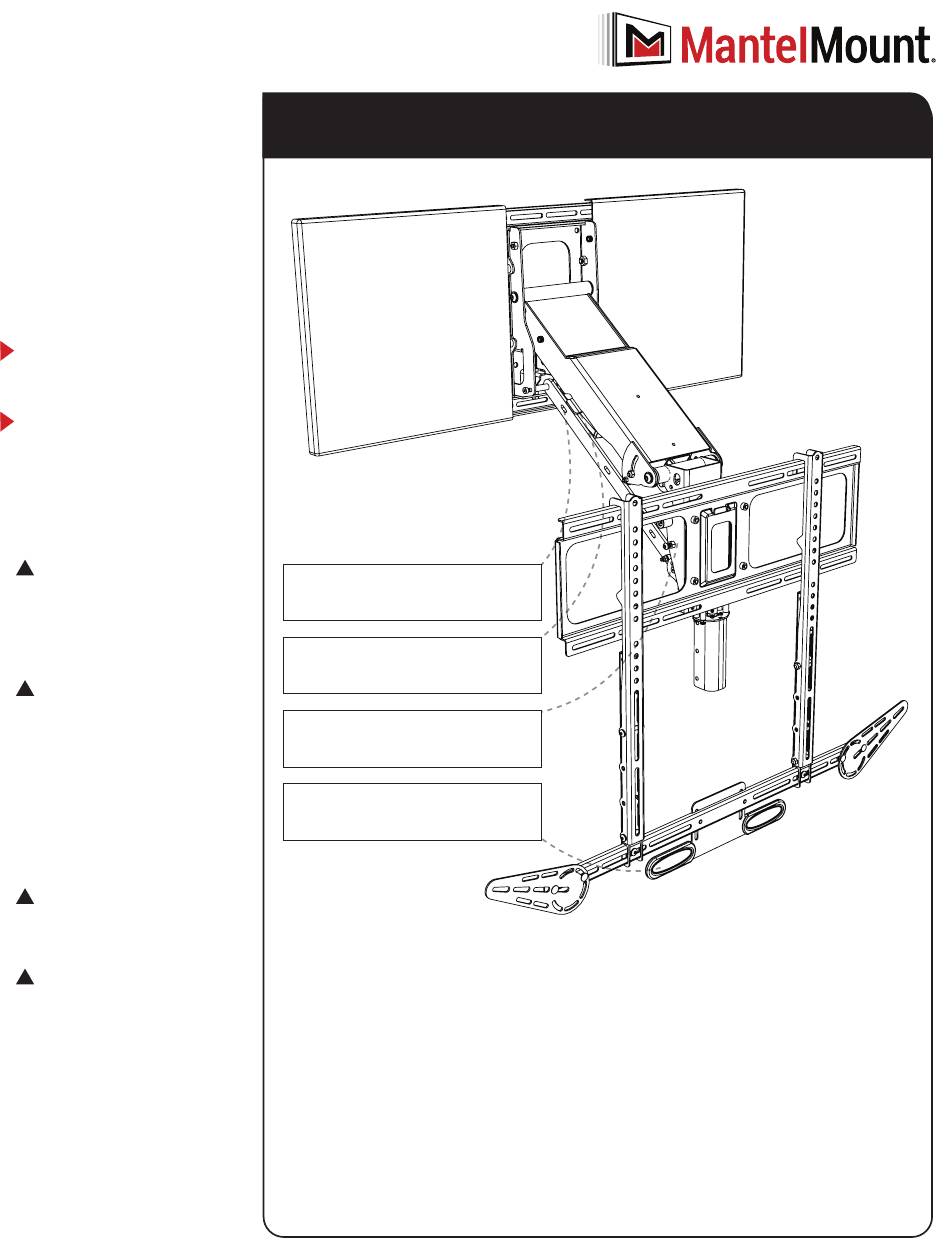

Features Include:
Motorized Travel: From the comfort of your
couch, move the TV to the perfect viewing
position.
Smooth Operation: Solid shafts with
polymer bushings at pivot points provide
silent movement
Swivel Clutch: Swivel drive automatically
disengages to prevent damage if something
gets in the way of swiveling
Visual Temperature Sensor: Change to red
color at temperatures above 110ºF to warn
users if the fireplace is too hot for TV safety
If you need help, call 1.800.897.9755 ext.1
For missing/damaged parts or questions during installation, contact our Customer
Support team at 1.800.897.9755 ext.1 or support@mantelmount.com.
Customer satisfaction is our highest priority!
Access a PDF of this manual at MantelMount.com/FAQs/Specs and Manuals.
For more information on MantelMount patented technology visit:
www.mantelmount.com/pages/patents
Contains important safety information – please save! MantelMount.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MM815 and is the answer not in the manual?

Questions and answers

Related Manuals for MantelMount MM815

Summary of Contents for MantelMount MM815

  • Page 1 Customer satisfaction is our highest priority! Access a PDF of this manual at MantelMount.com/FAQs/Specs and Manuals. For more information on MantelMount patented technology visit: www.mantelmount.com/pages/patents Contains important safety information – please save! MantelMount.com...
  • Page 2 Required Vertical Space: (Calculation from chart below.) B. If the Required Vertical Space is less than or equal to the Wall Space Height, then MantelMount will fit the wall space. If Mantel Depth is: Required Vertical Space is: Less than 8"...
  • Page 3 {31} {30} {52} Lifting Vertical Brace {26} x8 Velcro Loop {55} x1 Horizontal Brace Mechanism Brace Extender Sound Bar Wing If any parts are missing or damaged, contact Customer Support at 1-800-897-9755 x1 before installing. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 4 * Recess Box Kit * two screws so that the that hides MantelMount TV does not swivel into the mantel. inside the wall ! © 2022 MANEHU PRODUCT ALLIANCE, LLC. For more information on MantelMount patented technology visit: www.mantelmount.com/pages/patents MM815 Installation Instructions...
  • Page 5 (0 degrees), for 10 seconds Note: Press each button firmly; a quick tap adjust height, then swivel. probably will not work. The RF remote requires a Set Used to Set and Clear Positions. CR2032 battery Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 6 SPECIAL NOTE REQUIRES TWO PEOPLE CAUTION / WARNING Two people required for parts of this installation. Installation Tips & Videos: http://mantelmount.com/install-tips Questions during installation? Contact Customer Support: Monday – Friday, 7am– 4pm PST 1.800.897. 9755 x1 or support@mantelmount.com MM815 Installation Instructions...
  • Page 7 TV. The Braces must be parallel to television screen. {06} {10} {31} Flat Back TV {12} {08} {11} {07} {11} {31} {12} Irregular Back TV {12} {12} {12} {09} {31} {11} Irregular Back TV (Recessed Threads) {12} Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 8 INCHES STEP 1.6; otherwise skip to STEP 1.7. If installing this mount with a MantelMount RB100 Recess Box, the bottom of the Vertical Brace must be 6”-10” from the bottom of If the lower VESA holes are less than 3" from the TV (or 6”...
  • Page 9 110° F – a visual cue that either the TV needs to be raised to the UP position or the fireplace needs to be turned off. WIDER SOUND BAR WIDE Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 10 Most customers want their TV mounted as close to the mantel as possible. If this DISTANCE describes you, go directly to STEP 2.4. If installing this mount with a MantelMount However, if you want the TV higher on the wall (such as centered between the RB100 Recess Box, the bottom of the Vertical mantel and ceiling) e.g.
  • Page 11 STEP 2.2 Pre-drill the 4 holes with 7/32” drill bit to a depth of 2.5 Cutout shown inches (65mm) including wall covering. for reference Note: Wall covering (drywall) must not exceed 5/8” thickness. STUD FINDER Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 12 Move Wall Plates up or down to clear the outlet. As long as you don’t place the LOWER Wall Plate below the Minimum Distance (Step 2.2) or above the Maximum Distance (step 2.3), MantelMount will still function properly. BEFORE After Wall plate impeded by outlet.
  • Page 13 2. Hold the (DOWN) button while plugging in power 3. Keep holding (DOWN) button for around 10 seconds until mount moves down Press Press Press and hold. Press and hold DOWN button for 10 seconds. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 14 TV with hands and over-riding clutch. Mount is at zero degrees swivel after you recalibrate (drive the mount to the top position), then move the mount straight down. MM815 Installation Instructions...
  • Page 15 Wall. The Mount will keep driving until someone pushes another button on the remote to stop it. When working on the mount unplug the power. Never allow small children to play around or operate the MantelMount. Property damage or personal injury can occur. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 16 Cables should be long enough to accommodate the Ensure that cables do not get pinched within the Lifting Arm when the TV is raised. extension and swivel of MantelMount. Check all ranges of motion before tightening the Cable Ties. Reference Only: This is one possible configuration for the signal cables.
  • Page 17 Note: To delete the swivel soft stop follow steps 3 to 6 but hold the set button for more than 10 seconds in step 6 Customer Support 1.800.897.9755 x1 support@mantelmount.com 17...
  • Page 18 8. Check the settings are the same on both sides 9. Drive Mount to Topmost Position to check Tilt 10. Repeat steps 2-9 until satisfied 11. Tighten Lock Nuts {15} x4 Top Tilt Adjustment Screw Locknut Loosen Screw for More Up Tilt MM815 Installation Instructions...
  • Page 19 Attach the Hook {25} and Loop {26} strips together onto the Wall Cover Clips, and then press the Wall Covers into the correct position onto the Wall Plate. This will properly align the velcro onto the Wall Covers. Hook and Loop Together Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 20 MM815 Installation Instructions...
  • Page 21 Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 22 SOLUTION The wall covering is It’s possible to install MantelMount by using concrete anchors (included) with the Lag Bolts {17}, PROVIDED the made of brick or stone. brick/stone/wall is structurally sound, several inches thick, and can handle four times the weight of the TV and mount.
  • Page 23 Use a level to verify the TV Attach a counterweight to the back of the TV. one side. is level in the UP position Contact Customer Support for assistance. but not in the DOWN position, or vice versa. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
  • Page 24 Customer satisfaction is our highest priority! MAILING ADDRESS: 2647 Gateway Road Ste. 105-435 Carlsbad, CA 92009 mantelmount.com U.S. Pat. No. 8,864,092 , No. 8,724,037 - For more information on MantelMount patented technology visit: www.mantelmount.com/pages/patents © 2022 MANEHU PRODUCT ALLIANCE, LLC...
