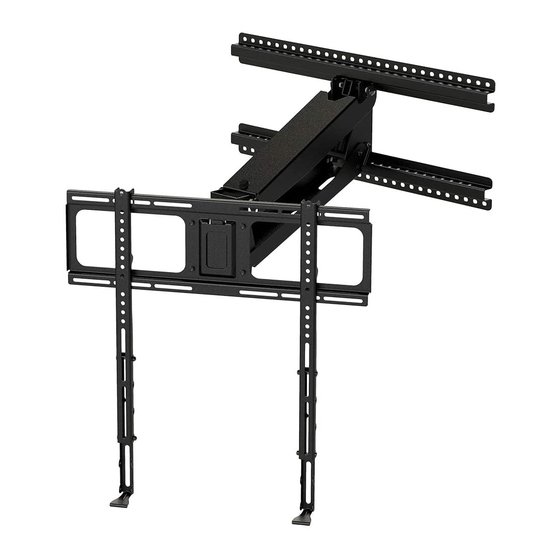

MantelMount MM340 Installation Tips

Please review these very helpful tips before installation.
Also, please make sure that you or the person installing your MantelMount reads the install manual prior to
installation, as well as follows the manual's step-by-step process during installation. Following the manual is
essential for achieving maximum performance with your MantelMount. Thank you!
If you need help, you can contact our Customer Support team at 1.800.897.9755 ext.1 or email us at
support@mantelmount.com. Customer satisfaction is our highest priority!

TIP #1 Measuring your Wall Space for MantelMount

To ensure MantelMount will fit in your designated space,
take three measurements, then do some easy addition.
Mantel Depth: The distance that the mantel extends
from the wall; it is this distance that determines verti-
cal positioning.
Distance between the mantel and the ceiling.
Height of TV: From top to bottom.
EXAMPLE:
Mantel Depth = 5.5"
TV Height = 50"
Distance Between Mantel & Ceiling = 65"
Verify MantelMount will fit your wall space
If your mantel extends
Less than 8"
8" – 10"
10" – 12"
Using the chart, since our mantel extends 5.5" (which is
less than 8), we see that we must take our TV height of 50"
and add 5", giving us a total of 55". Since 55" is less than
65", we know MantelMount will fit in our space.
I
www.mantelmount.com Customer Support: 1.800.897.9755 ext.1 or email us at support@mantelmount.com
Congratulations on purchasing your
The required vertical space is
TV height plus 5"
TV height plus 6"
TV height plus 7"
Distance between the mantel and the ceiling.
TV Height: Distance from top of the TV to the bottom.
I
©2021 MantelMount. All Right Reserved.
Mantel Depth.
