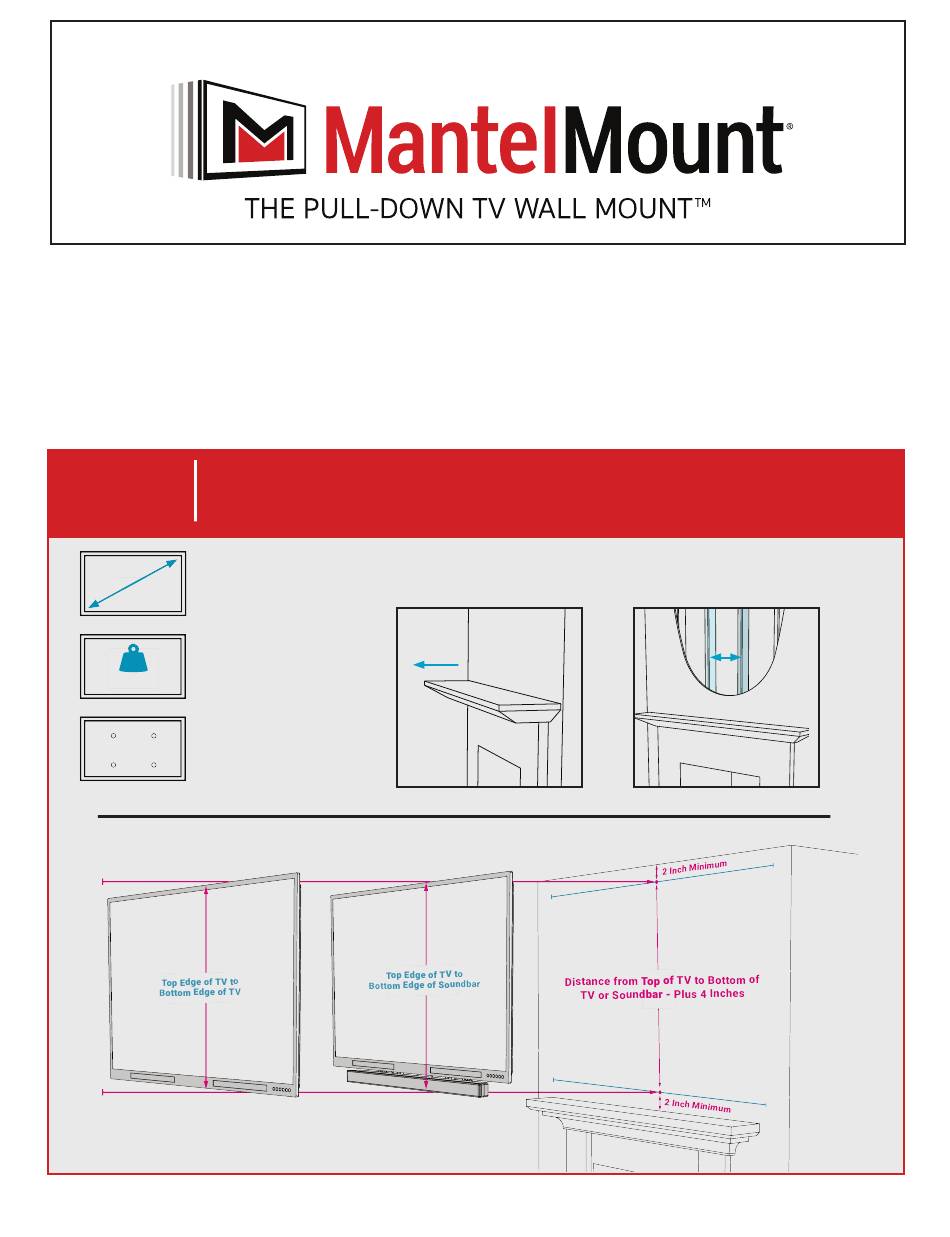

Please review these very helpful tips before installation.
Also, please make sure that you or the person installing your MantelMount reads the install manual prior to installation, as well
as follows the manual's step-by-step process during installation. Following the manual is essential for achieving maximum
performance with your MantelMount. Thank you!
If you need help, you can contact our Customer Support team at 1.800.897.9755 ext.1 or email us at support@mantelmount.com.
Customer satisfaction is our highest priority!
TIP #1
Verify that MM-Max1 will fit your space
SCREEN SIZE
50" to 86"
55" to 86"
WEIGHT CAPACITY
20 to 90 LBS.
MAX 20-90 LBS
(Including Sound Bar)
VESA
VESA
Width: 200-700mm
Width: 200-700mm
VESA COMPLIANT
Height: 100-500mm
Height: 100-500mm
Up to
600 X 600mm
VESA
Width: 200-700mm
Height: 100-500mm
NOTE: The height of your space must be at least 4 inches taller than the
largest height of your TV, or your TV / Soundbar combination.
I
www.mantelmount.com
Customer Support: 1.800.897.9755 ext.1 or email us at support@mantelmount.com
Congratulations on purchasing your MAX1
MANTEL DEPTH
(With Soundbar)
20" MAXIMUM
(Without Soundbar)
20" MAX
WOOD STUDS FOR MOUNTING
Studs Maximum 28" apart; Wall Covering
Maximum 5/8"
STUDS
MAX 28"
APART
