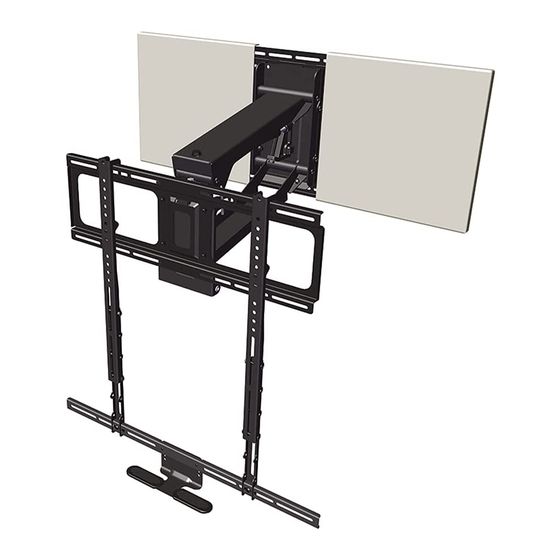

MantelMount MM700 Installation Instructions Manual

MM700
Standard
Pull Down
TV Mount
Read this entire manual
before you begin.
Do not unpack
box contents
until verifying the
requirements listed
on page 3.
! WARNING!
This product contains small parts that
can be a choking hazard. Do not let
children play with any of these small
parts! Keep children away from the work
area during installation.
! Caution
This product is intended to be installed
by professional installation contractors,
or persons familiar with the tools and
methods required for this installation.
If you are not sure about your ability
to perform this installation, you must
contact a professional. MantelMount
is not responsible for damage or injury
caused by incorrect installation or
improper use.
!
Caution
Do not let children operate, pull on, or
hang from MantelMount. Do not let
children push MantelMount upward
to the top position - this will cause the
mount to slam against the wall due to
the upward force of the springs. Only a
person tall enough to control the mount
all the way to the top should operate
MantelMount.
! Caution
Do not use this product in any way, or
for any purpose, that is not specifically
described in these instructions.
MantelMount is not responsible for
damage or injury caused by incorrect
installation or improper use.
INSTALLATION INSTRUCTIONS
IMPORTANT:
MantelMount has four different adjustments
that must be made after the installation is
complete in order to operate properly.
The bottom travel stop is adjusted with two
screws so that the TV and mount do not
lower all the way into the mantel.
The main bolt adjusts the lifting force to
accommodate different TV weights. All TVs
within the weight range should stay in the UP
and DOWN positions when adjusted properly.
A slight amount of tilt in the UP position can
be added or removed by using one screw
inside the lifting mechanism.
The side-to-side swivel stops are adjusted
with two screws so that the TV does not
swivel into the mantel.
If you need help, call 1.800.897.9755 ext.1
For missing/damaged parts or questions during installation,
contact our Customer Support team at 1.800.897.9755 ext.1or
support@mantelmount.com.
Customer satisfaction is our highest priority!
Watch an installation video or access a PDF of this manual at
MantelMount.com/FAQs/Specs and Manuals.
Contains important safety information – please save! MantelMount.com
U.S. PAT. NO. 8,864,092
