MM720
Standard
Pull Down
TV Mount
Read this entire manual
before you begin .
Do not unpack
box contents
until verifying the
requirements listed
on page 4.
!
WARNING!
This product contains small parts that
can be a choking hazard . Do not let
children play with any of these small
parts! Keep children away from the work
area during installation .
!
Caution
This product is intended to be installed
by professional installation contractors,
or persons familiar with the tools and
methods required for this installation .
If you are not sure about your ability
to perform this installation, you must
contact a professional . MantelMount
is not responsible for damage or injury
caused by incorrect installation or
improper use .
!
Caution
Do not let children operate, pull on, or
hang from MantelMount . Do not let
children push MantelMount upward
to the top position - this will cause the
mount to slam against the wall due to
the upward force of the springs . Only a
person tall enough to control the mount
all the way to the top should operate
MantelMount .
!
Caution
Do not use this product in any way, or
for any purpose, that is not specifi cally
described in these instructions .
MantelMount is not responsible for
damage or injury caused by incorrect
installation or improper use .

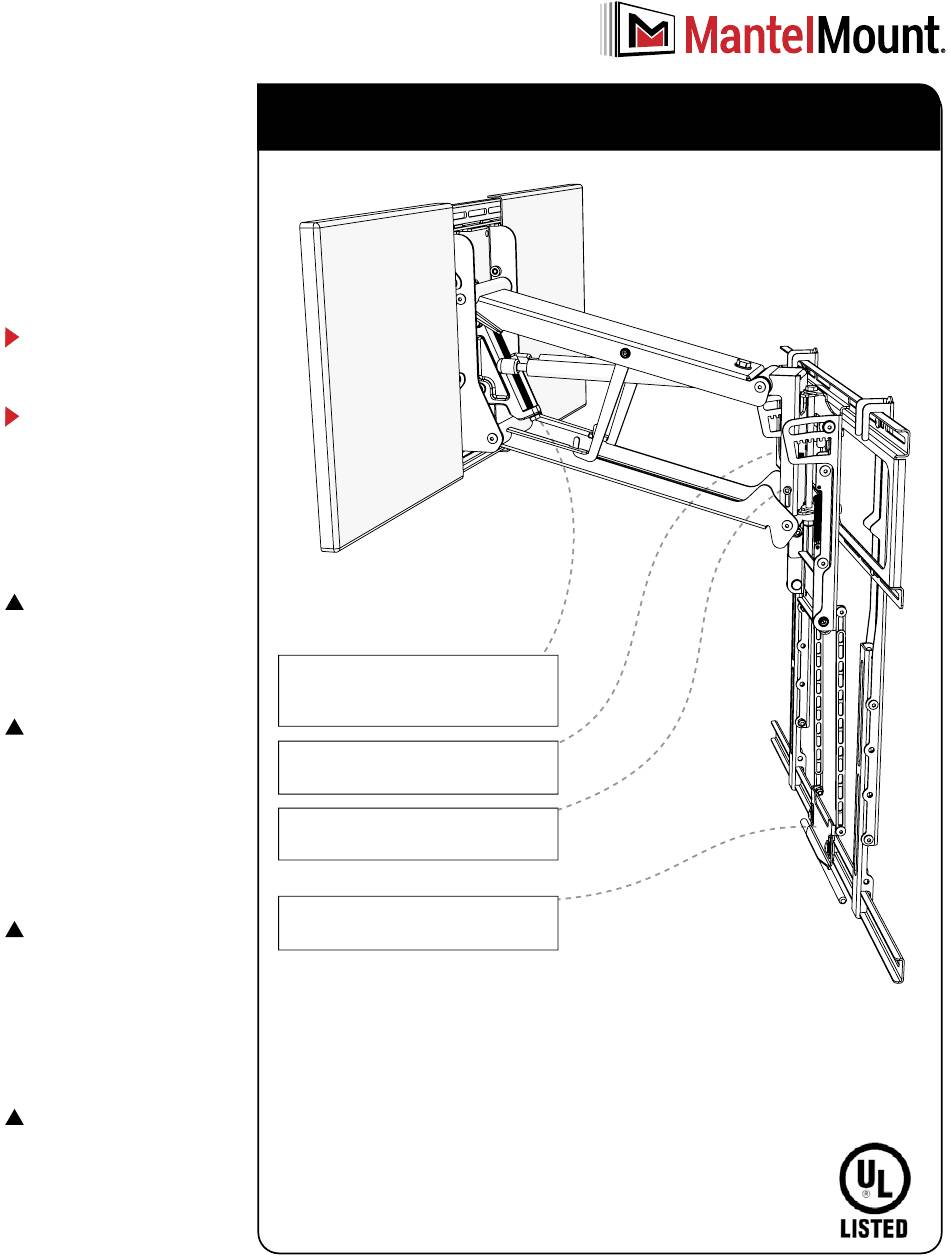

INSTALLATION INSTRUCTIONS
IMPORTANT:
MantelMount has three diff erent adjustments
that must be made after the installation is
complete in order to operate properly .
The main bolt adjusts the lifting force to
accommodate diff erent TV weights . All TVs
within the weight range should stay in the UP
and DOWN positions when adjusted properly .
The side-to-side swivel stops are adjusted
with two screws so that the TV does not
swivel into the mantel .
The bottom travel stop is adjusted with two
screws so that the TV and mount do not
lower all the way into the mantel .
ALL NEW FEATURE
Your MM720 features the all new one handed
tilt adjustments handle, to easily tilt your TV
forward or back .
If you need help, call 1.800.897.9755 ext.1
For missing/damaged parts or questions during installation,
contact our Customer Support team at 1.800.897.9755 ext.1or
support@mantelmount.com.
Customer satisfaction is our highest priority!
Watch an installation video or access a PDF of this manual at
MantelMount.com/FAQs/Specs and Manuals .
Contains important safety information – please save! MantelMount.com
U .S . PAT . NO . 8,864,092
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MantelMount MM720
Summary of Contents for MantelMount MM720
- Page 1 ALL NEW FEATURE caused by incorrect installation or improper use . Your MM720 features the all new one handed tilt adjustments handle, to easily tilt your TV Caution forward or back . U .S . PAT . NO . 8,864,092 Do not let children operate, pull on, or hang from MantelMount .
-
Page 2: Before Installation
Required Vertical Space: (Calculation from chart below.) B. If the Required Vertical Space is less than or equal to the Wall Space Height, then MantelMount will fi t the wall space . If Mantel Depth is: Required Vertical Space is: Less than 8"... - Page 3 {55} x1 Horizontal Brace {35} Center Handle {16} {54} {26} Lifting Arm x8 Velcro Loop Sound Bar Wing Tilt Straps If any parts are missing or damaged, contact Customer Support at 1-800-897-9755 x1 before installing. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 4 Installation Tips & Videos: http://mantelmount .com/install-tips Questions during installation? Contact Customer Support: Monday – Friday, 7am– 4pm PST 1 .800 .897 . 9755 x1 or support@mantelmount . c om U . S . Pat . No . 8,864,092 For more information on MantelMount patented technology visit: www .mantelmount .com/pages/patents...
- Page 5 TV . The Braces must be parallel to television screen . {06} {10} {31} Flat Back TV {12} {08} {11} {07} {11} {31} {12} Irregular Back TV {12} {12} {12} {09} {31} {11} Irregular Back TV (Recessed Threads) {12} Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 6 INCHES STEP 1 .6; otherwise skip to STEP 1 .7 . If installing this mount with a MantelMount RB100 Recess Box, the bottom of the Vertical Brace must be more than 6” and up to10” from the bottom of If the lower VESA holes are less than 4" from the TV (or more than 6”...
- Page 7 OPTIONAL Wings {16} to the Horizontal Brace {55} . Position the The MM720 was designed with two tilt handle confi guration Wings to fi t the mounting holes of the sound bar . options . Both options will allow you to tilt your television Install sound bar .
- Page 8 NOTE The tilt function does not work with the Recess Box RB100, because the TV will be too close to the wall . If you intend to use the RB100 Recess Box on with your MantelMount installation DO NOT use parts {65} or {54} .
- Page 9 However, if you want the TV higher on the wall (such as centered between the If installing this mount with a MantelMount mantel and ceiling) e .g . for extra space on the mantel for pictures or a center speaker, RB100 Recess Box, the bottom of the Vertical Brace must be more than 6”...
- Page 10 STEP 2.2 Pre-drill the 4 holes with 7/32” drill bit to a depth of 2 .5 Cutout shown inches (65mm) including wall covering . for reference Note: Wall covering (drywall) must not exceed 5/8” thickness . STUD FINDER MM720 Installation Instructions...
- Page 11 Move Wall Plates up or down to clear the outlet . As long as you don’t place the LOWER Wall Plate below the Minimum Distance (Step 2 .2) or above the Maximum Distance (step 2 .3), MantelMount will still function properly .
- Page 12 Attach the TV Brace {33} to the lifting arm . Level the TV Brace and tighten the 4 screws {15} . NOTE: After TV is mounted to bracket you may need to adjust these screws to make final Post-Leveling adjustments (Step 5 .4) . MM720 Installation Instructions...
- Page 13 If you do not need to add the Side Swivel Kit, skip ahead to Section 4. Note: The SRE00 is recommended only for installations of the MantelMount that require maximum swivel in both Directions, such as a mount that is attached to a post or located at a corner .
- Page 14 TV holds washer . OPTIONAL all positions during swivel . OPTIONAL Place the other Washer on the top of the opposite side of the Swivel Bridge as shown . The Swivel Plate will rest on this Washer . MM720 Installation Instructions...
- Page 15 . Weight of TV 25LB 50LB 75LB 100LB DO NOT adjust all the way to the bottom . That position is only to remove the Gas Springs . Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 16 Lifting Mechanism {35} to hit the mantle . after the television is attached to the MantelMount . MantelMount comes pre-adjusted to reduce the NOTE The tilt function does not work with the Recess possibility of contacting the mantle, but you should Box RB100, because the TV will be too close to the wall .
- Page 17 . You are now free to tilt your mount forward up to 10° . Once you achieve the desired tilt slowly release the Tilt Puller until you feel it reengage the tilt lock mechanism . Place one hand on the handle and one hand pulling the Tilt Puller. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 18 Lower Arm, making a gentle loop . Cables should be long enough to accommodate the extension and swivel of MantelMount and do not get caught between the lifting arm and the mounting bracket . After check range of motion and cable clearance tightening the Cable Ties .
- Page 19 Locknuts and reattach them on the other Tighten both Locknuts after side of the Swivel Bracket so that the adjustments are made . the Screws can be threaded out to their maximum length . Customer Support 1.800.897.9755 x1 support@mantelmount.com 19...
- Page 20 Verify the proper Lifting Performance (Force) With the Safety Latches Secured in place, use a socket wrench with an MantelMount is designed to keep the TV securely in extension to adjust the long bolt inside the Lifting Mechanism {35} .
- Page 21 Adjust the Vertical Tilt Position. To adjust the forward tilt of your MM720 you will need to reach underneath and behind the Center Handle of the mount and grab the raised edge of the Tilt Puller {65} . Gently pulling down on the Tilt Puller will release it from it’s locked position .
- Page 22 Never release the handle before it is fully upright . Never allow small children to play around or operate MantelMount is strongest in the top position, and the MantelMount . Property damage or personal allowing it to slam closed can damage televisions .
- Page 23 U . S . Pat . No . 8,864,092 - 8,724,037 © 2021 MANEHU PRODUCT ALLIANCE, LLC . For more information on MantelMount patented technology visit: www . m antelmount . c om/pages/patents Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 24 BOM PAGE 1 13 Aug 2021 MantelMount MM720 MM720 Installation Instructions...
- Page 25 Customer Support 1.800.897.9755 x1 support@mantelmount.com MantelMount MM720 13 Aug 2021 BOM PAGE 2...
-
Page 26: Troubleshooting Tips
Customer satisfaction is our top priority! Following are solutions for the most common installation challenges . For further assistance, visit www .mantelmount .com/troubleshooting or contact Customer Support at 1-800-897-9755 ext .1 or support@mantelmount .com, Monday through Friday, 7am to 4pm PST . - Page 27 Use a level on top of the position, but unleveled Adjustments haven’t TV to verify it’s leveled in in the UP position. been made . the DOWN position but not in the UP position . Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 28 Customer Support team at 1.800.897.9755 ext.1 or support@mantelmount.com. Customer satisfaction is our highest priority! U . S . Pat . No . 8,864,092 , No . 8,724,037 - For more information on MantelMount patented technology visit: www .mantelmount .com/pages/patents MAILING ADDRESS: 2647 Gateway Road Ste .
