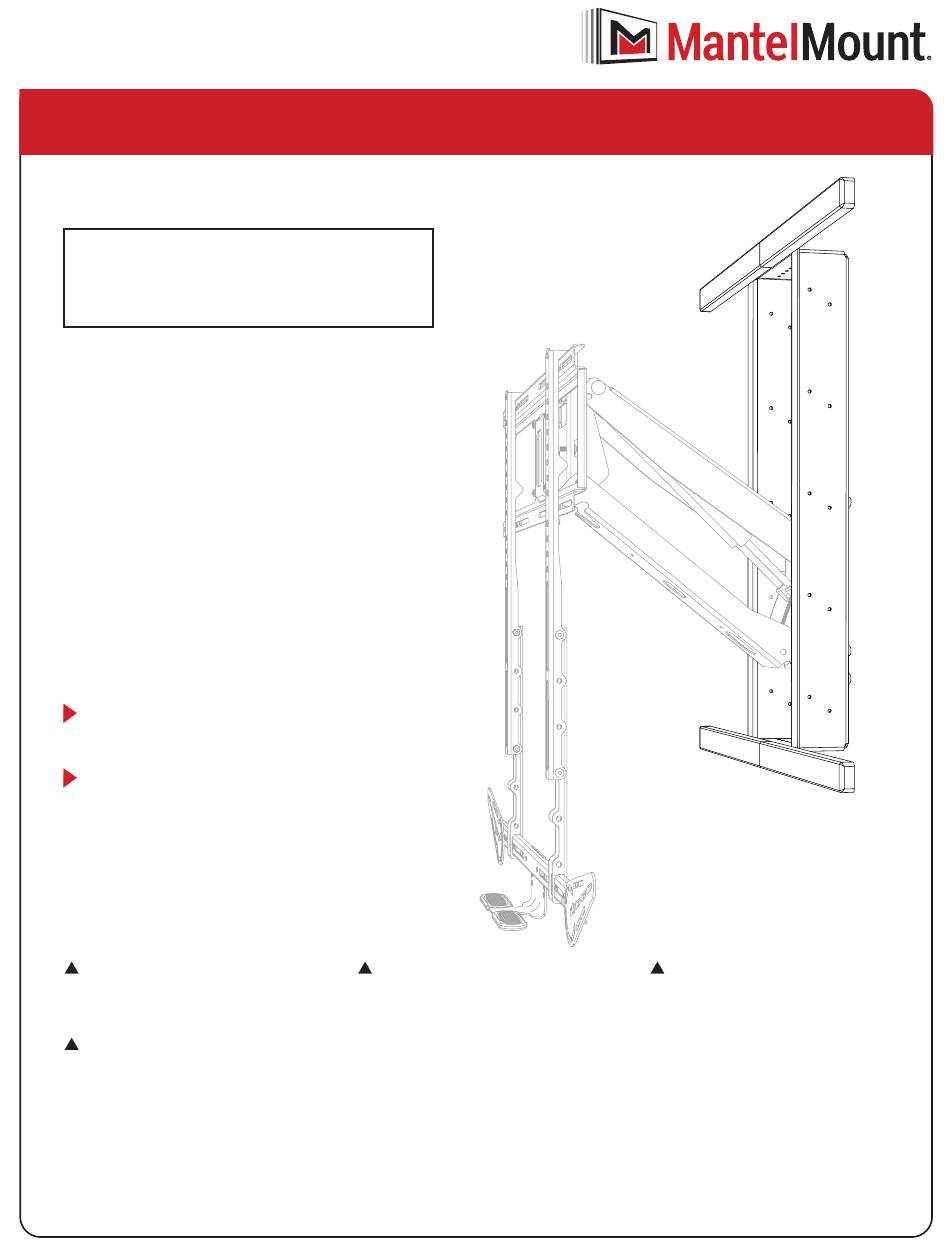

RB100 Recess Box Kit Installation Instructions

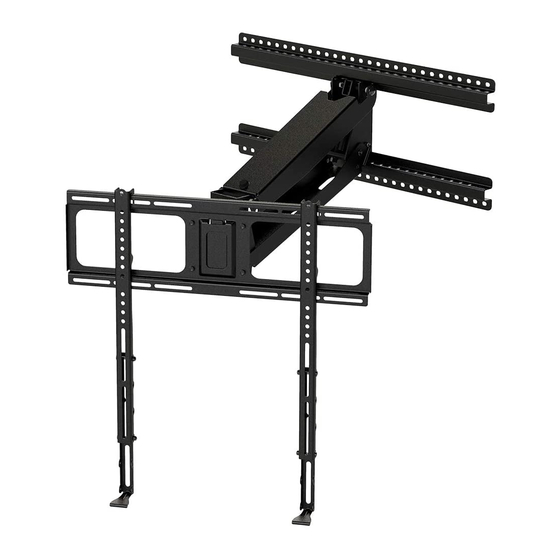

For Use with MantelMount Models
MM340 MM540 MM700
MM710 MM720 MM815
This Addendum is not a stand-alone set of instructions,
it is only to be used together with your MantelMount
Installation Manual.
This addendum replaces Steps 1.5, ALL OF Step Two
(Determine Wall Placement), and Step Three (Attach
Mount to Wall) of your installation guide.
You must complete every step in the Installation Manual
unless there is a replacement step in this Addendum.
Please read the entire Installation Manual and also this
entire Addendum before you begin. Do not unpack the
contents of any MantelMount package until you verify that
your installation meets all of the requirements listed in
both documents.
Please read this entire manual
before you begin.
Do not unpack any contents
until you verify additional
requirement on PAGE 2.
!
Warning this product contains small parts
that can be a choking hazard. Do not let children
play with any of these small parts! Keep children
away from the work area during installation.
!
Caution do not use this product in any
way, or for any purpose, that is not specifically
described in these instructions. MantelMount is
not responsible for damage or injury caused by
incorrect installation or improper use.
If you need help, call 1.800.897.9755 ext.1
For missing/damaged parts or questions during installation, contact our Customer Support team at 1.800.897.9755 ext.1
or support@mantelmount.com. Customer satisfaction is our highest priority!
!
Caution do not let children operate, pull on,
or hang from MantelMount. Do not let children
push MantelMount upward to the top position
- this will cause the mount to slam against the
wall due to the upward force of the springs. Only
a person tall enough to control the mount all the
way to the top should operate MantelMount.
!
Caution this product is intended to be
installed by professional installation contractors,
or persons familiar with the tools and methods
required for this installation. If you are not sure
about your ability to perform this installation,
you must contact a professional. MantelMount is
not responsible for damage or injury caused by
incorrect installation or improper use.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MantelMount MM340
Summary of Contents for MantelMount MM340
- Page 1 MM340 MM540 MM700 MM710 MM720 MM815 This Addendum is not a stand-alone set of instructions, it is only to be used together with your MantelMount Installation Manual. This addendum replaces Steps 1.5, ALL OF Step Two (Determine Wall Placement), and Step Three (Attach Mount to Wall) of your installation guide.
- Page 2 BEFOR E IN STALL AT IO N Verify all parts are included. Before you begin, please verify that all components are included and undamaged. If any parts are missing or damaged, contact MantelMount. Never proceed with missing or damaged parts! {14}...
- Page 3 Recess Braces which span horizontally until they reach the nearest studs. The Braces are attached to the studs with the Lag Bolts included with your MantelMount. The Recess Box will float between two studs, attached only to the Braces. The drywall opening is cut using an included cardboard template.
- Page 4 Installation Height for Step 2.5a *13” Mantle - Vertical travel will be limited to 24” *14” Mantle - Vertical travel will be limited to 23” Bottom of Soundbar Depth of Mantel - MM340 - MM540 - MM720 8” or less 9” 10” 11” 12”...
- Page 5 Find the centers of the studs at both upper and lower locations. IMPORTANT: This situation might require longer Recess Braces The upper Lag Bolts are most important, as they carry more of {63}, available from MantelMount.com. (RBE10) the weight of MantelMount. Cutout shown...
- Page 6 STEP 3 Attach Mount to Wall {14} This addendum is to be used in place of Step Three (Attach Mount to Wall) of your installation guide {52} STUD Align a Recess Brace {63} to the studs in order to locate Optional RBE10 Install the Recess Braces onto the Recess Box {61} STUD...
- Page 7 Profile view of TV Brace {33} Cut end of STUD If you are installing an MM340 or MM540 If you are installing an MM700, MM710, After Lifting arm has been attached to MM720, or MM815, your lifting arm will your installation will require the use of RB100 Recess Box you can now slide or the SSB40.
- Page 8 Check all ranges of motion before tightening the Cable Ties. {22} You can now proceed to step four of your installation manual. MantelMount RB100 Recess Box 1.75 Thickness 28.2 30.25 Item NO. Part Number Description QTY.
