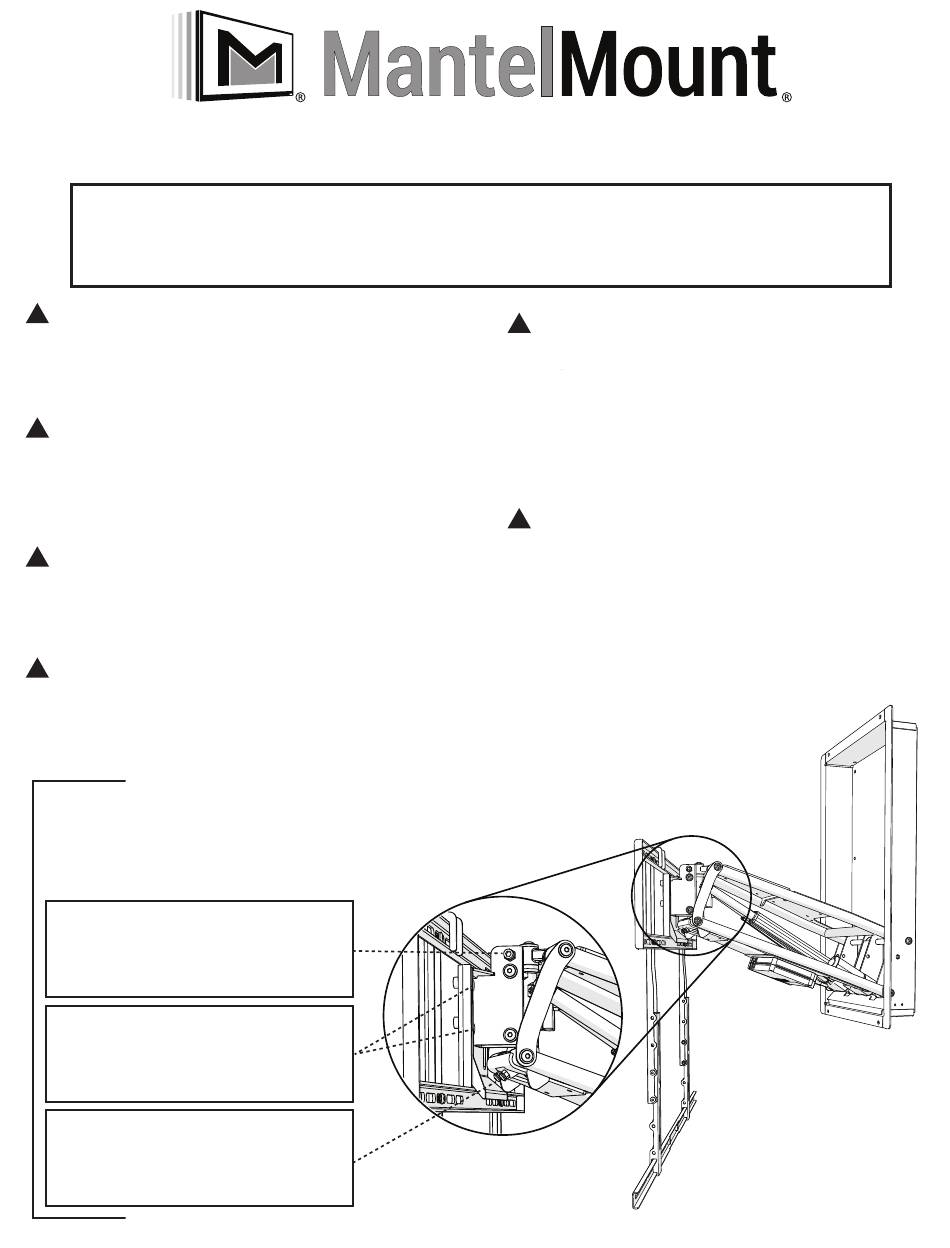

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
Do not unpack any contents until you verify all requirements on PAGE 3.
If you have any questions, visit MantelMount.com or call
WARNING!
!
This product contains small parts that can be a
choking hazard. Do not let children play with any of
these small parts! Keep children away from the work
area during installation.
WARNING!
!
Do not let children operate, pull on, or hang from
MantelMount.
Do not operate MantelMount when anyone is near or
behind the mount. MantelMount is very strong and can
result in crushing injuries.
WARNING!
!
MantelMount must be installed to a wall or structure
that is able to hold five times the combined weight of
all equipment. If you are unsure about your structure,
a contractor must evaluate your installation.
WARNING!
!
Exceeding the weight capacity can result in
serious personal injury or damage to equipment!
The combined weight of all components must not
exceed 125 lbs (57 kg).
IMPORTANT:
MantelMount has three different adjustments
that must be made after the installation is
complete in order to operate properly.
The side-to-side swivel stops are
adjusted with two screws with
locknuts so that the TV does not
swivel into the mantel.
Tilt and yaw are removed using
four screws behind the swivel
mechanism. The TV should always
be flat to the wall when stowed.
The bottom travel stop is adjusted
with two screws and locknuts so
the TV and mount do not lower all
the way into the mantel.

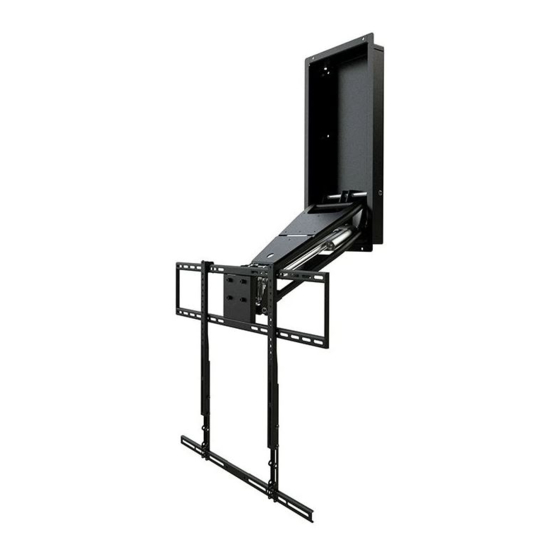

MantelMount MM860
MM860 Installation Instructions
Please read this entire manual before you begin.
www.MantelMount.com
(800)-897-9755.
!
CAUTION:
This product is intended to be installed by
professional installation contractors, or persons
familiar with the tools and methods required for
this installation. If you are not sure about your
ability to perform this installation, you must
contact a professional. MantelMount is not
responsible for damage or injury caused by
incorrect installation or improper use.
!
CAUTION:
Do not use this product in any way, or for any
purpose, that is not specifically described in these
instructions. MantelMount is not responsible for
damage or injury caused by incorrect installation
or improper use.
U.S. Pat. No. 8,864,092
Other Patents Pending
PAGE 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MantelMount MM860
Summary of Contents for MantelMount MM860
- Page 1 IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS Please read this entire manual before you begin. Do not unpack any contents until you verify all requirements on PAGE 3. If you have any questions, visit MantelMount.com or call (800)-897-9755. WARNING! CAUTION:...
- Page 2 Before you begin, please verify that all components are included and undamaged. If any parts are missing or damaged, contact MantelMount. Never proceed with missing or damaged parts! Lay out all components and make sure you identify that each one has a match in the diagram.
- Page 3 Please verify that your installation meets all of these CRITICAL requirements: MantelMount is designed for use only with decorative Wall must be WOOD STUD FRAME only. There must be at fireplaces that are not the primary heat source for a least 2 studs available for mounting.
- Page 4 {12} {12} {03} {10} {12} {05} {10} {04} {10} {12} {12} {12} {06} {10} Should be more than Fixed 8 INCHES 8 INCHES {12} {27} {27} {08} {11} {07} {11} {12} {12} {30} {12} {09} {11} PAGE 4 MantelMount MM860...
- Page 5 Vertical Brace Vertical Brace {10} {16} {59} 8 to 14 INCHES MORE THAN {16} 8 INCHES {19} Bottom of TV Bottom of Sound Bar Use this distance in Step 9 {29} {59} For Sound Bar Only MantelMount MM860 PAGE 5...
- Page 6 The image below shows that the further out a mantle extends, the more it will interfere with the arc of the lowering TV. The MM860 Lift Housing {30} must be installed high enough to clear the mantel when it lowers. Larger mantels require higher installations.
- Page 7 CAUTION: MantelMount MM860 comes with an RF Remote Control. This Remote does not need to be pointing at the mount in order to control the mount; in fact, the Remote will send commands to the mount even from other rooms in the house. It is very important to operate the Remote only when the mount is in sight.
- Page 8 Adapter Brackets for 2x4 bracing: (view facing the wall) MM860 includes brackets that make it easier to install horizontal 2x4 bracing inside the wall. This is because all the attachment holes in the brackets can be reached for drilling 1.5"...
-
Page 9: Installation Options
Lag Bolts through the holes in the front flange of the Lift Housing {30}. Any studs that were cut can be reattached to the new sections of 2x4. {20} {17} {13} {11} {13} {11} MantelMount MM860 PAGE 9... -
Page 10: Crush Hazard
Step 9. Use a level to ensure the cutout is plumb. DOWN Button: Lowers the Mount NON-RECESSED: Use the Cardboard Template to mark the location of the Housing. MantelMount is located in the same spot for all installations. Distance from mantel to opening... - Page 11 Return to STEP 18 for other side. Proceed to Step 19 to set the Soft Stop. d. Press the Program Button after the Soft Stops are set in order to exit Program Mode. Repeat for the other side. MantelMount MM860 PAGE 11...
- Page 12 CAUTION: Auto Raising Heat Monitor (ARHM): Never allow children to play around, hang from, This unique safety feature of the MantelMount MM860 will or operate MantelMount. Property damage or monitor the temperature above your fireplace at all times and personal injury can occur.
- Page 13 Housing. Access Cover {32} requires removing two screws {18}. CAUTION: DO NOT block the mount from reaching the upper home position. The MM860 must recalibrate itself each time it is sent to the home position. {32} MantelMount MM860 PAGE 13...
- Page 14 • PC or laptop can manually upload the latest Firmware to the MM860 if needed • MM860 is configured with a PC or home automation system over the network • The MM860 Utility and latest firmware must be loaded onto the PC or Laptop before Installation Ethernet...
-
Page 15: Connecting With Ethernet
Connect the Ethernet cable to the MM860 Control Module first, and then power up the Module. • If Ethernet is used only to set up the MM860, connect the Ethernet cable directly from the laptop to the Ethernet port in the MM860 Control Module •... -
Page 16: Connecting With Wifi
MOTOR Version 2 To begin using wifi, you must first connect to the MantelMount MM860 WiFi network that is broadcast by the Module in order to enter your specific network information. After you have entered your network information, the MM860 Module will shut down its own network and automatically connect to your network over WiFi . - Page 17 MM860. • MM860 will connect to the network selected in step W6 • Connect your Computer, via WiFi or Ethernet, to the same network as MM860 selected in Step W6 • The MM860 Utility software is now ready to use...
- Page 18 MantelMount MM860 Utility Software Package (3 Modules): This utility must be loaded onto a PC or laptop in order to configure the MantelMount MM860 The MM860 Utility and MM860 Firmware are available for download at MantelMountPro.com - (Dealer) MM860 Start Here...
- Page 19 Automation System to set up the MM860. Drivers are located at MantelMountPro.com (Dealers) Completed Scan Open the Configuration Module: Use the “Device” Page to adjust the MM860 parameters if needed. These settings are stored onboard the MM860. Module 2: MM860 Configuration Module 2: (Device Page)
- Page 20 Memory 1 position. When the TV is turned o , the Current Elevation (Degrees): 0.00 MM860 will wait up to 10 seconds to be sure, then raise the mount. Temperature Sensor: Normal If the ALPS feature is false triggering, verify what the TV is actually using...
- Page 21 MantelMount MM860 PAGE 21...
- Page 22 PAGE 22 MantelMount MM860...
- Page 23 MantelMount MM860 PAGE 23...
- Page 24 The PDF version can be used to see larger images or to zoom in for much greater detail. PAGE 24 U.S. Pat. No. 8,864,092 21Nov2022 MantleMount MM860 © 2022 MANEHU PRODUCT ALLIANCE, LLC. For more information on MantelMount patented technology visit:www.mantelmount.com/pages/patents...
