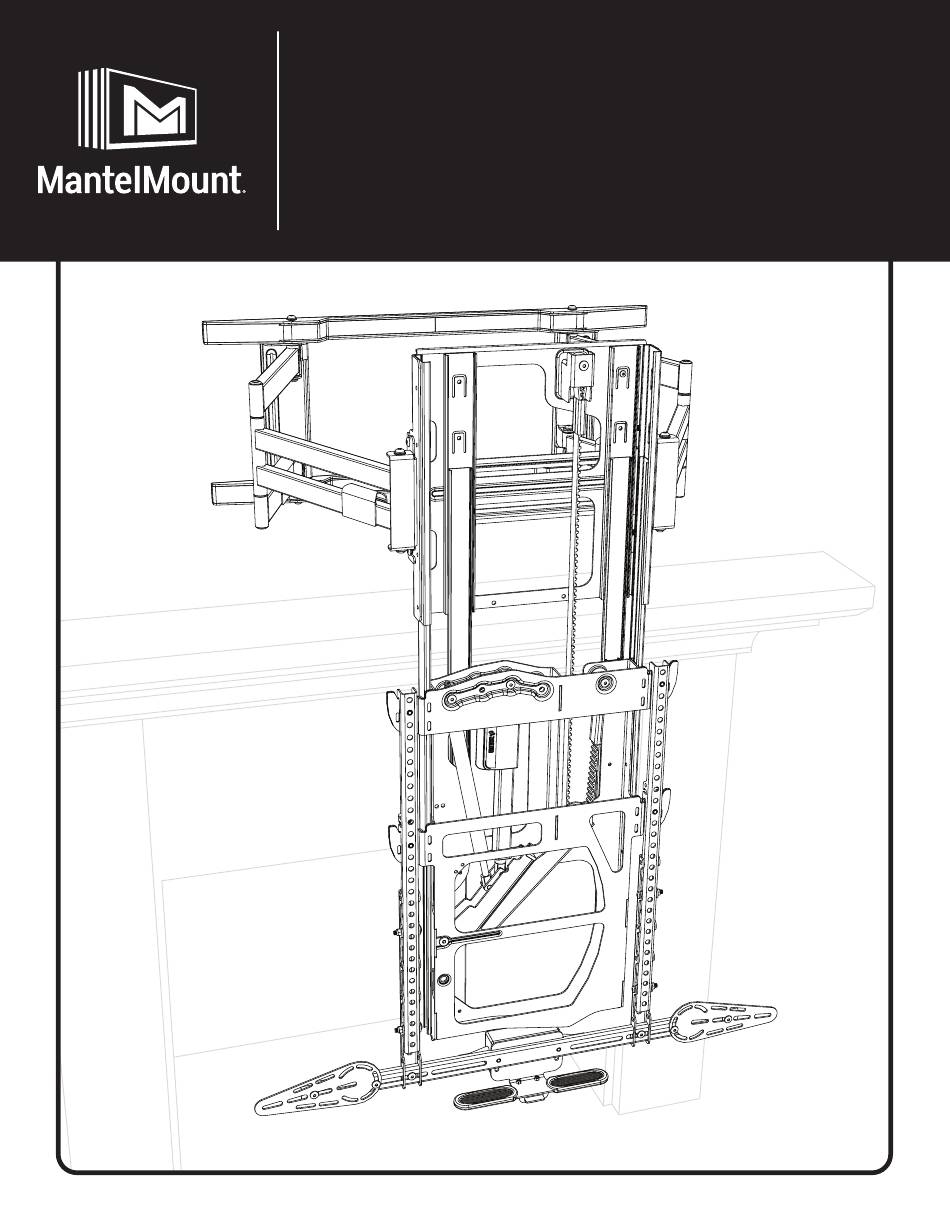

- Page 1 MM-Max2 Motor Assisted TV Mount INSTALLATION INSTRUCTIONS Read this entire manual before you begin! Contains important safety information – please save this manual.
- Page 2 Some steps in this installation manual may require two people. Helpful Installation Tips and Videos can be fount at: http://mantelmount.com/install-tips For questions during installation? Contact Customer Support: Monday – Friday, 7am– 4pm PST 1.800.897. 9755 x1 or support@mantelmount.com MantelMount Max2 Installation Instructions...
- Page 3 Handle changes to red color at temperatures above 110 º F to warn users if the fireplace is too hot for TV safety © 2024 MANEHU PRODUCT ALLIANCE, LLC. For more information on MantelMount patented technology visit: www.mantelmount.com/pages/patents Customer Support 1.800.897.9755 x1 support@mantelmount.com...
-
Page 4: Before Installation
Width: 200-700mm Height: 100-500mm Verify that MM-Max2 will fit your space: The height of your space must be at least 4 inches taller than the largest height of your TV, or your TV / Soundbar combination. Verify you have the required tools. - Page 5 {61} {62} {16} {42} x2 VESA Extender x2 Sound Bar Wings x1 Center Small Cable Clips Large Cable Clips Handle If any parts are missing or damaged, contact Customer Support at 1-800-897-9755 x1 before installing. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 6 If TV VESA holes align with main holes If TV VESA holes DO NOT align with main on VESA Extenders holes on VESA Extenders Vesa Extenders {62} will NOT be used. Vesa Extenders {62} WILL be used. MantelMount Max2 Installation Instructions...
- Page 7 C AU T I O N {09} {11} {12} {12} {12} Do not use screws that are too long for the TV’s threaded {09} {11} {12} {12} {12} inserts because it may damage internal components! Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 8 Attach the Extenders to the Vertical Braces with Screws {18} on the INSIDES and Nuts {23} on the OUTSIDES. DO NOT install the Hideaway Handle {42} until STEP 5.3. {30} {43} {30} {15} {15} {15} {23} {18} {18} {23} {23} {18} {18} {18} {23} {23} IMPORTANT: Screws {18} must be on INSIDE. Nuts {23} must be on OUTSIDE MantelMount Max2 Installation Instructions...
- Page 9 Horizontal Brace, or too tall for the Handle to reach below. Otherwise don't use the wings. {23} {10} {16} {59} Mounting Solution for Wider Sound Bar Mounting Solution for Taller Sound Bar Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 10 This Distance Bottom of TV Bottom of Soundbar Measure from bottom of the Vertical Braces to the bottom of TV (or soundbar if using one) then add four inches for the height of the wall frame. MantelMount Max2 Installation Instructions...
- Page 11 Drill pilot holes to a depth of 3 in. (75mm) using a 3/8" in. (10mm) diameter masonry drill bit. Insert Concrete Anchors {57} until flush. Note: Pilot holes must be at least 2 inches away from mortar joint. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 12 Attach The Wall Frame Covers {41}: Tuck the center tabs under each other before snapping the Cover onto the metal post inside the Wall Frame. To remove, gently pry the Cover from the end. 1/4 Gap MantelMount Max2 Installation Instructions...
- Page 13 Tilting Screws as shown Mechanism, remove any unwanted tilting by turning in STEP 3.5. these screws in or out. NOTE: Make sure that both screws are equally snug against the Lifting Mechanism. Customer Support 1.800.897.9755 x1 support@mantelmount.com...
-
Page 14: Step 4 - Attach Tv To Mount
Require Two People. {15} Attach the Handle Attach the Center Heat Sensing Handle {42} and the {69} to the Horizontal Brace using two screws {15} Power Supply Bracket from the black hardware package {42} {15} {69} {15} MantelMount Max2 Installation Instructions... - Page 15 Use Screws {67} and Locknuts {50} to attach the Switch {66} to the underside of the Handle, with the lever facing forward. Pressing UP raises MAX Mount, and pressing DOWN lowers MAX Mount. {50} {42} {66} {67} Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 16 Run the mount all the way down. Cables should be Cable is attached to the cable anchor {22} on the installed as shown: Vertical Brace. The cable must have a reverse loop behind the hanging bracket, as shown: {22} MantelMount Max2 Installation Instructions...
- Page 17 Pull the TV out far enough past the mantel to ensure that everything behind the TV is clear of the mantel when it is lowered. Do not push the TV back toward the wall unless it is in the top position. Up to raise Clearance Down to lower Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 18 MantelMount Max2 Installation Instructions BOM PAGE 1 10 Nov 2023 MantelMount MM-MAX2...
- Page 19 MantelMount MM-MAX2 10 Nov 2023 BOM PAGE 2 Customer Support 1.800.897.9755 x1 support@mantelmount.com...
- Page 20 For missing/damaged parts or questions during installation, please contact our Customer Support team at 1.800.897.9755 ext.1 or support@mantelmount.com. Customer satisfaction is our highest priority! For more information on MantelMount patented technology visit: www.mantelmount.com/pages/patents WARNING: This product can expose you to chemicals including Lithium Grease, which is known to the State of California to cause cancer or developmental harm.
