Lavamin
Instruction Manual
Original Instructions
Doc. no.: 16237025_B_en-us
Date of release: 2023.03.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lavamin and is the answer not in the manual?

Questions and answers

Related Manuals for Struers Lavamin

Summary of Contents for Struers Lavamin

  • Page 1 Lavamin Instruction Manual Original Instructions Doc. no.: 16237025_B_en-us Date of release: 2023.03.23...
  • Page 2 Copyright The contents of this manual are the property of Struers ApS. Reproduction of any part of this manual without the written permission of Struers ApS is not allowed. All rights reserved. © Struers ApS 2023.03.23. Lavamin...

  • Page 3: Table Of Contents

    Table of Contents 1 About this manual 2 Safety 2.1 Intended use 2.2 Lavamin safety precautions 2.2.1 Read carefully before use 2.3 Safety messages 2.4 Safety messages in this manual 3 Getting started 3.1 Device description 3.2 Overview 3.3 Accessories 4 Transport and storage 4.1 Storage...
  • Page 4 7.5 Service and repair 8 Disposal 9 Troubleshooting 9.1 LED error signals 10 Technical data 10.1 Technical data 10.2 Safety Related Parts of the Control System (SRP/CS) 10.3 Diagrams 10.3.1 Diagrams Lavamin 10.4 Legal and regulatory information 11 Manufacturer Declaration of Conformity Lavamin...

  • Page 5: About This Manual

    1   About this manual About this manual CAUTION Struers equipment must only be used in connection with and as described in the Instruction Manual supplied with the equipment. Note Read the Instruction Manual carefully before use. Note If you wish to view specific information in detail, see the online version of this manual.

  • Page 6: Lavamin Safety Precautions

    16. In case of fire, alert bystanders and the fire brigade. Use a powder fire extinguisher. Do not use water. 17. Struers equipment must only be used in connection with and as described in the Instruction Manual supplied with the equipment.

  • Page 7: Safety Messages

    (electromechanical, electronic, mechanical, pneumatic, etc.). Safety messages Struers uses the following signs to indicate potential hazards. ELECTRICAL HAZARD This sign indicates an electrical hazard which, if not avoided, will result in death or serious injury.

  • Page 8: Safety Messages In This Manual

    Wear suitable gloves to protect fingers from abrasives and warm/sharp specimens. General safety precautions WARNING Struers equipment must only be used in connection with and as described in the Instruction Manual supplied with the equipment. ELECTRICAL HAZARD Switch off the electrical power supply before installing electrical equipment.

  • Page 9: Getting Started

    The specimen holder or mover plate must be in balance. Lavamin is designed for standard specimen holders up to 160 mm (6.3") diameter with a max total weight of 2.5 kg (5.5 lb) and for specimen mover plates up to 165 mm (6.5") diameter.

  • Page 10: Overview

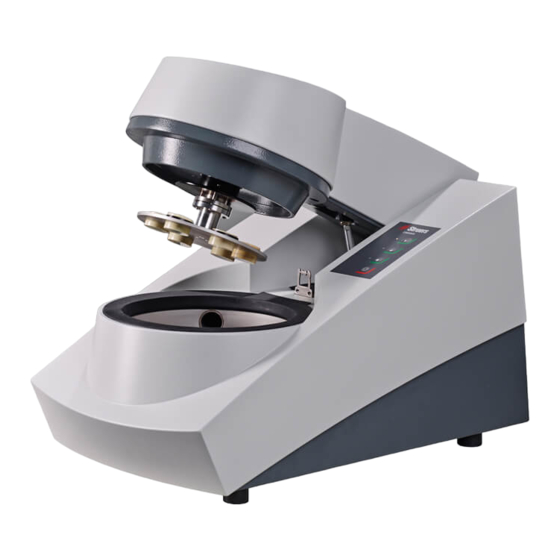

    3   Getting started Overview Front view A Lid B Control panel C Coupling flange D Bowl Lavamin...

  • Page 11: Accessories

    E Compressed air inlet F Water inlet G Water outlet Accessories Accessories For information about the available range, see the Lavamin brochure: • The Struers Website (http://www.struers.com) Transport and storage If, at any time after the installation, you have to move the unit or place it in storage, there is a number of guidelines we recommend that you follow.

  • Page 12: Storage

    We recommend that you keep all original packaging and fittings for future use. To transport the machine safely, follow these instructions. Preparing for transport Disconnect the unit from the electrical power supply. Remove any accessories. Clean and dry the unit. Lavamin...

  • Page 13: Installation

    Wear safety shoes when handling heavy machinery. Note Always lift the machine from beneath. Weight Lavamin 17 kg (37.5 lbs) At the new location Place the machine on a rigid, stable workbench with a horizontal surface and an adequate height.

  • Page 14: Location

    Pcs. Description Lavamin Connection piece: p6 to 1/8" (to connect the Lavamin to standard 1/8" compressed air supply Connection piece (to connect (for light specimens in a specimen mover plate to a Tegramin air outlet) Water inlet hose: 19 mm/ ¾" - 2.5 m (8.2 ft) Y-connector for water inlet Filter gasket: 3/4"...

  • Page 15: Power Supply

    Switch off the electrical power supply before installing electrical equipment. The machine must be earthed (grounded). Make sure that the actual electrical power supply voltage corresponds to the voltage stated on the type plate of the machine. Incorrect voltage can damage the electrical circuit. Lavamin...
  • Page 16 Earth (ground) Black/Brown Line (live) Blue Neutral 2-phase supply The 3-pin plug (North American NEMA) is for use on 2-phase electrical power connections. The leads must be connected as follows: Green Earth (ground) Black Line (live) White Line (live) Lavamin...
  • Page 17 Note In countries with a 100 - 120 V electrical power supply, you must change the setting of the equipment. – 115 V: 100-120 V/50/60 Hz – 230 V: 200-240 V/50/60 Hz (factory setting) How to change the voltage Lavamin...

  • Page 18: Water Supply

    Mount the straight end of the inlet hose on the water supply tap for cold water. • If required, mount the reduction piece with gasket on the water supply tap and tighten the coupling nut completely. Water outlet - drain CAUTION Make sure that the water connections are correctly mounted and without leaks. Lavamin...

  • Page 19: Compressed Air Supply

    The grate plate will prevent damage to the ultrasound unit in the bottom of the bowl if a specimen holder is accidentally dropped. Place the grate plate in the bowl horizontally. The long section of the feet must be placed downwards. Fit the smaller hole over the water divider. Lavamin...

  • Page 20: Noise

    Prolonged exposure to loud noises may cause permanent damage to a person’s hearing. Use hearing protection if the exposure to noise exceeds the levels set by local regulations. 5.10 Vibration For information on the total vibration exposure to hand and arm, see this section:Technical data ►30. Lavamin...

  • Page 21: Operate The Device

    Control panel functions A Cleaning program 1 B Cleaning program 2 C Cleaning program 3 D Stop 6.1.2 Cleaning programs The Lavamin has three cleaning programs: Cleaning program 1 • For cleaning and drying in-between preparation steps. • Approximately 1 min. •...

  • Page 22: Clamp And Level Specimens

    Use specimen mover plates of 4 mm (0.16") thickness. If you use specimen mover plates of 2 mm (0.08"), the holes must fit the diameter of the specimens, otherwise the specimens can be flung out of the mover plate during spinning. Lavamin...
  • Page 23 Fit the retention rings using the leveling tool supplied or an applicator (optional accessory). Place the specimen in the leveling tool with the face to be prepared downwards. Slide the retention ring over the specimen and push a few millimeters down the side of the specimen. Lavamin...
  • Page 24 Place the applicator on top of the specimen and slide a retention ring down, over the cone. Press the retention ring until it rests level with the bottom edge of the cone. Transfer the specimen to the specimen mover plate. Lavamin...

  • Page 25: Cleaning Specimens

    The maintenance procedures described in this section must be carried out by skilled or trained personnel. Safety Related Parts of the Control System (SRP/CS) For specific safety related parts, see the section "Safety Related Parts of the Control System (SRP/CS)" in the section "Technical data" in this manual. Lavamin...

  • Page 26: Daily

    F1 when the dialog is open. When you are ready, you can delete this paragraph. Note: If you cannot see the proxy below, make sure your markers are turned on. To do this, in the local toolbar click the down arrow next to the Show Tags button and select Show Markers. Lavamin...

  • Page 27: Test The Safety Devices

    If you have technical questions or when you order spare parts, state the serial number. The serial number is stated on the type plate of the unit. For further information, or to check the availability of spare parts, contact Struers Service. Contact information is available on Struers.com.

  • Page 28: Disposal

    Note Service must only be performed by a qualified technician (electromechanical, electronic, mechanical, pneumatic, etc.). Contact Struers Service. Disposal Equipment marked with a WEEE symbol contains electrical and electronic components and must not be disposed of as general waste.
  • Page 29 Contact Struers Service. • Press Stop to clear the signal. System Error Number The system error number will help the Struers Service Technician identify the error. To show the system error number: • Press a cleaning program key. –...

  • Page 30: 10 Technical Data

    Conformity/Instruction manaulSee the Declaration of Conformity/Instruction manual. REACH For information about REACH, contact your local Struers office. Operating environment Surrounding temperature – During operation 5 - 40°C (41 - 104°F) During transport 0°C - 60°C (32 - 140°F) (transport) <...
  • Page 31 Safety Circuit Rotation of specimen mover PL e Categories/Performance Level holder Down movement of hood PL c Noise level A-weighted sound emission LpA = 70 dB(A) pressure level at workstations (measured value) Vibration level Declared vibration emission Vibration sensor Lavamin...

  • Page 32: Safety Related Parts Of The Control System (Srp/Cs)

    SRP/CS (safety-related parts of a control system) are parts that have an influence on safe operation of the machine. Note Replacement of safety critical components must only be performed by a Struers engineer or a qualified technician (electromechanical, electronic, mechanical, pneumatic, etc.).

  • Page 33: Diagrams Lavamin

    10   Technical data 10.3.1 Diagrams Lavamin Title Air diagram 16231000 ►34 Water diagram 16231001 ►35 Block diagram 16233051 ►36 Lavamin...
  • Page 34 10   Technical data 16231000 Lavamin...
  • Page 35 10   Technical data 16231001 Lavamin...
  • Page 36 10   Technical data 16233051 Lavamin...

  • Page 37: Legal And Regulatory Information

    Responsibility of the manufacturer The following restrictions should be observed, as violation of the restrictions may cause cancellation of Struers legal obligations. The manufacturer assumes no responsibility for errors in the text and/or illustrations in this manual. The information in this manual is subject to change without notice. The manual may mention accessories or parts not included in the supplied version of the equipment.

  • Page 39: Declaration Of Conformity

    Based on: 16237901 C Declaration of Conformity Manufacturer Struers ApS • Pederstrupvej 84 • DK-2750 Ballerup • Denmark Name Lavamin Model Function Specimen cleaning machine Type Cat. no. 06236233 Serial no. Module H, according to global approach We declare that the product mentioned is in conformity with the following legislation, directives and standards:...
  • Page 40 Tõlked leiate aadressilt Katso käännökset osoitteesta Pour les traductions, voir Za prijevode idite na A fordítások itt érhetők el Per le traduzioni consultare www.struers.com/Library 翻 訳 については、 Vertimai patalpinti Tulkojumus skatīt Voor vertalingen zie For oversettelser se Aby znaleźć tłumaczenia, sprawdź...
