Page 1: Table Of Contents

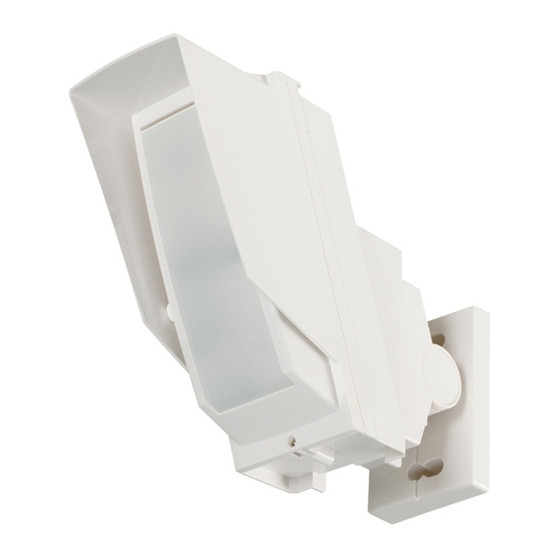

59-3064-1 2212-27 INSTALLATION INSTRUCTIONS INS-HX-80N INS-HX-80N VISUAL VERIFICATION PIR CAMERA series << Contents >> Page Before installation - Manufacturer's statement - Parts identification - Accessories Step Installation 1-1. Remove the mounting plate 1-2. Install the mounting plate using 2 screws 1-3.
Page 2: Before Installation
Before installation - Manufacturer's statement Symbol Meaning Symbol Meaning Failure to follow the instructions provided Warning with this indication and improper handling Nix sign indicates prohibition. may cause death or serious injury. Failure to follow the instructions provided Check mark indicates recommendation. Caution with this indication and improper handling may cause injury and/or property damage.
Page 3: Step 1 Installation
Step Installation 1-1. Remove the mounting plate 1-2. Install the mounting plate using 2 screws Hook the fall prevention wire. Caution To pass cables through the wall, drill a 25 mm (1") or larger hole in the wall. NOTE Use a single gang box for exposed wiring.
Page 4: Connect Cables To The Device
Step Installation 8-pin I/O cable 1-3. Connect cables to the device. Pink Orange Tamper Yellow Alarm Brown Caution Green Do not connect to the N/A terminal. Purple Black It can be also used as a Power back up for POE NOTE Only the connector can be fixed inside the body with double-sided...
Page 5: Enabled

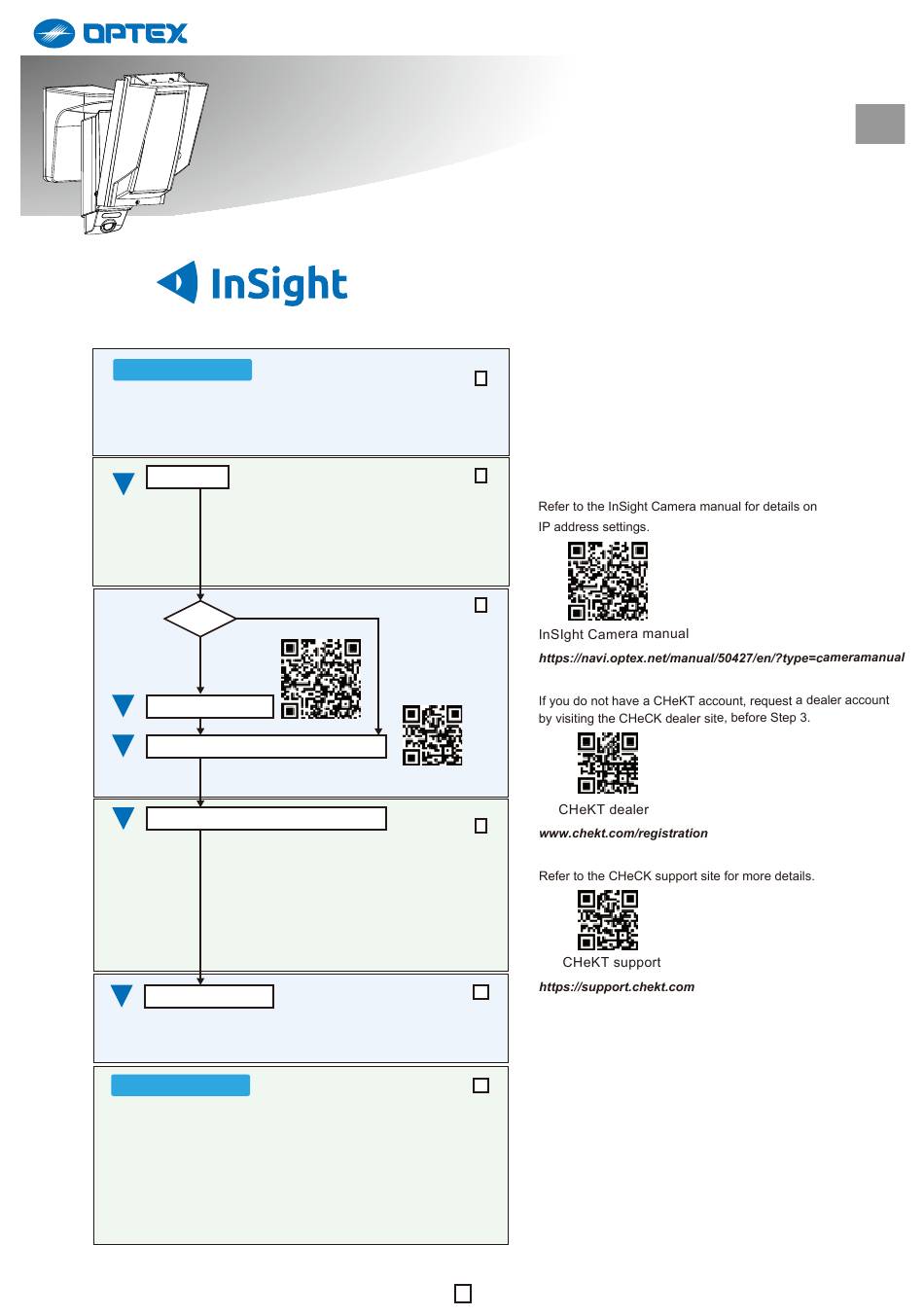

If you do not have a DHCP server, it will set as follows after one minute. Initial address: Refer to the label on the InSight User name: root Default password: OPTEX Change your password as appropriate. InSight Camera manual Download IP installer;...
Page 6: Camera Angle And Pir Area Settings
Step Camera angle and PIR area settings Changing for each item in this step is optional. Check the default settings and if no changes are required, proceed to the next item. 4-1. Horizontal adjustment Remove the Back cover. Adjust PIR area direction Raise the Back cover up.
Page 7 Step Camera angle and PIR area settings Adjust the camera angle to view the detection area Loosen screws to adjust camera angle Angle can be adjusted by sliding the camera vertically. 20°min. 30° Default 35°max.
Page 8: Pir/Vca Settings
Camera angle and PIR area settings 4-3. PIR/VCA settings Refer to the InSight VCA manual for details on PIR and VCA area settings. https://navi.optex.net/manual/50426/en/?type=VCAmanual Caution If the vertical angle of the camera is to be adjusted, adjustment of this sections must be matched to ensure the best performance of the sensor.
Page 9 Step Camera angle and PIR area settings 4-4. Detection range limit The default settings are 18 m (60') at 2.5 m (8'2") mounting height. If no changes are required, proceed to the next item. Open the PIR cover Locate the masking flaps and plates Plate 2 Upper flap Plate 1...
Page 10 Step Camera angle and PIR area settings Adjust the long range settings to set the maximum distance HOW TO CHANGE THE LONG RANGE DETECTION AREA Pull out the flap. Set the upper and lower flaps as follows: Upper flap Flap fix position indicator Lower flap NOTE...
Page 11 Step Camera angle and PIR area settings Adjust the short range settings to set the minimum distance HOW TO CHANGE THE SHORT RANGE DETECTION AREA Set the upper and lower plates follows: Remove the plate. Plate 2 Plate 1 Plate fix position indicator * Plate 1 and 2 are identical.
Page 12: Switch Settings
Step Camera angle and PIR area settings 4-5. Switch settings Change DIP switch settings as needed Standard Immunity Immunity Future use PIR Logic Default Change PIR sensitivity setting as needed High Middle Default 4-6. Put on the back cover...
Page 13: Checking
Step Checking 5-1. Walk test DIP switch No. 1 Turn LED back ON, if it was turned OFF ( , Default ON). Close the PIR cover. Walk around the detection area to make sure it is set as intended. If necessary, turn LED OFF again. Fix the PIR cover with the cover lock screw after completion.
Page 14: Others
Others - Specifications Model INS-HX-80N Passive infrared Detection method 24 m x 2.0 m (80' x 6’7”) narrow PIR coverage 20 zones PIR zones 6.5 m (22’), 10 m (33’), 13 m (43’), 18 m (60’), 24 m (80’) PIR distance...
Page 15: Detection Area
Others - Detection area Top View 80 (ft.) (ft.) 24 (m) Camera Side View 80 (ft.) 3.0 m (10’) (ft.) 24 (m) 80 (ft.) 2.5 m (8’2”) (ft.) 24 (m) = Default PIR distance limit 18 m (60') - LED indicator Seconds [1] Warm-up [2] Alarm...
Page 16: Compliance
Installation of this product, producing image, monitoring, recording with camera and handling of personal information or data shall all be performed under discretion and responsibility of user of this product, and OPTEX shall not be held liable for any dispute between a user and a third party. FCC notification This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Page 17: How To Reset To The Factory Default
OPTEX CO., LTD. (JAPAN) www.optex.net OPTEX INC./AMERICAS HQ (U.S.) OPTEX SECURITY SAS (France) OPTEX KOREA CO.,LTD. (Korea) www.optexamerica.com www.optex-europe.com/fr www.optexkorea.com OPTEX (EUROPE) LTD./EMEA HQ (U.K.) OPTEX SECURITY Sp.z o.o. (Poland) OPTEX (DONGGUAN) CO.,LTD. www.optex-europe.com www.optex-europe.com/pl SHANGHAI OFFICE (China) www.optexchina.com OPTEX SECURITY B.V.
