INSTALLATION MANUAL – Indoor/Outdoor Mounts for RLS-2020
Unpacking
Unpack carefully. This is mechanical equipment and should
be handled with care. If an item appears to have been
damaged in shipment, replace it properly in its carton and
notify the shipper. If any items are missing, notify the
vendor. The shipping carton is the safest container in which
the unit may be transported. Save it for possible future use.
Service
If the unit ever needs repair service, the customer should
contact the vendor for a return materials authorization (RMA)
and shipping instructions.
Care and Maintenance
Perform routine maintenance to keep the unit dust free.
Model Designation
2020WMA-1 Indoor/Outdoor Wall Mount Arm
2020PLMK-1 Pole Mount Adapter for 2020WMA-1
2020CMB-1 Corner Mount Adapter for 2020WMA-1
Description
These mounts are used to mount the RLS-2020 Laser Scan
Detector on any vertical flat surface, pole, or corner.
Installation is similar to a standard camera wall mount arm.
The wall arm provides four (4) mounting points and hardware
included.
Hardware Kits
2020WMA-1: 2x M4x10mm Phillips Head Screws
2x M4 Flat Washers
1x Cable Grommet (Gray)
4x Mounting Screws
4x Plastic Wall Anchors
2020PLMK-1: 2x Worm Gear Pipe Clamps (Stainless Steel)
4x ¼-20 Round Head Hex Drive Screws
4x ¼" Flat Washers
4x ¼" Lock Washers
2020CMB-1 4x ¼-20 Round Head Hex Drive Screws
4x ¼" Flat Washers
4x ¼" Lock Washers
Certification
Scanner installation should be performed by a licensed
professional and conform to the National Electrical Code
(NEC) and any applicable local codes.
Corner Mount Installation
1. Hold mount bracket up to installation surface; use it as a
template to mark hole locations.
2. Drill appropriate size holes for fasteners and cable; each
fastener should have a 150-lbs pull-out strength. Attach
mount bracket to wall with appropriate fasteners.
3. Attach the 2020WMA-1 mount bracket to the corner
mount using the fasteners provided with the corner
mount (see Figure 2).
4. Skip to "Wall Mount Installation" Step 3.
Pole Mount Installation
1. Attach pole mount to pole (Diameter 3" ~ 12" max) at the
desired height according to the instructions included with the
stainless steel worm-drive straps.
2. Attach the 2020WMA-1 mount bracket to the pole mount
using the fasteners included with the pole mount (see Figure
3)
3. Skip to "Wall Mount Installation" Step 3.
Wall Mount Installation (see next page)
Wall Mount
Adapter Plate

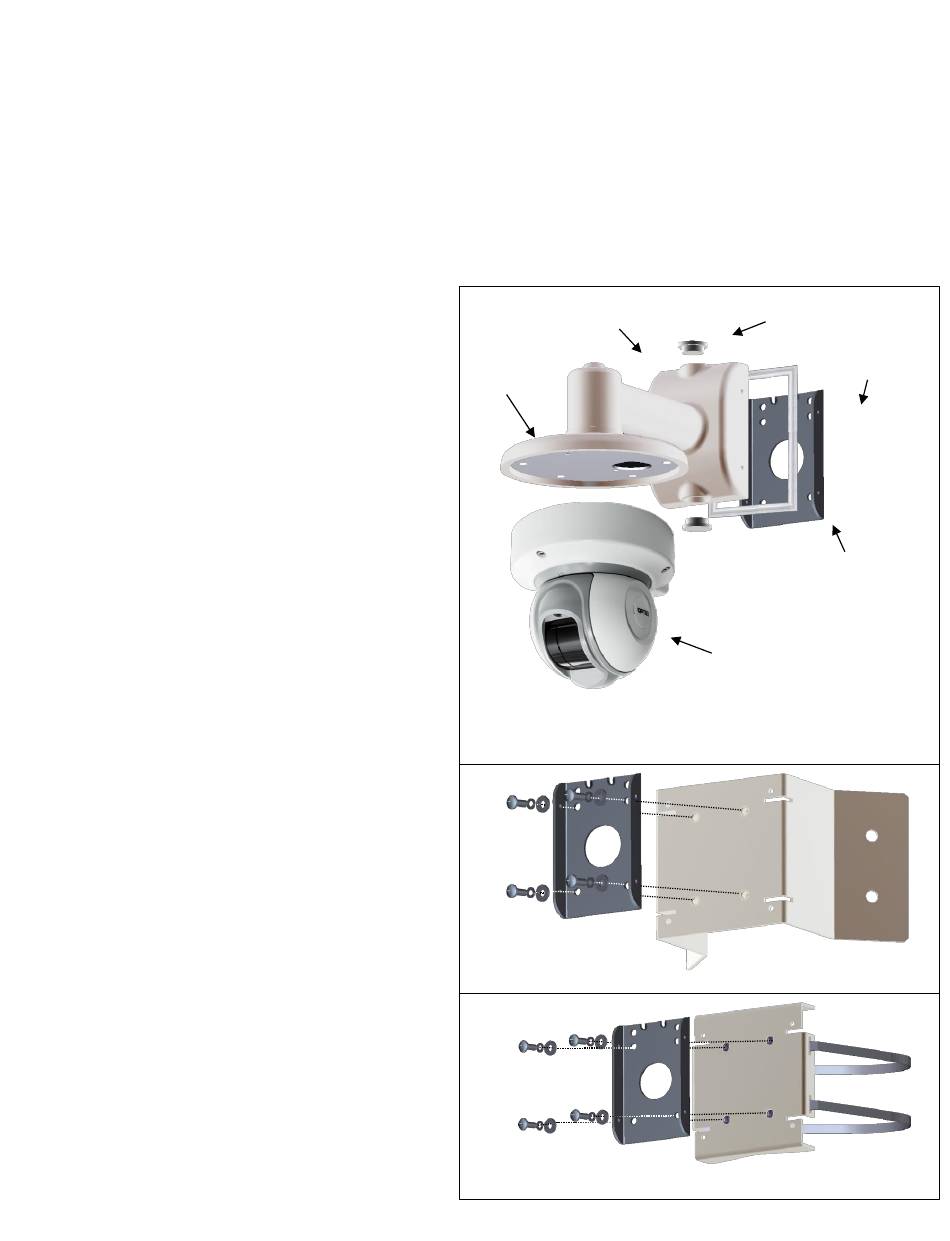

Figure 1 – OPTEX RLS-2020 with 2020WMA-1 Wall Mount
(Overview – see Figure 5 for additional details)
Figure 2 – Corner Mount (right) w/ Mount Bracket (left) from 2020WMA-1 Wall Mount
Figure 3 – Pole Mount (right) w/ Mount Bracket (left) from 2020WMA-1 Wall Mount
Conduit Plugs
(2x 3/4" NPT)
Mount
bracket
RLS-2020 Redscan Mini
