Page 1: Table Of Contents
Before installation - Parts identification - Accessories - Manufacture’ s statement Step Installation 1-1. Disassemble 1-2. Mounting 1-3. Fall prevent wire https://navi.optex.net/manual/50426 1-4. Wiring 1-5. Assembling IP camera settings Enable DHCP Disable IP address settings IP camera settings Registration InSight to CHeKT portal site...
Page 2: Before Installation
Before installation - Parts identification - Accessories Bracket angle adjusting screw 4 x 20 mm PIR detector Mounting screws T20 Torx wrench Section “e” PIR area masking strips (Both side “e” are attached Mounting plate to the lens in the factory) Back cover Waterproof cap for LAN connection...
Page 3: Step 1 Installation
Step Installation 1-1. Disassemble Remove the main unit and the mounting plate. 1-2. Mounting 1-3. Fall prevent wire Hook the fall prevent wire. - 3 -...
Page 4: Wiring
Step Installation 1-4. Wiring 8-pin I/O cable Pink Orange Tamper Yellow Alarm Brown Do not connect to Green Caution the N/A terminal. Purple Black Power NOTE The connector can be fixed inside DC power cable the main body with double-sided tape. 12 V DC power for camera and PIR PoE LAN cable Waterproof cap...
Page 5: Ip Address Settings
IP address. Change the InSight network type to Static and set the IP address; Initial address: Refer to the label on the InSight User name: root Default password: OPTEX Refer to the “IP Camera Setting Manual” in more detail. IP Camera Setting Manual Step Registration InSight to CHeKT portal site The default network type of InSight is dynamic.
Page 6: Detection Area Settings And Walk Test
Step Detection area settings and walk test 4-1. PIR area direction Adjust PIR area direction Remove the Back cover by hand. Angle can be adjusted with either left or right screw. Raise the Back cover up. Pull it back. Horizontal ±95° Vertical 0°...
Page 7: Pir Area Masking
Step Detection area settings and walk test 4-2. PIR area masking Open the PIR cover Lock screw (Use as necessary) * Remove before, if used. [1] Unlock the cover using a screwdriver (-). [2] Lift the cover up. Attach the area masking strips PIR area masking strips “e”...
Page 8: Switch Settings
Step Detection area settings and walk test 4-3. Switch settings Set the DIP switch 1 to 4, as necessary. High Super High Middle Default Future use PIR sensitivity Alarm output N.O. N.C. Default ミラーを下げた絵に変更 Caution Do not move the mirror from the factory settings as Pet alley cannot be set.
Page 9: Walk Test
Step Detection area settings and walk test 4-4. Walk test DIP switch No. 1 Turn LED back ON, if it was turned OFF ( , Default ON). Walk around the detection area to make sure it is set as intended. If necessary, turn LED OFF again.
Page 10: Camera Angle Settings
Step Camera angle settings Camera angle adjustment Loosen the screw to adjust camera angle. Angle can be adjusted with either left or right screw. 20°min. Default 30° 35°max. - 10 -...
Page 11: System Check
Setting on the InSight web If the angle of the camera is adjusted up or down, the detection area display of the detector on the screen will be different from the actual one. Adjust the display on the web. See the IP camera manual. IP camera settings Replace the back cover Replace the Back cover by hand.
Page 12 Others - Detection area Top view 40 ft. 7.5 m 25 ft. Camera 7.5 m 25 ft. 12 m Area on both sides are masked with the area strips by default. Side view 40 ft. 2.2 m 7’3” 2.7 m 8’11”...
Page 13 Others - Specifications Model INS-QXI-ST Passive infrared Detection method 12.0 m (40') 75°wide PIR coverage 32 zones PIR zones Detectable speed 0.3 to 2.0 m/s (1' to 6'7"/s) Sensitivity 2.0℃ ( 3.6°F) at 0.6 m/s PoE (IEEE 802.3af compliant) Mini-jack 12 V DC 420 mA max. Power input Terminal 9.5 to 16 V DC/ 20 mA max.
Page 14: Others
Others - Dimensions 84 (3.31) 209 (8.23) Unit: mm (inch) - 14 -...
Page 15 Installation of this product, producing image, monitoring, recording with camera and handling of personal information or data shall all be performed under discretion and responsibility of user of this product, and OPTEX shall not be held liable for any dispute between a user and a third party. FCC notification This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Page 16 OPTEX SECURITY SAS (France) OPTEX KOREA CO.,LTD. (Korea) 5-8-12 Ogoto, Otsu, Shiga, 520-0101 JAPAN www.optexamerica.com www.optex-europe.com/fr www.optexkorea.com Authorized representative in Europe: OPTEX (EUROPE) LTD./EMEA HQ (U.K.) OPTEX SECURITY Sp.z o.o. (Poland) OPTEX (DONGGUAN) CO.,LTD. www.optex-europe.com www.optex-europe.com/pl SHANGHAI OFFICE (China) OPTEX (EUROPE) LTD./EMEA HEADQUARTERS www.optexchina.com...

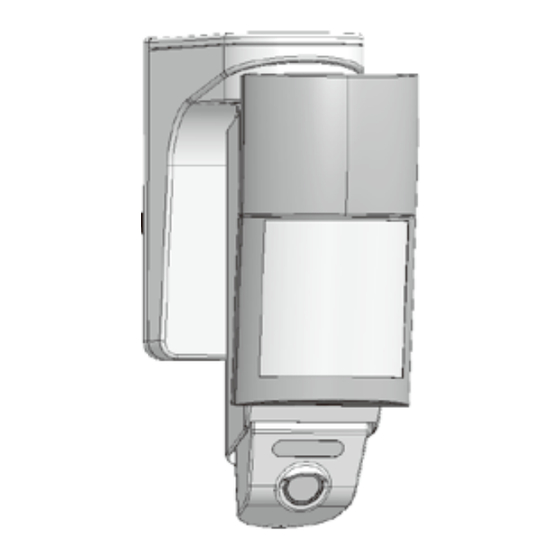

Optex InSight INS-QXI-ST Installation Instructions Manual
