Projecta INVCHR2 Manual page 6

Table 2-1 LED directive funtion
LED Function
Invert It will illuminate when unit is inverting.
AC In It will flash when unit detect any input, mains or generator.
It will flash when unit is in float charging.
Charge
It will illuminate when unit is in bulk or absorption charging.
Warning It will flash when unit has warning.
Fault It will flash when unit has error.
2.2. Bluetooth LCD monitor (P/No. INVCHR-BT)
Allows users to remotely monitor and control Projecta Inverter Chargers. Displays battery voltage*,
current*, inverter load percentage, AC input/output voltage, frequency and power. Battery status can also
be monitored via smart phone or tablet if connected with Bluetooth.
• Remotely switch on/off inverter.
• Will show battery information when a Projecta HD series lithium battery is connected to the system.
• The APP can be downloaded from the APP store or Google play under PROJECTA Inverter Charger
(INVCHR2/3)
6

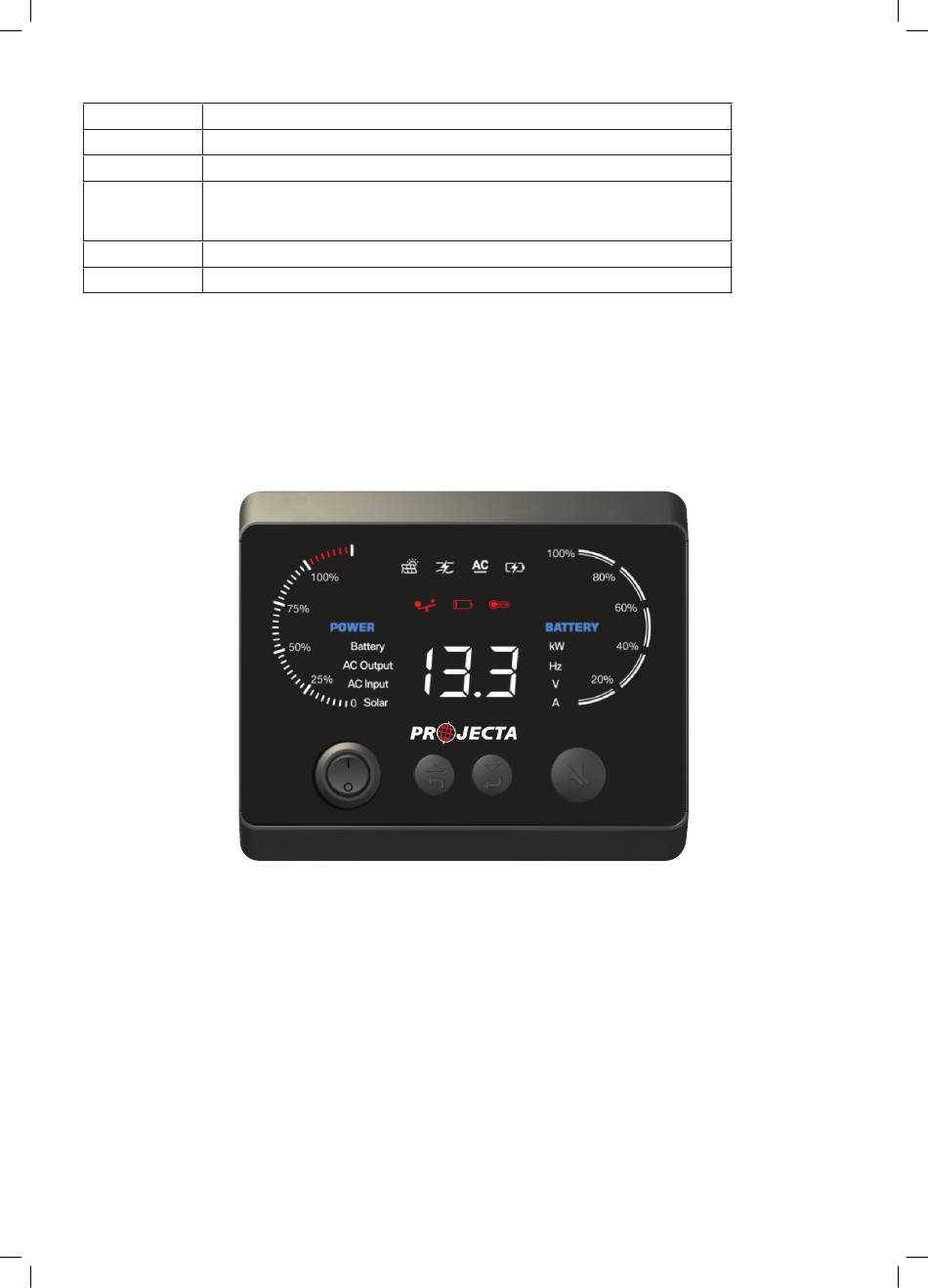

Figure 2-3 Remote control and monitor MCK
