  • Page 1 Crestron MT-1000C MiniTouch Handheld Wireless Touchpanel Operations Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2008 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Crestron MT-1000C MiniTouch Handheld Wireless Touchpanel Contents MiniTouch Handheld Wireless Touchpanel: MT-1000C Introduction ......................... 1 Features and Functions.................. 1 Specifications ....................2 Physical Description..................4 Industry Compliance ..................7 Setup..........................8 Battery Installation and Replacement............8 Docking Station Setup................... 8 Identity Codes ....................

  • Page 5: Minitouch Handheld Wireless Touchpanel: Mt-1000C

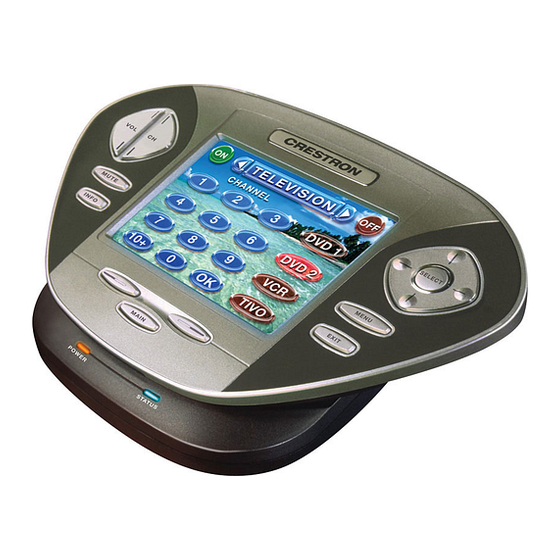

    Stunning 16-bit color graphics and WAV file audio feedback make the MT-1000C both highly functional and fun to use for a host of AV control and automation applications.

  • Page 6: Specifications

    Crestron control system via the CNRFGWA-418 gateway (sold separately). Range is easily extended by distributing multiple gateways throughout a structure. The MT-1000C is also ideal for use with Crestron's MC2W Integrated Wireless Control System. IR communications is facilitated using the C2N-IRGW Series IR Gateway or CNXRMIRD IR Receiver (sold separately) along with a compatible control system or room solution box.
  • Page 7 Weight 10.4 oz (0.3 kg) including battery pack 1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes. 2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.

  • Page 8: Physical Description

    MiniTouch Handheld Wireless Touchpanel Crestron MT-1000C Physical Description This section provides information on the connections, controls and indicators available on your MT-1000C and MT-1000-DS (included). MT-1000C Physical View 4 • MiniTouch Handheld Wireless Touchpanel: MT-1000C Operations Guide - DOC. 6322A...
  • Page 9 Crestron MT-1000C MiniTouch Handheld Wireless Touchpanel MT-1000C Overall Dimensions MT-1000C Bottom View MiniTouch Handheld Wireless Touchpanel: MT-1000C • 5 Operations Guide – DOC. 6322A...
  • Page 10 MiniTouch Handheld Wireless Touchpanel Crestron MT-1000C Docking Station Overall Dimensions 6 • MiniTouch Handheld Wireless Touchpanel: MT-1000C Operations Guide - DOC. 6322A...

  • Page 11: Industry Compliance

    LED is red when battery is charging; blue when battery is fully charged. Industry Compliance As of the date of manufacture, the MT-1000C has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

  • Page 12: Setup

    5. Replace the battery cover and rotate the locking screw counterclockwise to lock. NOTE: A replacement battery may be ordered from Crestron. Use part number 6002767. Docking Station Setup Plug the power supply (included) into an AC power outlet using the AC line cord provided.

  • Page 13: Identity Codes

    MiniTouch Handheld Wireless Touchpanel Docking Station Power Supply Hookup Place the MT-1000C in the cradle of the docking station and press down until you hear a click. When the MT-1000C is properly seated on the docking station, the STATUS LED lights up red while the battery is charging.

  • Page 14: User Configuration Menus

    Crestron MT-1000C IR ID Every MT-1000C touchpanel communicating via IR with a Cresnet control system through a CNXRMIRD receiver, a C2N-IRGW Series IR gateway or directly to an MC2W control system, requires a unique IR ID to secure IR communications. There are two useable codes (two-digit hexadecimal numbers): 00 and 10;...
  • Page 15 NOTE: A brighter display reduces battery life. Button Light Buttons can be backlit when touched, or always off to conserve battery life. Sound Adjust the volume of programmed audio. MiniTouch Handheld Wireless Touchpanel: MT-1000C • 11 Operations Guide – DOC. 6322A...
  • Page 16 Crestron MT-1000C Date & Time Set the date and time. Power Displays the remaining charge and sets the low battery indication level. System Displays system memory and version information. 12 • MiniTouch Handheld Wireless Touchpanel: MT-1000C Operations Guide - DOC. 6322A...
  • Page 17 Crestron MT-1000C MiniTouch Handheld Wireless Touchpanel Pickup Sets the MT-1000C to turn on when picked up or moved. Calibration Calibrates the touchscreen. Use a stylus or pen top (not a finger) and follow the directions on the screen. Factory Default Resets the memory to the factory condition.

  • Page 18: Recommended Care And Cleaning

    The touchscreen contains a glass element; avoid dropping or impacting against anything. • If water is spilled on the MT-1000C, remove the battery pack and allow the MT-1000C to dry for 48 hours before using. For best cleaning results use a clean, damp, non-abrasive cloth with any commercially available non-ammonia glass cleaner.

  • Page 19: Programming Software

    Configuration Manager is the view where programmers “build” a Crestron control system by selecting hardware from the Device Library. The MT-1000C can be programmed to operate either as an RF device or as an IR device. Either configuration requires that the MT-1000C communicate via a gateway device: a C2N-IRGW Series for IR;...
  • Page 20 RF ID or IR ID as shown in the following illustration. C2Net Device, Slot 7 and/or 8 • Additional MT-1000C devices are assigned different IR ID or RF ID numbers as they are added. • If necessary, double click a device to open the “Device Settings” window and change the RF ID or IR ID, as shown in the following figures.

  • Page 21: Programming With Visiontools Pro-E

    WAV files to a touchpanel project. Pre-recorded WAV files for voice prompts and responses are available from Crestron. These files can be stored into and programmed for use in the touchpanel directly or may be edited with the Sound Recorder. For example, the individual files can be combined to create custom messages.
  • Page 22 In VT Pro-e, the Compress checkbox permits the image to be compressed when compiling. The 16 Bits checkbox converts a 24-bit or 32-bit image to 16 bits. This 18 • MiniTouch Handheld Wireless Touchpanel: MT-1000C Operations Guide - DOC. 6322A...
  • Page 23 Various dithering types are available. Refer to the following illustrations. VT Pro-e “Page Properties” Window – Bit Depth Selection VT Pro-e “Image Properties” Window – Bit Depth Selection MiniTouch Handheld Wireless Touchpanel: MT-1000C • 19 Operations Guide – DOC. 6322A...

  • Page 24: Example Program

    Crestron MT-1000C Pushbutton Programming The MT-1000C buttons can be programmed to access any frequently used command. Each button has a permanently fixed digital join number. Refer to the following diagram for their assigned join numbers. A description for each button signal is described in the SIMPL Windows help file (F1).

  • Page 25: Uploading And Upgrading

    However, before attempting to upload or upgrade it is necessary to establish communication. For PCs running Windows 2000 or XP operating systems, the MT-1000C requires ® ®...

  • Page 26: Windows Mobile Device Center Installation

    5. After Microsoft ActiveSync is installed, you can use VT Pro-e to create a project and use Crestron Toolbox to upload the program to the MT-1000C. 6. Plug the USB cable into your computer and then into the MT-1000C. The hardware wizard will recognize the new addition.
  • Page 27 Run MT1000Components.exe in the Toolbox install folder if Toolbox is already installed on your PC. 4. Plug in the MT-1000 to the USB port. The following “Found New Hardware” window appears. MiniTouch Handheld Wireless Touchpanel: MT-1000C • 23 Operations Guide – DOC. 6322A...
  • Page 28 5. Click Cancel and open the Device Manager from the Control Panel and find “Unknown device” in the list, as shown in the following figure. 6. Right click on this device and select Update Driver Software. The following windows appears: 24 • MiniTouch Handheld Wireless Touchpanel: MT-1000C Operations Guide - DOC. 6322A...
  • Page 29 Installation should finish and the window should be similar to the following: 9. Open the Windows Mobil Device Center; it should now detect the device and the window should appear similar to the figure on the following page. MiniTouch Handheld Wireless Touchpanel: MT-1000C • 25 Operations Guide – DOC. 6322A...
  • Page 30 12. Open Toolbox and select the MT-1000 address book entry. NOTE: Although keyed, the USB connector can be inserted up side down. This will generate an error message. 26 • MiniTouch Handheld Wireless Touchpanel: MT-1000C Operations Guide - DOC. 6322A...

  • Page 31: Establishing Communication

    USB Communication PC RUNNING MT-1000C CRESTRON TOOLBOX • The USB port on the MT-1000C connects to the USB port on the PC via the included USB cable. • All communication parameters are automatically set. • Display the MT-1000C’s “System Info” window (click the icon);...

  • Page 32: Problem Solving

    MiniTouch Handheld Wireless Touchpanel Crestron MT-1000C Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. MT-1000C Troubleshooting TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION Docking Station...

  • Page 33: Further Inquiries

    For assistance in your local time zone, refer to the Crestron website (www.crestron.com/offices) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.

  • Page 34: Software License Agreement

    Agreement, which shall remain valid and enforceable according to its terms. This Agreement may only be modified by a writing signed by an authorized officer of Crestron. Updates may be licensed to You by Crestron with additional or different terms. This is the entire agreement between Crestron and You relating to the Software and it supersedes any prior representations, discussions, undertakings, communications or advertising relating to the Software.
  • Page 35 “applets” incorporated into the Software), the accompanying media and printed materials and any copies of the Software are owned by Crestron or its suppliers. The Software is protected by copyright laws and international treaty provisions. Therefore, you must treat the Software like any other copyrighted material, subject to the provisions of this Agreement.

  • Page 36: Return And Warranty Policies

    Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures.
  • Page 37 Crestron MT-1000C MiniTouch Handheld Wireless Touchpanel This page is intentionally left blank. MiniTouch Handheld Wireless Touchpanel: MT-1000C • 33 Operations Guide – DOC. 6322A...
  • Page 38 MiniTouch Handheld Wireless Touchpanel Crestron MT-1000C This page is intentionally left blank. 34 • MiniTouch Handheld Wireless Touchpanel: MT-1000C Operations Guide - DOC. 6322A...
  • Page 39 Crestron MT-1000C MiniTouch Handheld Wireless Touchpanel This page is intentionally left blank. MiniTouch Handheld Wireless Touchpanel: MT-1000C • 35 Operations Guide – DOC. 6322A...
  • Page 40 Crestron Electronics, Inc. Operations Guide – DOC. 6322A 15 Volvo Drive Rockleigh, NJ 07647 (2011783) Tel: 888.CRESTRON 01.08 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
