Crestron MT-1000C Programming Manual

3.8 inch rf remote
Hide thumbs Also See for MT-1000C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

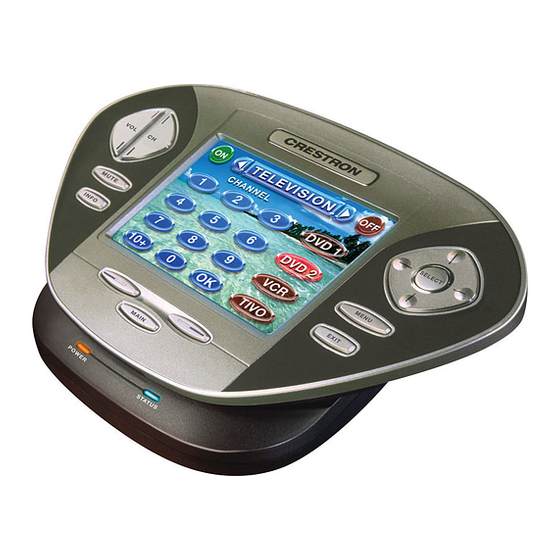

Crestron MT-1000C
3.8 Inch RF Remote
Programming Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-1000C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron MT-1000C

Summary of Contents for Crestron MT-1000C

  • Page 1 Crestron MT-1000C 3.8 Inch RF Remote Programming Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2005 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Crestron MT-1000C Contents 3.8 Inch RF Remote: MT-1000C Introduction ...1 Configuration Software ...2 Project Upload and Firmware Upgrade ...23 Problem Solving ...28 Return and Warranty Policies...30 Programming Guide – DOC. 6330A Programmable Buttons...1 USB Programming Port ...2 Earliest Version Software Requirements for the PC ...2 ®...

  • Page 5: 3.8 Inch Rf Remote: Mt-1000C

    ● INFO (Join number 6) ● Thumb pad with UP (Join number 7), NOTE: To program hard buttons 14, 15 and 16, the MT-1000C must contain firmware version 2.22.1.50420, and you must use VisionTools 3.3.3.6 or later. To view the firmware version, press and hold the MAIN button for five seconds.

  • Page 6: Usb Programming Port

    MT-1000C. If you have an earlier unit, it may be returned for an upgrade. Contact Crestron customer support for more information. You can create a program that allows you to set up the MT-1000C to operate a Crestron control system using the Crestron programming tool SIMPL Windows.

  • Page 7: Microsoft ® Activesync ® And The Mt-1000C Driver

    The following are the earliest useable software version requirements for the PC: NOTE: To upgrade the MT-1000C firmware version 2.22.1.50520 in order to use hard keys 14, 15 and 16, use Crestron Toolbox version 1.0.7 or later. NOTE: If you are using a CNRFGWA-418 or an MC2W that was shipped prior to February 15, 2005 you must upgrade the unit at the factory.

  • Page 8: Programming With Simpl Windows

    NOTE: Remember which USB port was used in the Active Sync installation. Other USB ports on your PC may not be setup for the MT-1000C, and may display a “New Equipment Detected” or similar message, or an error message. If the “New Equipment Detected”...
  • Page 9 Together with the Crestron Database, these tools provide you with the essential components you need to program the MT-1000C. NOTE: The MT-1000C is shipped with a CD that contains ActiveSync. This must be installed, and your computer rebooted, before running Toolbox. Refer to page 2.
  • Page 10 Crestron MT-1000C C2Net-Device Slot in Configuration Manager An RF gateway device is required to incorporate an MT-1000C into a system. The C2Net-Device Slot can accept a gateway such as the CNRFGWA-418. Once a gateway is configured in a C2Net-Device Slot, the slot allows Cresnet communication between the MT-1000C and the control system.
  • Page 11 (RF) folder of the Device Library to the CNRFGWA-418 device in the C2Net-Device slot. NOTE: The MT-1000C at RF ID 00 may return an error when compiling SIMPL program for X-Generation processors. NOTE: If the MT-1000C is not a selectable device, check that Device Library version 321 or later is installed, and that the device you are adding the MT-1000C to is a CNRFGWA-418 gateway.
  • Page 12 SIMPL Windows Programming Manager. Detail View of the MT-1000C in SIMPL Windows’ Programming Manager The MT-1000C can transmit up to 999 unique signal joins to a control system. Every button can be programmed with multiple functions. 8 • 3.8 Inch RF Remote: MT-1000C...

  • Page 13: Example Program

    Unjoined objects are not interfaced with the system and thus cannot initiate any control system functions. The completed and compiled project is uploaded to the touchscreen via the File | Upload Project command. The MT-1000C uses the programmed project until another project is uploaded from the PC. Programs cannot be extracted from the touchscreen.
  • Page 14 MT-1000C. .vtp projectname.vtp (VT Pro-e source file) .hex projectname.hex (compiled file). Open VT Pro-e and select the MT-1000C from the Panel Type pull down list. “Name New Project File As…” Window Right-click on MT1000C in Project View and select Properties.
  • Page 15 The Design tab permits you to specify the default page properties. The Design Tab Programming Guide – DOC. 6330A • Design • Information • Compile • Page Resize • Hard Keys • 3.8 Inch RF Remote 3.8 Inch RF Remote: MT-1000C • 11...
  • Page 16 The Information tab can contain the project name, dealer, job/order number, designer, version, and comments. The Information Tab The Compile tab permits you to see a compile log. The Compile Tab NOTE: Grayed-out options are not available. 12 • 3.8 Inch RF Remote: MT-1000C Programming Guide - DOC. 6330A...
  • Page 17 The Page Resize Tab The Hard Keys tab allows you to set page flips to hard key operation. Unjoined keys have no function. The Hard Keys Tab Programming Guide – DOC. 6330A 3.8 Inch RF Remote 3.8 Inch RF Remote: MT-1000C • 13...

  • Page 18: New Programming Objects

    The RF tab allows you to set the RF ID to match the SIMPL Windows project. The RF Tab NOTE: The MT-1000C at RF ID 00 may return an error when compiling SIMPL program for X-Generation processors. New Programming Objects Three new objects are available for the MT-1000C, Battery, RF Indicator and Date.
  • Page 19 Programming Guide – DOC. 6330A 1. Select Draw | Battery and draw the object on the page. 2. Right-click the battery object and select Properties. Right-click Sub Menu “Battery Properties” Window 3.8 Inch RF Remote: MT-1000C • 15 3.8 Inch RF Remote...
  • Page 20 NOTE: You must use two pictures. Using less than two will result in an error when the program is compiled. 16 • 3.8 Inch RF Remote: MT-1000C 3. Use the Browse button to select an image. Four file formats are supported, BMP, PCX, DIB, and JPG.
  • Page 21 5. Use the Append, Insert and Remove buttons position, and delete the images. 1. Select Draw | Date and draw the object on the page. 2. Right-click on the date object and select Properties. 3.8 Inch RF Remote: MT-1000C • 17 3.8 Inch RF Remote to add,...
  • Page 22 Unavailable properties are grayed-out. 18 • 3.8 Inch RF Remote: MT-1000C Right-Click Date Object 3. Use the “Date Properties” window to set the attributes of the date object.
  • Page 23 NOTE: Template data (only available for the clock) is a free text area for recording project template information, and is located under the Select Property to Modify selection at the bottom of the “Date Properties” window. Programming Guide – DOC. 6330A 3.8 Inch RF Remote 3.8 Inch RF Remote: MT-1000C • 19...
  • Page 24 Dithering is used when the full color range of an image cannot be displayed. It is a method of reducing the color range while maintaining a usable graphic. The MT-1000C uses 16 bit non-palette graphics, up to 65,536 colors. Select Dithering from the Select Property to Modify pull down list. Click the Enable check box.
  • Page 25 You may also choose Browse to select additional images. Select Property to Modify – Project Graphic Resources NOTE: Compress (image compression) is not available. Programming Guide – DOC. 6330A 3.8 Inch RF Remote 3.8 Inch RF Remote: MT-1000C • 21...

  • Page 26: Wav File Audio Messages

    Many other audio utilities are available commercially or as shareware. The MT-1000C only accepts the following WAV file format: PCM, 8, 11, or 22 kHz, mono or stereo, 8 or 16 bit. For more information about how to use Sound Recorder, refer to its User’s Guide and extensive help information...

  • Page 27: Project Upload And Firmware Upgrade

    Before loading a compiled VT Pro-e project or upgrading the device firmware, the USB cable supplied with the MT-1000C must be connected to the USB interface port on the rear of the MT-1000C and the USB port of the PC as shown in the following diagram.

  • Page 28: Project Upload

    Project Upload NOTE: This entry (MT-1000) is provided to you in the DefaultAddressBook.adr when Crestron Toolbox is installed. NOTE: If the MT-1000C is not synchronized with ActiveSync, communication will fail. Ensure that the ActiveSync icon Toolbox Address Book – MT-1000 24 •...

  • Page 29: Firmware Upgrade

    Firmware Upgrade NOTE: This entry is provided to you in the DefaultAddressBook.adr when Crestron Toolbox is installed. NOTE: If the MT-1000C is not synchronized with ActiveSync, communication will fail. Ensure that the ActiveSync icon Programming Guide – DOC. 6330A “Project” Window The “Open”...
  • Page 30 3.8 Inch RF Remote Toolbox Address Book – MT-1000 26 • 3.8 Inch RF Remote: MT-1000C 3. Select Functions | Firmware 4. Click Upload New Firmware… “Firmware” Window Programming Guide - DOC. 6330A Crestron MT-1000C...
  • Page 31 5. Locate the new firmware (.csz) file and click Open. The file will extract and return you to the “Firmware” window. “Open” Window 6. Click Close and the device will reboot with the new firmware. 3.8 Inch RF Remote: MT-1000C • 27 3.8 Inch RF Remote...

  • Page 32: Problem Solving

    3.8 Inch RF Remote Problem Solving The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. MT-1000C Troubleshooting 28 • 3.8 Inch RF Remote: MT-1000C TROUBLE POSSIBLE CAUSE(S)

  • Page 33: Further Inquiries

    [1-888-273-7876]. For assistance in your local time zone, refer to the Crestron website (www.crestron.com) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.

  • Page 34: Return And Warranty Policies

    CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures.
  • Page 35 Crestron MT-1000C 3.8 Inch RF Remote This page intentionally left blank. 3.8 Inch RF Remote: MT-1000C • 31 Programming Guide – DOC. 6330A...
  • Page 36 Crestron Electronics, Inc. Programming Guide – DOC. 6330A 15 Volvo Drive Rockleigh, NJ 07647 (2012170) Tel: 888.CRESTRON 06.05 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
