Installation
Instructions
400G/L PX (CF)
For use in GB and IE
DESN 511420 C
Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety
and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly
authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THIS APPLIANCE
raywarranty@aga-web.co.uk
08/13 EINS 512336 - PX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

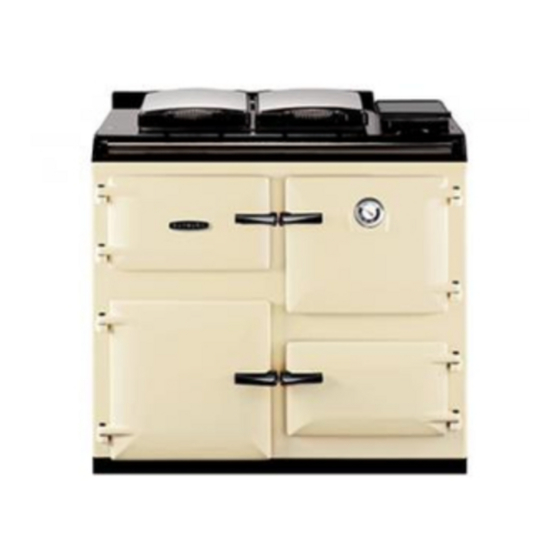

Related Manuals for AGA Rayburn 400G/L PX (CF)
Summary of Contents for AGA Rayburn 400G/L PX (CF)
- Page 1 Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THIS APPLIANCE raywarranty@aga-web.co.uk...
-
Page 2: Table Of Contents
Contents SECTION CONTENTS PAGE CONSUMER PROTECTION HEALTH & SAFETY TECHNICAL DATA SITE REQUIREMENTS INTRODUCTION IMPORTANT REGULATIONS GAS SUPPLY LOCATION AIR REQUIREMENTS FLUE SYSTEM ELECTRICAL SUPPLY WIRING DIAGRAM INSTALLATION REQUIREMENTS CLEARANCES PRELIMINARY INSTALLATION SITE LOCATION SETTING COMBUSTION INSTALLATION INSTRUCTIONS BURNER ACCESS ELECTRICAL CONNECTION TERMINAL STRIP CONNECTION PROGRAMMER WIRING... - Page 3 IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING WARRANTY. Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and could affect your statutory rights.
- Page 4 PLEASE NOTE: IT IS ADVISABLE TO CHECK THE ACTUAL SIZE/WIDTH DIMENSIONS IN MM OF YOUR APPLIANCE BEFORE FINALLY FIXING ANY KITCHEN UNITS, SINCE ENAMELLED CAST DESN 512448 B IRON CAN VARY IN SIZE TECHNICAL DATA Fuel - Natural Gas (G20) I Fuel - Propane (G31) I Gas Inlet...
-
Page 5: Site Requirements
Site requirements INTRODUCTION LOCATION The Rayburn is a floor standing cooker, fired by a gas The appliance is floor mounted and must be installed on burner. It is suitable for vertical flue outlet only. a solid floor or base of non-combustible material which is capable of supporting the total weight. - Page 6 Site requirements AIR REQUIREMENTS FLUE SYSTEM The appliance can only be installed in a room which The following notes are intended to give general meets the ventilation regulations in force. But, in any guidance. The flue serving the cooker must not be less event the room must have a permanent vent with a than 125mm internal diameter.
- Page 7 Site requirements ELECTRICAL SUPPLY Wiring external to the appliance must be installed in accordance with current National Wiring Regulations and any local regulations which apply. The appliance is supplied for 230 Volt ~ 50Hz and a fuse rating of 3 amps. The method of connection to the mains supply should facilitate complete electrical isolation of the appliance, by the use of a fused double pole switch having a contact...
- Page 8 Site requirements FIG. 1...
-
Page 9: Clearances
Installation requirements CLEARANCES The appliance is floor mounted. The space in which the appliance is to be fitted must have the following minimum dimensions. Between wall or unit and LH side of appliance - 10mm top plate Between wall or unit and RH side of appliance - 10mm top plate SHOULD THE WALL PROJECT BEYOND THE FRONT OF THE APPLIANCE, IT MUST BE INCREASED TO... -
Page 10: Site Location
Installation requirements SITE LOCATION SETTING COMBUSTION Because this appliance uses a pre-mix burner. No setting 1. Check that the hearth is level, then remove the up of combustion is required, the burner automatically appliance from its transit wooden pallet, and position controls the air to gas rate ratio. -
Page 11: Burner Access
Installation Instructions BURNER ACCESS - SEE FIG. 4 INNER PANEL 1. Open the burner access door. 4 SCREWS 2. Remove (5) inner panel securing screws and remove panel. 3 Remove the (3) plinth securing screws and remove plinth. FIG. 4 DESN 511424 ELECTRICAL CONNECTION - SEE FIG. -
Page 12: Terminal Strip Connection
Installation Instructions TERMINAL STRIP CONNECTIONS TO THE BURNER VIA 7 WAY CONNECTOR 3 AMP PERMANENT SUPPLY PROGRAMMER EARTH. PROGRAMMER NEUTRAL OPTIONAL EXTERNAL PROGRAMMER INSTALLED CONNECT WIRING AS SHOWN AND REMOVE LINK FROM PROGRAMMER LIVE PL-SW/L LINK SWITCH LIVE FROM SW/L PROGRAMMER FIG. -
Page 13: Programmer Wiring
Installation Instructions USING A SINGLE CHANNEL OPTIONAL PROGRAMMER IN CONJUNCTION WITH THE RAYBURN 400 COOKER ONLY: 1. Always use the same isolating switch for both the cooker and programmer. Ideally: use the supply connections on the appliance. 2. Before carrying out any maintenance work on either the programmer or the cooker ensure the supply is isolated. PROGRAMMER WIRING FIG. -
Page 14: Burner Control
Installation Instructions BURNER CONTROL When the thermostat is calling for heat, 230V is supplied to terminals 10 and 11 on the control box and tab 1 and 2 on the fan. The fan should start straight away. There will then be a short delay while the control box checks that the fan is running and pre-purges. -
Page 15: Ancillary Control Check
Installation Instructions ANCILLARY CONTROLS CHECK INSTRUCT THE USER Before leaving the site, check that the operation of cooker 1. Advise the User that, for continued efficient and safe timer and thermostat are capable of controlling the burner operation of the appliance, it is important that adequate correctly. - Page 16 For further advice or information contact your local distributor/stockist With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described at any time. Manufactured by AGA Rangemaster Station Road...
