AGA eR3 90 User's Manual & Installation Instructions

Hide thumbs

page of 48

/ 48
Bookmarks

Quick Links

Download this manual

LPRT 517670

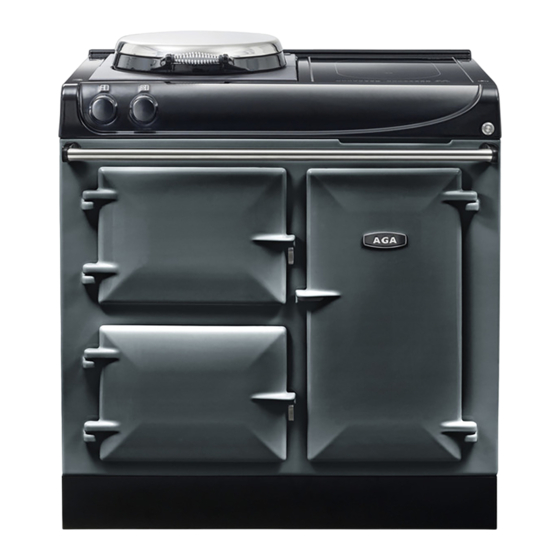

AGA eR3

Model Nos

eR3 90-3,

eR3 90-3i,

eR3 150-4,

eR3 150-4i

User Guide &

Installation Instructions

CAUTION: THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE MANPOWER MUST BE USED IN MOVING THE

RANGE TO AVOID DAMAGE TO THE UNIT OR THE FLOOR.

REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and

performance specification that we require.

DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA.

PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE

AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

For use in GB and IE

09/2021 EINS 517671
