Vantron
| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions

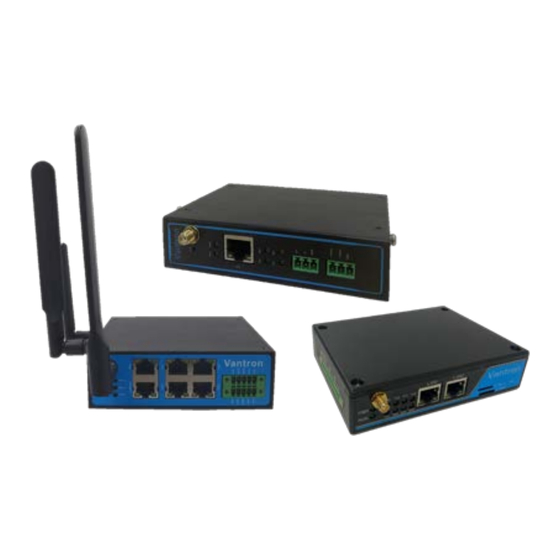

C335 Series
Edge Computing Gateways
User Manual
Version: 1.4
© Vantron Technology, Inc. All rights reserved.
C335 Series Edge Computing Gateways | User Manual
www.vantrontech.com
Advertisement
Table of Contents
Related Manuals for Vantron C335 Series
Summary of Contents for Vantron C335 Series
- Page 1 | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions C335 Series Edge Computing Gateways User Manual Version: 1.4 © Vantron Technology, Inc. All rights reserved. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 2 Aug. 18, 2021 V1.2 V200R003 Updated contact information Jun. 15, 2022 V1.3 V200R003 Updated interface description of C335L Nov. 23, 2022 V1.4 V200R003 Updated protocol portal login and configuration Mar. 24, 2023 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
3.3.3 WAN Setting – Client ....................... 40 3.3.4 WAN Setting – 4G/LTE ..................... 41 3.3.5 WAN Setting – PPPoE ...................... 42 3.3.6 WAN Setting – Static ....................... 43 3.3.7 Auto Routing ........................44 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 4 IPK Installation for Industrial Protocols ................86 Protocol Configuration and Application ................87 4.2.1 Configuration of Data Acquisition Protocols ..............87 4.2.2 Device Configuration....................... 89 4.2.3 Add Variables to the Device .................... 90 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 5 4.2.7 Alarm ..........................98 4.2.8 Logs ..........................100 4.2.9 System Settings ......................100 CHAPTER 5 DISPOSAL AND WARRANTY ................... 102 Disposal ......................... 103 Warranty ........................104 Appendix Regulatory Compliance Statements ................. 105 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 6: Foreword
Thank you for purchasing Vantron edge computing gateway (“the Gateway” or “the Product”). There are three models in C335 series gateways: C335L, C335, and C335S, so please refer to the respective part of the manual for the product you bought. This manual intends to provide guidance and assistance necessary on setting up, operating and maintaining the Product. - Page 7 This manual uses the following signs to prompt users to pay special attention to relevant information. Caution for latent damage to system or human injury Attention to important information or regulations C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 8 The use or placement of the operation tools shall comply with the code of practice of such tools to avoid short circuit of the Product. • Cut off the power before inspection of the Product to avoid human injury or product damage. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 9 • Clean with a damp cloth Do not try to clean exposed electronic components unless with a dust collector • Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged • •...
-
Page 10: Chapter 1 Hardware Description
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 HARDWARE DESCRIPTION C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 11: Product Overview
World-leading provider of embedded/IoT products and solutions 1.1 Product Overview Vantron C335 series edge computing gateways were launched to meet the needs of IIoT applications in various industrial scenarios. This series supports a variety of industrial protocols to allow access by field industrial devices such as PLCs, HMIs, sensors, etc. The edge computing functionality helps to achieve data optimization at IoT edge nodes, which reduces the data volume accumulated in the field and the central console. -
Page 12: Unpacking
1 x 4G LTE antenna or 1 x Wi-Fi antenna Actual accessories might vary slightly from the list above as the customer order might differ from the standard configuration options. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 13: Specifications
Terminal 3-pin 3.81mm terminal 3-pin 3.81mm terminal 3-pin 3.81mm terminal VantronOS Available Network SNMP v1/v2c/v3 management Software Device management Vantron BlueSphere platform IoT protocol MQTT/ HTTPS IPK import Supported C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 14 Operating: -20℃ ~ Operating: -20℃ ~ +70℃ Operating: -20℃ ~ +70℃ Temperature +70℃ (Optional: -20℃~+85℃) Storage: -30℃~+85℃ Environment Storage: -30℃~+85℃ Storage: -40℃~+85℃ Condition Humidity RH 5%-95% Certification CE, FCC, PTCRB C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 15: Definition Of Interfaces (C335L)
Ethernet port, shown as ETH0 in VantronOS and works in LAN area by default Status indicators for serial port R2 (blinks at data transfer) Serial port R2 (RS485) Status indicators for serial port R1 (blinks at data transfer) Serial port R1 (RS232/RS485) Ground screw C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 16: Left Side View
1.4.2 Left side view Interface Description 4G diversity antenna Debug port Micro SIM slot Micro SD slot Wi-Fi & BT antenna 9V-36V DC power terminal 4G primary antenna C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 17: Serial Port
2. Input the following command lines in a host device to enable RS485 on R1 and use a serial communication program (e.g., microcom) to open the port: ~# gpio set uart0 rs485 save ~# gpio set uart0 rs485 ~# gpio get uart0 rs485 ~# microcom /dev/ttyO2 -s 115200 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 18: Definition Of Interfaces (C335)
LAN 1, shown as ETH0 in VantronOS and works in LAN area by default LAN 2, shown as ETH1 in VantronOS and works in WAN area by default Micro SD slot Micro SIM slot 8 x Serial port status indicator (blinks at data transfer) C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 19: Right Side View
Gateway will be factory reset. Once finishes, the system will reboot. • When the button is pressed for over 10 seconds, user partitions will be formatted and data in such partitions will be cleared. 1.5.3 Serial port C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 20 Input the following command lines in a host device to enable RS485 on COM2 and use a serial communication program (e.g., microcom) to open the port: ~# gpio set uart0 rs485 save ~# gpio set uart0 rs485 ~# gpio get uart0 rs485 ~# microcom /dev/ttyO2 -s 115200 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 21: Definition Of Interfaces (C335S)
Debug port, to connect an RJ45 to DB9 adapter for serial debugging 4 x LAN port, shown as ETH0 in VantronOS and work in LAN area by default AI/DI port 4G antenna 1 4G antenna 2 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 22: Right Side View
GND1 RS232 or RS232_TX / RS485_1_B /dev/ttyO1 485_1 RS485 (default) RS232_RX / RS485_1_A GND2 RS485_2_B /dev/ttyO2 RS485 485_2 RS485_2_A GND3 RS485_3_B /dev/ttyO3 RS485 485_3 RS485_3_A GND4 RS485_4_B /dev/ttyO4 RS485 485_4 RS485_4_A C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 23 Input the following command lines in a host device to enable RS485 on COM1 and use a serial communication program (e.g., microcom) to open the port: ~# gpio set uart0 rs485 save ~# gpio set uart0 rs485 ~# gpio get uart0 rs485 ~# microcom /dev/ttyO2 -s 115200 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 24: Optional Functions
Service RecHandle: 0x1000a Service Class ID List: "Phonebook Access - PSE" (0x112f) Protocol Descriptor List: "L2CAP" (0x0100) "RFCOMM" (0x0003) Channel: 19 "OBEX" (0x0008) Profile Descriptor List: "Phonebook Access" (0x1130) Version: 0x0101 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 25 [Note: The test file is sent to the Bluetooth device] > q [Note: to exit obex_test] 5. Exit “obex_test”, and enable page and search scan so that the target Bluetooth device is discoverable; ~# hciconfig hci0 piscan C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 26: Can (C335)
2. Run “candump” command on Gateway B and set the Baud rate between 100000 (100kbps) and 1000000 (1000kbps); ~# ip link set can0 type can bitrate 100000 ~# ifconfig can0 up ~# candump can0 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 27: Gpio (C335)
4. Read the GPIO value; ~# cat /sys/class/gpio/gpio22/value 5. When you finish using the pin, just unexport it. To do this, write the pin number to the unexport file: ~# echo 22 > /sys/class/gpio/unexport C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 28: System Boot
2) Input the following command line to unzip the release package (C335S for instance) sent from Vantron; ~# unzip XOS_sd2mmc_VT-M2M-C335S “version number”.zip 3) You will get the files as explained below: C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 29: System Boot From Emmc Flash
2. Set DIP switch S1 to on:on:off:on as shown below; C335S for illustration 3. Power the Gateway on. After the system boots up from eMMC, the status indicator will turn solid green. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 30: Chapter 2 Getting Started
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 GETTING STARTED C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 31: Setting Up The Gateway
Connect one end of an Ethernet cable to the Ethernet port of the Gateway and the other to your PC (the Ethernet port is used as a LAN port by default); C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 32 10. The power and status indicators will turn solid green upon power application. The antennas might be different from what used for illustration here. Should you have any trouble installing the antennas, please contact the sales executive for solution. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 33 Connect one end of an Ethernet cable to LAN2 port (WAN) of the Gateway and the other to a live Ethernet port; Connect one end of an Ethernet cable to LAN1 port (LAN) of the Gateway and the other to your PC; C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 34 The min-PCIe module in C335 is either used for 4G/LTE or Wi-Fi & Bluetooth, so the function of the antenna depends on which communication module you choose. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 35 Install the antennas to the antenna connectors and tighten the connectors; Connect one end of an Ethernet cable to the WAN port of the Gateway and the other to a live Ethernet port; C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 36 Before you use a SIM card to provide wireless network access for the Gateway, make sure the SIM card is activated with data plans (refer to 3.5.3 4G/LTE application of the SIM card from the carriers if the module is pre-certified). C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 37: Gateway Login
IP address. Refer to SSH Access included in 3.9.3 for more details. The latest version of Google Chrome or Firefox is recommended. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 38: Interfacing With Vantron Gateway Management Platform
World-leading provider of embedded/IoT products and solutions Interfacing with Vantron Gateway Management Platform BlueSphere GWM, Vantron gateway management platform, is a web-based console where multiple gateways/routers could be managed in groups to provide the required information. If the gateway/router supports data collection/upload protocols, users can also set up the data collection tasks, collection variables, uploading rules, etc. -
Page 39: Wi-Fi Connectivity
2.5 Custom Settings As Vantron provides an SDK, users can upload their own scripts or programs or IPK packages to the Gateway and set them to run at startup or to support certain protocols. -
Page 40: Chapter 3 Gateway Setup Via Vantronos
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 GATEWAY SETUP VIA VANTRONOS C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 41: Introduction To Vantronos
3.1 Introduction to VantronOS Featuring independent development of system and functions, VantronOS is an intelligent operating system that interprets the joint efforts of Vantron team based on Linux system and embedded hardware. It employs modular design and plug-in expansion design ideas, running Linux kernel with firewall to secure Internet connection of devices without being attacked. -
Page 42: Status
4. A collection of network diagnostic tools 5. Instant default exit traffic 6. Model, serial number, and IP address of the gateway in use 7. System log information 8. Kernel log information C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 43 14. Application layer protocols HTTPS, HTTP, and POP3S represent the top 3 protocols for data download and upload. HTTPS, HTTP and DNS represent the top 3 protocols for device connection. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 44: Quick Start
Step 2: Click to switch the protocol to DHCP; Save & Apply. Step 3: Click Switch of WAN protocol will reset the network port topology and network parameters to default values. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 45: Wan Setting - Client
Step 7: Confirm if the Wi-Fi network is accessible. If not, select No as the heartbeat detection method might be different; Step 8: Select the protocol for IP addressing (DHCP by default); Step 9: Click Save & Apply. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 46: Wan Setting - 4G/Lte
“3g-4g” which is the WAN port. When using a carrier pre-certified 4G module provided by Vantron, the device port for 4G/LTE communication displayed under the protocol will be “eth2” which is the WAN port. -
Page 47: Wan Setting - Pppoe
Step 2: Click to switch the protocol to PPPoE; Step 3: Enter the username for PAP/CHAP authentication; Step 4: Enter the password for PAP/CHAP authentication; Step 5: Click Save & Apply. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 48: Wan Setting - Static
Step 5: Specify the IPv4 gateway; Step 6: Specify the IPv4 broadcast; Step 7: Set the DNS server; Step 8: Click Save & Apply. Leave the field as is if not available. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 49: Auto Routing
Use spaces to separate multiple IP addresses. If you do not have internet access or private network, set the traceable IP to that of the upper layer gateway. Edit rules Delete rules Status overview of interfaces tracked C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 50 Use spaces to separate multiple IP addresses. If you do not have internet access or private network, set the traceable IP to that of the upper layer device. Save & Apply the settings C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 51: Virtual Tunnel
5. Set a port that the server is to monitor; 6. Choose the WAN port IP or DDNS or public IP that the server is to monitor; C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 52: Vpn Client
To configure a VPN client on the Gateway, navigate to Virtual Tunnel > VPN Client for specific settings. Before enabling the VPN client, please update the time zone of the client with that of the browser, and complete a time synchronization. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 53: Network
Network tab and make changes accordingly. No matter where you make the changes to the network, previous settings will be overridden once you save and apply the current settings. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 54: Interfaces
The interfaces may differ from what is shown above as certain models do/do not have the module that make corresponding interface available. The interfaces will be described in detail in the following sections. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 55: Lan
Description of the numbered areas 1. MAC address cloning 2. MTU settings 3. Keep the metric same as Auto Routing or customize the metric Be sure to save the settings before you exit the page. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 56 If disabled, DHCP service will not be available to devices connected to the LAN interface.. 2. DHCP start address 3. Maximum number of leased addresses (up to 150) 4. Expiry time of leased addresses (min. 2m) C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 57 Be sure to save the settings before you exit the page. Clicking on Back or Refresh will get you back to interface settings. You will be redirected to 4G/LTE configuration page upon a click of the Edit button behind 4G interface. Refer to 3.5.3 4G/LTE for details. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 58: Wan
1. Enable Use default gateway 2. Enable Use DNS server advertised by peer 3. Gateway metric 4. MAC address cloning 5. Network MTU Be sure to save the settings before you exit the page. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 59: Wireless (Wifi)
Clicking on Back or Refresh will get you back to interface settings. 3.5.2 Wireless (WIFI) You can switch between AP and client modes for wireless connection. Once again, this is not applicable to C335 if 4G/LTE is chosen for wireless connection. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 60: Wi-Fi - Ap Mode (General Settings)
3. Select an encryption method (the following options vary with the encryption method) 4. Select an encryption algorithm 5. Assign a Wi-Fi password (no less than 8 characters) 6. List of currently connected devices C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 61: Wi-Fi - Ap Mode (Advanced Setting)
As modification of fields 2 and 4 will have impact on the Wi-Fi signal, the web interface will return to the general settings page upon a clicking of the switch button. 6. The network interface to which Wi-Fi belongs C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 62: Wi-Fi - Client Mode
6. Input the password of the Wi-Fi 7. Confirm that the target Wi-Fi has internet connection When the Gateway is successfully connected as a client, there will be the network information next to Scan WIFI button. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 63: Lte
6. Click Advanced Setting for more configuration options Leave the field as is if not available. PAP/CHAP username and password are to be specified only if your carrier has setup APN with user name and password. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 64 6. Select AT&T/TMO/Canada or Verizon from the drop-down list for AT&T SIM cards and Verizon SIM cards, respectively 7. Default MTU value (1500) Remember to save the settings to have the configurations take effect. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 65: Static Routes
It is not present in normal routing tables. The destinations are unreachable. Packets are discarded and the ICMP Unreachable message of host unreachable is generated. The local senders will receive an EHOSTUNREACH error. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 66: Firewall
Description INPUT chain default strategy Input String ACCEPT (ACCEPT, REJECT, DROP) OUTPUT chain default strategy Output String ACCEPT (ACCEPT, REJECT, DROP) FORWARD chain default strategy Forward String REJECT (ACCEPT, REJECT, DROP) C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 67 8. Zone editing A click of the Edit button following each zone will direct you to the detailed zone setting page where general settings, advanced settings and forwarding rules are available. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 68 Custom rules allow you to execute arbitrary iptables commands which are not otherwise covered by the firewall framework. The commands are executed after each firewall restart, right after the default rule settings have been loaded. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 69: User Management
5. Be sure to save the settings before you exit the page. The Edit and Delete buttons behind a user allow you to enable/disable certain functions for this user or delete this user. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 70: Customization
5. Enable the script, and it will run next time when the Gateway starts up 6. If more than one script is uploaded, you can move any of them up or down to rearrange the script order, and edit/delete the script C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 71: Ipk Installer
The three modes that customers can choose from the drop-down list based on needs are explained as follows: Vantron: All the information included in the files will be about Vantron. Standard: Some of the fields included in the files will be “Gateway” by default, and some information like the copyright will be left blank. -
Page 72: Dmp Agent
If you wish to activate the Gateway again on the GWM, please click Clear Agent on the VantronOS portal, then enable the agent and wait a moment to allow the device to come online. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 73: Snmp Service
2. The SNMP agent listens on UDP port 161 by default for any SNMP GET and other requests from the manager 3. Name of the user-defined SNMP command 4. Content of the command 5. Command argument 6. The OID (each number provides a piece of corresponding information) C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 74: Hardware
C335S implements 2 analog input interfaces (AIN0 & AIN1) and 4 digital input interfaces (DIN0, DIN1, DIN2, DIN3). Here you can enable the display function and access the data collected by the interfaces. AIN input voltage range: 0-8V. DIN input voltage range: 0-3.3V. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 75: Ser2Tcp
° A USB to TTL serial adapter ° A DuPont cable ° Connect the serial port (e.g., RS485 serial port (R2) on the left side) of the C335L gateway to the host as follows C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 76 1. Click Add to add a conversion rule 2. Select Enable from the drop-down 3. Set the Baud rate to 115200 4. Save the settings 5. Click Edit after the rule to enter the advanced settings page C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 77 9. Select “1” as the stop bit (2) The Ser2net process is running as follows: uart2net -c -d 192.168.93.1 -p 8888 -t /dev/ttyO4 -b 115200 -a 8 -r none -s 1 -o 20 C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 78 Monitor the designated port (8888 as assigned in prior steps) ° tcpudp_test tcp server:tcpudp_test -p 8888 ° Input data in terminal A and receive in terminal B (the topology is as follows) C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 79 1. Click Add to add a conversion rule 2. Select Enable from the drop-down 3. Set the Baud rate to 115200 4. Save the settings 5. Click Edit after the rule to enter the advanced settings page C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 80 9. Select “None” for parity 10. Select “1” as the stop bit Save and Apply above settings after the settings. (2) The Ser2net process is running as follows: /usr/sbin/ser2net -n -c /tmp/ser2net.conf C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 81: Protocol Comparison
Rawlp: enables the port and transfers all input data to a gateway that is open without any Termios settings, allowing to use /dev/lpx devices and printers connected. Telnet: enables the port and runs the telnet protocol on the port to set up telnet parameters (less used). C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 82: Services
Install an OpenVPN client on the host PC to connect the OpenVPN server built by G1 and • install a PLC control program to manage the PLC settings like the IP address C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 83: Protocol Service
6. NTP online time server For log-related settings, click Logging tab next to the General settings tab. If you want to change the interface language, just navigate to Language and Style tab following behind. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 84: Nbm Setting
Protocol Mapping can be used to distinguish traffic types per host. Each mapping takes one line, with the first value being the IP protocol, the second value being the port number, and the third value being the name of the mapping protocol. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 85: Administration
When “unspecified” is selected, all the ports will be monitored. 2. Specify a port for monitoring (port 22 by default) 3. Allow SSH password authentication 4. Add SSH-Keys for public key authentication C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 86 Step 6: Set the session name and Save, keep the other settings unchanged, then click Open; Step 7: Log in to the root account (password same as the gateway login password as shown above), and start an SSH remote session. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 87: Terminal
Login name: root Login password: rootpassword (invisible while typing) 3.10.5 Mount Points You can enable/disable automount and check the mounting information here. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 88: Backup/Flash Firmware
3. Upgrade the Gateway and keep the existing settings unchanged If the cloud version is shown Failure, the Gateway is not activated from the cloud, please contact your sales executive for solution. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 89: Reboot
You will exit the web interface with a click on the Logout tab. If you need re-log the web, use the default password: admin. Make sure you have saved the changes before logout. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 90: Chapter 4 Industrial Protocol Configurations
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 INDUSTRIAL PROTOCOL CONFIGURATIONS C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 91: Ipk Installation For Industrial Protocols
Once the .ipk file is installed, a message will be displayed suggesting the status of the file installation as shown below. Input the port number (8081) after the Gateway IP in the address bar, for instance: 172.18.1.1:8081, and enter the protocol web interface which looks like below. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 92: Protocol Configuration And Application
4.2.1 Configuration of Data Acquisition Protocols Click Collect Configure on the left navigation pane to add a channel for data collection. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 93 12. The stop bit represents the last bit in a single package, and the typical value includes 1, 1.5 and 2 13. Select to enable request to send (RTS) protocol or not C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 94: Device Configuration
S7 protocol is included in the .ipk file and you have created a channel for the protocol. Then you can proceed with the PLC setup under the channel. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 95: Add Variables To The Device
4.2.3 Add Variables to the Device After configuration of the PLC for data collection, click Add under the Variable List next to the channel and device to set the variables for the PLC. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 96 The data type (5) is subject to the type of PLC connected to the gateway. After configuration of the PLC and the variables at different nodes, you can export the configurations to the local for backup, or, you can import the configurations backed up earlier. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 97 If you click the Reboot Collect Program button, the channels and respective collection tasks will be restarted. Clicking the Install Protocol Package button allows you to upload protocol plugins here. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 98: Edge Computing Scripts Setup
5. Select the format of the script (JavaScript, Lua and Python supported) 6. Select to enable the script or not 7. Compile the script in the window After compilation, click OK to exit. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 99 Reuse Context allows you to set a restart mechanism for the scripts 6. Start/pause, copy, edit or delete the script. (You can access the script information and the execution log upon a click of the Edit button) C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 100: Collection Status
Expand Data Uploading tab from the navigation pane and click Upload Config; • • Click the Add button on the upper right corner to add a data upload task, and click OK; C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 101 9. Data publish topic: used for MQTT messaging to identify which message channel the payload data is supposed to be published 10. Topic for MQTT message subscription which enables the server to send message to a client for the control purpose C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
- Page 102 24. Select the device of the source data The configurations will take effect after you click Submit. Then users can browse the data uploaded to the MQTT platform for data view, statistics, analysis, etc. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 103: Alarm
6. Set an alarm level (under normal level, no alarm will be triggered) 7. Click “+” to add a trigger condition, click “-” to delete a trigger condition 8. Select a data linkage 9. Click to save the alarm rule C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 104 When you are all set, you can send a test email to check if the settings are ok, then submit the settings. The alarm logs will be displayed on the Alarm Record page if any rules are triggered. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 105: Logs
2. Clear the logs 3. Export the logs 4. Restart the collection 4.2.9 System Settings Under System Settings, you can configure system parameters and check the system information concerned. • Log Config. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... - Page 106 You can change the system language on the General Settings page. GSD Management • Users can upload the general station description (GSD) files on the GSD Management page for PROFIBUS DP or PROFINET IO communication. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
-
Page 107: Chapter 5 Disposal And Warranty
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 5 DISPOSAL AND WARRANTY C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 108: Disposal
Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com... -
Page 109: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON. -
Page 110: Appendix Regulatory Compliance Statements
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment. C335 Series Edge Computing Gateways | User Manual www.vantrontech.com...
